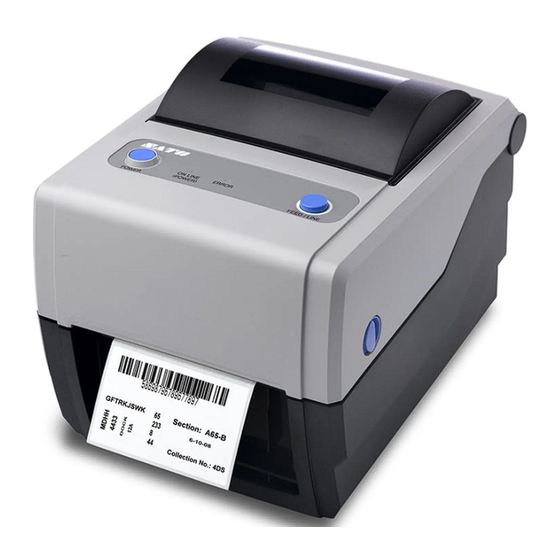

SATO CG408TT Quick Manual
Cg4 series direct thermal type/thermal transfer type
Hide thumbs
Also See for CG408TT:
- Service manual (134 pages) ,
- Operator's manual (102 pages) ,
- Quick manual (26 pages)
Related Manuals for SATO CG408TT
Summary of Contents for SATO CG408TT
-
Page 1: Quick Guide
CG4 Series CG408TT CG412TT Thermal Transfer Type 203 dpi/305 dpi CG408DT CG412DT Direct Thermal Type 203 dpi/305 dpi Quick Guide... - Page 2 FCC WARNING You are cautioned that changes or modifi cations not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Safety Precautions
Do not use other than the accidentally drinking it. If the • specified voltage. Doing so fluid is drunk, immediately could result in fire or electric consult with a physician. shock. Version 1.December 2008 Q02444000 ©2008 SATO CORPORATION... - Page 4 Caution Do not place in areas with high humidity Power cord Loading paper When loading roll paper, be Do not place the printer in Keep the power cord away from • • • careful not to get your fingers areas with high humidity or hot devices.
-
Page 5: Precautions For Installation And Handling
Precautions for Installation and Handling Printer operation can be affected by the printer environment. Refer to the following instructions for installation and handling of CG408/412 series. Select a Safe Location Place the printer on a surface that is flat and Keep the printer out of high temperature and level. -
Page 6: Table Of Contents
Table of Contents Safety Precautions ········································································· I Precautions for Installation and Handling ···································· III Names of Parts ············································································· 2 Turning On the Power ··································································· 6 Basic Specifi cations ····································································· 8... - Page 7 Checking Accessories Make sure that you have received all of the following items in the package. If there are any accessories missing, contact your nearest dealer or the store where you purchased the printer. Leaflet (Global warranty) Quick Guide (this manual) AC power cord AC adapter ▲...
-
Page 8: Names Of Parts
Names of Parts ▲ Printer Unit (Unit Exterior) Operation panel Top cover Cover open/close latch Label discharge outlet ▲ Back (USB + RS-232C Interface) USB connector RS-232C connector DC input power terminal (Power connector) ▲ Back (USB + LAN Interface) USB connector LAN connector DC input power terminal... - Page 9 When Top Cover is Opened ▲ For CG408DT/412DT Print head Paper holder Paper holder slide lever Paper sensor Platen roller ▲ For CG408TT/412TT Print head Ribbon unit Paper holder Paper holder slide lever Paper sensor Platen roller...
- Page 10 When Top Cover is Opened (Cutter Type (Optional)) Paper holder Paper holder slide lever Paper sensor Platen roller Cutter unit When Top Cover is Opened (Dispenser Type (Optional)) Paper holder Paper holder slide lever Paper sensor Platen roller Dispenser paper sensor Backing paper discharge outlet (When the dispenser unit is open) Dispenser unit...
-
Page 11: Operation Panel
When Top Cover is Opened (Linerless Type (Optional)) Paper holder Paper holder slide lever Paper sensor Platen roller Linerless paper sensor ▲ Operation Panel POWER button Press this button to turn the power on or off. ON LINE (POWER) lamp The lamp lights green when the printer is online and blinks green when the printer is offline. -
Page 12: Turning On The Power
Turning On the Power Power Setting Plug the DC power cord of the AC adapter into the printer and turn on the power. Connect the AC power cord to the AC adapter. AC adapter AC adapter AC power cord AC power cord Connect the printer AC adapter AC power outlet. - Page 13 P re s s t h e P O W E R b u t t o n o n t h e operation panel of the unit. The ON LINE (POWER) lamp lights. Check that the ON LINE (POWER) lamp is lit. POWER button POWER button ON LINE (POWER)
-
Page 14: Basic Specifi Cations
* Printing speed differs depending on paper type and usage environment. Paper type/ Roll paper (Face-out / Face-in winding) Paper shape Recommended use of paper manufactured or specifi ed by SATO. Paper thickness 60 to 190μm (0.06 to 0.19 mm) Label size... - Page 15 — Winding direction: Face-out winding Winding method: Ribbon core winding method *Recommended use of carbon ribbon manufactured or specifi ed by SATO. Label issuing Standard: Continuous mode, Tear off mode, Sensor-off mode mode Option: Dispenser mode, Cutter mode, Linerless mode Dimensions 179 (W) ×...
- Page 16 Model name CG408DT CG412DT CG408TT CG412TT Composite symbol EAN-13 Composite (CC-A/CC-B) EAN-8 Composite (CC-A/CC-B) UPC-A Composite (CC-A/CC-B) UPC-E Composite (CC-A/CC-B) GS1-128 Composite (CC-A/CC-B/CC-C) GS1 DataBar Composite (CC-A/CC-B) GS1 DataBar Truncated Composite (CC-A/CC-B) GS1 DataBar Stacked Composite (CC-A/CC-B) GS1 DataBar Stacked Omni-Directional Composite (CC-A/CC-B)
- Page 17 Model name CG408DT CG412DT CG408TT CG412TT Standard functions Status return function Graphic function Sequential number function Form overlay function Custom character registration function Black/white inversion function Ruled line function Format registration function Zero slash switching function Self-diagnostic Paper end detection...
- Page 19 *Q 02444000*...
