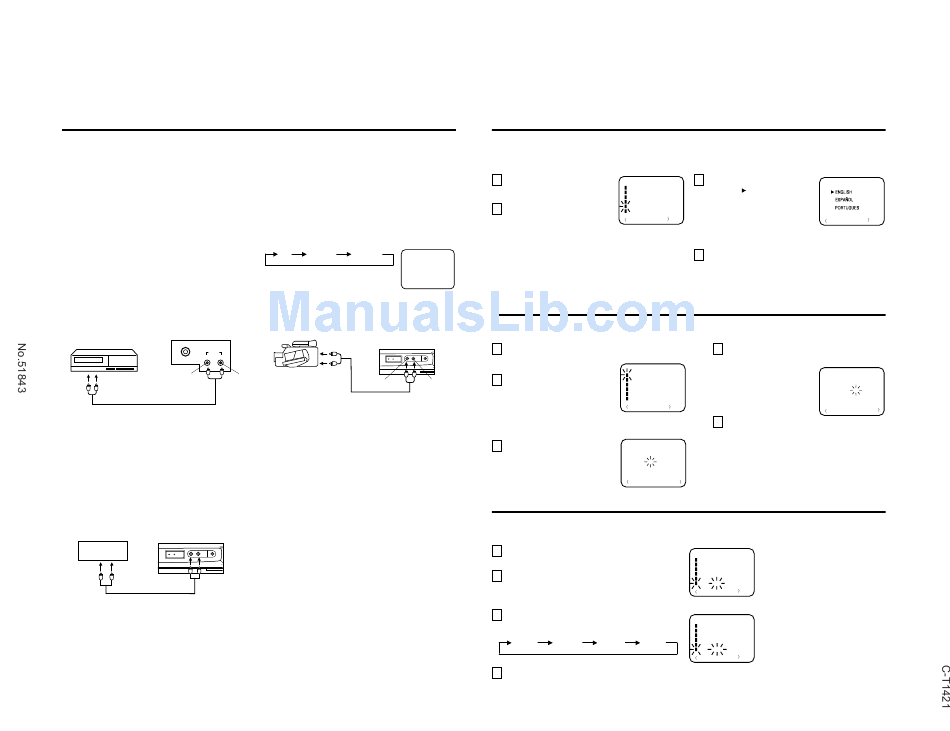

CONNECTION TO OTHER EQUIPMENT

The exact arrangement you use to interconnect various video and audio components to the TV is dependent on the model
and features of each component. Check the User's Guide provided with each component for the location of video and audio
inputs and outputs.
The connection diagrams in the following are offered as suggestions. You may need to modify them to accommodate your
particular assortment of components. The diagrams are intended to show component video and audio interconnections only.
Press the TV/AV button to select the AV mode to use the TV as a monitor.
Operate your VCR as usual.
TV/AV SELECTION
If you connect the TV to VCR, camcorder, TV game or DVD you can select by pressing the TV/AV button.
Press the TV/AV button repeatedly to select the desired
mode.
1. To connect the TV to a VCR
(ex. Use AV 1 IN jacks to connect it.)
Rear of TV
VCR
AV1 IN
VIDEO AUDIO
VIDEO AUDIO
To Audio/
Video OUT
(not supplied)
• Select "AV 1" by pressing the TV/AV button to display
the VCR picture.
2. To connect the TV to a TV Game
The TV can also be used as a display device for many
video games. However, due to the wide variety of
different types of signal generated by these devices and
subsequent hook-up variations required, they have not
all been included in the suggested connection diagrams.
You'll need to consult each component's Owner's
Manual for additional information.
To Audio/Video OUT
Front of TV
TV GAME VIDEO — AV2 IN — AUDIO EARPHONES
STAND BY ON TIMER
(not supplied)
• Select "AV 2" by pressing the TV/AV button to display
the TV GAME picture.
8
TV AV 1 AV 2
AV1
An indication of input source will display
on the screen for 4 seconds.
3. To connect the TV to a camcorder
To playback from the camcorder, connect the camcorder
to the TV as shown.
Front of TV
VIDEO — AV2 IN — AUDIO EARPHONES
STAND BY ON TIMER
To Audio
Video OUT
VIDEO AUDIO
(not supplied)
• Select "AV 2" by pressing the TV/AV button to display
the camcorder picture.

SETTING LANGUAGE

This TV can display the channel number, on-screen displays and picture adjustments on the screen in English, Spanish or
Portuguese.
On-screen language selection (step 3) will automatically appear on the screen when you press the MENU button initially.
Select the language you prefer first, then proceed with the other menu options.
1
Press the MENU button.
M E N U
CLOCK SET
ON/OFF TIMER
CH SET UP
2 LANGUAGE / IDIOMA
Press the SET + or – button to
COLOR AUTO
select the LANGUAGE mode,
+ / — / ENTER / MENU
then press the ENTER button.
NOTE:
If Spanish or Portuguese is chosen, the Closed Caption indicators will be in the selected language, but the Closed Caption
text will not be affected by the language selection.

SETTING CLOCK

You must set the time manually for CALL and ON/OFF TIMER.
1
Press the MENU button.
M E N U
CLOCK SET
2
Press the SET + or – button
ON/OFF TIMER
CH SET UP
until the indicator next to PICTURE
LANGUAGE / IDIOMA
"CLOCK SET" begins to flash,
COLOR AUTO
then Press the ENTER button. + / — / ENTER / MENU
3
Press the SET + or –
button to set the hour, then
CLOCK SET
press the ENTER button. 0 : 00
+ / — / ENTER / RESET / MENU

COLOR SYSTEM

The color system is automatically selected, but if the picture is not clear or no color appears, select the color system
manually.
1
Press the MENU button.
2
Press the SET + or – button to select
the "COLOR" option then press the
ENTER button.
3
Press the ENTER button to select the
desired COLOR SYSTEM.
AUTO PAL-N PAL-M NTSC
4
Press the MENU button.
3
Press the SET + or – button
LANGUAGE / IDIOMA
until the " " indicator points to
the desired language: English
(ENGLISH), Spanish
(ESPAÑOL) or Portuguese
+ / — / ENTER / MENU
(PORTUGUES), then press the
ENTER button.
4 Press the MENU button.
4
Press the SET + or – button to set the minute.
If you want to change the hour, press the
RESET button.
CLOCK SET
10 : 00
+ / — / ENTER / RESET / MENU
5
Press the ENTER button.
NOTES:
• After a power failure, disconnection of the power
plug or turning the TV power off by pressing the
POWER button on the front panel, the time
display will be lost. In this case, set present time
again.
• When you set the minute, you can change in 10-
minutes by holding down the SET + or – button.
M E N U
CLOCK SET
ON/OFF TIMER
CH SET UP
LANGUAGE / IDIOMA
COLOR AUTO
+ / — / ENTER / MENU
M E N U
CLOCK SET
ON/OFF TIMER
CH SET UP
LANGUAGE / IDIOMA
COLOR PAL-M
+ / — / ENTER / MENU
9
