EPAR QW
Unpacking:
Thank you for purchasing the EPAR QW by Elation Pro-
fessional
. Every EPAR QW has been thoroughly tested and has been
®
shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all accessories necessary to operate the unit has
arrived intact. In the case damage has been found or parts are missing,
please contact our customer support number for further instructions.
Do not return this unit to your dealer without first contacting customer
support.
Introduction:

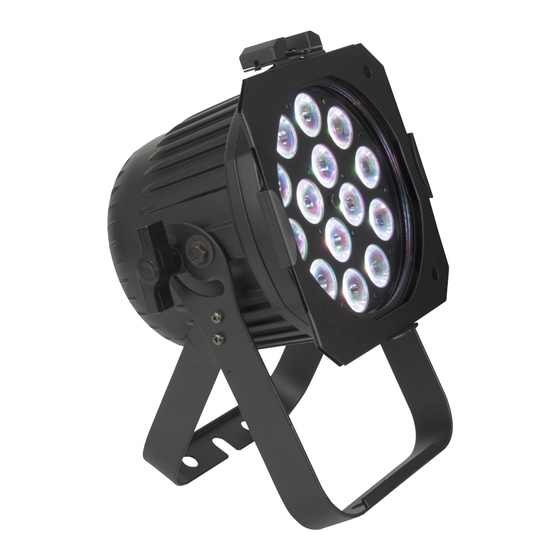

The EPAR QW is part of Elation Professionals
tinuing pursuit for creating high quality affordable intelligent fixtures.
The EPAR QW is a powerful DMX intelligent 4-in-1 RGBW (Red, Green,
Blue, & White) LED wash. This wash is light weight and compact which
makes it a great piece for mobile DJ's and clubs. This unit can be used
as a stand alone, or a sound-active mode. The unit can also be con-
trolled via DMX controller.
Customer Support:
Elation
©
provide set up help and to answer any question should you encounter
problems during your set up or initial operation. You may also visit us
on the web at www.elationlighting.com for any comments or sugges-
tions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.
Pacific Standard Time.
Voice:
(323) 582-3322
Fax:
(323) 832-9142
E-mail:
support@elationlighting.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
Elation customer support.
©
PLEASE recycle the shipping carton when ever possible.
Elation Professional - www.elationlighting.com - EPAR QW Instruction Manual Page 2
