Summary of Contents for Apex Digital Argos

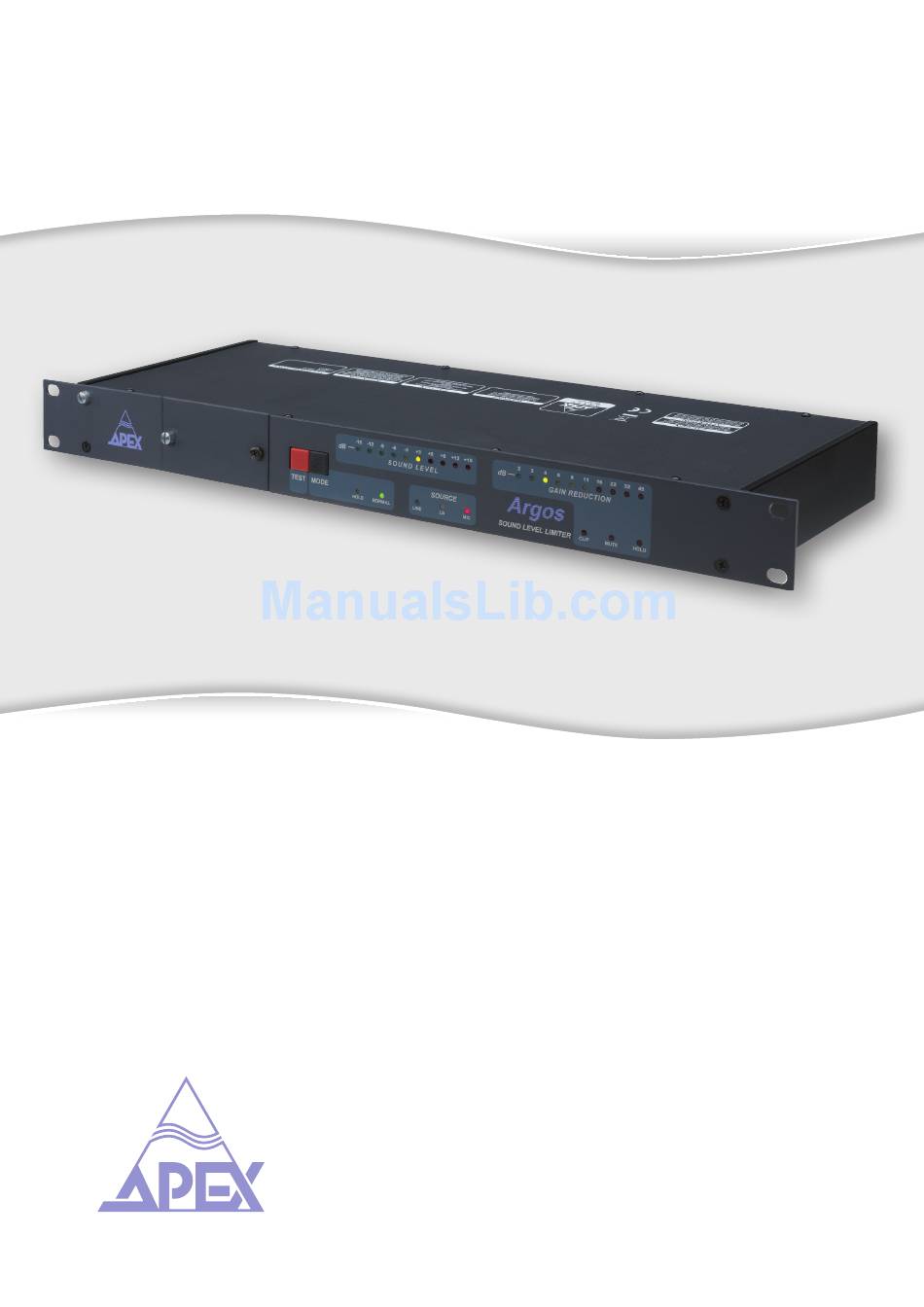

- Page 1 Ar g o s U ser Manual w w w . a p e x - a u d i o . e u...
- Page 2 APEX NV Schoebroekstraat 62 3583 Beringen (Paal) BELGIUM Tel: + 32 (0)11 28 61 91 Fax: + 32 (0)11 25 56 38 e-mail: info@apex-audio.eu website: www.apex-audio.eu Trademarks The APEX trademark is owned by APEX N.V. All other brand, product and company names and any other registered names or trade marks mentioned in this manual belong to their respective owners.
-
Page 3: Table Of Contents
EMC, Cautions. Important safety notes....................6, 7 Damage requiring service, Servicing, Mains cord, Warning. Installation and precautions ..................8 Unpack the ARGOS, Installation, Replacing the mains fuse, General care Warmup and condensation, Warning. Definitions and abbreviations of terms................9 Block diagram ......................10 Introduction ......................11, 12 Applications of the ARGOS, Principle of operation, Connections for the different operation modes. - Page 4 ARGOS - USER MANUAL...
-
Page 5: Important Notes Concerning Emc
To ensure continued compliance with the EMC directive the following precautions should be observed : • For connections to the line-inputs of the ARGOS, use standard coaxial cinch cables. • When it's necessary to extend the microphone cable, use standard coaxial microphone cable. -
Page 6: Important Safety Notes
Important safety notes. The Apex ARGOS was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of : READ AND RETAIN INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated and retained for future reference. - Page 7 The cord must consist of a minimum 18 AWG and a grounding type attachment plug, rated 15A, 250V. • In case the ARGOS contains a mains supply for use in the UK : 100V/120V, use an UL listed cord set consisting of a minimum 18 AWG, type SVT or SJT three conductor cord, a maxi- mum of 15 feet in length and a parallel blade, grounding type attachment plug, rated 15A, 125V.
-
Page 8: Installation And Precautions
INSTALLATION • The ARGOS may be rack-mounted or free-standing. • The ARGOS will accept voltages from 220 to 240 Vac, 50 / 60 Hz. No voltage regulation setting is necessary. • As with all pieces of precision electronic equipment, follow the next rules when using the ARGOS : - Do not subject the equipment to shocks or vibration. -
Page 9: Definitions And Abbreviations Of Terms
Logarithmic ratio of the RMS value of the "A"-weighted sound pressure expressed in Pa and the lowest sound pressure a human ear can detect, being 20 µPa. = 20 µPa. 1 dBA = 20 * log (P/P ) with P Sound Pressure Level expressed in dB. Root Mean Square. ARGOS - USER MANUAL... -
Page 10: Block Diagram
ARGOS block diagram Ma nual Au t. N orma l Fast ARGOS - USER MANUAL... -
Page 11: Introduction
This is the reason why most amplifiers have a loudness-switch to compensate for this effect. In the ARGOS, this sensitivity-difference of the human ear is taken into account in the measurement of the sound pressure level. An “A”-weighted filter in the measuring chain passes the mid-frequencies and attenuates the low and high frequencies. - Page 12 If one uses an active system (separate amplifiers for different frequency ranges), the output of the ARGOS should be connected to the input of the electronic cross-over. See the figures below on how to connect the ARGOS in the audio chain for the 3 different opera- tion modes :...
-
Page 13: Operation Modes
This Line operation mode is particularly suited in those cases where the maximum allowed SPL is low (<80dBA). If the ARGOS is used to protect an installation from damage or if it is used as a sound leveler, this is also the best solution. -
Page 14: Hold Mode
HOLD mode Hold Mode By means of the "MODE" pushbutton (7), ARGOS can be put in hold mode. The purpose of the hold-mode is to prevent a decrease in gain reduction when no signal is available at the input com- ing from the source (mixing desk). -
Page 15: The Front Panel
The front panel ARGOS - USER MANUAL... -
Page 16: Description Of The Front Panel
Displays the sound level in comparison with the preset maximum sound level (thresh old). ( 9 ) GAIN REDUCTION LED-bar : Displays the gain reduction the ARGOS has to perform on the input signal in order to keep the output signal below the adjusted maximum sound level. ( 10 ) HOLD-indicator Indicates that Argos is in 'hold"... -
Page 17: The Rear Panel
The rear panel ARGOS - USER MANUAL... -
Page 18: Description Of The Rear Panel
( 18 ) Loudspeaker input : When the mode selection switch is set to LS, the ARGOS will base its limiting operation on the level measured on both loudspeaker-inputs. So if LS-operation is desired, the LS-outputs of the power amplifier should be con- nected to these inputs. -
Page 19: Installation Instructions
• Connect the LINE- or MASTER-output of the pre-amplifier or the mixing desk to the LINE- input of the ARGOS. • Connect the LINE-output of the ARGOS to the input of the power amplifier or if an active amplification system is used, to the input of the electronic crossover. - Page 20 • When more then 1 amplifier is used and if the maximum admissible sound level is < 80dBA • In these cases where the use of a microphone is not desired. • When the ARGOS is used in mobile installations to protect the speakers from overload. • When the ARGOS is used as a sound leveler.
-
Page 21: Technical Specifications
/ 8 Ohm POWER SUPPLY. Voltage ..........220 - 240 Vac Frequency ..........50 - 60 Hz Power consumption .........6 W at 230Vac Safety requirements .............IEC 65 CABINET. Dimensions ........482 x 44 x 160 mm Weight ............2,5 kg ARGOS - USER MANUAL... -
Page 22: Maintenance And Service
ARGOS. Dirt on components acts as an insulating blanket, preventing efficient heat dissipation. It also provides an electrical conduction path that could result in failure, especially under high-humidity conditions. Normally, internal cleaning of the ARGOS is not necessary when the cover is left in place. ARGOS - USER MANUAL... -
Page 23: Warranty
We reserve the right to change the design on any product without prior notice and without the obligation to make corresponding changes in products previously manufactured. If you have any suggestions for the ARGOS, new features, manual, or whatever, please let us know. ARGOS - USER MANUAL... -
Page 24: Your Suggestions
Your suggestions. If you have any suggestions for the ARGOS, new features, manual, or whatever, please let us know. We would be very happy with your opinion. You can contact Apex through your local dealer, or contact us directly. NOTES. -
Page 25: Service Request Form
: ........................... Phone : ........................... Facsimile : ........................... E-mail : ........................... Model number : ARGOS Serial Number : ................. Purchased from : ........................... Date : ........................... • Describe the symptoms of the malfunction : • Under what condition does the malfunction occur ? At high signal levels At high temperature. -
Page 26: Ec Declaration Of Confirmity
Schoebroekstraat, 62 B-3583 Beringen BELGIUM declare that the APEX ARGOS meets the intent of the EMC Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC. Compliance was demonstrated by conformance to the following specifications which have been listed in the Official Journal of the European Communities :... - Page 28 w w w . a p e x - a u d i o . e u i n f o @ a p e x - a u d i o . e u Copyright © 2010 APEX N.V. All rights reserved. This manual may not be reproduced or transmitted, either in part or as a whole, by any means, be they mechanical or electronic, without the express written permission of APEX N.V.
