S8 / S81 Ceiling Mounts
Planning Manual
M-30-1382-en
Issue 12.0
Printed on 19. 11. 2007

Advertisement

Table of Contents
loading

Related Manuals for Zeiss S8

Summary of Contents for Zeiss S8

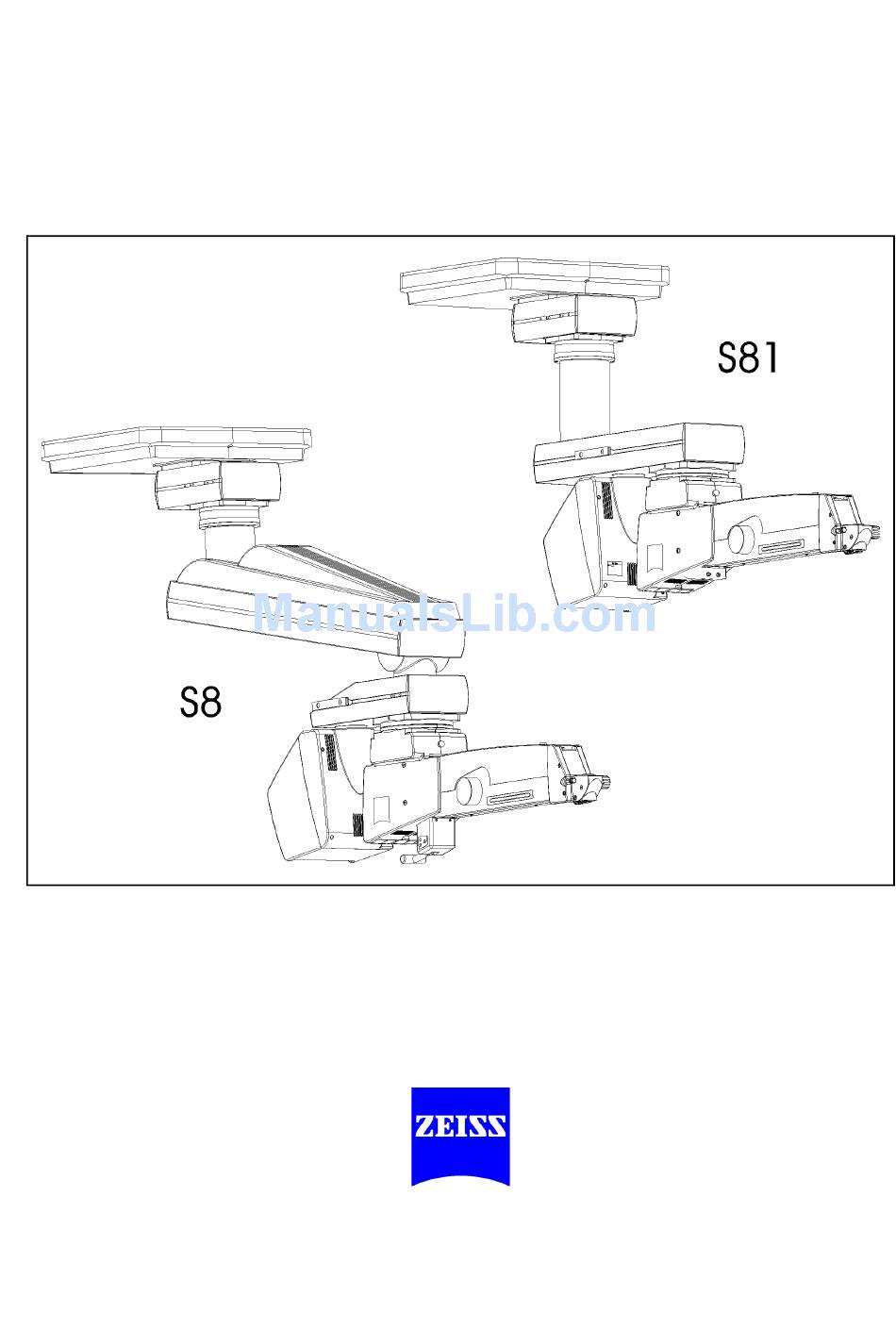

  • Page 1 S8 / S81 Ceiling Mounts Planning Manual M-30-1382-en Issue 12.0 Printed on 19. 11. 2007...
  • Page 2 The hand indicates hints on the use of the instrument or other tips for the user. ® OPMI is a registered trademark of Carl Zeiss Surgical GmbH. M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 3: Table Of Contents

    Contents New installation of S8 / S 81 ceiling mount Technical data On-site preparations Constructional requirements Planning the electrical installation Planning the mechanical installation Confirmation of the structural calculation and execution of installation Ordering data Accessory interface Accessory interface Installation position...
  • Page 4 300 mm (11.8") ceiling panel extension On-site preparations Constructional requirements Confirmation of the structural calculation and execution of installation Ordering data Index M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 5: New Installation Of S8 / S 81 Ceiling Mount

    300 mm (11.8") ceiling panel extension Confirmation of the structural calculation and execution of installation Ordering data S8 ceiling mount for ORs with false ceilings, ordering data S8 ceiling mount for ORs without false ceilings, ordering data M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0...
  • Page 6 New installation of S8 / S 81 ceiling mount S81 ceiling mount for ORs with false ceilings, ordering data S81 ceiling mount for ORs without false ceilings, ordering data M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 7: Technical Data

    New installation of S8 / S 81 ceiling mount Technical data S8 ceiling mount, dimensions 1 False ceiling 620 mm / 24.4T 250 mm 9.8T 350° ± 90° 270° max. 1000 mm / 39.4T max. 930 mm / 36.6T 1 : 20...

  • Page 8: S81 Ceiling Mount, Dimensions

    New installation of S8 / S 81 ceiling mount S81 ceiling mount, dimensions 1 False ceiling 2 Floor A Distance A is specifically defined for each project. B Distance from floor We recommend different distances from the floor, depending on the application involved.
  • Page 9 New installation of S8 / S 81 ceiling mount 620 mm / 24.4T 250 mm 9.8T max. 350° ± 90° 270° 600 mm / 23.6T max. 930 mm / 36.6T 1 : 20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0...

  • Page 10: Pre-Installation Set

    New installation of S8 / S 81 ceiling mount Pre-installation set 1 Stud bolt 2 Spacers 3 Ceiling anchor plate 4 Floor 5 Ceiling panel 6 Mount flange 7 False ceiling 8 Interface plate 9 Structural ceiling A is the distance between the structural ceiling and false ceiling.
  • Page 11 New installation of S8 / S 81 ceiling mount 620 mm / 24.4T (1393 lbf) (7007 lbf.ft) M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 12: Installation Position In The Or

    New installation of S8 / S 81 ceiling mount Installation position in the OR The optimum installation position of the ceiling anchor plate is dependent on the required position of the operating table in the OR. The following overview shows the ceiling mounts in their optimum operating positions.
  • Page 13 New installation of S8 / S 81 ceiling mount 1250 ± 100 mm 1500 ± 200 mm 49.2 ± 3.9T 59.1 ± 7.9T 1500 ± 200 mm 1250 ± 100 mm 49.2 ± 3.9T 59.1 ± 7.9T 1 : 50...
  • Page 14 New installation of S8 / S 81 ceiling mount Distance from floor 1 Distance from floor We recommend different distances from the floor, depending on the discipline involved. e ENT 1,650 mm (65") e ophthalmology 1,800 mm (70.9") e reconstructive and plastic surgery 1,800 mm (70.9") e others 1,650 mm (65")
  • Page 15 New installation of S8 / S 81 ceiling mount 1 : 50 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 16: Operating Position

    New installation of S8 / S 81 ceiling mount Operating position The ceiling mounts are shown in a typical operating position. The angle between the microscope arm and the carrier arm is 90°. At this angle, min- imum effort is required for horizontal movement of the surgical micro- scope.
  • Page 17 New installation of S8 / S 81 ceiling mount 1350 mm / 53.1T 1600 mm / 63T 1100 mm / 43.3T (S8) 1400 mm / 55.1T (S8) 850 mm / 33.5T (S81) 1150 mm / 45.3T (S81) 250 mm / 9.8T...
  • Page 18 New installation of S8 / S 81 ceiling mount Top view 1 S8 normal installation 2 S81 normal installation If, due to other installations, the space available on the ceiling is not suf- ficient for normal installation, you can use installation method 3 or 4 as an alternative.
  • Page 19 New installation of S8 / S 81 ceiling mount 1350 mm / 53.1T 1600 mm / 63T 1100 mm / 43.3T (S8) 1400 mm / 55.1T (S8) 850 mm / 33.5T (S81) 1150 mm / 45.3T (S81) 1 : 50...

  • Page 20: Operating Range Of The Ceiling Mount

    New installation of S8 / S 81 ceiling mount Operating range of the ceiling mount S8 ceiling mount The operating range specified here applies to normal installation. For installation in cramped conditions, the dimensions shown on page 16 and page 18 can be used to determine the operating range of the ceiling mount.
  • Page 21 New installation of S8 / S 81 ceiling mount 1250 ± 500 mm / 49.2 ± 19.7T 250 mm / 9.8T 1 : 20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 22 New installation of S8 / S 81 ceiling mount S81 ceiling mount The operating range specified here applies to normal installation. For installation in cramped conditions, the dimensions shown on page 16 and page 18 can be used to determine the operating range of the ceiling mount.
  • Page 23 New installation of S8 / S 81 ceiling mount 1000 ± 400 mm 39.4 ± 15.7T 250 mm / 9.8T 1 : 20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 24: On-Site Preparations

    New installation of S8 / S 81 ceiling mount On-site preparations Customer's responsibilities Note: Zeiss service staff can install the ceiling mount only if all points of the fol- lowing checklist applicable to the relevant installation conditions have been fulfilled.
  • Page 25 New installation of S8 / S 81 ceiling mount Warning! If an existing ceiling anchor plate or intermediate piece must be ex- changed, never re-use the old anchors. New anchor holes must be drilled. When calculating the effective strength of the new anchors, the struc- tural engineer must take into account the weakening effect of the old holes in the ceiling.

  • Page 26: Building Vibrations

    New installation of S8 / S 81 ceiling mount Building vibrations The on-site requirements also include the low-vibration design of the ceiling in the OR. This must be taken into account right during the plan- ning phase for the ceiling mount.
  • Page 27 New installation of S8 / S 81 ceiling mount Due to the large number of parameters involved and the variety of poten- tial building/ceiling mount constellations, Carl Zeiss Surgical is unable to give an absolute guarantee for the vibration-free suspension of the ceiling mount, even if the building meets the applicable ISO standards.

  • Page 28: Customer's Preparatory Responsibilities, Overview

    New installation of S8 / S 81 ceiling mount Customer's preparatory responsibilities, overview e Mounting of the pre-installation set. e Installation and connection of the systems's power cables on the pre- installation set. e The power line of the ceiling mount must be protected by a 1-pole au- tomatic circuit breaker (230 V: 10 A, 115 V: 20 A) or a 1-pole slo-blo fuse (230 V: 10 A, 115 V: 20 A).

  • Page 29: Constructional Requirements

    S8 or S81 ceiling mount For an S8 or S81 ceiling mount alone (without accessories on the acces- sory interface), the structural ceiling must have the following load ca- pacity:...

  • Page 30: Mounting A Pre-Installation Set On Ceilings With Air-Supply Ceiling

    New installation of S8 / S 81 ceiling mount Mounting a pre-installation set on ceilings with air-supply ceiling Caution: If the carrier arm systems are installed in air-supply ceilings, the method of installation must be specifically adapted to the constructional features of the type of air-supply ceiling involved.
  • Page 31 New installation of S8 / S 81 ceiling mount M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 32 New installation of S8 / S 81 ceiling mount M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 33: Planning The Electrical Installation

    New installation of S8 / S 81 ceiling mount Planning the electrical installation The power lines on the site of installation must be run up to the interface plate. In addition, the potential equalization lines must be run to the termi- nals on the interface plate.

  • Page 34: Installing The Conduits

    New installation of S8 / S 81 ceiling mount Installing the conduits The wiring can be run either above the false ceiling or in conduits installed in the structural ceiling. There are two options for the installation of con- duits in the structural ceiling.
  • Page 35 New installation of S8 / S 81 ceiling mount Connection of SpeedFokus AF Note: Determine the exact length between the Speedfokus AF connection and the CCU+ monitor. If the cable length exceeds 10 m (394"), a signal amplifier is required for the SpeedFokus AF.

  • Page 36: Mounting The Wall Socket

    New installation of S8 / S 81 ceiling mount Mounting the wall socket Note: e We recommend mounting wall socket (3) on the wall located behind the surgeon. Height approx. 1.4 m (55.1"). e Please also note the chapter "Installing the conduits" on page 34.
  • Page 37 New installation of S8 / S 81 ceiling mount M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 38: On-Site Electrical Installation

    New installation of S8 / S 81 ceiling mount On-site electrical installation The power lines on the site of installation must be run up to the interface plate. In addition, the potential equalization lines must be run to the termi- nals on the interface plate.
  • Page 39 New installation of S8 / S 81 ceiling mount 6 PE PE 7 5 PE PE 8 4 PE PE 1 3 PE PE 2 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 40: Checking The Power Connection

    New installation of S8 / S 81 ceiling mount Checking the power connection Caution: The ceiling mount can be set at two points to the rated voltage used in the country of destination: e Transformer terminal on interface plate. Settings: 100 - 115 - 230 V...
  • Page 41 New installation of S8 / S 81 ceiling mount M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 42: Planning The Mechanical Installation

    New installation of S8 / S 81 ceiling mount Planning the mechanical installation Mounting the pre-installation set Note: Check the installation conditions, in particular with respect to the room height. Mount the pre-installation set, before the false ceiling is attached.
  • Page 43 New installation of S8 / S 81 ceiling mount Inch 23.8 20.4 Ø400 Ø15.7 Ø560 Ø22.0 Ø26 Ø1.0 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 44: Mounting The Spacers

    New installation of S8 / S 81 ceiling mount Mounting the spacers Mount eight spacers (2) in the ceiling anchor plate (1). Firmly tighten the spacers (2) using a torque wrench with a 55 mm (2.2") fork wrench bit. Apply a torque of 120 Nm.
  • Page 45 New installation of S8 / S 81 ceiling mount Mounting the interface plate Note: The connector for potential equalization (1) and the terminals for power line (2) are provided on interface plate (3). Check whether interface plate (3) corresponds to the drawing sup- plied with the pre-installation set (reference no.).

  • Page 46: 300 Mm (11.8") Ceiling Panel Extension

    (1177-632). 1 Ceiling panel extension 300 mm (11.8") (1177-632) 2 Ceiling panel for S8 / S81 ceiling mounts (1083-804) 3 Pre-installation set (1078-181) 4 False ceiling 5 Interface plate...

  • Page 47: Confirmation Of The Structural Calculation And Execution Of Installation

    New installation of S8 / S 81 ceiling mount Confirmation of the structural calculation and execution of installation Sales order no.: ................... Customer address / ................... Delivery address: ...................................... By signing below, the following persons confirm that they have per-...

  • Page 48: Ordering Data

    New installation of S8 / S 81 ceiling mount Ordering data S8 ceiling mount for ORs with false ceilings, ordering data Note: Please note that the relevant dimensions have to be entered in the fol- lowing drawing for each purchase order.
  • Page 49 New installation of S8 / S 81 ceiling mount Order sheet for S8 ceiling mount in ORs with false ceilings Dimensions in inches: " min 7.9", max 31.5" " min 110.2", max 129.9" M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0...
  • Page 50 New installation of S8 / S 81 ceiling mount M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 51: S8 Ceiling Mount For Ors Without False Ceilings, Ordering Data

    New installation of S8 / S 81 ceiling mount S8 ceiling mount for ORs without false ceilings, ordering data You must order the ceiling mount using the following order sheet only if the OR does not provide a false ceiling.
  • Page 52 You must exactly measure this height. Required installation height of the S8 ceiling mount The installation height of the S8 ceiling mount is the distance from the floor to the bottom surface of the mount flange. You must preselect the installation height.
  • Page 53 New installation of S8 / S 81 ceiling mount Order sheet for S8 ceiling mount in ORs without false ceilings Length of pre-installation set to be ordered: A = H - I - 45 mm min 200 mm, max 800 mm Dimensions in inches: "...
  • Page 54 New installation of S8 / S 81 ceiling mount S81 ceiling mount for ORs with false ceilings, ordering data Note: Please note that the relevant dimensions have to be entered in the fol- lowing drawing for each purchase order. Enter the data and enclose a copy of the drawing with your purchase order.
  • Page 55 New installation of S8 / S 81 ceiling mount Order sheet for S81 ceiling mount in ORs with false ceilings Column length (ordered length): D = B - C - 810 mm min. 40 mm, max. 800 mm* Recommendation: max. 600 mm, see note on page 54.
  • Page 56 New installation of S8 / S 81 ceiling mount M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 57 New installation of S8 / S 81 ceiling mount S81 ceiling mount for ORs without false ceilings, ordering data You must order the ceiling mount using the following order sheet only if the OR does not provide a false ceiling.
  • Page 58 New installation of S8 / S 81 ceiling mount Note: Please note that the relevant dimensions have to be entered in the fol- lowing drawing for each purchase order. Enter the data and enclose a copy of the drawing with your purchase order.
  • Page 59 New installation of S8 / S 81 ceiling mount Order sheet for S81 ceiling mount in ORs without false ceilings Dimensions in inches: Pre-installation set, ordered length (A) " min 7.9", max 31.5" min 200 mm, max 800 mm "...
  • Page 60 New installation of S8 / S 81 ceiling mount M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 61: Accessory Interface

    Mount flange (flange plate) Configuration example: mount flange with flange tube Pre-installation set Customer's responsibilities Electrical connections for accessory modules Confirmation of the structural calculation and execution of installation M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 62: Accessory Interface

    Check the feasibility of the installation in detail together with the man- ufacturer of the relevant accessory module (OR illuminator or monitor bracket). M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 63: Installation Position

    For the dimensions, please see: e illustration on page 7 for S8 ceiling mount. e illustration on page 8 for S81 ceiling mount.

  • Page 64: Mount Flange And Ceiling Panel

    Accessory interface Mount flange and ceiling panel The S8 or S81 ceiling mount is secured with mount flange (1) on the pre- installation set already installed in the ceiling. In addition to the flange area for the carrier arm of the ceiling mount, the mount flange also fea- tures a flange area for an accessory carrier e.g.
  • Page 65 Accessory interface M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 66: Mount Flange (Flange Plate)

    (square tube) is attached to this flange surface. Mount flange, bottom view Inch Ø17 Ø0.7 Ø270 Ø10.6 Ø160 Ø6.3 Ø165,5 Ø6.52 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 67: Configuration Example: Mount Flange With Flange Tube

    A flange tube of this type can be used for mounting accessories (illu- minators, monitor mount, etc.). 4 Upper part of the carrier arm The upper part of the carrier arm of the S8 and S81 ceiling mounts consists of a square tube. Mount flange with flange tube, bottom view...

  • Page 68: Pre-Installation Set

    Mount flange (6) and ceiling panel (5) are part of the ceiling mount and are only shown here for information. They are not included in the pre-installa- tion set. 620 mm / 24.4T M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 69: Customer's Responsibilities

    (see page 26). Obtain a written confirmation from your structural engineer stating that possible building vibrations have been taken into account (see page 73). M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 70 Accessory interface (maximum) h Perpendicular force: max. 3700 N (max. 832 lbf) h Torque: max. 6500 Nm (max. 4794 lbf.ft) M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 71: Electrical Connections For Accessory Modules

    If several circuits are required by the customer, appropriate allowance must be made on the interface plate. e Multiwire lines must be provided with wire end sleeves. M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 72 C Terminal 2 for OR illuminator 2 Maximum terminal cross section = 16 mm2 (AWG 6) For details of the other terminals, see the section "On-site electrical instal- lation", page 38. M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 73: Confirmation Of The Structural Calculation And Execution Of Installation

    Carl Zeiss: Name and address of ................... the executing company ................... and installerrs name: ........................................................Date Signature M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 74 Accessory interface M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 75: Discipline-Specific Installation Positions

    Discipline-specific installation positions Discipline-specific installation positions Installation positions for ophthalmology and ENT Installation position for P&R, Hand Installation position for Neuro, Spine, Uro and Gyn M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 76 The various surgical disciplines and on-site conditions require different in- stallation positions of the S8 and S81 ceiling mounts. This chapter describes a number of recommended installation positions of the S8 and S81 ceiling mounts for different surgical disciplines. Note: In unfavorable on-site conditions, the recommended installation positions must be changed appropriately.

  • Page 77: Installation Positions For Ophthalmology And Ent

    The OR illuminators are not mounted on the flange of the ceiling mount, but on separate ceiling flanges. Alternative installation position for ENT The S8 or S81 ceiling mount is installed in a centered position behind the patient's head. Again, the OR illuminators are not mounted on the flange of the ceiling mount, but on separate ceiling flanges.
  • Page 78 Discipline-specific installation positions Preferred installation position for ophthalmology and ENT S8 ceiling mount positioned above the patient's foot area (centered rela- tive to the operating table). Flange area for accessory carrier (2) in out- ward position. M 1:20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0...
  • Page 79 Discipline-specific installation positions Preferred installation position for ophthalmology and ENT S8 ceiling mount positioned above the patient's foot area (centered rela- tive to the operating table). Flange area for accessory carrier (2) in inward position. M 1:20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0...
  • Page 80 S81 ceiling mount positioned above the patient's foot area (centered rel- ative to the operating table). Flange area for accessory carrier (2) in out- ward position. M 1:20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 81 S81 ceiling mount positioned above the patient's foot area (centered rel- ative to the operating table). Flange area for accessory carrier (2) in in- ward position. M 1:20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 82 Discipline-specific installation positions Alternative installation position for ophthalmology S8 ceiling mount positioned laterally to the patient (centered relative to the patient's head). Flange area for accessory carrier (2) in outward position. M 1:20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0...
  • Page 83 Discipline-specific installation positions Alternative installation position for ophthalmology S8 ceiling mount positioned laterally to the patient (centered relative to the patient's head).Flange area for accessory carrier (2) in inward position. M 1:20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0...
  • Page 84 Alternative installation position for ophthalmology S81 ceiling mount positioned laterally to the patient (centered relative to the patient's head). Flange area for accessory carrier (2) in outward posi- tion. M 1:20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 85 Alternative installation position for ophthalmology S81 ceiling mount positioned laterally to the patient (centered relative to the patient's head). Flange area for accessory carrier (2) in inward posi- tion. M 1:20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 86 Discipline-specific installation positions Alternative installation position for ENT S8 ceiling mount positioned behind the patient's head. Flange area for ac- cessory carrier (2) in outward position. M 1:20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 87 Discipline-specific installation positions Alternative installation position for ENT S8 ceiling mount positioned behind the patient's head. Flange area for ac- cessory carrier (2) in inward position. M 1:20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 88 Discipline-specific installation positions Alternative installation position for ENT S81 ceiling mount positioned behind the patient's head. Flange area for accessory carrier (2) in outward position. M 1:20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 89 Discipline-specific installation positions Alternative installation position for ENT S81 ceiling mount positioned behind the patient's head. Flange area for accessory carrier (2) in inward position. M 1:20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 90: Installation Position For P&R, Hand

    Discipline-specific installation positions Installation position for P&R, Hand The S8 ceiling mount is used for P&R and hand surgery. The installation positions recommended in this chapter are also suitable for the following applications: e ENT e Neurology e Urology e Oral and maxillofacial e Spine (limited suitability).
  • Page 91 Discipline-specific installation positions Recommended installation position for P&R, Hand S8 ceiling mount positioned laterally to the operating table, approximately midway along the table. Flange area for accessory carrier (2) in outward position. Preferable if OR illuminators are mounted separately. M 1:20...
  • Page 92 Discipline-specific installation positions Recommended installation position for P&R, Hand S8 ceiling mount positioned laterally to the operating table, approximately midway along the table. Flange area for accessory carrier (2) in inward position. Preferable if OR illuminators are mounted on the flange tube.

  • Page 93: Installation Position For Neuro, Spine, Uro And Gyn

    Discipline-specific installation positions Installation position for Neuro, Spine, Uro and Gyn The S8 ceiling mount is used for the disciplines of neurology, spine, uro- logy and gynecology. The installation positions recommended in this chapter are also suitable for ENT, with certain restrictions.
  • Page 94 Discipline-specific installation positions Recommended installation position for Neuro, Spine, Uro and Gyn S8 ceiling mount positioned laterally to the operating table, approximately midway along the table. Flange area for accessory carrier (2) in outward position. M 1:20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0...
  • Page 95 Discipline-specific installation positions Recommended installation position for Neuro, Spine, Uro and Gyn S8 ceiling mount positioned laterally to the operating table, approximately midway along the table. Flange area for accessory carrier (2) in inward position. Preferable if OR illuminators are mounted on the flange tube.
  • Page 96 Discipline-specific installation positions M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 97: Installation On An Existing Substructure

    Forces and torques Confirmation of the structural calculation and execution of installation Ordering data Mounting an S8/S81 ceiling mount on an existing intermediate piece 121 Mounting an S81 ceiling mount on an existing ceiling track mount M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0...
  • Page 98 Installation on an existing substructure M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 99: Installation Options

    1,000 mm ± 400 mm (39.4" ± 15.7") for the S81 ceiling mount. This means that an S8 ceiling mount will be at its rear mechanical limit po- sition in this type of installation, see illustration on page 102.

  • Page 100: Mounting Options

    Installation on an existing substructure Mounting options Using the adapter plate, the S8 or S81 ceiling mount can be mounted e existing intermediate piece (305658-0000.000) of an S23 or EMD2 ceiling mount, with the adapter plate in a laterally offset position and the electrical components mounted on the mounting bracket.
  • Page 101 Installation on an existing substructure t = 20 mm (0.8T) Inch Inch Ø14 Ø0.55 Ø15 Ø0.6 19.7 Ø270 Ø10.6 Ø160 Ø6.3 Ø440 Ø17.3 10.8 21.7 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 102: Installation On An Intermediate Piece Of S23 Or Emd2

    (3.5") lateral offset. The working range for the surgical microscope is located between the circles shown in dashed lines. Therefore, you should check for the installation of an S8 or S81 ceiling mount whether the op- timum working range can be obtained by repositioning the operating table: 1,250 mm (49.2") with S8, and 1,000 mm (39.4") with S81.
  • Page 103 The radii of the working range R = 600 mm (23.6") and R = 1,400 mm (55.1") refer to this pivot axis. 990 mm / 39T M 1:20 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 104 The probable distance of the adapter plate from the intermediate piece will be at least 50 mm (1.97"), if the electrical components are attached to the side of the mounting bracket. M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 105 Installation on an existing substructure 100 (50) mm 3.9 (2.0)" 240 (200) mm 9.4 (7.9)" M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 106: Mounting The Adapter Plate In A Centered Position

    The probable distance of the adapter plate from the intermediate piece will be at least 50 mm (1.97"), if the electrical components are attached to the side of the mounting bracket. M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 107 Installation on an existing substructure 150 mm 5.9" M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 108 The probable distance of the adapter plate from the intermediate piece will be at least 108 mm (4.3"), if the electrical components are mounted on the adapter plate. M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 109 Installation on an existing substructure 150 mm 5.9" M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 110: Installation On An Existing Zdk Intermediate Piece

    The probable distance of the adapter plate from the intermediate piece will be at least 50 mm (1.97"), if the electrical components are attached to the side of the mounting bracket. M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 111 Installation on an existing substructure M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 112 The probable distance of the adapter plate from the intermediate piece will be at least 108 mm (4.3"), if the electrical components are mounted on the adapter plate. M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 113 Installation on an existing substructure M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 114: Installation On Ceiling Track Mount

    Installation on ceiling track mount You can install the S81 ceiling mount on an existing ceiling track mount. The S8 ceiling mount cannot be installed on a ceiling track mount. The following is required for installing an S81 ceiling mount on an existing...

  • Page 115: 300 Mm (11.8") Ceiling Panel Extension

    (1177-632). 1 300 mm (11.8") ceiling panel extension (1177-632) 2 Ceiling panel for S8 / S81 ceiling mounts (1083-804) 3 Adapter plate (1071-924) 4 False ceiling 5 Intermediate piece of S23 or EMD2 ceiling mount The intermediate piece of the S23 or EMD2 is shown here as an ex- ample.

  • Page 116: On-Site Preparations

    Please note the information provided on page 104 for ordering an S81 ceiling mount for installation on an existing substructure (existing in- termediate piece). M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 117 - in particular the room height - corre- spond to the specifications in the drawing. Two installers are required for mounting the mounting kit required for installation on existing ceiling anchors. M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 118: Constructional Requirements

    S8 or S81 ceiling mount For an S8 or S81 ceiling mount alone (without accessories on the acces- sory interface), the existing substructure and the structural ceiling must have the following load capacity:...

  • Page 119: Confirmation Of The Structural Calculation And Execution Of Installation

    Carl Zeiss: Name and address of ................... the executing company ................... and installerrs name: ........................................................Date Signature M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 120 Installation on an existing substructure M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 121: Ordering Data

    Installation on an existing substructure Ordering data Mounting an S8/S81 ceiling mount on an existing intermediate piece Description Cat.No. Kit for mounting an S8/S81 CM on existing ceiling an- 1120-925 chor plate The mounting kit (1120-925) includes: e adapter plate (1071-924) e mounting bracket (1124-211).

  • Page 122: Mounting An S81 Ceiling Mount On An Existing Ceiling Track Mount

    Enter the data and enclose a copy of the drawing with your purchase order. Description Cat.No. Kit for mounting an S8/S81 CM on existing ceiling an- 1120-925 chor plate Kit for installing an S81 on a ceiling track mount 1144-462 Controlling the ceiling track mount using a hand switch The "Kit for installing an S81 on a ceiling track mount (1144-462)"...
  • Page 123 D = B - C - 910 mm min 40 mm, max 800 mm Dimensions (inches): " " Column length: D = B - C - 35.8t " min 1.6t, max 31.5t M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 124 Installation on an existing substructure M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...

  • Page 125: Index

    Dimensions, S81 ceiling mount Discipline-specific installation positions 14, 54, 58, 122 Distance from floor 108, 112 Electrical components on adapter plate 106, 110 Electrical components on mounting bracket M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 126 Key to symbols Layout plan 29, 118 Load on the ceiling, actual Mechanical installation 10, 64, 66 Mount flange Mount flange and ceiling panel Mount flange with flange tube M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 127 Pre-installation sets of earlier ceiling mounts 47, 73, 119 Review and release Rows of bores S8 ceiling mount S8 ceiling mount, dimensions S81 ceiling mount S81 ceiling mount, dimensions M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 128 TV, cable installation Upper part of carrier arm Urology, recommended installation positions Vibration, short-term Vibration, sustained Wall socket for foot control panel Wall socket, mounting Working ranges M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 129 M-30-1382-en S8 / S81 Ceiling Mounts Issue 12.0 Printed on 19. 11. 2007...
  • Page 130 Carl Zeiss Surgical GmbH Fax: ++49 (0) 7364-20 48 23 A Carl Zeiss Meditec Company Email: surgical@meditec.zeiss.com Internet: www.meditec.zeiss.com 73446 Oberkochen Germany M-30-1382-en Printed in Germany CG-ST...

This manual is also suitable for:

S81

Table of Contents
