Installation Guide - Motorola Netopia 2210-02 ADSL2 + Gateway
Getting Your Modem Up and Running

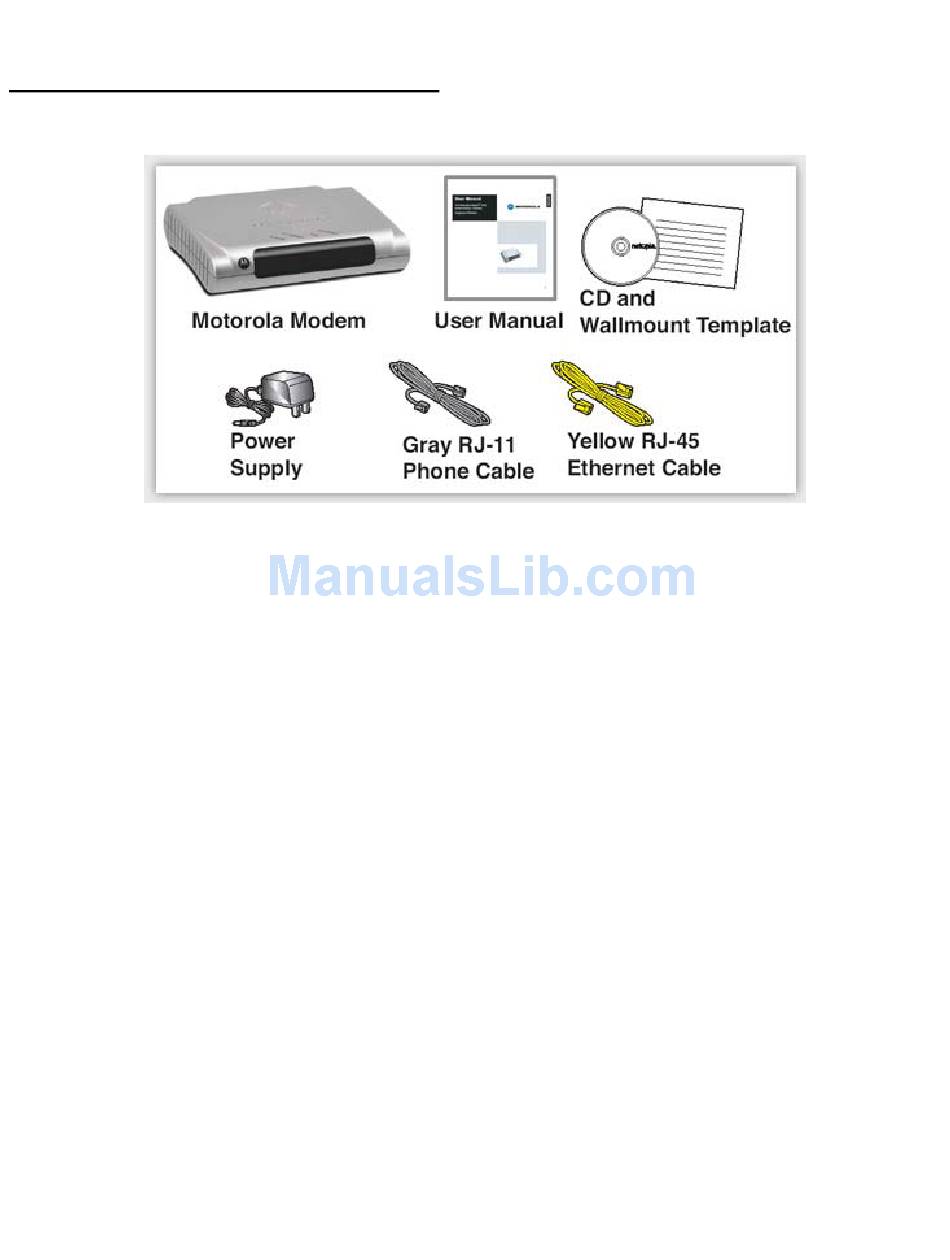

Check your modem package contents. It should contain the items shown here:
Connect Your Modem
1. Locate the Modem near a power source, a DSL wall outlet, and in a location where air can circulate
freely around it.
2. Connect the rounded end of the power supply to the power jack on the back panel of the Modem.
Then, plug the power supply into an electrical outlet.
The Power LED should light solid green.
3. Connect one end of the grey RJ-11 Phone cable to the port labelled "DSL" on the Modem. Connect
the other end of the Phone cable to your DSL wall outlet.
Connect one end of the yellow RJ-45 Ethernet cable to the port labelled "Ethernet" on the modem.
4.
Connect the other end of the Ethernet cable to the Ethernet port on your PC.

Advertisement

loading

Related Manuals for Motorola Netopia 2210-02

Summary of Contents for Motorola Netopia 2210-02

  • Page 1 Installation Guide - Motorola Netopia 2210-02 ADSL2 + Gateway Getting Your Modem Up and Running Check your modem package contents. It should contain the items shown here: Connect Your Modem 1. Locate the Modem near a power source, a DSL wall outlet, and in a location where air can circulate freely around it.

  • Page 2: Set Up Your Internet Connection

    Set up Your Internet Connection Reset Your Modem Before setting up your Internet Connection, it is recommended to reset your modem to the factory default state by pressing Reset and hold for 5 seconds. Set up Your Internet Connection 1. Open a Web browser and access the gateway user interface by entering http://192.168.1.254 You will be prompted to select your language preference - Select a language - Click the Next button...
  • Page 3 For security purposes you must create a password for your Modem. - In the New Password, enter a New Password - In the Confirm Password, re-enter Password - Click the Next button.
  • Page 4 You must log in to the Modem. The default User Name is admin. - In the User Name, enter admin - In the Password, enter the Password you just created - Click OK Click Start at the Autosensing PPPoE / DHCP page...
  • Page 5 Click Start at the Connection Information Page Click Expert Mode at the Connection Information Page...
  • Page 6 Click the Yes, enter expert mode button at the Enter Expert Mode Page Click Configure at the Connection Information Page...
  • Page 7 Click Connection at the Connection Configuration Page At the Connection Configuration Page - In the VPI, enter 0 - In the VCI, enter 35 - In the User Name, enter the User Name (The User ID provided by World-Link) - In the Password, enter the Password (The Password provided by World-Link) - Confirm Password - Click the Save &...
  • Page 8 When all of your connections are made, the status LEDs on the front of your Motorola Modem will light, according to the following diagram: Congratulations! Your connection is up and running and you should be able to browse the Internet.
