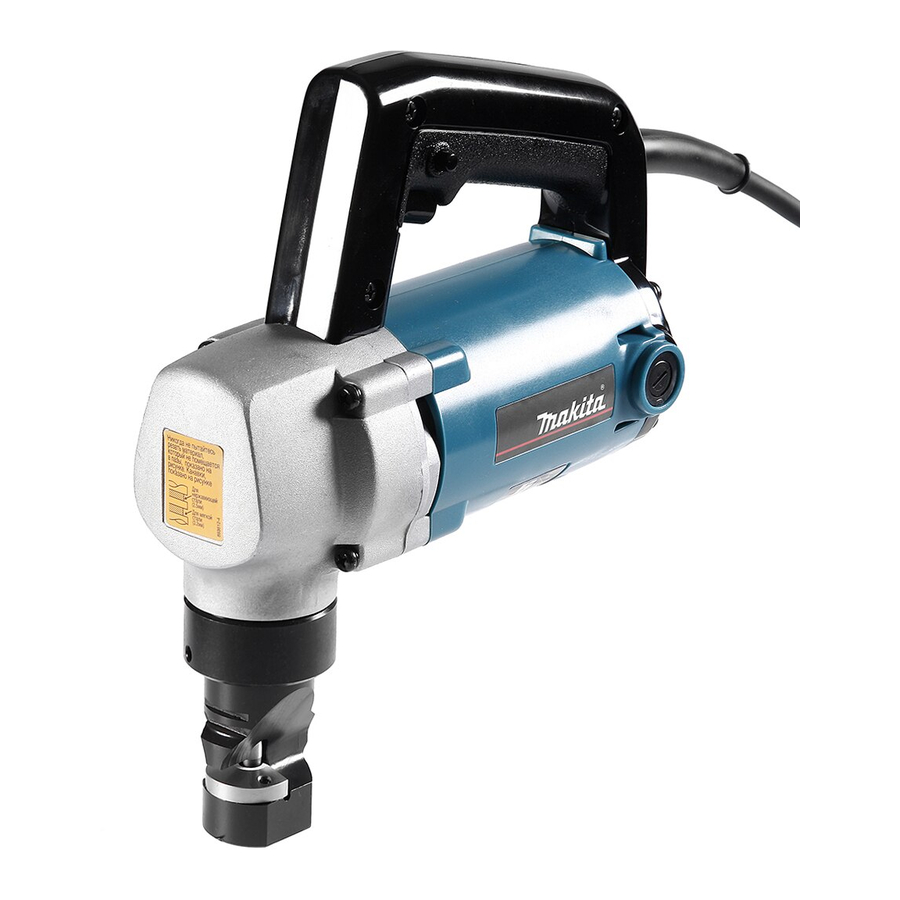

Nibbler
MODEL JN3200
I N S T R U C T I O N
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
DOUBLE
INSULATION
M A N U A L
004773

Advertisement

Table of Contents
loading

Related Manuals for Makita JN3200

Summary of Contents for Makita JN3200

  • Page 1 Nibbler MODEL JN3200 004773 DOUBLE INSULATION I N S T R U C T I O N M A N U A L WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

  • Page 2: Specifications

    Responsible manufacturer: Power supply Makita Corporation Anjo Aichi Japan The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply. They...

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES GEA001-3 WARNING: Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.
  • Page 4 19. Store idle power tools out of the reach of chil- the manner intended for the particular type of dren and do not allow persons unfamiliar with power tool, taking into account the working con- the power tool or these instructions to operate ditions and the work to be performed.

  • Page 5: Functional Description

    FUNCTIONAL CAUTION: DESCRIPTION • Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. Permissible cutting thickness 004776 The thickness of material to be cut depends upon the tensile strength of the material itself.

  • Page 6: Operation

    To install the punch, insert it into the punch holder with its cutting edge facing 004784 forward so that the pin in the punch holder fits into the groove in the punch. Install the screw and lock nut. Then tighten them securely. 1.

  • Page 7: Maintenance

    Cutting stainless steel 004792 There is more vibration when cutting stainless steel than mild steel. Less vibration and better cutting is possible by adding another washer (standard equipment) beneath the die. Use the hex wrench provided to remove the two screws and insert the washer below the die.
  • Page 8 CAUTION: • These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
