Icom IC-7700 Service Manual page 18

- ADJUSTMENT AND CHECK POINTS -

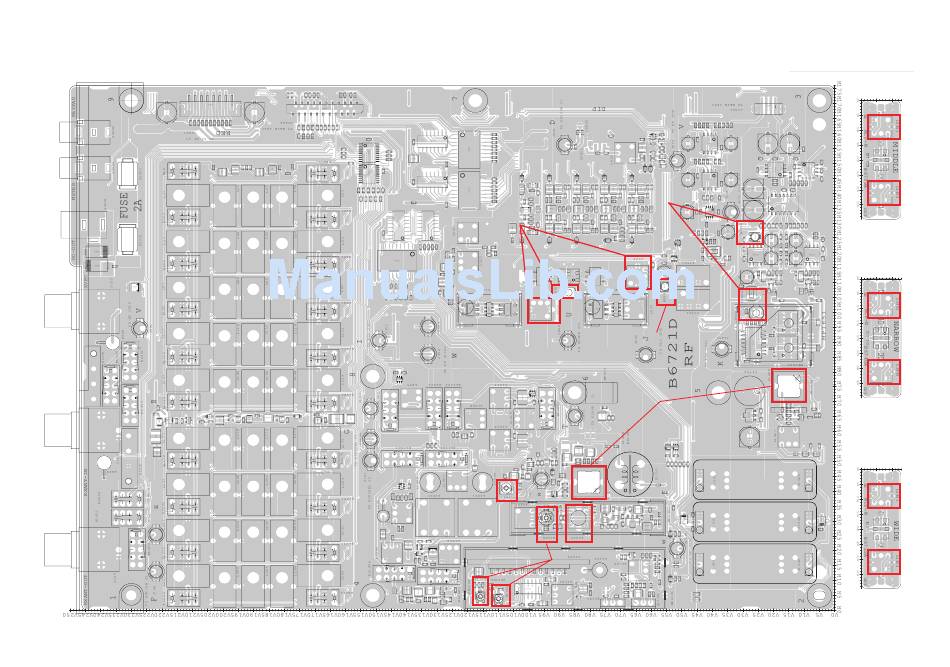

• RF UNIT (TOP VIEW)
TX output power adjustment TX output power adjustment
C1265 C1265
IF through (50MHz) adjustment IF through (50MHz) adjustment
R1228 R1228
R1132 R1132
R1101 R1101
Image response adjustment Image response adjustment
L505 L505
C576 C576
R538 R538
L512 L512
TX total gain adjustment TX total gain adjustment
RX sensitivity adjustment RX sensitivity adjustment
L1058 L1058
RX sensitivity RX sensitivity (50MHz) (50MHz) adjustment adjustment
L1222 L1222
Preset Preset
4 - 6
• MCF-M BOARD
(TOP VIEW)
V0 V5 V10
L1401 L1401
C1401
C1403
C1402
Preset Preset
L1402 L1402
C1406
C1407
C1408
R1516 R1516
• MCF-N BOARD
(TOP VIEW)
V0 V5 V10
C1656 C1656
L1401 L1401
C1401
C1403
C1402
Preset Preset
L1402 L1402
C1406
C1407
C1408
L1408 L1408
• MCF-W BOARD
(TOP VIEW)
V0 V5 V10
L1401 L1401
MCF-W BOARD
C1401
C1402
MCF-M BOARD
Preset Preset
L1402 L1402
C1406
MCF-N BOARD
C1408
