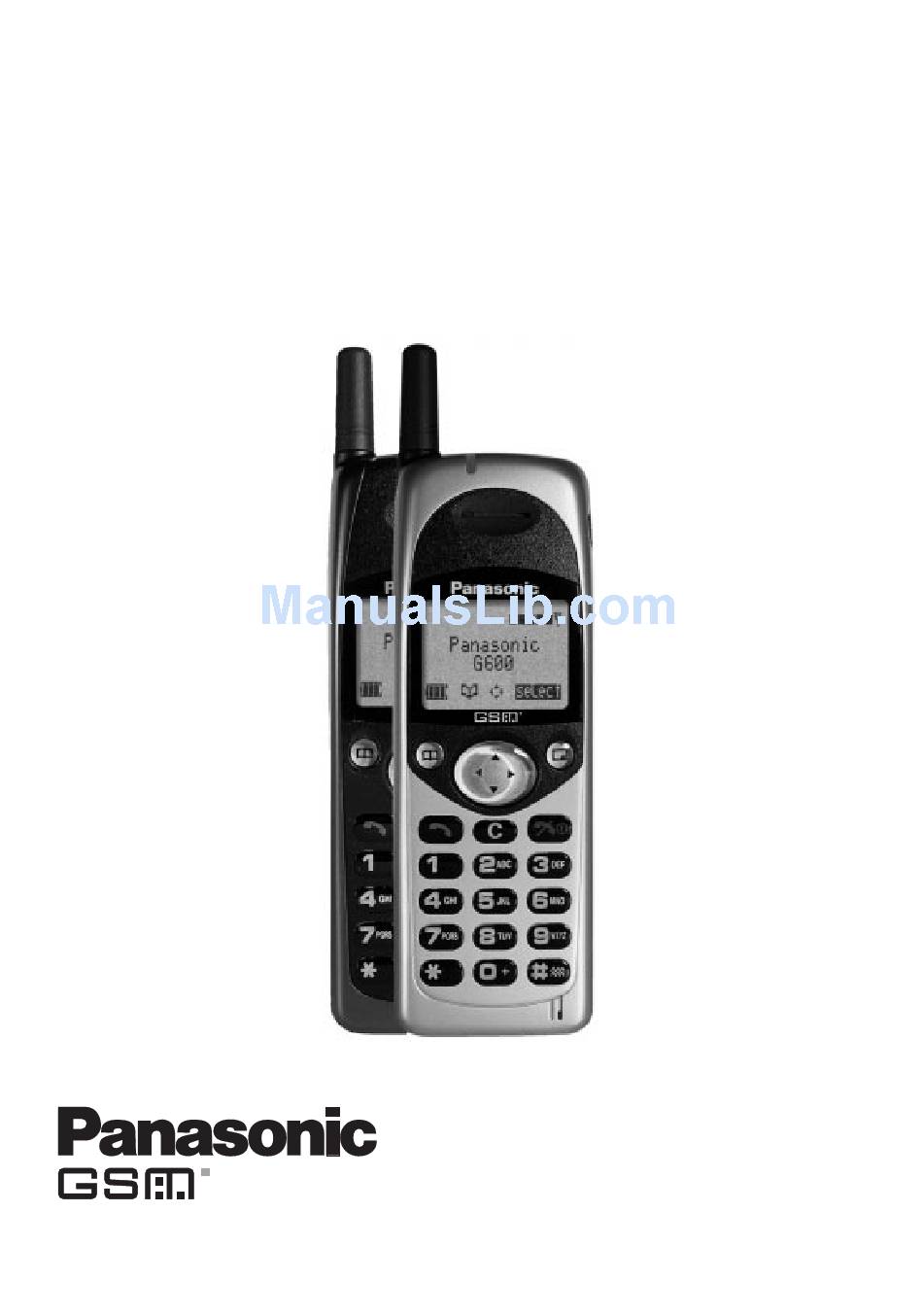

G600 Personal Cellular Telephone
Issue 1
Revision 0
http://cxema.ru
Order Number: MCUK980101G8
Handheld portable
Easy fit car mount kit
EB-G600
Car mount kit
EB-HF600Z
EB-HF600Z
Dual charger
EB-CR600

Advertisement

Table of Contents
loading

Related Manuals for Panasonic G600

Summary of Contents for Panasonic G600

  • Page 1 Order Number: MCUK980101G8 Technical Guide G600 Personal Cellular Telephone Handheld portable EB-G600 Car mount kit EB-HF600Z Easy fit car mount kit EB-HF600Z Dual charger EB-CR600 Issue 1 Revision 0 http://cxema.ru...
  • Page 2 This Technical Guide is copyright and issued on the strict understanding that it is not to be reproduced, copied, or disclosed to any third party, either in whole or part, without the prior written consent of Matsushita Communication Industrial UK Ltd. Every care has been taken to ensure that the contents of this manual give an accurate representation of the equipment.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION Purpose of this Guide ..........1-1 Structure of the Guide .
  • Page 4 WARNINGS AND CAUTIONS WARNING The equipment described in this manual contains polarised capacitors utilising liquid electrolyte. These devices are entirely safe provided that neither a short-circuit nor a reverse polarity connection is made across the capacitor terminals. FAILURE TO OBSERVE THIS WARNING COULD RESULT IN DAMAGE TO THE EQUIPMENT OR, AT WORST, POSSIBLE INJURY TO PERSONNEL RESULTING FROM ELECTRIC SHOCK OR THE AFFECTED CAPACITOR EXPLODING.

  • Page 5: Introduction

    INTRODUCTION Purpose of this Guide This guide contains technical information for the Panasonic G600 personal cellular telephone system operating on the GSM network. Procedures for installing, operating and servicing (e.g. disassembly and testing) the telephone system are provided in the associated Service Manual.

  • Page 6: Interfaces And Test Points

    INTERFACES AND TEST POINTS INTERFACES AND TEST POINTS Introduction This section provides details on connections between the RF and Baseband PCB and other interfaces on G600. Interfaces 2.2.1 Baseband and RF This details the 50-way connector between the RF and baseband PCB.
  • Page 7 INTERFACES AND TEST POINTS Signal Name Function Connection Status H: Vibration On VIB_ON Vibrator control signal Extended I/O: Q(3) L: Vibration Off ON HOOK detection H: Off Hook nON_HOOK 10(9) of GEMINI signal L: On Hook RF Output power control PA_RAMP APC of VEGA(5bitDA) 64 step...
  • Page 8 INTERFACES AND TEST POINTS Signal Name Function Connection Status PLL and AGC serial PLL_CLK TSPCLK of GEMINI interface signal: Clock Uplink nQ signal Uplink Q signal UI X Uplink nl signal Uplink I signal TX Power Level control H: TX PL5~1 PL_CONT IO(6) of GEMINI signal...
  • Page 9 INTERFACES AND TEST POINTS 2.2.2 External Interface G600 has 2 external connectors, a multiway connector for use with a handsfree and data and additional contacts for the charging the battery pack while in the desk top charger. Both interfaces are electrically and mechanically compatible with G600.
  • Page 10 INTERFACES AND TEST POINTS Battery Contacts Signal Description TEMP Battery temperature sense BATT + Battery positive BATT - Battery negative SENSE Battery Type Sensor SIM Interface SIGNAL Not connected Reset Serial input/output Clock Not connected Not connected MCUK980101G8 Section 2 Issue 1 Technical Guide 2 - 5...

  • Page 11: Test Points

    INTERFACES AND TEST POINTS Test Points 2.3.1 Baseband TP No. Signal TO3 (U401 pin 88) TO0 (U401 pin 83) nRESET TCK (U401 pin 90) TMS (U401 pin 91) SIM_CLK_LO TO0 (U402 pin 63) TOD (U402 pin 62) TRST (U402 pin 24) TCK (U402 pin 64) TMS (U402 pin 61) VIB_ON...
  • Page 12 INTERFACES AND TEST POINTS TP No. Signal RX_ON1 RF_ON LO2SEL nHF_TX_MUTE VREF_OUT SIM_CLK SIM_IO SIM_RST BAT_TEMP nADP_SENSE nHF_SENSE nON_HOOK nLOGIC_POWER IGNITION SERIAL_UP BATID nHF_ON SERIAL_DOWN CHARGE_ON KBC(0) KBC(1) KBC(2) KBC(3) KBC(4) KBR(4) KBR(3) KBR(2) KBR(1) KBR(0) nPOWKEY MCUK980101G8 Section 2 Issue 1 Technical Guide 2 - 7...
  • Page 13 INTERFACES AND TEST POINTS TP No. Signal nRADIO_MUTE PARAMP BUZON (U501 pin 19) REGF8 (U501 pin 15) nLV3 nRESET BUZZER PAGING_LED EXT_PWR VBAT DC_OUT Issue 1 Section 2 MCUK980101G8 Revision 0 2 - 8 Technical Guide http://cxema.ru...
  • Page 14 INTERFACES AND TEST POINTS 2.3.2 RF TP No. Signal BAT_TEMP nCAHRGE_ON TX_AUDIO RX_AUDIO nADP_SENSE nHF_SENSE IFLSEL BUZZ - BUZZ + PARAMP TX_ON PA_ON LO_EN RX_ON1 RX_ON2 nRADIO_MUTE VIB_ON nON_HOOK BATTERY + DC_OUT EXT_PWR V_VIB CKL3MI SERIAL_UP IGNITION SERIAL_DOWN nLOGIC_PWR nHF_DN BATT_ID DLQN MCUK980101G8...
  • Page 15 INTERFACES AND TEST POINTS TP No. Signal DLQP DLIN DLIP BCAL IFAGCEN PLL_STR PLL_SD PLL_CLK ULQN ULQP ULIN ULIP PLL_CONT E901 – E908 Issue 1 Section 2 MCUK980101G8 Revision 0 2 - 10 Technical Guide http://cxema.ru...

  • Page 16: Rf Overview

    3.2.1 Functional Description of the PLL’s The G600 design employs two fixed IF LO’s - 201MHz for Rx and 246MHz for Tx. They are generated at 402MHz and 496MHz using the IF part of the PLL IC. The IF VCO used is a discrete design and the VCO tuning frequency is selectable between 402MHz and 492MHz by means of switching the frequency determining inductors, L302+L303, by IFLOSEL control line.

  • Page 17: Transmitter

    TRANSMITTER TRANSMITTER Introduction This section provides a technical description of the transmitter circuit of the RF circuit. A circuit diagram of the whole system is provided in Section 8 of the Service Manual. 4.1.1 Uplink Frequencies CHANNEL UPLINK FREQUENCIES (MHz) NUMBERS 890.200 890.400...

  • Page 18: Functional Description

    TRANSMITTER Functional Description The main building block in the Tx line-up is the transmitter IC U102 which provides a Class 4 (2 Watts) transmitter. Figure 1: Transmitter IC U102 600-0401 The RF mixer is used to generate the GSM carrier, which is then modulated by the baseband I-Q signals in the quadrature modulator.
  • Page 19 TRANSMITTER 4.2.1 Signal Levels The signal levels through the transmitter IC are given below. FL101 U103 FL102 Coupler U104 (PA) FL104 -2.5dB +21.5dB -2.5dB +26.8dB -0.3dB -0.3dB -0.9dB Figure 2: Typical Losses 600-0402 MCUK980101G8 Section 4 Issue 1 Technical Guide 4 - 3 Revision 0 http://cxema.ru...

  • Page 20: Receiver

    RECEIVER RECEIVER Introduction This section provides a technical description of the receiver section of the RF circuit. A circuit diagram of the whole system is provided in Section 8 of the Service Manual (Order No. MCUK980101C8). 5.1.1 Downlink Frequencies CHANNEL DOWNLINK FREQUENCIES (MHz) NUMBERS 935.200...
  • Page 21 RECEIVER Functional Description The main building block for the receiver is the IC U201. The receiver is a double superhet type with the first IF at 201MHz; this is then converted down to zero IF. The Rx IC contains the following stages: RF mixer Gain controlled 5-stage IF amplifier I,Q quadrature down converter...
  • Page 22 RECEIVER The coupling between RF output and the baseband input has been designed as DC coupling in order to minimize the turn-on time of the Rx IC for the purpose of current optimization. 5.2.1 Signal Levels The signal levels through the receiver IC are given below. RF Filter 1st Mixer IF Filter...

  • Page 23: Functional Description

    Functional Description The G600 baseband is based around a 2 chip GSM chipset. One chip carries out signal processing with DSP and CPU, called GEMINI, and the other chip contains the analogue interface chip, called VEGA. The highly integrated nature of these components means each contain a large number of functions.
  • Page 24 BASEBAND OVERVIEW 6.2.1 Keypad The Keypad has a 5 x 5 matrix allowing 25 keys to be scanned on a key being pressed, a keypad interrupt is generated. To find which key is pressed the software must assert each column in turn and read which row is active. Because of key bounce, the key press must then be confirmed twice at about 20mS intervals.

  • Page 25: Cpu Memory

    RF signal PAON Used as TSPEN (4) (IFAGCEN) 6.2.4 CPU Memory The memory requirements for G600 are; 16Mbit 3V FLASH organized as 1M * 16 2Mbit 3V RAM organized as 256k * 8 16kbit 3V Serial EEPROM as 2k * 8 6.2.5 LCD...

  • Page 26: Functional Description

    GEMINI GEMINI Introduction Gemini contains the DSP, CPU, GSM timing functions and many peripheral functions. The software for the DSP is contained in masked ROM. Functional Description TDMA TIMER CORE Figure 1: GEMINI Block Diagram 600-0701 7.2.1 Digital Signal Processor The Digital Signal Processor (DSP) core is compatible with the Texas Instruments TMS350C5xx family of DSPs.
  • Page 27 GEMINI 7.2.3 Memory Interface The memory interface allows the 32 bit CPU to access 16 and 8 bit devices, and allows the addition of wait states to memory access. The memory interface allows between 0 and 7 wait states to be added. The ROM area is hardware write protected, a FLASH write enable bit in the ROM wait state configuration register can be used to enable write access the ROM area.
  • Page 28 FIQ or IRQ inputs of the ARM CPU. Additionally the interrupt handler controls waking up of the CPU on receiving an unmasked interrupt, if the CPU is in sleep mode. For G600 the FIQ interrupt is reserved for the power supply fail priority interrupt. Interrupt level assignments...
  • Page 29 GEMINI I/O pin Assignments Signal GEMINI Pin Signal IO (5) /EXTINT EXTINT H = Low RF Power level IO (6) / nRESETOUT PA_LOW L = High RF power level L = Charging LED off IO (7) / SIM_RnW CHARGE_LED H = Charging LED on IO (8) /SIMPWCTRL SIM_PWR H = Off hook...

  • Page 30: Functional Description

    VEGA VEGA Introduction VEGA contains the interface circuits to the Audio, RF and auxiliary analogue functions for the baseband circuit. Functional Description JTAG TIMING 10 bit SP INTERFACE Figure 1: VEGA Block Diagram 600-0801 8.2.1 Uplink I and Q VEGA performs GMSK modulation on .dData samples received form GEMINI at 270Kbits per second Timing interface Offset Burst Timing...
  • Page 31 VEGA 8.2.2 Downlink I and Q Offset Offset Calibration Register DLIP Antialiasing Sigma_Delta SINC Filter Modulator Filter Filter To baseband DLIN serial interface fs1=6.5 Mhz fs2=1.08 Mhz fs3=270.8 Khz DLQP Antialiasing Sigma_Delta SINC Filter Modulator Filter Filter DLQN Offset Offset Register Calibration Figure 3: Functional structure of the baseband downlink path...
  • Page 32 VEGA 8.2.4 AFC Control The 13HMz system clock frequency is controlled by a 13bit sigma-delta D/A in the VEGA chip. 3/5 V 1 BIT DAC 13 BIT DIGITAL & LOW - PASS MODULATOR FILTER Output swing control VTCXO RINT1 RINT2 CEXT PROGRAMATION REGISTER Figure 5: AFC block diagram...
  • Page 33 600-0807 8.2.6 Auxiliary A/D VEGA provides 5 A/D inputs. G600 takes advantage of the A/D inputs on VEGA allowing external power to be monitored with just 2 resistors each and no need for a buffer transistor. VEGA input Pin Number...

  • Page 34: Power Supplies

    POWER SUPPLIES POWER SUPPLIES Introduction This section describes the Power Supply Unit (PSU) used on the G600 logic PCB and the method by which it is controlled. This section has detailed information on: 1. An overview of the circuit functionality 2.

  • Page 35: Power-Up

    POWER SUPPLIES Signal CPU I/O Description External interrupt to the CPU. The voltage detector output goes LOW when the battery voltage drops below 3.6V. If the phone is on, this signal forces the PSU off and the interrupt initiates an emergency power down procedure. If the phone is off, a LOW on this signal will lock the PSU off.

  • Page 36: Power-Down

    POWER SUPPLIES 9.3.2 Power-up Sequence The power-up sequence can be initiated by pressing the power key or by the presence of an external power source on the signal EXT_PWR. Both enable the linear regulators and the CPU becomes active. The CPU must then check the battery condition;...

  • Page 37: Power Management

    The Power supply circuit needs to supply regulated power to the baseband and RF parts, control battery charging and monitor battery usage. G600 must achieve 2 types of battery operation - 4 cell Ni-MH and 2 cell Li-ION. The power supply section consists of four parts;...
  • Page 38 POWER SUPPLIES NOTE: During charging, the voltage could rise as high as 9.4V and all circuitry connected to the battery must be designed to operate up to this voltage. A block diagram for a four cell power supply is shown in figure 2 below, note that the battery voltage is stepped-up to power 5V SIM cards or the 5V RF power amplifier.

  • Page 39: Voltage Regulation

    Especially in Li-ION cells, high voltage dropout reduces the efficiency more than a small voltage dropout. To increase the current consumption efficiency, the G600 uses 3.4V step-down DC/DC voltage regulators. The DC/DC step-down circuitry uses two regulators on the LOGIC side and three regulators on the RF side to reduce the power loss to minimum.
  • Page 40 POWER SUPPLIES 9.5.2 Battery Charging circuit The CPU within the phone controls the battery charging. When external power is present the phone is automatically switched on. If rechargeable cells are detected and the temperature is within specified limits the charger starts using a rapid charge algorithm.

  • Page 41: 10 Accessories

    ACCESSORIES 10 ACCESSORIES 10.1 Handsfree Unit - Circuit Description 10.1.1 General Description The handsfree unit consists of audio processing, power supply and external power for the charging circuitry within the handheld unit. A digital signal processor (DSP) is used to remove the local echo or feedback created between the loudspeaker and microphone.
  • Page 42 ACCESSORIES Reset Circuit U310 and U314 form the reset circuit. U314 is a voltage level detector whose output goes low if the supply drops below 4.5V. When nHF ON is low (P201 pin 7), Q307 is switched on, pulling the input to U310 high. This signal also feeds the two analogue switches turning them on.
  • Page 43 ACCESSORIES Level Detection Circuit Path from J300 pin 2 EXT SPK SKT or TP311 GND REF POINT TP312 J300 Ext Speaker Socket Pin 2 or TP311 U309 Level Detector Input pin 1 Output pin 6 Q305 PNP Transistor Input B Output C Q306 NPN Transistor...
  • Page 44 ACCESSORIES 10.1.4 Test Points TP No. DESCRIPTION BOARD LOCATION TP101 Switching Voltage Regulator U102 Pin 2 TP201 External power P201 Pin 15 TP202 nLogic Power P201 Pin 14 TP203 Battery + (car) P203 Pin 1 TP300 TX Audio (To the handheld unit) P201 Pin 3 TP301 Output Amplifier Power...

  • Page 45: 10.2 Dual Charger

    ACCESSORIES 10.2 Dual Charger 10.2.1 Circuit Description A battery present is detected by the TH input, and battery type is detected by the S input. The S input is open-circuit on a small battery, pulling the base of Q13 high, turning it off. The base of Q2 is pulled low through R24, turning Q2 ON.
