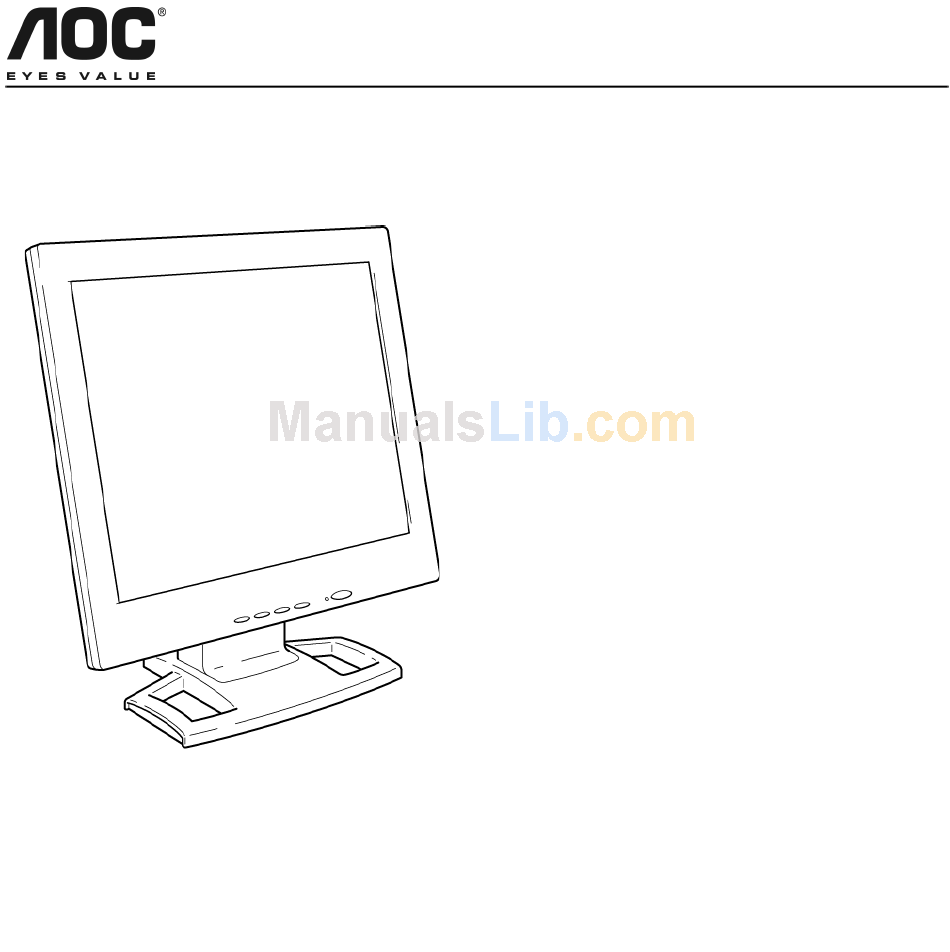

AOC LM720BGE AOC LM720BGE 17 inch TFT LCD Monitor User’s Manual by Envision Peripherals, Inc. www.aocmonitor.com Before operating your monitor, please read this manual thoroughly. AOC LM720BGE v1_031004...
4. Consult the dealer or an experienced radio/TV technician for help. AOC LM720BGE For Your Safety Notice 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Page 3
Overloading can result in fire or electric shock. • For use only with power adapter (Output 12Vdc) which has UL, CSA listed license. AOC LM720BGE Precautions • The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin.
EPI service center for replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself. AOC LM720BGE For Your Safety General Notes • Do not install the monitor near heat sources such as radiators or air ducts.
AOC LM720BGE AOC LM720BGE Package Contents The box that your monitor was shipped in should have included the following items: 1. LM720BGE LCD Monitor 2. Power Adapter 3. Power Cord 4. Windows 95/98/2000/ME/XP INF Driver Disk 5. Quick Start Guide 6.
Page 6
AC outlet or UL-approved power strip. 4. Connect the power adapter into the DC IN socket on the back of the monitor. AOC LM720BGE AOC LM720BGE Caution: Make sure the power cord is the correct type that is required in your area. This LCD...
Page 7
Before You Operate the Monitor AOC LM720BGE Preparing to Install An Optional Wall Mounting Arm (Not supplied) This monitor can be attached to a wall mounting See next page for further installation instructions. arm you purchase separately. Disconnect power before this procedure. Follow these steps: 1.
3. Insert the power cable into the slot on the back of the monitor. AOC LM720BGE AOC LM720BGE AOC's Model LM720BGE is compatible with the Ergotron line of mounting and arm solutions. Contact Ergotron at 800-888-8458 or visit their web site at www.ergotron.com for more information on the many ways on which you can mount your AOC LCD monitor.
• Do not touch the LCD screen when you change the angle. It may cause damage or breakage. • Be careful to avoid pinching your hand in the swivel base. AOC LM720BGE AOC LM720BGE How to Install INF & ICM File 1. Insert the Windows 95/98/2000/ME/XP INF Driver Disk into your floppy drive.
MENU: Press this button to open the OSD window or exit from the OSD window. AOC LM720BGE Operating Instructions AOC LM720BGE Power Indicator: A green light indicates that the monitor is on.
3. Press MENU to open the function’s window. 4. Press the < or > buttons to change the settings of the function. AOC LM720BGE Operating Instructions 5. To save and exit, highlight the EXIT icon and press MENU or leave the monitor alone for 10 seconds.
2 seconds. The screen will be automatically adjusted. If the screen is distorted (for example: the picture can't go to full screen, the background of white AOC LM720BGE Operating Instructions pattern has vertical stripe noise, or the characters are twisted): 1.
• Confirm that your video card is Plug & Play compatible. • Inspect the video cable and make sure that none of the pins are bent. • Make sure the AOC monitor drivers are installed. (AOC monitor drivers are available at: www.aocmonitor.com) Picture is fuzzy •...
Page 14
• Make sure the video cable is properly connected to the computer. If the connector is loose, tighten the connector's two screws. • Inspect the video cable and make sure that none of the pins are bent. AOC LM720BGE Technical Support (FAQ) Possible Solution...
640 x 400 640 x 350 720 x 400 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 AOC LM720BGE Technical Support (FAQ) Possible Solution Vertical Frequency 60 Hz 70 Hz 70 Hz 70 Hz 72.8 Hz...
Response time Video Separate Sync. H-Frequency V-Frequency Display Colors Dot Clock Maximum Resolution AOC LM720BGE Appendix Plug & Play TFT Color LCD Input Connector 17" (43.2 cm) Diagonal Input Video Signal 0.264 mm (H) x 0.264 mm (V) Maximum Screen Size 150°...
Page 17
H-Position V-Position Auto-Center Language Dos-mode Resolution Selected 6500° K 7800° K RGB Color temp. Recall Exit EPA ENERGY STAR® Power Consumption 45 Watts (Maximum) Regulatory UL, CSA, FCC, TÜV/ Compliance GS, CE, XP Logo AOC LM720BGE Appendix AOC LM720BGE v1_031004...
