AOC LM729 User Manual

17" lcd monitor
Hide thumbs Also See for LM729:

Advertisement

Table of Contents

See also: Service Manual

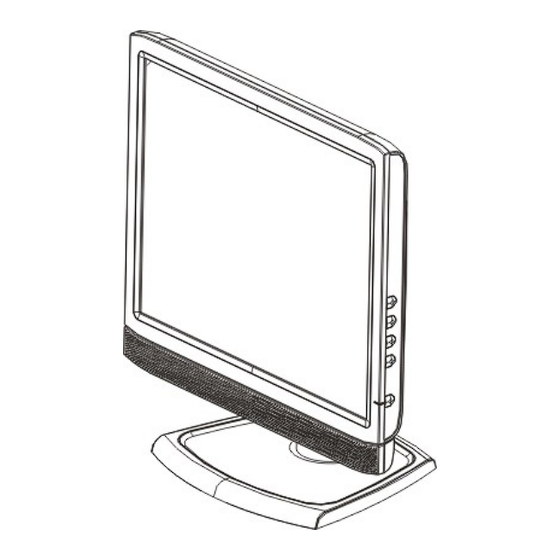

LM729
LM729
17" LCD Monitor
User's
Manual
By Envision Peripherals, Inc.
www.aocmonitor.com
.

Advertisement

Table of Contents
loading

Related Manuals for AOC LM729

Summary of Contents for AOC LM729

  • Page 1 LM729 LM729 17” LCD Monitor User’s Manual By Envision Peripherals, Inc. www.aocmonitor.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of Contents For Your Safety Precautions General Notes Before You Operate The Monitor Installation Instructions Operating Instructions Technical Support (FAQ) Appendix LM729 7-13 14-19 20-21 22-25...

  • Page 3: For Your Safety

    Refer servicing to qualified personnel only. SAFETY: Lamp Disposal LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL,STATE OR FEDERAL LAWS.FOR MORE INFORMATION,CONTACT THE ELECTRONIC INDUSTRIES ALLIANCE AT WWW.EIAE.ORG LM729 TAR guidelines for energy efficiency.

  • Page 4: Precautions

    To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V AC, Min. 5A. The wall socket shall be installed near the equipment and shall be easily accessible. LM729...
  • Page 5 Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the case & panel. As a safety precaution, always unplug the monitor before cleaning it. These damages are not covered under the LM729...

  • Page 6: General Notes

    LM729 GENERAL NOTES (cont) Plug & Play DDC 2B Feature - This monitor is equipped with VESA DDC 2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

  • Page 7: Before You Operate The Monitor

    Space Saving, Compact Case Design CHECKING THE CONTENTS OF THE PACKAGE The product package should include the following items: Monitor CD (Manual & Drivers) PC Stereo Cable Base Quick Start Guide (QSG) 15-pin D-Sub Cable Power Cord Warranty Booklet LM729...

  • Page 8: Installation Instructions

    Set the monitor standing on a flat firm surface. Remove the height adjustment lock pin. Set the monitor face down on a padded flat surface. Press the four clips inward while pushing the bottom base out. Install Remove Base LM729...

  • Page 9: Power Source

    The other end terminates with a molded-on type connector body, rated 10A, 250V, having standard CEE-22 Please note that power supply cord needs to use VDE 0602, 0625, 0821 approval power cord in European counties. ) shall be used. As an alternate, a female configuration. LM729...
  • Page 10 Connect the other end to a nearby AC-outlet. 4. Turn on your monitor and computer. If you monitor diplays an image, installation is complete. If not, refer to the FAQ (frequently asked questions) section for troubleshooting. female configuration. Connecting Cables AC Power Cord LM729...
  • Page 11 LM729 INSTALLATION INSTRUCTIONS (cont) How To Install The INF & ICM Files This is a Plug & Play monitor. Microsoft Windows will automatically install a Plug & Play driver for it when you first install this monitor. It is not necessary to install the INF driver file included in the floppy diskette or CD if Microsoft Windows successfully installed a Plug &...
  • Page 12 In order to use the Pivot function, the included Pivot Software must be installed. Run D:\PIVOT\START_PIVOT.EXE, where D is the driver letter for your CD ROM Drive. To make an adjustment, grasp the Figure 3 LM729...
  • Page 13 4. Remove the small plastic cover. It is attached to the back of the monitor by hooks. 5. Remove the large plastic cover. It is attached to the back of the monitor by hooks. 6. Remove the 4 screws holding the stand to the back of the monitor. 7. Remove the stand. LM729...
  • Page 14 NOTE The AOC LM729 is in compliance with the most current revision of the VESA 75mm Flat Panel Monitor Physical Mounting Interface (FPMPMI standard). Visit our Monitor Accessories website at www.aocmonitor.com/accessories.html to purchase a wall mount solution...

  • Page 15: Operating Instructions

    This button will activate the volume control when the OSD is OFF or navigate through adjustment icons when OSD is ON or adjust a function when function is activated. LM729 4. < or Volume Button 5. Auto Adjust or Exit Button...
  • Page 16 To lock the OSD, press and hold the MENU button while the monitor is off and then press power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is off and then press power button to turn the monitor on. LM729...
  • Page 17 4. To exit and save, select the exit function. If you want to adjust any other function, repeat steps 2-3. Figure 4 to activate it. < > again to navigate The OSD Menu LM729 If the...
  • Page 18 Temperature from be set to Cool. EEPROM. Recall Cool Color The User R/G/B Temperature from value(default is EEPROM. 100) will not be Modified by Reset Red Gain from function. Digital-register. Green Gain Digital-register. Blue Gain from Digital-register. LM729 Reset Value...
  • Page 19 English. English. Set OSD display language to German. Set OSD display language to French. Set OSD display language to Spain. Set OSD display language to Italian. Set OSD display language to Simplified Chinese. LM729 Reset Value...
  • Page 20 Icon Show the resolution, H/V frequency and input port of current iput timing. Clear each old status of Auto- configuration and set the color temperature to Cool. Do not execute reset, return to main menu. Exit OSD LM729 Reset Value...

  • Page 21: Technical Support (Faq)

    *Inspect the monitor’s video cable and make sure that none of the pins are bent. *Adjust pixel frequency (CLOCK) and FOCUS or press hot-key (AUTO) *Adjust color temperature *Use win 95/98 shut-down mode Adjust CLOCK and FOCUS or perform hot- key (AUTO-key). LM729 select color...
  • Page 22 Check the signal -cable connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode. Set the computer to a display mode given in the Preset Display Modes table. LM729...

  • Page 23: Appendix

    1280 x 1024 @75Hz VESA DDC 2B D-Sub 15pin Analog:0.7Vp-p(standard), 75 OHM, Positive Horizontal : 337.92mm Vertical : 270.34mm 100~240VAC,47~63HZ Operating Temp: 5° to 35°C Storage Temp.: -20° to 60°C Operating Humidity: 15% to 90% 382(W)×398-508(H)×230(D)mm 5.9kg Unit (net) LM729...
  • Page 24 APPENDIX (cont) Switch External Controls: Functions Power Consumption ( Maximum ) Speakers Regulatory Compliance LM729 Auto Adjust Key < /Volume > / Volume Power Button MENU/ Exit Contrast Brightness Focus Clock H.Position V.Position RGB Color temperature (Cool/Warm) Auto-Config OSD position, OSD timeout...
  • Page 25 1280 × 1024 720 x 400 1024 x 768 1024 × 768 HORIZONTAL VERTICAL FREQUENCY(KHZ) FREQUENCY(HZ) 31.469 37.500 37.879 46.875 48.363 56.476 60.023 64.00 80.00 31.469 48.780 60.241 LM729 59.940 75.000 60.317 75.000 60.004 70.069 75.029 60.000 75.000 70.087 60.001 74.927...
  • Page 26 APPENDIX (cont) Connector Pin Assignment PIN NO. DESCRIPTION Green Blue Monitor Ground DDC-return R-Ground G-Ground B-Ground 15 - Pin D-Sub Connector PI N NO. DESCRIPTION Logic Ground Monitor Ground DDC-Serial Data H-Sync V-Sync DDC-Serial Clock LM729...
