Windsor Saber Cutter SC326 Operating Instructions Manual

Walk behind scrubber
Hide thumbs Also See for Saber Cutter SC326:

Advertisement

Quick Links

Walk Behind Scrubber
86039090-BP
04/03/14
Operating instructions (ENG)
MODELS:
Read these instructions before using the machine.
SC326
10052220
SCC326
10052260
BSCSC326
10052890

Advertisement

Table of Contents
loading

Summary of Contents for Windsor Saber Cutter SC326

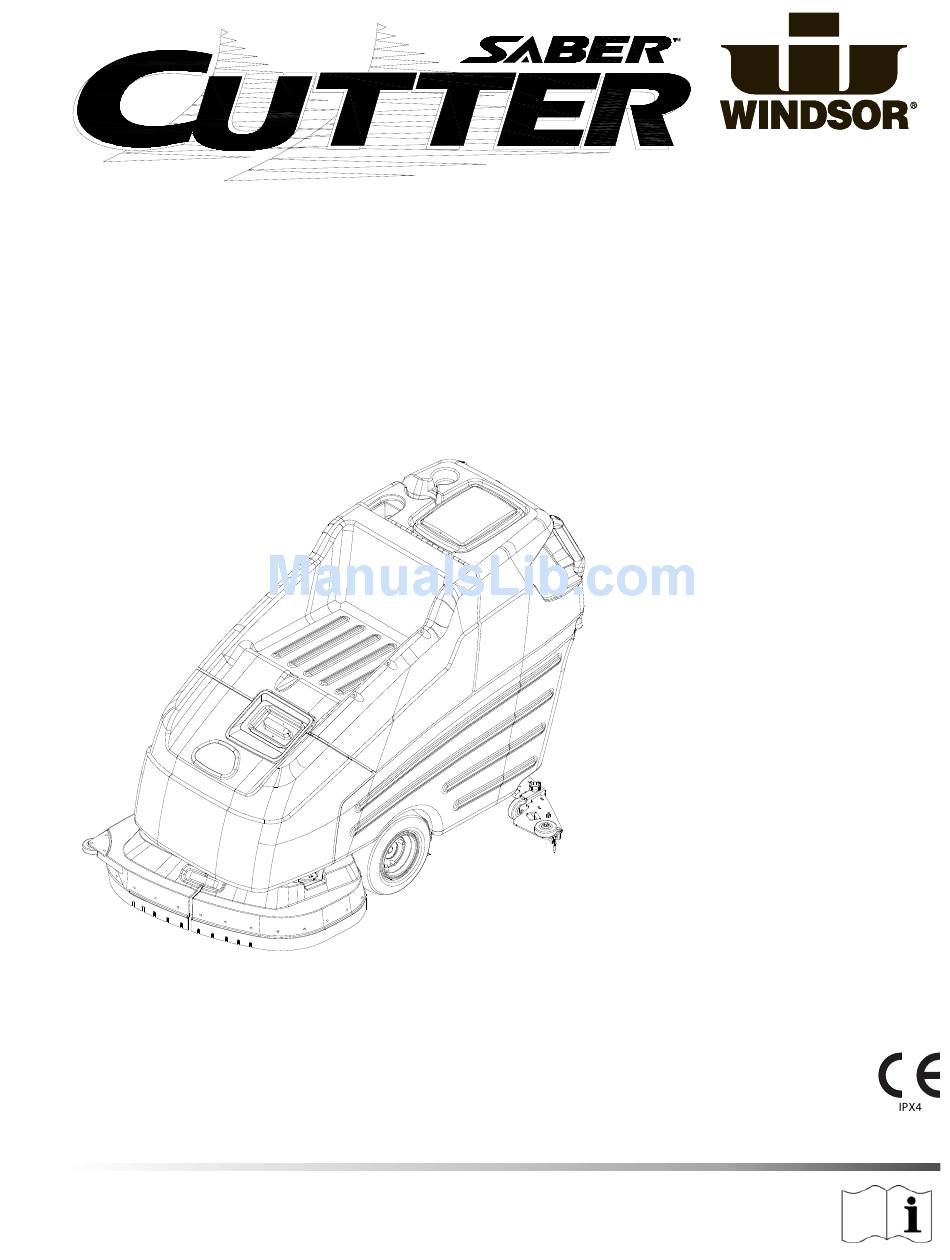

  • Page 1 Walk Behind Scrubber Operating instructions (ENG) MODELS: SC326 10052220 SCC326 10052260 BSCSC326 10052890 Read these instructions before using the machine. 86039090-BP 04/03/14...
  • Page 2: Machine Data Label

    Warranty Registration Thank you for purchasing a Windsor product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register you product go to : www.windsorind.com/WarrantyRegistration.aspx...
  • Page 3: Table Of Contents

    Wiring Group - Main Harness ....80 Wiring Group - Schematic-SC326... . . 82 Machine Operation ......16 Wiring Group - Schematic-SCC326 .
  • Page 4: How To Use This Manual

    How To Use This Manual This manual contains the following sections: The SAFETY section contains important information regarding hazardous or unsafe practices of the • How to Use This Manual machine. Levels of hazards are identified that could • Safety result in product damage, personal injury, or severe •...
  • Page 5: Safety

    Safety Important Safety Instructions When using this machine, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual.
  • Page 6: Hazard Intensity Level

    WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Windsor approved replacement parts. Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep top cover in raised position when charging. Keep sparks and flames away from the batteries.
  • Page 7: Safety Label Location

    Safety Safety Label Location NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become illegible, promptly replace them. SAFETY DECAL 86252530 BATTERY CAUTION 86252520 SEE MANUAL CIRCUIT BREAKER DECAL 86243610 2% GRADE WARNING 86039090 CUTTER 36V...
  • Page 8: Operations

    Operations Technical Specifications ITEM DIMENSION/CAPACITY Nominal power 2160 W Rated Voltage 36 Volt DC Rated Amperage 60 amps Batteries 6 x 6 volt 250-305-335 AH @ 20 Hr rate Scrub Brush Motors 2 x .75 hp (.56 kW ) Vacuum Motor 3 Stage .75 hp (.56 kW ) Propelling Motor .75 hp (.56 kW )
  • Page 9 Operations Technical Specifications ITEM MEASURE Height 46 in (117 cm) Length with 32 in. (81 cm) scrub head 71 in (180) Width without squeegee and scrub head 28 in (71 cm) Width of squeegee for 32 in. (81 cm) scrub head 39 in (99 cm) Width of scrub path for 32 in.
  • Page 10: How The Machine Works

    Operations How The Machine Works The function of the recovery system is to vacuum the soiled water back into the recovery tank. The recovery The Saber Cutter is a battery powered, self-propelled, system consists of the squeegee, vacuum motor, float hard floor scrubber intended for commercial use.
  • Page 11: Components

    Operations Components 1. Control Panel 2. Front Cover 3. Recovery Tank 4. Recovery Tank Drain Hose 5. Scrub Head Shrouds 6. Solution Tank 7. Solution Tank Cover 8. Solution Tank Drain Hose 9. Solution Strainer 10. Squeegee 11. Aqua-Mizer 12. Top Cover 13.
  • Page 12: Controls

    Operations Controls 86039090 CUTTER 36V...
  • Page 13 Operations 1. Key Switch 4. PROPEL CONTROL LEVERS 2. Emergency Shut-Off Switch Controls the machine direction, and scrub brushes and solution flow. 3. Speed Control Knob 4. Propel Control Lever To propel machine forward, squeeze either propel lever. 5. Reverse Button The scrub brushes will not rotate and the solution will 6.
  • Page 14 Operations 7. BRUSH PRESSURE LEVER 10. SQUEEGEE LIFT LEVER Adjusts the amount of brush pressure to the floor by Raises and lowers the squeegee. raising or lowering the scrub deck. To lower the squeegee, lift the lever from its raised To apply brush pressure, lower brush pressure lever to position.
  • Page 15 Operations 13. BATTERY CHARGE LEVEL INDICATOR Indicates the charge level of the batteries. The meter display is divided into 10 vertical bars. Bar illuminated on the far right indicate full charge. Bars flashing near the left side indicate the batteries should be recharged.
  • Page 16: Machine Operation

    Operations Machine Operation Filling Solution Tank FOR SAFETY: Before leaving or servicing Pre-Run Machine Inspection machine; stop on level surface, turn off machine and remove key. Do a pre-run inspection to find possible problems that could cause poor performance or lost time from break- 1.
  • Page 17: Normal Scrubbing

    Operations Normal Scrubbing To Begin Scrubbing Plan the scrubbing pattern in advance. The longest track is around the perimeter of the area to be cleaned. For efficient operation, the runs should be the longest When operating the machine around people, pay possible without turning, stopping, or raising and close attention for unexpected movement.
  • Page 18: Solution Tank

    Operations Double Scrub Recovery Tank For floors which are heavily soiled or have thick accu- 1. Unhook the large drain hose from the retainer. mulations of floor finish may not clean sufficiently with Unscrew the T-handle on plug enough to loosen one pass.
  • Page 19: Maintenance

    Maintenance Service Schedule MAINTENANCE DAILY WEEKLY MONTHLY Check batteries after charging; add water if necessary Check pad wear to prevent buildup of chemicals Check linkages and connectors for wear and damage Check hoses for wear, blockages, or damage Clean squeegee; check for adjustment; inspect for wear Check handles, switches, knobs, domes, and gaskets for damage...
  • Page 20 Maintenance 1. Batteries 2. Squeegee 3. Aqua Mizer 4. Scrub Brushes 5. Recovery Tank Float Shut-Off 6. Solution Strainer 7. Brush Motor 8. Traction Motor 9. Circuit Breakers 10. Brush Shroud & Brush Skirts 11. Vacuum Motor 12. Actuator Scrub Deck 86039090 CUTTER 36V...
  • Page 21: Batteries

    Maintenance Batteries The batteries provide the power to operate the When servicing machine, avoid contact with machine. The batteries require regular maintenance to battery acid. keep them operating at peak efficiency. The machine batteries will hold their charge for long periods of time, but they can only be charged a certain Batteries emit hydrogen gas.
  • Page 22: To Charge The Batteries

    Maintenance Checking Battery Specific Gravity To Charge The Batteries Use a hydrometer to check the battery specific gravity. When servicing machine, avoid contact with battery acid. Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep covers open when charging.
  • Page 23: Changing Batteries

    Maintenance 5. Replace the battery caps, and leave them in place Changing Batteries while charging. Stop the machine in a clean area next to the charger. 6. Unplug the battery connector from the machine. Turn off machine. FOR SAFETY: When charging, connect the FOR SAFETY: Before leaving or servicing the charger to the batteries before connecting the machine;...
  • Page 24: Squeegee Blades

    Maintenance Squeegee Blades To Remove Squeegee Assembly The front squeegee blade allows solution to pass 1. With the squeegee in the up position, turn key through channels in the blade into the squeegee switch "OFF". assembly while maintaining vacuum to provide lift. The 2.
  • Page 25: To Adjust Squeegee Pitch

    Maintenance To Adjust Squeegee Pitch To Adjust Amount of Rear Squeegee Deflection 1. Choose a smooth, level surface. Turn "ON" the key switch. Lower the squeegee and drive forward 1. Choose a smooth, level surface. Lower the at least 2 feet (60cm.). squeegee and drive forward at least 2 feet (60cm).
  • Page 26: Scrub Brushes

    Maintenance Scrub Brushes Replacing or Installing Scrub Brushes There are four different types of brushes available to 1. With the scrub deck up, turn "OFF" the machine. cover applications from cleaning heavily soiled floors to FOR SAFETY: Before leaving or servicing the polishing.
  • Page 27: Solution Strainer

    Maintenance Solution Strainer Brush Motor Carbon Brush Replacement The solution strainer is located in front of the left front 1. Scribe alignment mark on motor barrel to motor wheel. The solution strainer protects the solenoid valve cap. Remove two bolts. from debris.
  • Page 28: Traction Motor

    Maintenance Traction Motor Circuit Breakers Circuit breakers interrupt the flow of power in the event of an electrical overload. When a circuit breaker is tripped, reset it by pressing the exposed button. If a Do not use a pressure washer to clean around the circuit breaker continues to trip, the cause of the elec- motors.
  • Page 29: Vacuum Motor

    6. Remove vacuum motor from mounting bracket. stop in 7. Reverse steps to install. groove. Vacuum Motor Carbon Brushes Replacement (Windsor) Important: End Cap These brushes wear quicker as the length shortens due to increased heat. Spring inside brush housing...
  • Page 30 Maintenance Greasing Axle RECOMMENDED GREASING: 1-2 strokes of Mobiltemp®78 or compatible clay-based or calcium-based grease. NOTE: Use hand operated grease gun only. 86039090 CUTTER 36V...
  • Page 31: Machine Troubleshooting

    Maintenance Machine Troubleshooting PROBLEM CAUSE SOLUTION Poor or no water pick-up Squeegee out of adjustment Adjust squeegee Debris caught on squeegee Remove debris Rotate or replace squeegee Worn squeegee blades blades Vacuum hose clogged Clear obstruction from hose Vacuum hose disconnected from Reconnect vacuum hose squeegee or recovery tank Vacuum hose damaged...
  • Page 32 Maintenance Machine Troubleshooting PROBLEM CAUSE SOLUTION Little or no solution flow Solution tank empty Fill solution tank to the floor Solution flow turned off or set too low Turn on or increase flow setting Solution strainer plugged Clean solution strainer Solution hoses obstructed Clear obstruction from hose Solution solenoid valve obstructed or stuck...
  • Page 33 Notes: 86039090 CUTTER 36V...
  • Page 34 Notes: 86039090 CUTTER 36V...
  • Page 35: Parts

    Parts PARTS 86039090 CUTTER 36V...
  • Page 36: Control Handle

    Control Handle 86039090 CUTTER 36V...
  • Page 37 Control Handle SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86238730 HANDLE, LEFT 86257230 SWITCH, SPST MOM NO W/LEVER 86254920 SPRING, COMP .24ODX1.25X.018 86231480 BUTTON, PROPEL 86277070 SCREW, 4-40 X .625 PHPNHMS STL ZNPLT 86240990 HOUSING, BUTTON 86277060 SCREW, 8-32 X .875 PHPNHTC 86277050 SCREW, 5/16-18 X .75 SCHCS SS 86238740...
  • Page 38: Cover (Front) & Tank Mount

    Cover (Front) & Tank Mount 86039090 CUTTER 36V...
  • Page 39 Cover (Front) & Tank Mount SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86073690 BRT, REC TO SOL W/BRAKE 36V 86010670 WASHER 5/16 FLAT SS 86276780 SCREW, 5/16-18 X .75 HHCS SS 86062550 COVER, FRONT, 36V, GRY 86004790 KNOB, 5/16-18 4 PRONG 86276380 SCREW, 5/16-18 X 1.25 SCHSET CP SS 86279630...
  • Page 40: Cover (Top) & Tank Mount

    Cover (Top) & Tank Mount 86039090 CUTTER 36V...
  • Page 41 Cover (Top) & Tank Mount SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86062560 COVER, TOP, 36V, GRY 86271840 NUT 5/16-18 HEX NYLOCK THIN SS 86010670 WASHER 5/16 FLAT SS 86239650 HINGE, COVER TO TANK 36V 86276780 SCREW, 5/16-18 X .75 HHCS SS 86069840 BRKT, TANK LEFT 36V 86069850...
  • Page 42: Decal

    Decal 86039090 CUTTER 36V...
  • Page 43 LABEL, CUTTER RIGHT 86243620 LABEL, ELEC. PANEL 36V BASIC 86243610 LABEL, ELECT PANEL, LOWER 36V 86243600 LABEL, SQUEEGEE LEVER 86243590 LABEL, BRUSH LEVER 86243550 LABEL, CUTTER LEFT 86243710 LABEL, SOLUTION FILL 36V 86004970 LABEL WINDSOR LOGO DOMED 86039090 CUTTER 36V...
  • Page 44: Electrical Panel

    Electrical Panel DETAIL 'A' SEE DETAIL 'A' 12AB 86039090 CUTTER 36V...
  • Page 45 Electrical Panel SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86276290 SCREW, 10 X .75 PHPNHMS BLK ZNPLT 86294250 WASHER, .19ID X .5 X .09TK BLK 86007140 SWITCH SPST 2-POSITION ROCKER 86242110 KNOB, .90OD X .25 COLLET 86008900 BOOT, SEAL-PUSH BUTTON 7/16-28 86082850 PLATE, ELEC.
  • Page 46: Lift Handle

    Lift Handle 86039090 CUTTER 36V...
  • Page 47 Lift Handle SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86077260 LEVER, DECK SWING 86082900 PLATE LEVER NOTCH BASIC 36V 86259400 WASHER THRUST.51 ID X 1 ODBRO 86010670 WASHER 5/16 FLAT SS 86276780 SCREW, 5/16-18 X .75 HHCS SS 86006930 SCREW, 5/16-18 X 1 SCHBTNHCS SS 86066860 BAR, SQG LIFT SWING 36V 86238360...
  • Page 48: Lift Handle Linkage

    Lift Handle Linkage 86039090 CUTTER 36V...
  • Page 49 Lift Handle Linkage SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86069830 BRKT, LEVER, PIVOT BOTTOM 36V 86238430 GROMMET 1.00 ID 3/16 GRIP 86276920 SCREW, 3/8-16 X 1 HHCS SS NP 86276780 SCREW, 5/16-18 X .75 HHCS SS 86010670 WASHER 5/16 FLAT SS 86082890 PLATE, PIVOT TOP 86228840...
  • Page 50: Recovery Tank

    Recovery Tank 86039090 CUTTER 36V...
  • Page 51 Recovery Tank SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86273950 SCR, 6-32 X 1/2 PPHMS SS 86003340 DOME, 13 X 11 86003990 GASKET, DOME 86246080 LANYARD, 18.0 W/ LOOP & EYE 86270920 NUT, 6-32 HEX NYLOCK SS 86032560 TANK REC, 36V,GRY 86276290 SCREW, 10 X .75 PHPNHMS BLK ZNPLT 86001190...
  • Page 52: Scrub Brush/Pad Driver 32 In

    Scrub Brush/Pad Driver 32 IN 86039090 CUTTER 36V...
  • Page 53 Scrub Brush/Pad Driver 32 IN SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86000290 PAD DRIVER, 16" SD 86000300 BRUSH 16" POLYPROPYLENE SD 86000310 BRUSH 16" NYLON SD 86000320 BRUSH 16" NYLON POLISH SD 86000330 BRUSH 16" MILD GRIT SD 86000340 BRUSH 16"...
  • Page 54: Scrub Deck Aqua-Mizer

    Scrub Deck Aqua-Mizer 86039090 CUTTER 36V...
  • Page 55 Scrub Deck Aqua-Mizer SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86006930 SCREW, 5/16-18 X 1 SCHBTNHCS SS 86228840 BUSHING, .314 X .502 X .5 FLG 86259420 WASHER, .510 X 1 X .093 THR 86259400 WASHER THRUST .51 ID X 1 OD BRO 86255060 SPRING, EXT .43D X2.50L X.047W 86249590...
  • Page 56: Scrub Deck Motors

    Scrub Deck Motors 86039090 CUTTER 36V...
  • Page 57 Scrub Deck Motors SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86005340 MOTOR 36VDC 200RPM 3/4HP GEAR 86002830 CABLE TIE .375 X 24.7 86010790 WASHER, 3/8 X .680 X .094 SPL STL ZNPLT 86276970 SCREW, 3/8-16 X .75 HHCS SS 86007020 SCREW, 5/16-18 X 1.25 HHCS SS NP 86279130 WASHER, 5/16 X .583 X .078 SPL STL ZNPLT...
  • Page 58: Scrub Deck Skirt

    Scrub Deck Skirt 86039090 CUTTER 36V...
  • Page 59 Scrub Deck Skirt SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86006930 SCREW, 5/16-18 X 1 SCHBTNHCS SS 86070050 BRKT, SHROUD RETAINER LEFT 1000094309 86271900 NUT, 10-24 HEXTHIN NYLOCK SS 86010650 WASHER, 10 X .562 X .032 FLT STL PSVT 86022470 SHROUD, SCRUBDECK 32 IN (RAW) 86277110 SCREW, 10-24 X .75 PHPNHMS SS...
  • Page 60: Scrub Deck Lift Linkage

    Scrub Deck Lift Linkage 86039090 CUTTER 36V...
  • Page 61 Scrub Deck Lift Linkage SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86066820 BAR VERT. LINKAGE, REAR 86070000 BRKT, BELLCRANK SPRT. REAR 36V 86066830 BAR, DECK LINKAGE, REAR 86228900 BUSHING, .252 X .503 X .75 FLG 86010630 WASHER, 1/4 X .625 FLT SS 86273820 SCREW, 1/4-20 X 1.25 HHMS SS 86271870...
  • Page 62: Scrub Deck Lift Linkage

    Scrub Deck Lift Linkage 86039090 CUTTER 36V...
  • Page 63 Scrub Deck Lift Linkage SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86273820 SCREW, 1/4-20 X 1.25 HHMS SS 86010630 WASHER, 1/4 X .625 FLT SS 86228900 BUSHING, .252 X .503 X .75 FLG 86259400 WASHER THRUST.51 ID X 1 ODBRO 86259410 WASHER, .510 X 1 X .063 THR 86271870...
  • Page 64: Solution

    Solution HOSE FROM FILTER ASM. 86039090 CUTTER 36V...
  • Page 65 Solution SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86273950 SCR, 6-32 X 1/2 PPHMS SS 86234790 COVER, CLP SOLUTION 86246080 LANYARD, 18.0 W/ LOOP & EYE 86014810 NUT, 6-32 ACORN SS 86032550 TANK SOL, 36V, BLU 86240460 HOSEBARB 1/2MPT X 1.0 HOSE 86282050 HOSE 1ID X .12W CLR X 24.5"...
  • Page 66 Solution TO SOLUTION TANK 86039090 CUTTER 36V...
  • Page 67 Solution SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86273750 SCREW, 1/4-20 X .625 HHCS SS NP 86233150 CLAMP, 3/8 HOSE (D-SLOT) 86070020 BRKT, FLTR/SOLND MOUNT 36V 86271870 NUT, 1/4-20 HEXTHIN NYLOCK SS 86282190 HOSE, 1/2ID WIRE BOUND X 13" 86264940 CABLE TIE 11.38"...
  • Page 68: Squeegee

    Squeegee 86039090 CUTTER 36V...
  • Page 69 Squeegee SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86009200 KNOB, 3/8-16 4 PRONG ALUM 1000099023 WAS 4 86010680 WASHER, 3/8 FLT NYL 86007780 SPRING COMP .60D X 2.0L X .045W 86008660 COTTER 5/16" RING 86001350 BUSHING, SPANNER .435 X 1.10 86271870 NUT, 1/4-20 HEXTHIN NYLOCK SS 86005630...
  • Page 70: Squeegee Lift Linkage (Lower)

    Squeegee Lift Linkage (Lower) 86039090 CUTTER 36V...
  • Page 71 Squeegee Lift Linkage (Lower) SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86008670 COTTER 3/8" RING 86069450 BRKT, SQG PIVOT LIFT 86271840 NUT 5/16-18 HEX NYLOCK THIN SS 86228840 BUSHING, .314 X .502 X .5 FLG 86259410 WASHER, .510 X 1 X .063 THR 86009200 KNOB, 3/8-16 4 PRONG ALUM 86279510...
  • Page 72: Vacuum

    Vacuum 86039090 CUTTER 36V...
  • Page 73 BRKT, VACUUM MOUNT, 36V 86005450 VAC MOTOR ASM, 36VDC 3 STAGE 86230800 BRUSH SET, 36V 3ST VAC AMETEK SERVICE ONLY 86326980 BRUSH SET 24/36V VAC WINDSOR 1000122411 SERVICE ONLY 86010630 WASHER, 1/4 X .625 FLT SS 86273810 SCREW, 1/4-20 X 1 HHCS SS 86091170 TUBE, 2.0 OD X 1.0L...
  • Page 74: Wheels & Frame

    Wheels & Frame PRIOR TO SERIAL NO. 1000105226 86039090 CUTTER 36V...
  • Page 75 Wheels & Frame SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86271840 NUT 5/16-18 HEX NYLOCK THIN SS 86215770 BRKT, TRANSAXLE MOUNT 36V 86010090 NUT, 7/16-20 WHL STL ZNPLT OPTIONAL 86090640 WHEEL ASM, 12" FMFL N-MARKING (STANDARD ON BSCSC326) 86137410 WHEEL ASM, 12" SOLID SCBR CMPD OPTIONAL 86010370 WHEEL ASM, 12"...
  • Page 76: Wiring-Battery

    Wiring-Battery 86039090 CUTTER 36V...
  • Page 77 Wiring-Battery SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86008760 CONNECTOR 175 DCA GRY W/O TERMS 86271870 NUT, 1/4-20 HEXTHIN NYLOCK SS 86271910 NUT, 5/16-18 FLEX LK STL GRA CDPLT 86008920 BOOT, RUBBER TERM. ISOLATOR 86009000 WIRE, 4 X 9.5 BK 5/16 RING X 5/16 RING 86010850 WIRE, 4X20RD CTERM X 5/16RING 86010860...
  • Page 78: Wiring Group - Control Panel

    Wiring Group - Control Panel DIAGRAM B DIAGRAM A 51 RED 30 RED 49 BLK 56 RED 48 BLK 52 RED 47 RED 29 YLW 50 BLK 43 BLK 62 BLK 63 RED 63 BLK 26 RED 66 BLK 61 BLK 65 RED 2 BLK 28 WHT...
  • Page 79 Wiring Group - Control Panel SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86239000 HARNESS, PANEL BASIC 86261210 DIODE ASM, 76008 X 76008 86003410 DIODE ASM, 76075 X 76075 86267340 WIRE, 22" RED/18 76040 X 76075 86269300 WIRE, 16" RED/18 STRIP X STRIP 86267360 WIRE, 14"...
  • Page 80: Wiring Group - Main Harness

    Wiring Group - Main Harness 74 RED RIGHT BRUSH MOTOR 75 BLK 76 RED LEFT BRUSH MOTOR 77 BLK 72 RED MOTOR 73 BLK DIAGRAM A 73 BLK 75 BLK 78 RED 79 BLK 76 RED 69 RED 72 RED 77 BLK 74 RED 68 GRN/YLW...
  • Page 81 Wiring Group - Main Harness SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86238980 HARNESS, MAIN 86260400 WIRE ASM, REV POALRITY JUMPER SERVICE ONLY 86039090 CUTTER 36V...
  • Page 82: Wiring Group - Schematic-Sc326

    Wiring Group - Schematic-SC326 INDICATES OPTIONAL ACCESSORY 86039090 CUTTER 36V...
  • Page 83: Wiring Group - Schematic-Scc326

    Wiring Group - Schematic-SCC326 INDICATES OPTIONAL ACCESSORY 86039090 CUTTER 36V...
  • Page 84 Notes: 86039090 CUTTER 36V...
  • Page 85: Options

    Options OPTIONS...
  • Page 86: Brake

    Brake 86039090 CUTTER 36V...
  • Page 87 Brake SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86248370 PAD, BRAKE 86006220 PIN, ROLL 1/4 X 1.25 STL ZNPLT 86251800 ROD BRAKE 36V 86231330 BUSHING, .6270 X .753 X 1 FLG BRZ 86255060 SPRING, EXT .43D X2.50L X.047W 86070070 BRKT, LOWER BRAKE MOUNT 24V 86234850 CRANK, BRAKE 86272610...
  • Page 88: Emergency Stop

    Emergency Stop 86039090 CUTTER 36V...
  • Page 89 Emergency Stop PART NO. DESCRIPTION SERIAL NO. FROM NOTES 86007180 SWITCH EMERGENCY STOP 86269300 WIRE, 16" RED/18 STRIP X STRIP NOT SHOWN 86039090 CUTTER 36V...
  • Page 90: Accessory Pump

    Accessory Pump SOLUTION RECOVERY BRACKET TO FILTER TO COUPLING TO SOLENOID (EXISTING HOSE) 86039090 CUTTER 36V...
  • Page 91 Accessory Pump SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86006100 PUMP ASM, 36V ACCESSORY 86010650 WASHER, 10 X .562 X .032 FLT STL PSVT 86197940 HOSEBARB, 3/8MPT X 1/2 90D DL 86233150 CLAMP, 3/8 HOSE (D-SLOT) 86280750 HOSE, 1/2 WIREBOUND X 21" 86240410 HOSEBARB, 1/2 TEE 86282110...
  • Page 92: Battery Charger-Scc326

    Battery Charger-SCC326 86039090 CUTTER 36V...
  • Page 93 Battery Charger-SCC326 SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86232950 CHARGER, DELTA-Q, 36V, 21A 86031800 COVER, TOP, 36V GRY OBC 86073430 BRKT, CHARGER DELTA-Q 86226550 GROMMET, 1/2 ID X 1/4 GROOVE 86005810 NUT, 1/4-20 HEX NYLOCK SS 86275490 SCREW, 1/4-20 X 1 SCHBTNHCS BLKOX 86279520 WASHER, 1/4 X .625 X .065 FLT BLK ZNPLT 86268010...
  • Page 94: Suggested Spare Parts

    BLADE AQ LEFT 16 INCH 86001420 BLADE AQ RIGHT 16 INCH 86004860 KEY, SWITCH 86007530 SKIRT 32 INCH LEFT 86007540 SKIRT 32 INCH RIGHT 86230800 BRUSH SET, 36V 3ST VAC AMETEK 86326980 BRUSH SET 24/36V VAC WINDSOR 86039090 CUTTER 36V...
  • Page 95 Notes: 86039090 CUTTER 36V...
