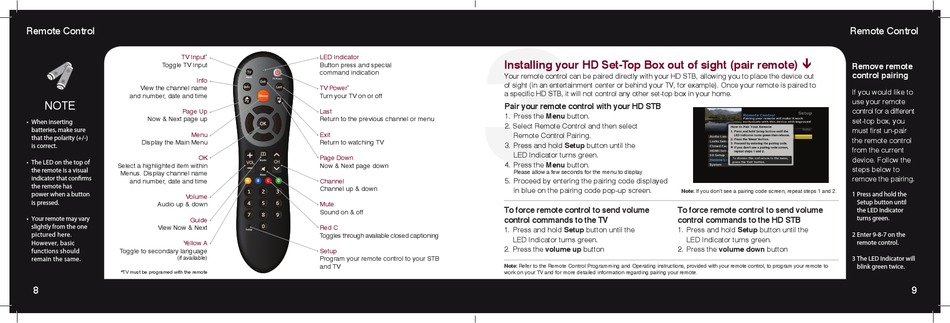

Remote Control

TV Input *
Toggle TV Input
Info
View the channel name
and number, date and time
NOTE
Page Up
Now & Next page up
• When inserting
batteries, make sure
Menu
that the polarity (+/-)
Display the Main Menu
is correct.
OK
• The LED on the top of
Select a highlighted item within
the remote is a visual
Menus. Display channel name
indicator that confirms
and number, date and time
the remote has
power when a button
Volume
is pressed.
Audio up & down
• Your remote may vary
Guide
slightly from the one
View Now & Next
pictured here.
However, basic
Yellow A
Toggle to secondary language
functions should
(if available)
remain the same.
*TV must be programed with the remote
8
3
LED Indicator
Button press and special
command indication
TV Power *
Turn your TV on or off
Last
Return to the previous channel or menu
Exit
Return to watching TV
Page Down
Now & Next page down
Channel
Channel up & down
Mute
Sound on & off
Red C
Toggles through available closed captioning
Setup
Program your remote control to your STB
and TV
Installing your HD Set-Top Box out of sight (pair remote) ê
Your remote control can be paired directly with your HD STB, allowing you to place the device out
of sight (in an entertainment center or behind your TV, for example). Once your remote is paired to
a specific HD STB, it will not control any other set-top box in your home.
Pair your remote control with your HD STB
1. Press the Menu button.
2. Select Remote Control and then select
Remote Control Pairing.
3. Press and hold Setup button until the
LED Indicator turns green.
4. Press the Menu button.
Please allow a few seconds for the menu to display
5. Proceed by entering the pairing code displayed
in blue on the pairing code pop-up screen.
Note: If you don't see a pairing code screen, repeat steps 1 and 2.
To force remote control to send volume To force remote control to send volume
control commands to the TV control commands to the HD STB
1. Press and hold Setup button until the 1. Press and hold Setup button until the
LED Indicator turns green.
2. Press the volume up button 2. Press the volume down button
Note: Refer to the Remote Control Programming and Operating instructions, provided with your remote control, to program your remote to
work on your TV and for more detailed information regarding pairing your remote.
Remote Control
Remove remote
control pairing
If you would like to
use your remote
control for a different
set-top box, you
must first un-pair
the remote control
from the current
device. Follow the
steps below to
remove the pairing.
1 Press and hold the
Setup button until
the LED Indicator
turns green.
2 Enter 9-8-7 on the
LED Indicator turns green.
remote control.
3 The LED Indicator will
blink green twice.
9
