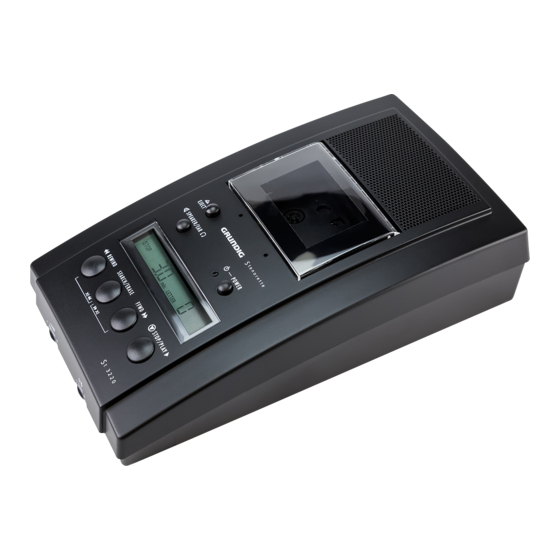

- Page 1 Stenorette St 3221 Steno-Cassette 30 ENGLISH www.grundig-gbs.com...
- Page 2 Stenorette St 3221 ________________________________________ ac 9V-10V ac 9V-10V HEADSET HEADSET FOOT CONTROL FOOT CONTROL...
- Page 3 Stenorette St 3221 ________________________________________ ac 9V-10V ac 9V-10V HEADSET FOOT CONTROL HEADSET FOOT CONTROL t e n o - C a s s e t t e 3 0 E J E C T t e n o r e t t e...
- Page 4 Stenorette St 3221 ________________________________________ Made in Germany Fabriqué en Allemagne S P E E D B AC K S PAC E...
-
Page 5: Table Of Contents
Starting and stopping using the 536 foot control Fast forward and short rewind using the 536 foot control Search Function Care and Maintenance Housing Parts that come into contact with the tape Technical Data Mains unit 682 GB Stenorette St 3221 Accessories Warranty, Service, Sales... -
Page 6: Brief Instructions
BRIEF INSTRUCTIONS ____________________________________ Press the »POWER« button to turn the machine on and off. Steno-cassette compartment, counter reset In Stop position, press the »EJECT« button. – The cover opens slowly and the counter is reset to zero (0). Insert the steno-cassette with its open side and the labelling visible into the steno-cassette compartment. -
Page 7: Fast Forward, Rewind, Search
BRIEF INSTRUCTIONS ____________________________________ Use the »BACKSPACE« rotary adjuster in the base of the ma- chine to set the backspace time from + “unlimited” (same as rewind) to – “minimum”. Use the »SPEED« rotary adjuster in the base of the machine to set the playback speed. -
Page 8: Preparation
Mains unit 682 GB connection With mains unit 682 GB Warning! The mains unit is designed for use with the Grundig Stenorette St 3221 only. To connect the mains unit with the machine: push the ac 9V-10V connector (telephone type jack) into the socket at the back of the machine marked »ac 9 V-10 V~«. -
Page 9: Turning The Machine On And Off
The features indicated by Grundig apply only when using original Grundig accessories. Defects due to the use of accessories which are not original Grundig accessories or which do not comply with the legal regulations or the corresponding standards lead automatically to the expiration of any... -
Page 10: Information Display
INFORMATION DISPLAY ________________________________ Function display DICTATE SEARCH ERASE STOP FFWD LETTER PLAY REWIND Dictation length in minutes letter counter 00.0 – 39.9 0 – 19 Note: Throughout the manual: 88.8 means the current dictation length, means the current letter number. -
Page 11: Dictation Count
DICTATION COUNT ________________________________________ Letter quantity, length and remaining dictation time The end of the letter must be marked during dictation in order to register on the display. Insert a recorded steno-cassette that has been rewound into the tape compartment. If the steno-cassette has not been removed from the compartment since turning the unit on, press th »EJECT «... -
Page 12: How To Use The 536 Foot Control
HOW TO USE THE 536 FOOT CONTROL ________ Switch options: right pedal = playback start/stop middle pedal = fast forward left pedal = rewind/short rewind Starting and stopping using the 536 foot control You can use the start pedal (right pedal) to either lock or scan. -
Page 13: Fast Forward And Short Rewind Using The 536 Foot Control
HOW TO USE THE 536 FOOT CONTROL ________ Fast forward and short rewind using the 536 foot control Fast forward Step on the middle pedal of the foot control. – If the end of a letter is marked you will hear a short beep and the tape will stop briefly. -
Page 14: Search Function
SEARCH FUNCTION _______________________________________ The search function automatically locates marks set at the end of letters during recording. Forward search Press the »SEARCH/ERASE « button and the »FFWD « button down together. – The following appears in the display: SEARCH FFWD LETTER Backward search Press the »SEARCH/ERASE... -
Page 15: Care And Maintenance
Cleaning parts that come into contact with the tape: Rubber pressure roller Capstan shaft Recording head Warning! Repair note Use only original replacement parts. The power cable may be replaced only by a Grundig authorised repair service. Please contact your dealer if malfunctions occur. -
Page 16: Technical Data
The product name and serial number are located on the bottom of the machine housing. The product is in accordance with following EC-Directives: “89/336/CEE, 73/23/CEE, 93/68/CEE“. Environment-friendly materials – environment-compliant packing: Grundig dictation machines are conceived and fabricated according to the highest environmental requirements. Technical data and design subject to change. -
Page 17: Accessories
ACCESSORIES ________________________________________________ Accessories (not included in delivery) that enhance the capabilities of your machine: used to erase the recordings of an entire Instant eraser 616 steno-cassette 30. dual speaker system. Headset 561, dual speaker system (under chin). Swingphone 562, consists of an earclip and speaker. Earclip/sound-module 556 for use with the 556 sound-module Stethofork headset 514... -
Page 18: Warranty, Service, Sales
Please contact your supplier if you wish to register the guarantee of this product or make a claim. If there is no specialized dealer in your region, please contact one of the following addresses. Grundig Business Systems (UK) Ltd. Suite 5R14 (5th Floor Red Zone) Elstree Business Centre Elstree Way... - Page 19 Grundig Business Systems GmbH Weiherstraße 10 D - 95448 Bayreuth Germany 36118 942 0201...
