Summary of Contents for Chauvet Q-wash 560Z-LED

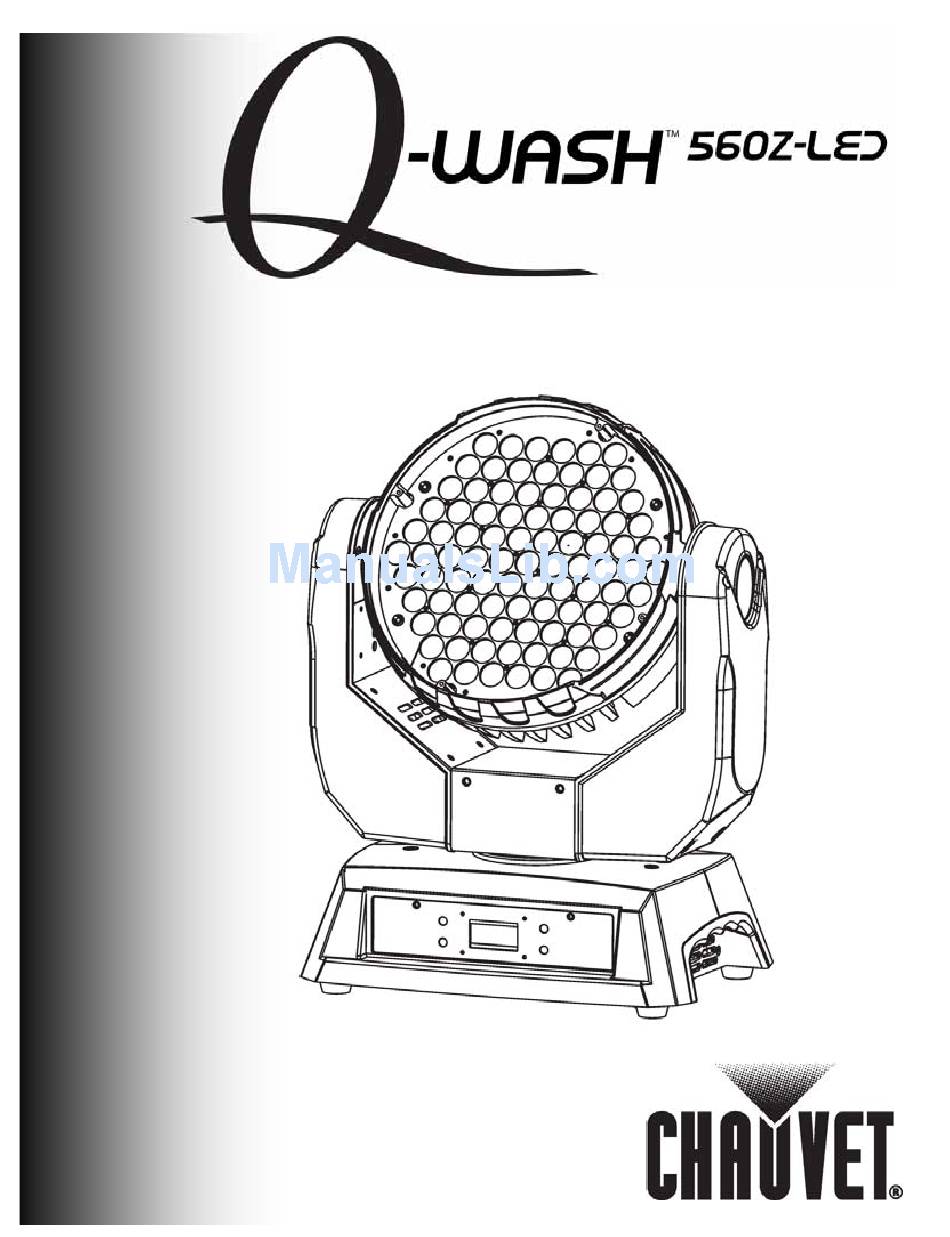

- Page 1 User Manual...
- Page 2 CHAUVET® to notify any person or company of such revision or changes. This does not constitute in any way a commitment by CHAUVET® to make such changes. CHAUVET® may issue a revision of this manual or a new edition of it to incorporate such changes.
-
Page 3: Table Of Contents
Power ............................12 Color Settings ..........................12 Fan Control ..........................13 Color Calibration ........................13 White Calibration ........................13 System Default .......................... 14 Edit Custom ..........................14 Q-Wash 560Z-LED User Manual Rev. 05... - Page 4 5. Technical Information ..................19 Product Maintenance ......................19 Troubleshooting Guide ...................... 20 Returns Procedure ......................21 Claims ..........................21 Contact Us ........................21 Technical Specifications ....................22 -ii- Q-Wash 560Z-LED User Manual Rev. 05...
-
Page 5: Before You Begin
Product at a Use on Dimmer Auto Programs Glance Outdoor Use Auto-ranging Power Supply Sound Activated Replaceable Fuse User Serviceable Master/Slave Duty Cycle Q-Wash 560Z-LED User Manual Rev. 05... -
Page 6: Safety Notes
There are no user serviceable parts inside this product. Any reference to servicing you may find from now on in this User Manual will only apply to properly CHAUVET® certified technicians. Do not open the housing or attempt any repairs unless you are certified to do so. -
Page 7: Introduction
Product The Q-Wash 560Z-LED is an RGBWA LED moving yoke, wash product. The Q-Wash 560Z-LED consists of a base section and a moving yoke with a pan range of Description up to 540º. The moving head, which has a tilt range of 270º, contains the 91 RGBW LEDs and the zoom motors. -
Page 8: Product Overview
Introduction Product Overview BACK Power Input 3‐pin DMX In IEC Socket 3‐pin DMX Out Fuse holder 5‐pin DMX In Power Switch 5‐pin DMX Out Control panel FRONT Q-Wash 560Z-LED User Manual Rev. 05... -
Page 9: Product Dimensions
Introduction Product Dimensions Q-Wash 560Z-LED User Manual Rev. 05... -
Page 10: Setup
3. Setup AC Power The Q-Wash 560Z-LED has an auto-ranging power supply that can work with an input voltage range of 100~240 VAC, 50/60 Hz. Make sure that you are connecting this product to the proper voltage, as per the specifications in this guide or on the product’s sticker. -
Page 11: Dmx Linking
Setup DMX Linking You may link the Q-Wash 560Z-LED to a DMX controller using a standard DMX serial connection. If using other DMX compatible products with this product, you can control them individually with a single DMX controller. If you are not familiar with the DMX standard, or if you need information about the DMX cables needed to link this product to a DMX controller, you may download the DMX Primer document from the CHAUVET®... -
Page 12: Mounting
Procedure The Q-Wash 560Z-LED comes with two omega brackets to which you can attach clamps. You must supply your own clamps and make sure that they are capable of supporting the weight of this product. You will have to use two mounting points per product. The omega brackets also serve to anchor this product to a panel. -
Page 13: Operation
<DOWN> value when in a function Control Options You can set the Q-Wash 560Z-LED start address in the 001~512 DMX range. This allows for the control of up to 34 products in the 15-channel ADVANCED personality. Programming Refer to the Menu Map on page 15 to learn how the menu options relate to each other. -
Page 14: Master/Slave
Operation Master/Slave The Master/Slave mode allows a group of Q-Wash 560Z-LED products (the slaves) to simultaneously duplicate the output of another Q-Wash 560Z-LED (the master), whether auto/custom or static modes, without a DMX controller. 1. Set the master unit: a) Select a stand-alone mode, as indicated above. -
Page 15: Dimmer Curve
Operation Dimmer Curve This setting determines how fast the output of the Q-Wash 560Z-LED changes when the operator modifies the values of the Red, Green, Blue, White, Amber, and Dimmer faders. This setting gives the user four different options to simulate the dimming curve of an incandescent lighting product. -
Page 16: Reset Control
The product will return to Normal if the LEDs’ temperature becomes too high. Color Settings The COLOR setting determines how the Q-Wash 560Z-LED generates the white color based on various RGB settings. 1. Go to MENU > SPECIAL > COLOR. -
Page 17: Fan Control
5. Press <ENTER> (3200K will show on the display). 6. Use <UP> or <DOWN> to select RGBW. 7. Select RED, GREEN, or BLUE. 8. Select a value (000~255). 9. Repeat for the other colors. Q-Wash 560Z-LED User Manual Rev. 05 -13-... -
Page 18: System Default
Use = Yes Step 4: Time = 0 Use = Yes (This step creates a loop) Step 5: Time = 0 Use = No (Unused steps) Step 255 Time = 0 Use = No -14- Q-Wash 560Z-LED User Manual Rev. 05... -
Page 19: Menu Map
TILT Selects the tilt position SPEED Selects the pan/tilt speed EDIT 000~255 GREEN Combines red, green, blue, white, and amber to obtain a BLUE custom color WHITE AMBER Continues on the next page Q-Wash 560Z-LED User Manual Rev. 05 -15-... -
Page 20: Extra Menu
BLUE 8500 K GREEN Sets color temperature for White 11 BLUE Sets color temperature for 10000 K GREEN SPECIAL > COLOR > RGBTOW BLUE DEFAULT DEFAULT NO/YES Defaults the product to factory settings -16- Q-Wash 560Z-LED User Manual Rev. 05... -
Page 21: Dmx Values
160 169 Test (3 s activation delay) 170 179 Custom program (3 s activation delay) 180 199 No function 200 219 Reset (3 s activation delay) 220 255 No function Q-Wash 560Z-LED User Manual Rev. 05 -17-... -
Page 22: Advanced
200 219 Reset (3 s activation delay) 220 235 No function 236 239 DIM0 240 243 DIM1 244 247 DIM2 248 251 DIM3 252 255 DIM4 -18- Q-Wash 560Z-LED User Manual Rev. 05... -
Page 23: Technical Information
Gently polish the glass surfaces until they are free of haze and lint. Always dry the external optics and glass surfaces carefully after cleaning them. Refrain from spinning this product’s fans using compressed air. Q-Wash 560Z-LED User Manual Rev. 05 -19-... -
Page 24: Troubleshooting Guide
Faulty Display board Send unit for repair If you still experience technical problems after trying the above solutions or if you need to send the unit for repair, contact CHAUVET® Technical Support. -20- Q-Wash 560Z-LED User Manual Rev. 05... -
Page 25: Returns Procedure
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. As a suggestion, proper FedEx packing or double boxing is the method Chauvet® recommends. CHAUVET® reserves the right to use its own discretion to repair or replace returned product(s). Claims The carrier is responsible for any damage incurred during shipping to this product or any part that shipped with it. -
Page 26: Technical Specifications
Cooling System Thermal 104° F (40° C) Forced (fans) I/O Connectors Connector Type Channel Range 3- and 5- pin XLR Sockets 12,15 Product Name Item Code Item Number Ordering Q-Wash 560Z-LED 01010397 QWASH560ZLED -22- Q-Wash 560Z-LED User Manual Rev. 05... - Page 27 CHAUVET® 5200 NW 108th Avenue Sunrise, FL 33351 (USA) (800) 762-1084 – (954) 577-4455 FAX (954) 741-5571 www.chauvetlighting.com Q-Wash 560Z-LED User Manual Rev. 05 August 2011...
