Summary of Contents for Thermax CP3

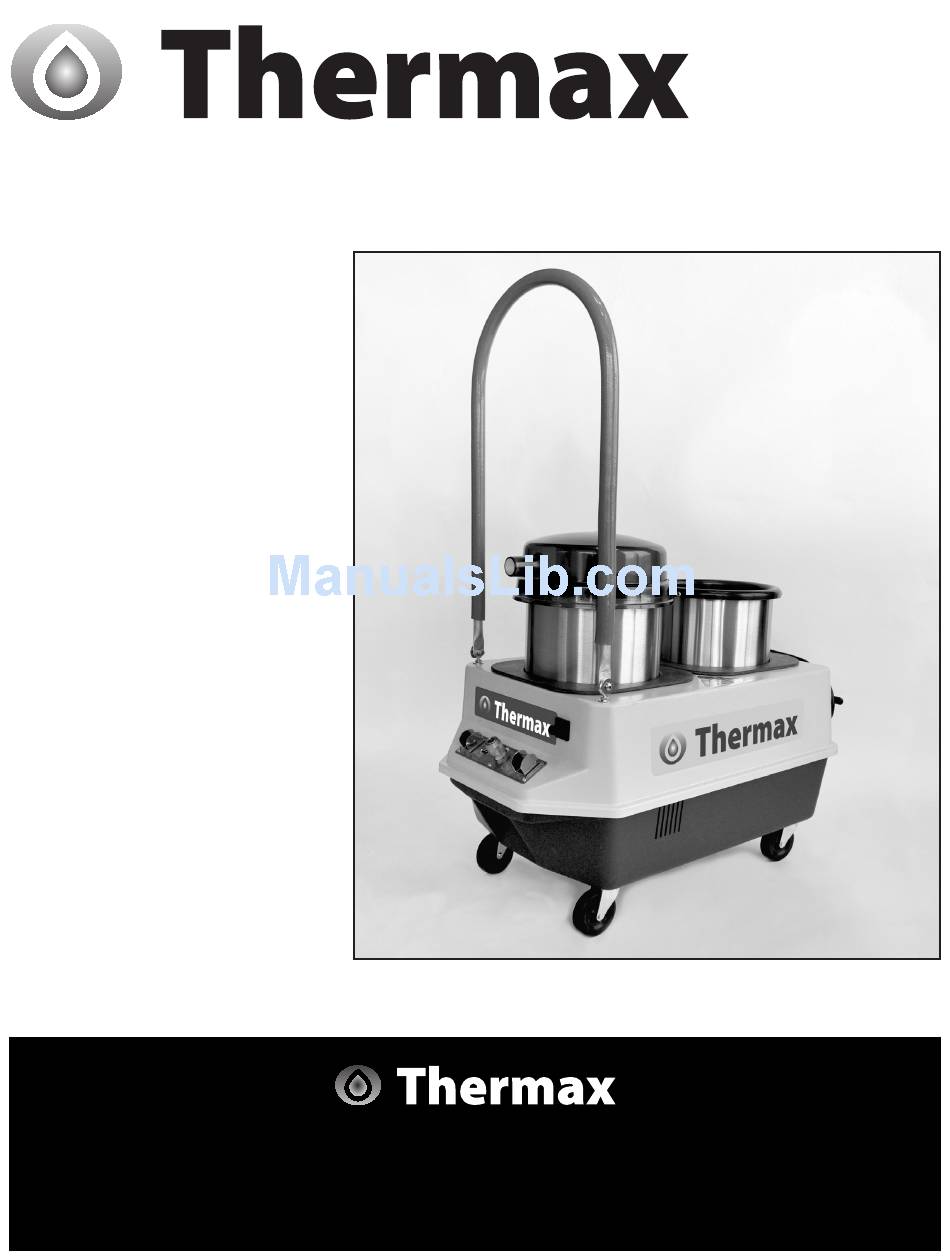

- Page 1 PROFESSIONAL HOT WATER EXTRACTION CLEANING SYSTEM OWNER/ OPERATOR MANUAL Products for a Healthier Indoor Environment ThermaxRentalsInc.com 1-855-THERMAX...
-
Page 2: Table Of Contents
CP3 Specifications ....................9 CP3 Wiring Diagram ....................9 Troubleshooting ....................10 CP3 Base Unit Schematic ..................11 CP3 Base Unit Parts List ..................12 Floor Wand Schematic ..................13 Floor Wand Parts List ..................14 Upholstery Wand Schematic ................15 Upholstery Wand Parts List ................. -
Page 3: Message From The Corporate Office
In a world full of competition and choices, we at Thermax are grateful for your wise choice of the Thermax CP3, and we look forward to a lasting relationship as we service all of your cleaning needs. -
Page 4: Identifying Features
IDENTIFYING FEATURES 1) Clean Water Solution Tank 2) Stationary Lid with Solution Tank Fill Hole 3) Recovery/Waste Tank 4) Recovery Tank Dome and Vacuum Seal 5) Power Cord 6) Brass Female Quick Connect Coupling for the Solution Hose 7) Auxiliary Female Outlet for the Optional Power Brush 8) Vacuum Inlet/Vacuum Hose Connector 9) Pump/Heater Switch... -
Page 5: Inspection Upon Delivery
INSPECTION UPON DELIVERY Carefully unpack and inspect the Thermax CP3 and be sure all components ordered are included. Orders might be packed in more than one box. NOTE: Contact the carrier immediately regarding any damage incurred during shipping as it is your responsibility to file a damage claim with the carrier. -
Page 6: Set-Up Procedure
SET-UP PROCEDURE 1) Pre-mix cleaning solution as required for specific application in a three gallon (11.4 liter) pail. Pour pre-mixed solution through solution fill hole of system (page 3, #2). NOTE: This system has a built-in maintenance heater for the solution. Start with hot water when possible. Hot water is hygienic and maximizes cleaning potential. -
Page 7: System Clean-Up
This helps reduce and neutralize any alkalai and chemical build-up. ANNUALLY We recommend that your system be inspected once a year by an authorized Thermax service technician. For the location of your nearest Service Center, call 1-855-THERMAX or go to ThermaxRentalsInc.com. -
Page 8: Optional Package And Accessories
OPTIONAL PACKAGES & ACCESSORIES The following optional packages and accessories do not come standard with your CP3. Contact your local distributor or the Corporate Office to receive details on how to purchase these items. UPHOLSTERY WAND PART # 35-255-004 DELUXE RENTAL PACKAGE 10’... -
Page 9: Cleaning Solutions
Over forty years of extensive field use and refinement have proven our safe and effective cleaning solution formulas. For use in both home & rental machines, Thermax has a product for essentially every carpet and upholstry cleaning application. LIQUID CARPET & UPHOLSTERY... -
Page 10: Cp3 Specifications
VACUUM MOTOR: PUMP: • 120 Volt AC • 2-Stage By-Pass • 60 P.S.I. • 14.2 AMP • 110” Water Lift • 50/60 HZ • CE Note: Ideal to operate system on a 20 amp circuit when available. THERMAX CP3 WIRING DIAGRAM... -
Page 11: Troubleshooting
TROUBLESHOOTING CONDITION CAUSE CORRECT System Will Not Operate 1) Plugged into dead outlet 1) Plug into live grounded outlet 2) Blown fuse or breaker 2) Replace fuse or breaker 3) Defective power cord 3) Replace power cord 4) Defective switch 4) Replace switch 5) Loose wiring 5) Properly connect wiring... -
Page 12: Cp3 Base Unit Schematic
THERMAX CP3 SCHEMATIC REV. E 73-015-137 QAD 9447757 04/24/13... -
Page 13: Cp3 Base Unit Parts List
THERMAX CP3 PARTS LIST ITEM NO. THERMAX NO. DESCRIPTION ITEM NO. THERMAX NO. DESCRIPTION 24-003-108 ASSY, DOME, W/DEFLECTOR 34-026-001 ASSY, UPPER CASE, W/O INSERTS 01-003-00 DEFLECTOR, DOME 31-060-120 ASSY, PUMP, 60 PSI, 120V 01-359-00 FITTING, DOME, PVC “T” 02-090-100 PRESSURE SWITCH KIT, 60 PSI PUMP... -
Page 14: Floor Wand Schematic
FLOOR WAND SCHEMATIC REV. C 29-760-325-1 QAD 9447529 04/24/13... -
Page 15: Floor Wand Parts List
FLOOR WAND PARTS LIST ITEM NO. THERMAX NO. DESCRIPTION 04-028-00 SCREW, 10-32 X 1.25, PHIL 04-321-00 NUT, 10-32, NYLOCK 28-181-000 ASSY, UPPER WAND W/CUFF 01-315-00 CUFF, W/O RELEASE 28-182-000 ASSY, LOWER WAND W/CUFF 01-316-00 CUFF, W/ RELEASE 28-203-125 ASSY, WET HEAD W/ WEAR PLATE... -
Page 16: Upholstery Wand Schematic
UPHOLSTERY WAND SCHEMATIC REV. UPHOLSTERY WAND 35-255-004 QAD 9449367 04/24/13... -
Page 17: Upholstery Wand Parts List
UPHOLSTERY WAND PARTS LIST ITEM NO. THERMAX NO. DESCRIPTION 04-457-25 MALE DISC, .25 FPT, BRASS 04-002-00 SCREW, 3/8-24 X 3/8 (OBSOLETE) 04-161-00 HOSE ASSEMBLY, 12” 29-561-002 ASSY, VALVE W/ HANGER, PLASTIC 09-390-02 REPAIR KIT, VALVE, PLASTIC 03-466-01 HOSE BARB, 3/16 X 1/8 MPT 35-273-000 ASSY, WET HEAD, 4”... -
Page 18: Power Brush Schematic
POWER BRUSH SCHEMATIC REV. C 120V 80-012-121 QAD 9447845 04/24/13... -
Page 19: Power Brush Parts List
POWER BRUSH PARTS LIST ITEM NO. THERMAX NO. DESCRIPTION ITEM NO. THERMAX NO. DESCRIPTION 04-028-00 SCREW, 10-32 X 1.25, PHIL 04-459-00 RETAINER, E-CLIP 04-323-00 NUT, 8-32, NYLOCK 03-807-02-1 SHAFT, BRUSH 04-321-00 NUT, 10-32, NYLOCK 03-069-02 RETAINER, BEARING 04-364-00 CLAMP, POWER CORD... -
Page 20: Rental Center Benefits
• Equipment Rental Stores • Drug Stores • Recognized on the corporate Web site • Research shows that 78% of customers would Rental Center Locater shop elsewhere if Thermax wasn’t available • Any High-traffic Retail Store visit ThermaxRentalsInc.com or call 1-855-THERMAX... -
Page 21: Thermax Warranty
CP3 WARRANTY The Thermax CP3 is warranted to be free from Manufacturers defect for a period of three (3) years on all non-electrical and electrical components. Warranty extended only to original owner. Proof of purchase required. Brass quick-disconnects, “O” rings, diaphragms, seals, grommets, gaskets, or any rubber or synthetic rubber or rubber-like parts are considered expendable in normal use and service, therefore are not included in this warranty. - Page 24 PLEASE NOTE: Retain this owner’s manual along with your copy of the Warranty Registration Form. Proof of purchase must accompany all warranty claims. 4101 Viking Drive, Suite H Bossier City, LA 71111 1-855-THERMAX Website: ThermaxRentalsInc.com Email: support@thermaxrentalsinc.com info@thermaxrentalsinc.com (06-312-02 5/13)
