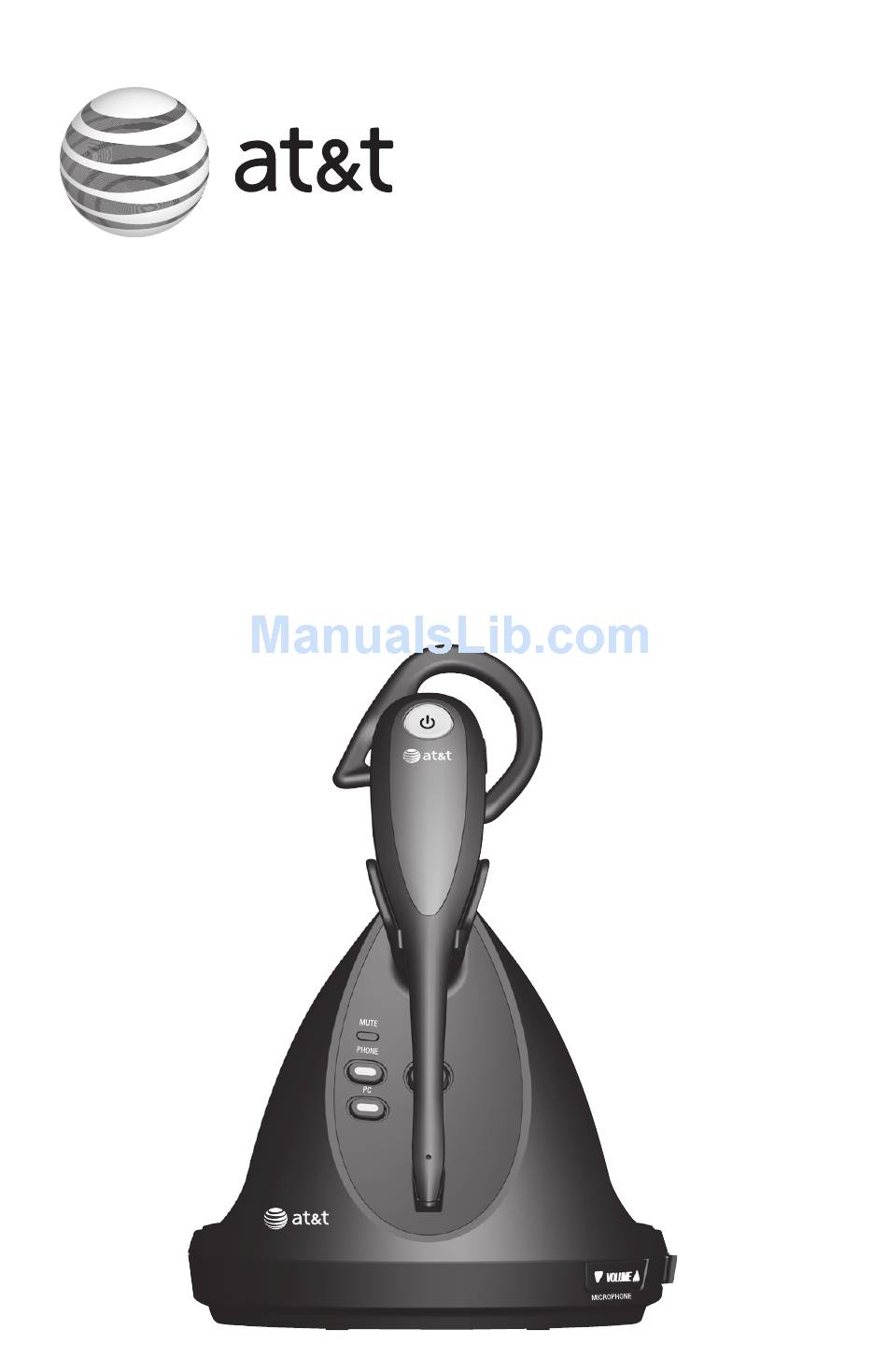

    Quick start guide TL7810 DECT 6.0 cordless headset...
  • Page 2 Introduction The TL7810 is a cordless headset and base that allows you to have handsfree phone conversations. It can be used in different ways depending on your needs. Choose from the following three options. Connect your TL7810: • To a telephone line only (page 8). Connect the headset to a telephone wall jack.
  • Page 3 Quick reference guide - headset (On/off button and light) Press to make, answer or end a call. MUTE Press to mute the microphone during a call. Press to mute the ringer in the earpiece when there is an incoming call. VOL+/VOL- Slide the volume switch to the right or left to...
  • Page 4 Quick reference guide - headset base Magnetic charging mount PAIR Place the headset here for Use to initiate headset charging. registration or deregistration. MUTE (light) PC (mode button PHONE (mode button and light) and light) VOLUME /MICROPHONE Press the volume keys on the side of the headset base to adjust the speaking volume when on a call.
  • Page 5 Quick reference guide - headset base CORDED PHONE CONNECTION jack (blue dot) This jack is only used to connect the corded phone connection cable. TEL WALL JACK (red dot) POWER jack (green dot) Corded handset audio adjust switch Use this switch to adjust the corded handset audio when you have connected the headset base to a corded telephone.

  • Page 6: Battery Installation

    Battery installation The battery is permanently attached to the battery compartment cover. Do not try to separate them from each other. After installing the battery pack, charge it for at least 1 minutes. You may be able to make and receive short calls. For optimal performance, charge the headset battery for at least three hours before use.

  • Page 7: Headset Base Installation And Battery Charging

    Headset base installation and battery charging After installing the battery, charge the headset by placing it in the magnetic charging mount as shown below. The light turns on when the headset is charging. Plug the small end of the headset base power adapter into the POWER jack (green dot) at the back of the headset base.

  • Page 8: Headset Base Installation

    Headset base installation Installation options There are three installation options as described below. Option 1: Connect the headset to a telephone wall jack through the line splitter provided (see page 8). Option 2: Connect the headset to a corded phone using the corded phone connection cable provided (see pages 9-10).
  • Page 9 Headset base installation Option 1: Connect the headset to a telephone wall jack Make sure the CORDED HANDSET CONNECTED switch on the right side of the headset base is set to NO. Connect the line cords as shown below. Use the included line splitter to connect the headset base and your telephone to the same telephone wall jack.
  • Page 10 Headset base installation Option 2: Connect the headset to a corded phone Make sure the CORDED HANDSET CONNECTED switch on the right side of the headset base is set to YES. Connect the line cords as shown below. Use the included corded phone connection cable to connect the headset base to your corded telephone.
  • Page 11 Headset base installation Option 2: Connect the headset to a corded phone (cont.) After you have connected the headset base to your corded phone, you may need to adjust the corded handset audio switch at the bottom of the headset base for optimal sound quality.
  • Page 12 Headset base installation Option 3: Connect the headset to your computer Connect the headset base to your computer using the USB cable provided for VoIP calls. Plug the USB cable as shown below. Wait for your computer to indicate that it has recognized the headset.
  • Page 13 Headset base installation Option 3: Connect the headset to your computer (cont.) After you have installed the AT&T Softphone Call Manager, check to make sure the audio setting is properly configured in your Windows system. If you have installed Skype and/or Microsoft Lync and want to use them with your headset, make sure the audio settings are configured correctly in the programs as well.

  • Page 14: Headset Attachments

    Headset attachments Earbud There are a total of six earbuds provided. One of them has been attached to the headset. They come in three sizes of which there are two types: one normal and one providing a deeper fit. Follow the steps below to change the earbud.
  • Page 15 Headset attachments Over the ear hook There are three ear hooks provided. Choose the size that best fits your need to attach to the headset. Follow the steps below to attach an ear hook to the headset. To position the headset to wear on the left or right ear: •...
  • Page 16 Headset attachments To attach the ear hook to the headset: Make sure there is no headset attachment, except the earbud, connected to the headset. Insert the earpiece into the ear hook loop, as shown in Figure . Press the edge of the ear hook loop towards the earpiece until it clicks into place, as shown in Figure .
  • Page 17 Headset attachments Over the head band There are two over the head bands provided. Choose the one that best fits your need to attach to the headset. Follow the steps below to attach an over the head band to the headset. To attach the head band to the headset: Make sure there is no headset attachment, except the earbud, connected to the headset.
  • Page 18 Headset attachments Behind the neck band To attach the headset to the neck band: Make sure there is no headset attachment, except the earbud, connected to the headset. Insert the earpiece into the loop of the ear pad, as shown in Figure 9.

  • Page 19: Headset Operation

    Headset operation Power on/off the headset Power on the headset before use. To power on the headset: • Place the headset in the headset base. -OR- • Press and hold for two seconds. light flashes blue three times and you hear three beeps when it is being powered on.

  • Page 20: Phone Mode

    PHONE mode Make a call To make calls on your home or office telephone line, press PHONE on the headset base for PHONE mode. When the headset base is connected to a telephone wall jack (installation option 1): Follow the instructions in your telephone user’s manual for making calls.
  • Page 21 PHONE mode End a call When the headset base is connected to a telephone wall jack (installation option 1): • Press on the headset or place the headset in the headset base. When the headset base is connected to your corded phone (installation option 2): •...
  • Page 22 www.telephones.att.com/smb © 2012-2013 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. The Skype name is a trademark of Skype. Microsoft Lync is a registered trademark of Microsoft Corporation Windows ®...
