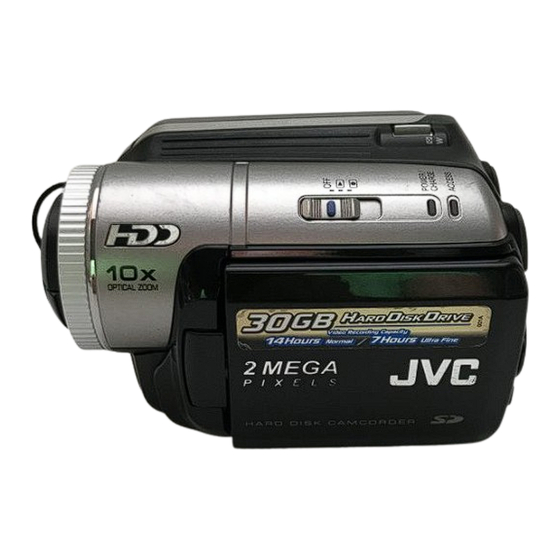

HARD DISK CAMCORDER
GZ-MG70U
INSTRUCTIONS
GETTING STARTED
VIDEO RECORDING &
PLAYBACK
STILL IMAGE RECORDING
& PLAYBACK
ADVANCED OPERATIONS
MENU SETTINGS
REFERENCES
To deactivate the demonstration,
set "DEMO MODE" to "OFF".
(
pg. 48)
For Customer Use:
Enter below the Model No.
(located on the bottom of the
camera) and Serial No. (located
on the battery pack mount of the
camera). Retain this information
for future reference.
Model No.
Serial No.
LYT1493-001B
ENGLISH
7
22
28
31
48
52
EN
Advertisement
Table of Contents
Related Manuals for JVC GZ-MG70U
Summary of Contents for JVC GZ-MG70U
- Page 1 HARD DISK CAMCORDER GZ-MG70U INSTRUCTIONS ENGLISH GETTING STARTED VIDEO RECORDING & PLAYBACK STILL IMAGE RECORDING & PLAYBACK ADVANCED OPERATIONS MENU SETTINGS REFERENCES To deactivate the demonstration, set “DEMO MODE” to “OFF”. pg. 48) For Customer Use: Enter below the Model No.
-
Page 2: Direct Printing
Major Features of this Camera Built-in Hard Disk This hard disk camera records images to a large, built-in hard disk drive (HDD) instead of a DV tape like conventional video cameras. This enables extended hours of high-resolution, MPEG2 video recording. Various Recording Modes You can select the most suitable recording mode for picture quality, image size, recording time,... -
Page 3: Table Of Contents
Contents GETTING STARTED Provided Accessories ... 7 Index ... 10 Power ... 14 Operation Mode ... 16 Language Setting ... 17 Date/Time Settings ... 18 Brightness Adjustment of the Display ... 18 Grip Adjustment ... 19 Tripod Mounting ... 19 Inserting/Removing an SD Card ... -
Page 4: Safety Precautions
However, live recording and LCD monitor playback are possible anywhere. Use the JVC BN-VF707U battery pack and, to recharge it or to supply power to the camera from an AC outlet, use the provided multi- voltage AC adapter. - Page 5 Do not point the lens directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock. CAUTION! The following notes concern possible physical damage to the camera and to the user.
- Page 6 When requesting repairs for breakdowns by your dealer or JVC service center, be sure to bring your camera together with the SD Memory Card. If one of them is not included, the cause cannot be diagnosed, and the repair cannot be made properly.
-
Page 7: Getting Started
Provided Accessories GETTING STARTED AC Adapter AP-V14U Battery Pack BN-VF707U Audio/Video Cable USB Cable (Refer to the software installation and USB connection guide.) Shoulder Strap (See page 8 for attachment) Lens Cap (See page 8 for attachment) CD-ROM Remote Control Unit RM-V730U Lithium Battery CR2025* (for remote control unit) Core Filter for Cables (See page 9 for... - Page 8 GETTING STARTED Attaching the Shoulder Strap Follow the illustration. Open the velcro strip. Thread the strap through the eyelet. Fold it back and thread it through the strap guide and the buckle. To adjust the length of the strap, loosen and then tighten the strap in the buckle.
- Page 9 Attaching the Core Filter Attach the core filters to the cables. The core filter reduces interference. Release the stoppers on both ends of the core filter. Stopper Run the cable through the core filter, leaving approx. 3 cm of cable between the cable plug and the core filter.
-
Page 10: Index
GETTING STARTED Index ATTENTION: Be careful not to cover during shooting. Be careful not to cover during playback. -
Page 11: Other Parts
Controls Mode Switch [MODE] ( pg. 16 – 17) Flash Button [FLASH] ( pg. 31) Information Button [INFO/ Play/Pause Button [49] ( Forward Search Button [ Right Button [ ]/Auto/Manual Mode Switch pg. 16 – 17) Forward Skip Button [ Button [ ]/Manual Set Button [ pg. - Page 12 GETTING STARTED Indications on LCD Monitor During both Video and Still Image Recording Selected Operation Mode Indicator ( : Auto Mode : Manual Mode Tele Macro Mode Indicator ( Approximate Zoom Ratio ( Zoom Indicator ( pg. 23, 50) Iris Lock Indicator ( pg.
- Page 13 During Video Playback Mode Indicator ( pg. 17) Play List Playback Indicator (Appears when play list is played back. Picture Quality: [U] (ultra fine), [F] (fine), [N] (normal), [E] (economy) ( Playback Mode ( pg. 24) U : Playback 9 : Pause : Forward High-Speed Search : Reverse High-Speed Search 9U : Forward Slow-Motion...
-
Page 14: Power
GETTING STARTED Power This camera’s 2-way power supply system lets you choose the most appropriate source of power. Do not use provided power supply units with other equipment. Charging the Battery Pack Power/Charge Lamp Power Switch Lock Button Open the cover. AC Adapter BATT. - Page 15 NOTES: This product includes patented and other proprietary technology and will operate only with JVC Data Battery. Use the JVC BN- VF707U/VF714U/VF733U battery packs. Using generic non-JVC batteries can cause damage to the internal charging circuitry. If the protective cap is attached to the battery pack, remove it first.
-
Page 16: Operation Mode
INFO/ several times, there may be a problem with your battery. In such a case, consult your nearest JVC dealer. The recordable time display should only be used as a guide. It is displayed in 10 minute units. -
Page 17: Language Setting
2 Recording/Playback Mode Select the recording/playback mode using the MODE switch. : Video mode ( pg. 22, 24) : Still image mode ( pg. 28, 29) 3 Auto/Manual Mode Press and hold ) to switch the auto/ manual recording mode. When manual mode is selected, the indicator appears on the LCD monitor. -
Page 18: Date/Time Settings
GETTING STARTED Date/Time Settings The recording start date/time is recorded on the video/still image file and it can be checked by pressing INFO/ during playback. pg. 24, 29) In addition, you can find the desired file by the date index screen. ( pg. -
Page 19: Grip Adjustment
Grip Adjustment Adjust the velcro strip. Pass your right hand through the loop and grasp the grip. Adjust your thumb and fingers to easily operate the recording start/stop button, power switch and zoom lever. Be sure to fasten the velcro strip to your preference. -
Page 20: Formatting A Recording Medium
GETTING STARTED Formatting a Recording Medium You can format (initialize) the built-in hard disk (HDD) or SD cards. You have to format the newly-purchased SD cards with this camera before using them. This enables stable speeds and operation when accessing the recording medium. -
Page 21: Selecting A Recording Medium
Selecting a Recording Medium Select the recording medium before starting recording or playback. ( pg. 48, 49) Example: When recording still images to an SD card Set the power switch to Press MENU. The menu screen appears. Press to select [REC MEDIA SETTING], then press 49. -
Page 22: Video Recording & Playback
VIDEO RECORDING & PLAYBACK Video Recording Power Switch Lock Button Zoom Lever MODE Recording Start/Stop Button Set the power switch to Set the MODE switch to The camera is programmed to record videos on the built-in hard disk by the factory-preset. To switch the recording medium, see pages 21, 48 and 49. -
Page 23: Zooming
VIDEO RECORDING & PLAYBACK NOTES: The S-Video cable is optional. Be sure to use the YTU94146A S-Video cable. Consult the JVC Service Center described on the sheet included in the package for details on its availability. Make sure to connect the end with a core filter to the camera. -
Page 24: Video Playback
VIDEO RECORDING & PLAYBACK Video Playback Power Switch Lock Button MODE Zoom Lever INFO/ Speaker Set the power switch to Set the MODE switch to The index screen for videos appears. The image on the index screen shows the first part of the shooting. -
Page 25: How To Use The Scroll Bar
How to Use the Scroll Bar You can use the vertical scroll bar on the index screen to find the desired files quickly. The scroll bar is useful when deleting files ( creating play list ( pg. 42), etc. Slide the zoom lever towards W to select the VIDEO scroll bar on the index... -
Page 26: Connecting To A Tv, Vcr Or Dvd Recorder
NOTES: The S-Video cable is optional. Be sure to use the YTU94146A S-Video cable. Consult the JVC Service Center described on the sheet included in the package for details on its availability. Make sure to connect the end with a core filter to the camera. The core filter reduces interference. -
Page 27: Playback Using The Remote Control
Playback Using the Remote Control The full-function remote control unit can operate this camera from a distance as well as the basic operations (playback, stop, pause, fast-forward and rewind) of your VCR. Installing the Battery The remote control uses one lithium battery (CR2025). -
Page 28: Still Image Recording & Playback
STILL IMAGE RECORDING & PLAYBACK Still Image Recording Power Switch Lock Button Zoom Lever MODE Recording Start/Stop Button Set the power switch to Set the MODE switch to The camera is programmed to record still images on the built-in hard disk by the factory-preset. To switch the recording medium, see pages 21, 48 and 49. -
Page 29: Still Image Playback
Still Image Playback Power Switch Lock Button MODE Zoom Lever INFO/ Set the power switch to Set the MODE switch to The most recently shot still image is displayed. To switch the medium to be played back, see pages 21, 48 and 49. Press to display the previous file. -
Page 30: How To Use The Scroll Bar
STILL IMAGE RECORDING & PLAYBACK How to Use the Scroll Bar You can use the vertical scroll bar on the index screen to find the desired files quickly. The scroll bar is useful when deleting files ( setting DPOF ( pg. -
Page 31: Advanced Operations
Backlight Compensation Backlight compensation brightens the subject quickly. With simple operation, dark portions of the subject are brightened by increasing the exposure. Set the power switch to Press and hold / ) so that displayed. Press ) once so that the appears. -
Page 32: Manual Settings In Mset Menu
RECORDING FEATURES Manual Settings in MSET Menu You can use manual recording functions easily by selecting items in the MSET menus. How to Select a Menu Item Set the power switch to Press and hold / ) so that displayed. Press ). -
Page 33: Manual Focus
Manual Focus The camera's Full Range AF system offers continuous focusing ability from close-up to infinity. However, the correct focus may not be obtained depending on the shooting condition. In this case, use the manual focus mode. Select [AF] in the MSET menu. ( If [AUTO] is selected, press Press to focus on a nearer subject. -
Page 34: White Balance
RECORDING FEATURES White Balance The white balance is usually adjusted automatically for correctness of the color reproduction under various lighting. However, you can also select the following modes according to the shooting situations. Select [WB] in the MSET menu. ( Press to select the desired mode. -
Page 35: Shutter Speed
Shutter Speed You can set the shutter speed manually. A fast shutter speed can freeze the motion of a fast- moving subject and a slow shutter speed can blur the subject to give the impression of motion. Select [S.SP] in the MSET menu. ( If [AUTO] is selected, press Press to select the desired shutter... -
Page 36: Program Ae
RECORDING FEATURES Program AE You can use the program AE settings for specific shooting situations. Select [P.AE] in the MSET menu. ( Press to select the desired mode. TWILIGHT: Makes evening scenes look more natural. SPOTLIGHT: The subject in the front is accentuated by blurring the background. -
Page 37: Playback Features
Wipe or Fader Effects You can view videos with various effects of scene transition. Set the power switch to Set the MODE switch to Press MENU. The menu screen appears. Press to select [WIPE/FADER], then press 49. Press to select a desired effect. FADER-WHITE: Fade in or out with a white screen. -
Page 38: Managing Files
MANAGING FILES Viewing File Information You can view the file information in playback mode. Information on Video Files Press INFO/ while video playback is paused. File information appears. FILE: File name FOLDER: Folder name DATE/TIME: Date and time of the recording PB TIME: Playback time (length of the file) QUALITY: Image quality ( PROTECT: File protection status (... -
Page 39: Deleting Files
To protect all files Press to select [PROTECT ALL], then press 49. Press to select [EXECUTE], then press 49. All files are protected. To release protection of all files Select [CANCEL ALL], then press 49. Press to select [EXECUTE], then press 49. -
Page 40: Cleaning Up A Recording Medium
MANAGING FILES To delete by selecting multiple files Press to select [FILE SELECT], then press 49. The index screen appears. Press to select the file you want to delete, then press 49. To select other files, repeat step The scroll bar can also be used with the zoom lever and pressing If you slide the zoom lever towards T, the preview screen is displayed. -
Page 41: Copying/Moving Still Image Files
Copying/Moving Still Image Files You can copy or move still image files between the built-in hard disk (HDD) and SD card using the on-screen display. Before proceeding to following steps, Make sure that SD card is inserted in the SD slot. -
Page 42: Resetting The File Number
MANAGING FILES Resetting the File Number By resetting the file number (name), a new folder will be made. The new files you are going to make will be stored in the new folder. It is convenient to separate the new files from previously recorded files. -
Page 43: Playing Back Play List
To check the play list by playing back the video You can check the play list before saving it. After step 10, press to select a thumbnail image of the play list. Press to select a scene you want to check. - Page 44 MANAGING FILES Add/Delete Files in Play List You can edit existing play lists by adding or deleting files. Set the power switch to Set the MODE switch to Press MENU. The menu screen appears. Press to select [PLAYLIST], then press 49. Press to select [EDIT], then press Press...
- Page 45 Deleting Play List You can delete unnecessary play lists. Set the power switch to Set the MODE switch to Press MENU. The menu screen appears. Press to select [PLAYLIST], then press 49. Press to select [DELETE], then press 49. The table of play lists appears. Press to select a play list you want to delete.
-
Page 46: Dpof Print Setting
MANAGING FILES DPOF Print Setting This camera is compatible with DPOF (Digital Print Order Format). You can set which images to be printed and the number of prints with this camera. This feature is useful to print with a DPOF-compatible printer or bring a recording medium to photo lab for print. -
Page 47: Direct Printing With A Pictbridge Printer
Direct Printing with a PictBridge Printer If your printer is compatible with PictBridge, still images can be printed easily by connecting the camera with the USB cable directly to the printer. DPOF setting can also be used. pg. 46) NOTE: After selecting [DIRECT PRINT] in the menu, connect the USB cable. -
Page 48: Menu Settings
MENU SETTINGS Changing the Menu Settings You can change the menu settings to customize your camera. Access the desired menu screen by following the steps below, then change the various settings. Power Switch Lock Button INFO/ MODE MENU Select the operation mode. For Recording Menus: Set the power switch to For Playback Menus:... - Page 49 REMOTE OFF: Makes the camera not to receive the signal from the remote control. [ON]: Enables the operation with the remote control. DROP DETECTION OFF: Disables the function. [ON]: Turns off the power automatically to prevent HDD damage when the camera is accidentally dropped.
-
Page 50: Video Recording Menus
MENU SETTINGS Video Recording Menus [ ] = Factory-preset QUALITY Select the desired picture quality. Mode Size (pixels) Bit rate (In order of the quality) [ULTRA FINE] 720 x 480 FINE 720 x 480 NORMAL 720 x 480 ECONOMY 352 x 240 WIDE MODE [OFF]: Disables the function. -
Page 51: Still Image Recording Menus
Still Image Recording Menus [ ] = Factory-preset QUALITY [FINE] / STANDARD Select the desired image quality. IMAGE SIZE [1600 x 1200] / 1280 x 960 / 1024 x 768 / 640 x 480 Select the desired image size. SELF-TIMER [OFF] / 2SEC / 10SEC By setting the self-timer, a still image is recorded 2 or 10 seconds after pressing recording start/... -
Page 52: References
If the problem is not solved, reset the camera. (Refer to “To reset the camera” below.) If the problem still exists, please consult your nearest JVC dealer. 8 To reset the camera Press RESET using a piece of wire or other such pointed instrument. The power is turned off once and turned on again automatically. - Page 53 The recorded image is white Shutter speed is set to NIGHTALIVE or slow speed. HNIGHTALIVE and slow speed are only for use in dark conditions. ( pg. 35) Playback Playback cannot be performed. Recording medium is not selected properly. HSelect the recording medium. ( Playback starts, but there is no picture on the connected TV.
-
Page 54: Warning Indications
When the LCD monitor's fluorescent light reaches the end of its service life, images on the LCD monitor become dark. HConsult your nearest JVC dealer. Colored bright spots appear all over the LCD monitor. The LCD monitor is made with high precision technology. - Page 55 CHECK CARD’S WRITE PROTECTION SWITCH Appears when you attempt recording when the write protection tab on the SD card is set to the “LOCK” position. ( pg. 19) NO VIDEO FILES STORED! Appears if there are no video files when you attempt video playback.
-
Page 56: Cleaning The Camera
REFERENCES MEMORY CARD CANNOT BE PLAYED BACK CORRECTLY The recording medium cannot be played back correctly. Try playback again. CANNOT USE IN VIDEO MODE The operation is not available in the video mode. DROP DETECTION WORKED AND THE POWER IS TURNED OFF The drop detection function operated, and the power was turned off. -
Page 57: Cautions
... remove from charger or powered unit when not in use, as some machines use current even when switched off. NOTES: It is recommended that only genuine JVC batteries are used in this camera. Using generic non-JVC batteries can cause damage to the internal charging circuitry. - Page 58 • Do not store the recording medium in locations with high temperature or high humidity. • Do not touch the metal parts. Copy the recorded files to your PC. JVC shall not be responsible for any lost data. (It is recommended that you copy the data from your PC to DVD or other media for storage.)
- Page 59 JVC dealer. When requesting repairs for malfunctioning by your dealer or JVC service center, be sure to bring your camera together with the recording medium. If one of them is not included, the cause cannot be diagnosed, and the repair cannot be made properly.
-
Page 60: Specifications
REFERENCES Specifications Camera For general Power supply DC 11 V (Using AC adapter) DC 7.2 V (Using battery pack) Power consumption Approx. 5.2 W Approx. 5.6 W (Maximum; when charging a battery) Dimensions (W x H x D) 71 mm x 70 mm x 109 mm (2-13/16"... - Page 61 For still image Format JPEG Image size 4 modes (1600 x 1200 / 1280 x 960 / 1024 x 768 / 640 x 480) Picture quality 2 modes (FINE/STANDARD) For connectors S-Video output: Y: 1.0 V (p-p), 75 Ω, analog C: 0.29 V (p-p), 75 Ω, analog Video output: 1.0 V (p-p), 75 Ω, analog Audio output: 300 mV (rms), 1 kΩ, analog,...
- Page 62 REFERENCES Recording Time and Number of Images The tables below show the approximate recording time and number of storable images. The number increases or decreases depending on the conditions such as image size and/or picture quality. The first column in the table indicates the conditions.
- Page 63 : Approximate number of storable images (for still image) Built-in hard disk Image size/ Number of quality images 640 x 480/ 9999 FINE 640 x 480/ 9999 STANDARD 1024 x 768/ 9999 FINE 1024 x 768/ 9999 STANDARD 1280 x 960/ 9999 FINE 1280 x 960/...
-
Page 64: Terms
... 16, 57 AC Adapter ... 31 Backlight Compensation ... 14 Battery Pack ... 18, 49 Brightness Control ... 48 – 51 Changing The Menu Settings ... 14 Charging The Battery Pack Cleaning Up a Recording Medium Connection to a TV, VCR or DVD Recorder ...
