TOYOTA CAMRY
MODULE PREPARATION

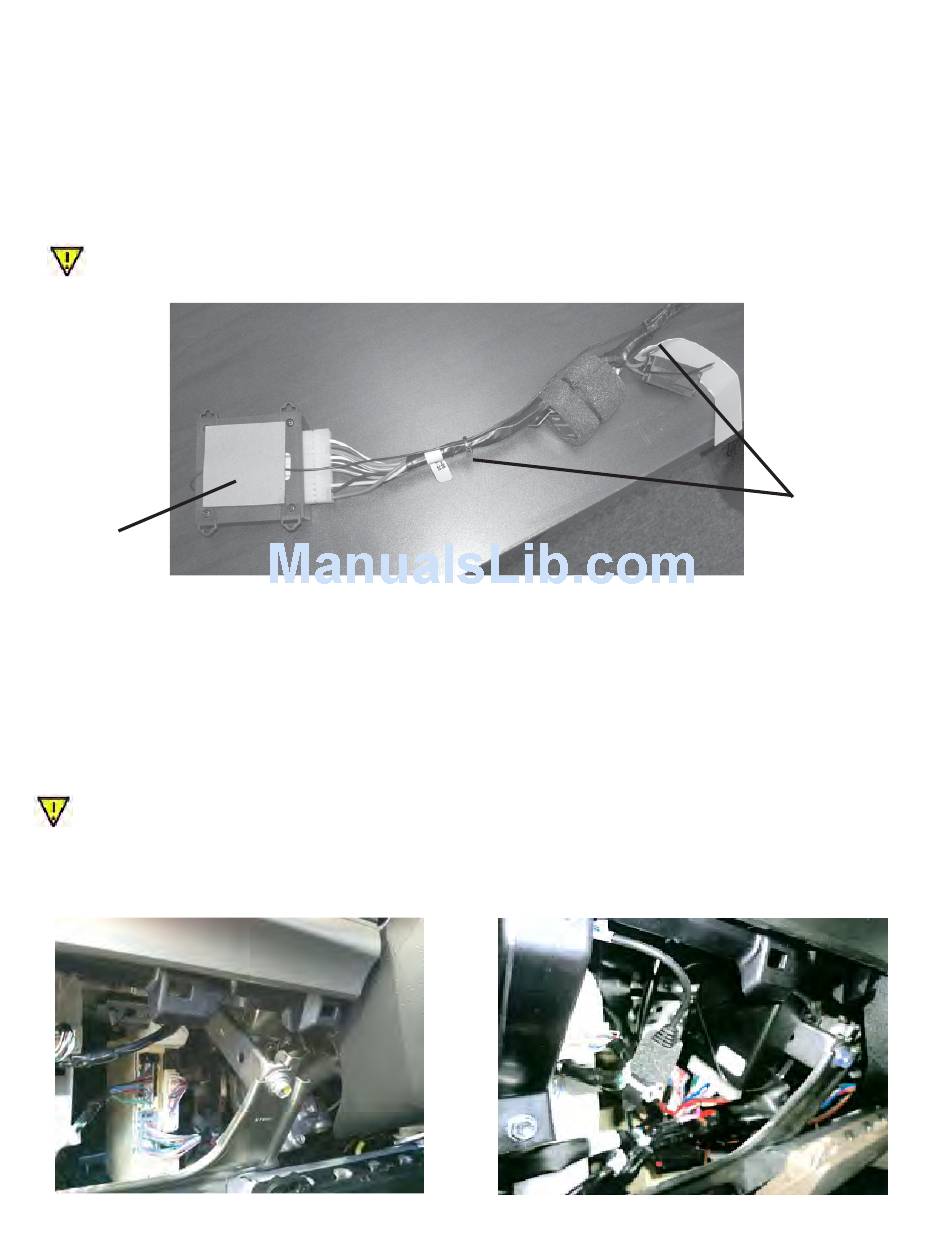

1. Secure the antenna to the back side
of the module, using a supplied foam
pad.
2. Route the antenna and secure to the
main harness with (2) cable ties.
"IMPORTANT........Failure to route the antenna cable as described will result in re-
duced range of the system.
Foam Pad
MOUNTING MAIN CONTROL MODULE:
1. Secure the module to the dash brace at the far left end to the left of the driver side JB, using the long
cable ties and adhesive pad provided in the hardware bag.
NOTE: Guide long cable through the module eyelets as shown.
DO NOT WRAP OR BUNDLE ANTENNA HARNESS. Module antenna wire must extend as
high up as possible and secured in place for best signal.
Before Mounting Module
Southeast Toyota Distributors, LLC
INSTALLATION PROCEDURES
KEYLESS ENTRY SYSTEM
After Mounting Module
Page 4 of 10
Cable Ties
