INSTRUCTIONS

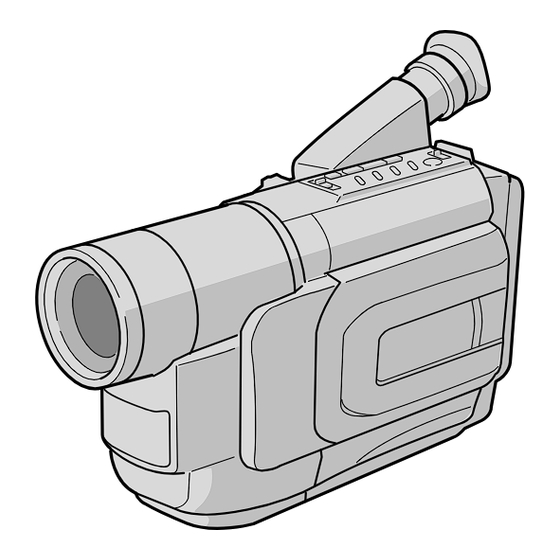

COMPACT VHS CAMCORDER
GR-SXM78EA
GR-SXM48EA
GR-SXM780A
GR-SXM480A
GR-SXM280A
GR-SXM180A
GR-SX140A
Dear Customer,
Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read
"PRECAUTIONS" (
Automatic Demonstration takes place when "DEMO MODE" is set to "ON"
(factory-preset).
• Available when the Power Switch
• Performing any operation during the demonstration stops the demonstration temporarily. If no operation
is performed for more than 1 minute after that, the demonstration will resume.
• "DEMO MODE" remains "ON" even if the camcorder power is turned off.
• To cancel Automatic Demonstration, set the Power Switch
while the demo is in progress. This takes you directly to the demo mode's Setting Menu (so you will not
have to go through the main Menu Screen). Rotate the MENU Wheel
NOTES:
• When a tape whose Erase Protection tab is in the position that allows recording is loaded in the
camcorder, demonstration is not available.
• If you do not detach the Lens Cap, you cannot see the actual changes of the Automatic Demonstration
activated on the LCD monitor* or viewfinder.
* Applicable models only.
®Registered Trademark owned by VICTOR COMPANY OF JAPAN, LTD.
COPYRIGHT© 2001 VICTOR COMPANY OF JAPAN, LTD.
pg. 3, 4) to ensure safe use of this product.
AUTOMATIC DEMONSTRATION
@
is set to "
ENGLISH
" or "
".
@
to "
" and press the MENU Wheel
1
Printed in Japan
A/EA
1001MKV
1
to select "OFF" and press it.
LYT0868-001B
VHS
PAL
625
*
*
UN
SN
1
in
Advertisement
Table of Contents
Related Manuals for JVC 1001MKV*UN*SN
Summary of Contents for JVC 1001MKV*UN*SN
- Page 1 GR-SXM180A GR-SX140A Dear Customer, Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read “PRECAUTIONS” ( pg. 3, 4) to ensure safe use of this product. Automatic Demonstration takes place when “DEMO MODE” is set to “ON”...
-
Page 2: Provided Accessories
SXM480A/SXM280A only) NOTE: In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more core filter. If a cable has only one core filter, the end that is closest to the filter should be connected to the camcorder. -
Page 3: Safety Precautions
Continue using the camcorder or AC adapter under these conditions could lead to fire or electric shock. Contact your JVC dealer. Do not attempt to repair the malfunction yourself. • To prevent shock, do not open the cabinet. No user serviceable parts inside. - Page 4 When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear). Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc.
-
Page 5: Table Of Contents
Charge Marker ... pg. 6 Charging The Battery Pack ... pg. 6 Classic Film Effect ... pg. 23 Clean The Camcorder ... pg. 31 Connection To a VCR/TV ... pg. 15 Connection To A PC ... pg. 16 Counter Memory ... pg. 14 Darken The Image ... -
Page 6: Ac Adapter
AC range from 110 V to 240 V. Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction. , then REFRESH: Be sure to fully discharge a battery pack before recharging or storing it for a long period of time, otherwise the battery performance will be reduced. -
Page 7: Date/Time Settings
TV, see DATE/TIME DISP. ( • The date/time cannot be stored in memory if the built-in clock battery runs out. Consult an authorised JVC dealer for replacement, or set the date/time as necessary before you start shooting. to “ ”. -
Page 8: Dioptre Adjustment
If the tab has been removed, cover the hole with adhesive tape. • The cassette holder cannot be opened while the PAUSE camcorder is in the record mode or detached from the power source. * Applicable models only. Cassette holder... - Page 9 – – – – – – – Refer to this diagram while reading the instructions. During shooting Keep the lens cap attached to the camcorder. LCD monitor (applicable models only) 90° 90° 180° Transmitted beam effetive area 30° 30° LCD Monitor/Viewfinder Indications &...
- Page 10 • MENU Wheel [–, +] ... • BRIGHT Wheel [–, +]* • TRACKING Wheel [–, +] ... • Snapshot Button [SNAPSHOT]* • 5-Second Recording Button [5 SEC. REC]* • Power Zoom Lever [T/W] ... • Speaker Volume Control [VOL.]* • Picture Stabiliser Button [P.STABILIZER] ...
-
Page 11: Playback
To resume normal playback, press 4/6 For VIDEO RECORDING/VIDEO PLAYBACK • The camcorder shuts off automatically after about 5 minutes in the Record-Standby or Stop mode. To turn on again, set the Power Switch “OFF”, then to “... -
Page 12: Picture Stabiliser
2) During Record–Standby, press 5SEC. REC 3) Press the Recording Start/Stop Button Recording starts, and after 5-second recording is finished, the camcorder reenters the Record– Standby mode automatically. 4) To cancel the 5Sec. Rec. function, press 5SEC. • Fade/Wipe ( pressing 5SEC. -
Page 13: Quick Review
• Do not use near flammable or explosive materials. moves during • It is recommended that you consult your nearest JVC dealer for replacing the video light. Quick Review To check the end of the last recording. 1) Make sure the camcorder is in the Record–... -
Page 14: Counter Memory
“OFF” and then “ blinks. When Auto Tracking finishes, the indication disappears. • When noise bars appear during playback, the camcorder enters the Auto Tracking mode and “AT” appears. • Manual Tracking may not work with tapes recorded on other VCRs or camcorders. -
Page 15: Tape Dubbing
Connections To A TV/VCR 1) Make sure all units are turned off. 2) Connect the camcorder to a TV or VCR. If using both TV and VCR, connect the VCR output to the TV input. 3) Turn on all units. Set the VCR to its AUX input mode, and set the TV to its VIDEO mode. -
Page 16: Cassette Adapter
Battery Cover Connection To A Personal Computer (GR-SXM78EA/SXM780A only) You can transfer image data from the camcorder to a PC using Digital Photo Navigator. When connecting to your PC, refer to the instruction manuals of the PC and Setup Guide for the provided software. - Page 17 During Recording – – – – – – Refer to this diagram while reading the instructions. During shooting Keep the lens cap attached to the camcorder. LCD monitor (applicable models only) 90° 90° 180° Transmitted beam effetive area 30° 30°...
-
Page 18: Auto Focus
NEXT” focusing is not possible. • When shooting a subject close to the lens, zoom out first ( the auto focus mode, the camcorder could automatically zoom out depending on the distance between the camcorder and the subject. MENU This does not occur with “TELE MACRO”... - Page 19 OFF is selected. DATE/TIME DISP. Makes the date/time appear in the camcorder or on a connected monitor (set DATE/TIME in SYSTEM MENU first • The selected display will be recorded. If you do not want to record the display, select OFF before shooting.
-
Page 20: Recording Mode
Technology). S-VHS REC appears during recording. OFF: Records in VHS on a VHS or S-VHS cassette. • JVC EHG (Extra High Grade) tapes are recom- mended for superior results. Use S-VHS tape for storing recordings for an extended period or for recording important scenes, as it enables higher-quality recording and playback. -
Page 21: Tele Macro
*GR-SXM78EA/SXM780A/SXM480A/SXM280A only INT. TIME You can record sequentially at preset time spans. Leaving the camcorder aimed at a specific subject, you can record subtle changes over an extended period of time (Time-Lapse). REC MODE should be set to “SP”. -
Page 22: Fade-In/Out
“AUTO” or “ON” ( “Video Light”). • During Night-Scope, it may be difficult to bring the camcorder into focus. To prevent this, use of a tripod is recommended. Fade/Wipe Effects Fade- or wipe-in works at recording start, and fade- or wipe-out works at recording end. -
Page 23: Digital Effects
Programme AE With Special Effects 1) Set the Power Switch to “ 2) Press P.AE repeatedly until the desired mode appears. • To cancel the effect, press P.AE until “OFF” appears. • Only one mode can be engaged at a time. •... -
Page 24: Remote Control
USING THE REMOTE CONTROL UNIT The Full-Function Remote Control Unit can operate this camcorder from a distance as well as the basic operations (Playback, Stop, Pause, Fast-Forward and Rewind) of your VCR. Make sure the remote control is pointed at the remote sensor... -
Page 25: Audio Dubbing
. w appears. 5) To begin Insert Editing, press START/STOP When the counter reaches “0:00:00”, editing stops automatically and the camcorder enters the Insert-Pause mode. To end Insert Editing, press STOP • During Insert Editing, the original audio will be heard from the speaker. - Page 26 VCR CTL You are now ready to try Random Assemble Editing. Although the MBR is compatible with JVC VCRs and those of many other makers, it may not work with yours or may offer limited functions.
- Page 27 To Audio, Video and S-Video Input connectors RM-V700U (optional) MAKE CONNECTIONS JVC VCR EQUIPPED WITH REMOTE PAUSE TERMINAL Connect the editing cable to the Remote PAUSE terminal. JVC VCR NOT EQUIPPED WITH REMOTE PAUSE TERMINAL BUT EQUIPPED WITH R.A. EDIT...
-
Page 28: Rewind The Tape
• Turning off the camcorder’s power erases all registered in- and out-points. AUTOMATIC EDITING TO VCR 9) Rewind the tape in the camcorder to the beginning of the scene you want to edit and press PAUSE 10) Point the remote control towards the VCR’s infrared sensor and press VCR REC STBY or manually engage the VCR’s Record-Pause... -
Page 29: Troubleshooting
Before consulting your JVC dealer, please check the following to see if you can correct the problem yourself. Vertical white lines appear when shooting a very bright object. • This sometimes occurs when the contrast between the back-ground and the object is great. It is not a defect of the camcorder. - Page 30 • When operating, keep a distance of about 30 cm between the video light and people or object. • Do not use near flammable or explosive materials. • It is recommended that you consult your nearest JVC dealer for replacing the video light. General Battery Precautions...
- Page 31 This same phenomenon occurs on the head drum of a camcorder when it is moved from a cool place to a warm place, after heating a cold room, under extremely humid conditions or in a place directly subjected to the cool air from an air conditioner.
-
Page 32: Specifications
• Remote Control Unit RM-V700U • Active Carrying Bag CB-V7U Some accessories are not available in some areas. Please consult your nearest JVC dealer for details on accessories and their availability. : 1/6" format CCD : F1.6, f = 3.9 mm to 62.4 mm,...
