Hama DR-20 Instruction Manual

Dsl/broadband router
Hide thumbs Also See for DR-20:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual
00049079

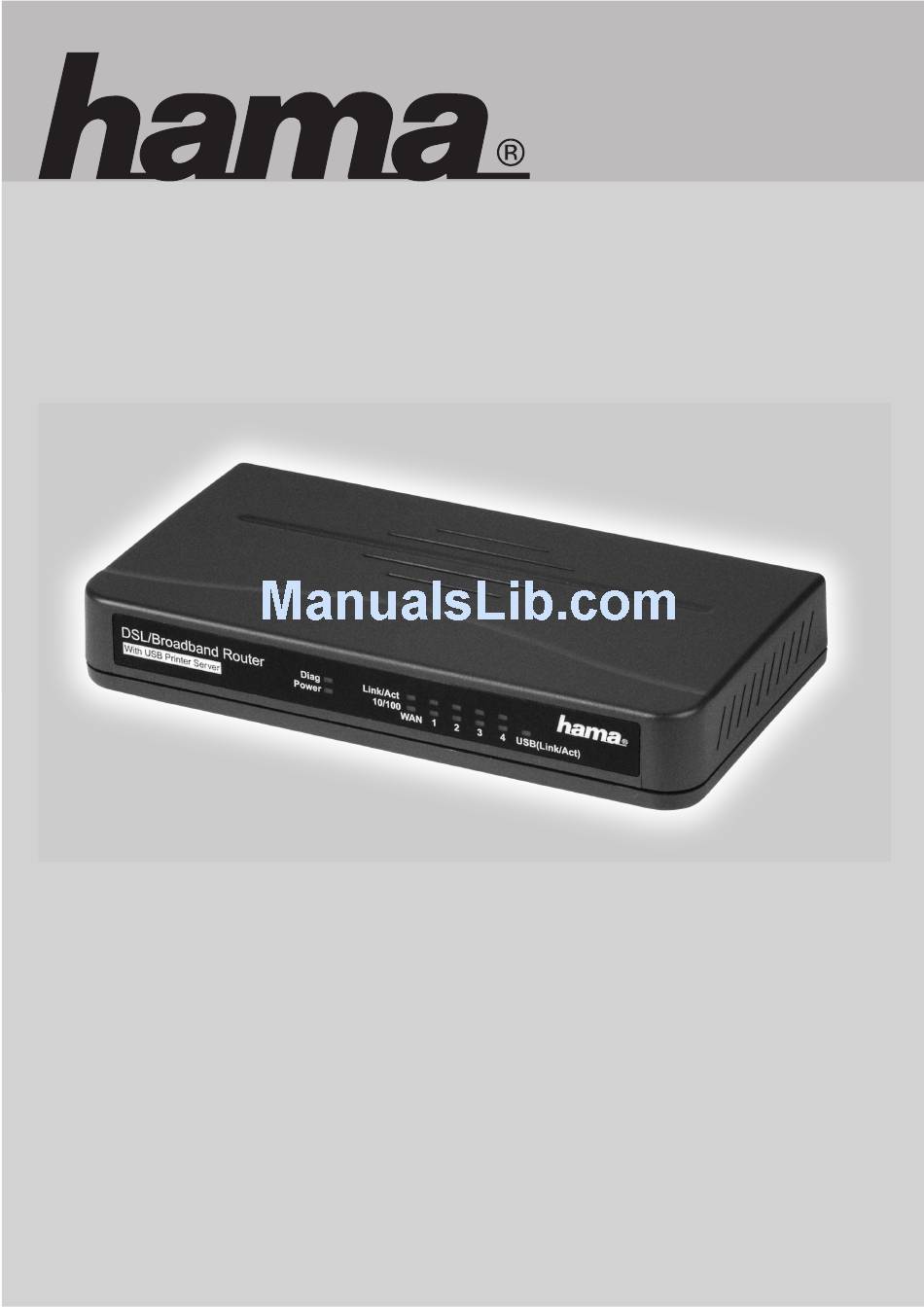

1
DSL/Breitband Router DR-20
DSL/Broadband Router DR-20
Routeur DR-20 DSL / large bande

Advertisement

Table of Contents
loading

Related Manuals for Hama DR-20

Summary of Contents for Hama DR-20

  • Page 1 00049079 DSL/Breitband Router DR-20 DSL/Broadband Router DR-20 Routeur DR-20 DSL / large bande...

  • Page 2: Installation Instructions

    Connect the computer(s) that you would like to connect to the Internet using the router. Insert a suitable network cable (patch or crossover cable CAT5 STP) in your network card on the PC and connect the other end to the terminal with the numbers 1 – 4 at the rear of the DR-20 DSL/broadband router.

  • Page 3: Installing The Software

    Instruction Manual for DR-20 DSL/Broadband Router Rear view of DR-20 DSL/broadband router DC In: Connection for the supplied power supply unit USB Printer: USB printer port for connecting your printer using a USB cable 1 – 4: Network cable connection of the computer or switch/hub...
  • Page 4 Instruction Manual for DR-20 DSL/Broadband Router Select the first option Get IP address automatically (PPPoE). Leave the host name and domain name blank. You must specify your Internet provider. Private IP Address: You can allocate your internal IP address range here. We recommend that you do not change anything.
  • Page 5 Instruction Manual for DR-20 DSL/Broadband Router The MTU entry must be changed to 1400. The AOL access must be set to TCP/IP. See also www.aol.de/zugang/_include/inst_router.pdf To save your settings, click Apply. The basic configuration process is now complete. PPTP configuration (Austria): Select the first option PPTP Client.

  • Page 6: Static Ip Configuration

    Instruction Manual for DR-20 DSL/Broadband Router Important information for DSL users who have a volume rate contract: Please keep in mind that there are many background programs that connect to the Internet despite your browser being closed and therefore the connection is not disconnected. Such background programs are for example, virus scanners, Windows Media Player, Windows Update and trojans.
  • Page 7 Instruction Manual for DR-20 DSL/Broadband Router Domain Name Server 2: Enter a second DNS Server. Domain Name Server 3: Enter the third DNS Server if necessary. To save your settings, click Apply. The basic configuration process is now complete. 3. Optional Router Settings.

  • Page 8: Blocking Websites

    Instruction Manual for DR-20 DSL/Broadband Router the back of the router for approximately 5 seconds. The router deletes all the old entries and is reset to the factory settings. Blocking websites If you wish to prohibit or allow access to specific Internet pages for the computers connected to the router, you can set the pages as follows.

  • Page 9: Updating Firmware

    Instruction Manual for DR-20 DSL/Broadband Router Select your program using the pull-down menu in the Application field. Should your program not be in the pull-down menu, select Manual Setting. Application Name: Name of your Program e.g. UT2004 Outgoing: Enter the port or port area for the outgoing data traffic.

  • Page 10: Dynamic Dns

    Instruction Manual for DR-20 DSL/Broadband Router There your current firmware version is displayed. In this example it is 02.00.00.03. To update the firmware, click Firmware Upgrade. You are then prompted to enter the previously downloaded file (the file may first have to be unpacked) and then click Upload to load the firmware onto the router.
  • Page 11 Instruction Manual for DR-20 DSL/Broadband Router Service Provider: This allows you to select the DDNS services from three providers with whom you have previously opened a corresponding account. For example, DDNS providers are: www.dyndns.org, www.dtdms.org or others not listed here.

  • Page 12: Show Connection Log

    Click Reload to update the display. USB Printer Installation with Tool Connect your USB printer using the USB socket at the back of the DR-20 DSL/broadband router. On Windows 98SE and Millenium Edition (ME): First, install the Java software from Sun that is on the enclosed CD-ROM or can be downloaded in the Internet at www.java.com.
  • Page 13 Instruction Manual for DR-20 DSL/Broadband Router Click Installing Printer Server Software. A file named Setup.exe is then copied to your Windows desktop. Switch to your Windows desktop and double-click the Setup.exe file. The installation wizard now starts. Now follow the wizard’s instructions by clicking -> Next. On the following page, you must accept the License Agreement by clicking I accept the terms of the license agreement.
  • Page 14 Instruction Manual for DR-20 DSL/Broadband Router You are now prompted if would like to restart the computer, select Yes, I want to restart my Computer now. Click -> Finish to close the procedure. Once the computer has been restarted, click Start -> Settings-> Printer -> New Printer –> Next.
  • Page 15 Instruction Manual for DR-20 DSL/Broadband Router In the port menu, select Other and then USB Remote print port -> Ok. The printer server configuration tool is displayed again, select Choose printer and click Find. Your printer is then found. Select this printer by clicking OK-> OK-> Apply.
  • Page 16 Instruction Manual for DR-20 DSL/Broadband Router Once the computer has been restarted, place the enclosed CD-ROM into the CD-ROM drive. The following window should be visible. Click Installing Printer Server Software. A file named Setup.exe is then copied to your Windows desktop.
  • Page 17 Instruction Manual for DR-20 DSL/Broadband Router Click Choose Printer to select your USB printer to be installed. The next window should appear similar to the following screen shot: Click Find so your connected USB printer can be found. Afterwards, your printer should appear in the list as shown above.
  • Page 18 Instruction Manual for DR-20 DSL/Broadband Router Make sure that you have Administrator privileges, then click Start -> Run, and enter command and press Enter. The command prompt now opens. Enter wreset and confirm with Enter. Note: Repeat this procedure on the other network computers upon which you would also like to use the network printer.
  • Page 19 Instruction Manual for DR-20 DSL/Broadband Router Only select the option as displayed above and click Next. Select Create a new port and the connection type Standard TCP/IP Port. Then click Next. 09.6.2005 Art. Nr. 00049079 Seite 18...
  • Page 20 Instruction Manual for DR-20 DSL/Broadband Router Enter your router’s IP address in the printer name or IP address field. By default, this is 192.168.1.1. Leave the default port name setting. Select PRINTSERVER as the device type as shown above. Then click Next.
  • Page 21 Instruction Manual for DR-20 DSL/Broadband Router Start -> Settings -> Printers -> Add printer. The printer installation wizard now starts. Select Create a new port and the connection type Standard TCP/IP Port. Then click Next. Enter your router’s IP address in the printer name or IP address field. By default, this is 192.168.1.1.
  • Page 22 Instruction Manual for DR-20 DSL/Broadband Router Select Generic Network Card as the device type as shown above. Then click Next. Now, only the correct printer driver must be installed. Click Next, now only your printer driver should be installed. We recommend printing a test page to see if the printer responds properly.
  • Page 23 Instruction Manual for DR-20 DSL/Broadband Router If you experience problems while printing the test page, open the properties of the printer and click Configure port. The window displayed above now opens; check that the settings are identical. Then click OK and try to print the test page again.
  • Page 24 Warranty Conditions: Hama products are of the highest quality and tested according to strict international quality standards. The warranty period begins on the day of purchase. The warranty only applies to faults with product materials and construction and relates solely to the value of the item itself.
  • Page 25 Instruction Manual for DR-20 DSL/Broadband Router covered by the terms of this warranty. A valid sales receipt accompanied by a brief description of the nature of the fault must be presented for any claims made on the warranty. This device is packaged with great care. Freight and postage is free of charge. Any claims made on the warranty do not increase its period of validity nor result in the issue of a new guarantee.
