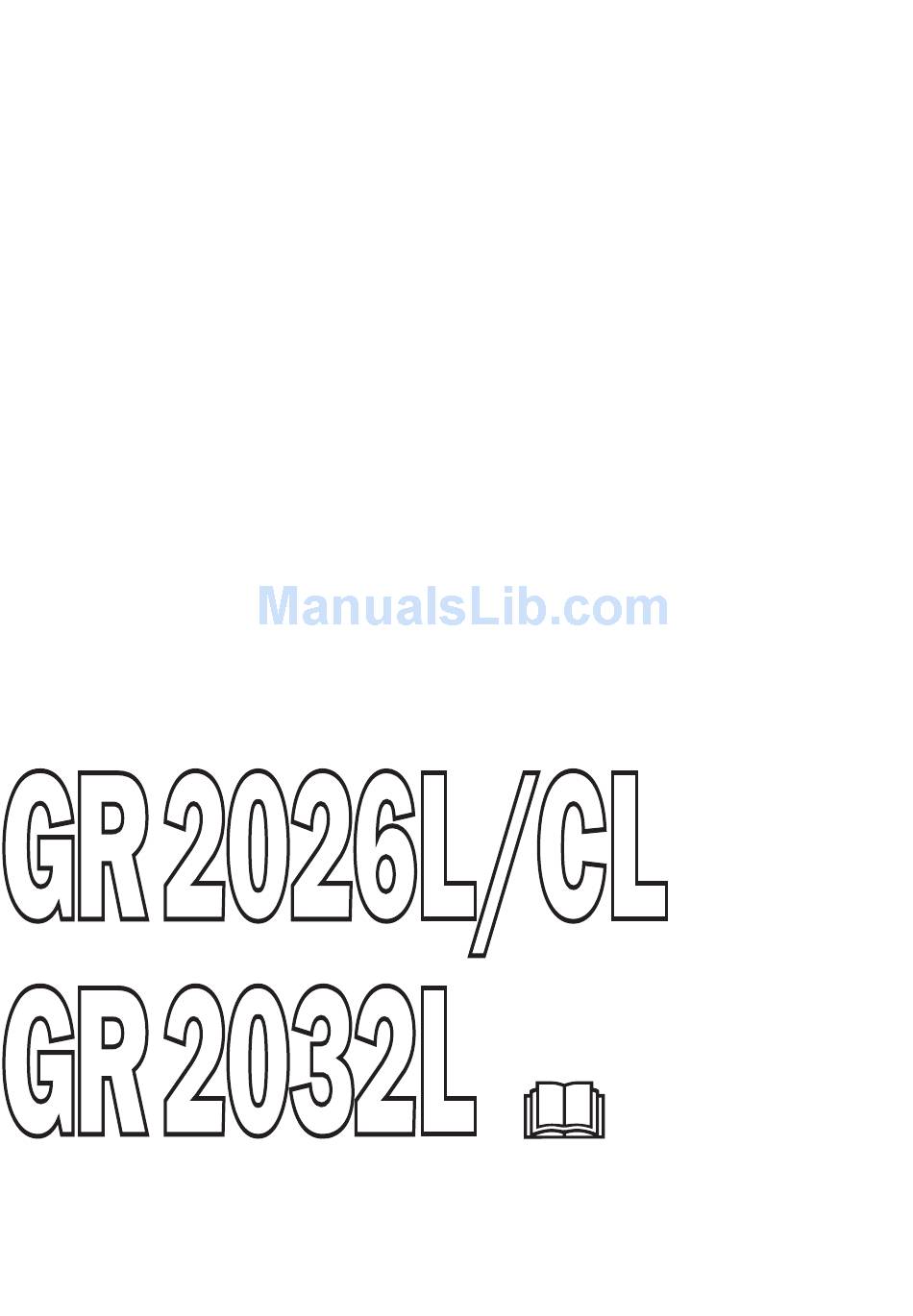

- Page 1 Operator´s manual (EPA) Read through the Operator's Manual carefully and understand the content before using the machine.
-
Page 2: Symbol Explanation
SYMBOL EXPLANATION Symbols WARNING! Clearing saws, brushcutters and trimmers can be dangerous! Careless or incorrect use can result in serious or fatal injury to the operator or others. Read through the Operator‘s Manual carefully and understand the content before using the machine. Always use •... -
Page 3: Table Of Contents
Jonsered has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice. Maintenance, replacement, or repair of the emission control devices and systems may be performed by any nonroad engine repair establishment or individual. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Personal protective equipment MPORTANT INFORMATION • A clearing saw, brushcutter or trimmer used incorrectly or carelessly can become a dangerous tool, that can cause serious or fatal injury to the operator or others. It is extremely important that you read and understand the content of this manual. - Page 5 SAFETY INSTRUCTIONS 4. Vibration damping system Your machine is equipped with a vibration damping system, which is designed to give as vibration-free and comfortable use as possible. Use of incorrectly wound cord or incorrect cutting equipment increases the level of vibration. The machine’s vibration damping system reduces the transfer of vibrations...
-
Page 6: Control, Maintenance And Service Of The Machine's Safety Equipment
Control, maintenance and service of the machine‘s safety equipment IMPORTANT INFORMATION • All service and repairs to the machine require special training. • This applies especially to the machine‘s safety equipment. If the machine does not meet any of the controls listed below you should contact your service workshop. -
Page 7: Cutting Equipment
SAFETY INSTRUCTIONS 6. Cutting equipment The section describes how through correct maintenance and through using the right type of cutting equipment you can: • Obtain maximum clearing capacity. • Increase the service life of the cutting equipment. Two basic rules: 1)Only use the cutting and guard equipment we recommend! See... -
Page 8: General Safety Instructions
General safety instructions IMPORTANT INFORMATION • The machine is only designed for trimming grass. • The only accessories to be used with the engine unit as a drive source are the cutting units we recommend in the chapter “Technical data“ . •... -
Page 9: General Working Instructions
SAFETY INSTRUCTIONS General working instructions IMPORTANT INFORMATION • This section takes up the basic safety precautions for working with the trimmer. • If you encounter a situation where you are uncertain how to proceed you should ask an expert. Contact your dealer or your service workshop. - Page 10 Clearing • The clearing technique removes all unwanted vegetation. Keep the trimmer head just above the ground and tilt it. Let the end of the cord strike the ground around trees, posts, statues and the like. NOTE! This technique increases the wear on the cord.
-
Page 11: What Is What
¥ What is what on the trimmer? 1. Trimmer head 2. Grease filler cap 3. Angle gear 4. Spray guard 5. Shaft 6. Loop handlebar 7. Throttle 8. Stop switch 9. Throttle trigger lock 10. Suspension for harness 11. Cylinder cover 12. -
Page 12: Assembly
Assembling the loop handlebar • Unscrew the handle and plastic cover from the handlebar bracket. • Place the loop handlebar with the handlebar holder on the handlebar bracket. Fit the handle and plastic cover. Do not tighten too tight. • Put on the harness and hang the trimmer in the suspension hook. -
Page 13: Assembling Other Guards And Cutting Equipment
Assembling other guards and cutting equipment • Fit the guard (A) intended for use with the trimmer head. Secure using four bolts (L) and the support plate (M) as shown in the diagram. • Fit the disc drive (B) on the output axle. -
Page 14: Fuel Handling
• When working at continuous high revs a higher octane rating is recommended. Two-stroke oil • For the best results use JONSERED two-stroke oil, which has been specially produced for clearing saws and chain saws. Mixing ratio 1:50 (2%). • Never use two-stroke oil... -
Page 15: Start And Stop
Control before starting For reasons of safety follow these recommendations! • Check that the support flange is not cracked due to fatigue or due to being tightened too much. Discard the support flange if it is cracked. • Ensure the locking nut has not lost its captive force. -
Page 16: Maintenance
Carburetor Your JONSERED product has been designed and manufactured to specifications that reduce harmful emissions. After your unit has been run 8-10 tanks of fuel the engine has broken in. To ensure that your unit is at peak performance and producing the least amount of harmful... - Page 17 Final setting of the idling speed T Adjust the idling speed with the screw T, If it is necessary to readjust. First turn the idle speed adjusting screw T clockwise until the cutting attachment starts to rotate/ move. Then turn, counter- clockwise until the cutting attachment stops.
-
Page 18: Muffler
Muffler NOTE! Some mufflers are fitted with a catalytic converter. See “Technical data” to see whether you clearing saw is fitted with a catalytic converter. The muffler is designed to dampen the noise level and to direct the exhaust fumes away from the user. -
Page 19: Spark Plug
NOTE: Use only JONSERED replacement parts. Use of other brands of replacement parts can cause damage to your unit or injury to the operator or others. Your warranty does not cover damage or liability caused by the use of accessories and/or attachments not specifically recommended by JONSERED. -
Page 20: Technical Data
Technical data Engine Displacement, cu. in/cm Cylinder bore, inch/mm Stroke length, inch/mm Idling speed, rpm Recommended max. speed, rpm Speed of output shaft, rpm Max. engine output, acc. to ISO 8893 Catalytic converter muffler Speed-regulated ignition system Ignition system Manufacturer/type of ignition system Spark plug Electrode gap, inch/mm Fuel lubrication system... -
Page 21: Emission Control Warranty Statement
If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized servicing dealer or call Jonsered, at Sweden +46 36 14 65 00. WHERE TO GET WARRANTY SERVICE Warranty services or repairs shall be provided at all Jonsered authorized servicing dealers. - Page 22 Auto 32 4,0 m 15 cm ~2,0 m 6 " 6,5 ' 15 cm 6 " – English...
- Page 23 Poly Trim >20mm >20mm 6 Nm X 10 English –...
- Page 24 Tap-N-Go Pro 15 cm 6" “Click” – English 7,5 m ~ 3,7 m 15 cm 6" 15 cm 6"...
- Page 25 Trimmy H II 15 cm 6" 7,5 m ~ 3,7 m 15 cm 6" English –...
- Page 26 Trimmy SII ~ 15 cm ´*xt3¶5)¨ – English 35-50 NM 7,0 m 12 cm 5" ~ 3,5 m "Clic"...
- Page 27 Trimmy SII ~ 15 cm ~ 15 cm 502 26 04-01 502 25 56-01 502 25 53-01 729 53 27-71 (x3) 738 21 03-04 502 26 24-01 (x2) 740 43 14-00 502 26 03-01 502 25 52-01 502 26 01-01 735 31 19-00 502 27 07-01 502 26 86-01...
- Page 28 108 88 41-95 ´*xt3¶5)¨ 2002W04...
