Summary of Contents for Remcor TJ150-B

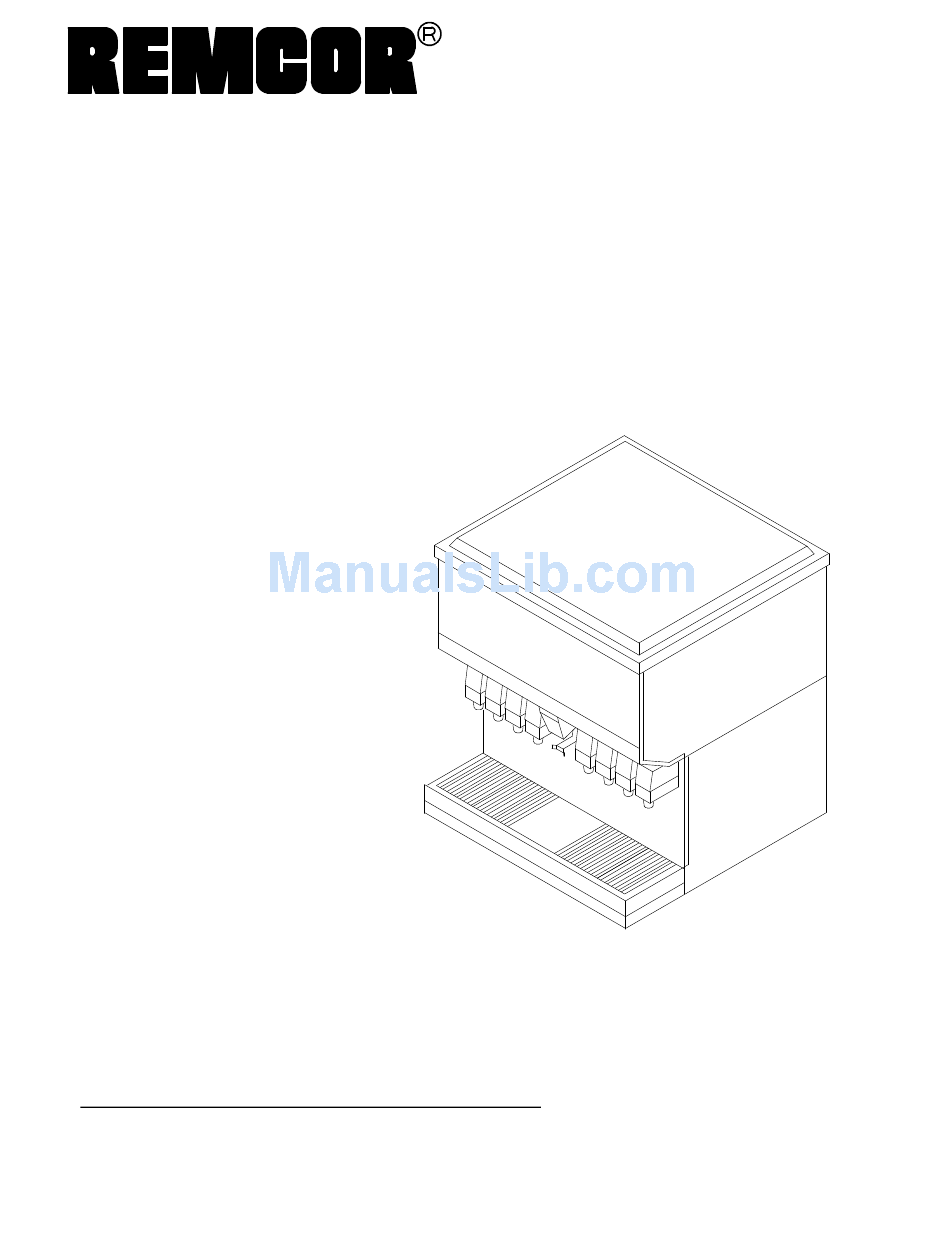

- Page 1 ICE/BEVERAGE DISPENSERS MODELS: TJ150-B TJ150-KB TJ150-BC TJ150-KBC Operator’ s Manual Part No. 90956 February, 1997 Revision E THIS DOCUMENT CONTAINS IMPORTANT INFORMATION This Manual must be read and understood before installing or operating this equipment â REMCOR INC: PRINTED IN U.S.A...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page SAFETY PRECAUTIONS ........... GENERAL DESCRIPTION . - Page 3 ......FIGURE 4. MOUNTING TEMPLATE TJ150-B, BC ......
-
Page 4: Safety Precautions
GENERAL DESCRIPTION The Remcor “ TJ”series of ice and beverage dispensers solve your ice and beverage service needs the sani- tary, space saving, economical way. Designed to be manually filled with ice from any remote ice making source, or automatically filled from a top-mounted “... -
Page 5: Ice Maker
ICE MAKER REMCOR “ K”model ice/beverage dispensers are designed to be used with one of several top-mounted “ ice cubers.”These cubers must be obtained from the appropriate manufacturer or distributor in your area. The following ice makers are approved for use on the TJ150 “ K”models:... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Locate the dispenser indoors on a level counter top. MODELS “B”, “BC” Unpack the four (4) legs and install them into the threaded holes provided in the bottom of the unit. The installer must provide flexibility in the product and utility lines to permit shifting the position of the dispenser sufficiently to clean the area beneath it. -
Page 7: Cleaning Instructions
CLEANING INSTRUCTIONS WARNING: DISCONNECT POWER BEFORE CLEANING! Do not use metal scrapers, sharp objects or abrasives on the ice storage hopper, top cover and the agitator disk, as damage may result. Do not use solvents or other cleaning agents, as they may attack the plastic material. -
Page 8: Beverage System
8. Slide the cover forward, taking care that it is securely positioned on the cold plate. 9. Reassemble. BEVERAGE SYSTEM 1. Remove faucet spouts, wash in mild detergent, rinse and replace. 2. Disconnect electrical power to the carbonator. Shut off the water supply and close the CO regulator to the carbonator. -
Page 9: Maintenance
MAINTENANCE The following dispenser maintenance should be performed at the intervals indicated: DAILY or as required Remove foreign material from the vending area sink to prevent drain blockage. WEEKLY or as required Clean vending area. Check for proper water drainage from the vending area sink. MONTHLY Clean and sanitize the hopper interior (see CLEANING INSTRUCTIONS). -
Page 10: Gate Restrictor Plate
INSTALL PLATE ON STUDS AS SHOWN FIGURE 2. GATE RESTRICTOR PLATE ADJUSTMENT This dispenser is provided with a gate restrictor plate installed in its highest position. This plate adjusts the rate of ice flow from the dispenser. In applications using buckets, carafes or other large containers, the plate may be removed entirely for maximum ice flow. -
Page 11: Troubleshooting Guide
TROUBLESHOOTING GUIDE Should your unit fail to operate properly, check that there is power to the unit and that the hopper contains ice. If the unit does not dispense, check the following chart under the appropriate symptoms to aid in locating the defect. -
Page 12: Figure 3. Tj150-K Ice Cuber Installation
POSITION ICE MAKER ON DISPENSER TO COVER OPENING INTO STORAGE HOPPER. APPLY RTV AROUND INSIDE OF ICE MAKER OUTLINE ON DISPENSER COVER TO FORM A SEAL. REMOVE SCREWS AND TURN BRACKET AROUND 180° . REPLACE SCREWS. FIGURE 3. TJ150-K ICE CUBER INSTALLATION 90956... -
Page 13: Figure 4. Mounting Template Tj150-B, Bc
2 1/8 DIA. (POWER CORD AND DRAIN) OPENING REQUIRED FOR BEVERAGE TUBING 3 31/32 1 1/8 2 1/4 4 1/2 13 1/2 2 5/8 18 1/2 1/2 DIA. (4) 1 1/8 27 3/4 FIGURE 4. MOUNTING TEMPLATE TJ150-B, BC 90956... - Page 14 90956...
- Page 15 90956...
- Page 16 90956...
-
Page 17: Figure 8. Wiring Diagram Tj150-Bc Dispenser
GROUND T’ STAT LIGHT ICE LEVEL MOTOR SIGNAL OPTION GATE HEATER SOLENOID 1 1/4 AMP TIME DELAY FUSE AGITATION TIMER 24 V. PINK TRANSFORMER BEVERAGE SWITCH FAUCET OPTION (TYPICAL) AGITATOR MOTOR TERMINAL BOARD BEVERAGE SYSTEM CAPACITOR PORTION PORTION TIMER DISPENSE CONTROL SWITCH OPTION... -
Page 18: Figure 9. Final Assembly
FIGURE 9. FINAL ASSEMBLY 90956... -
Page 19: Final Assembly Parts List
FINAL ASSEMBLY PARTS LIST Item No. Part No. Description 21491 Gate Slide 23062 Foam Shield 21515 Depressor Lever 24069 Agitator 30895 Dispense Switch 31007 Switch Boot 31163 Switch Insert 31091 Transformer 31889 Agitator Motor 50454 Motor Shaft Seal 50806 Motor Gasket 51432 (“... -
Page 20: Figure 10. Solenoid Assembly
FIGURE 10. SOLENOID ASSEMBLY -- EXPLODED VIEW & PARTS LIST Index Part No. Quantity Description 21493 Solenoid Mounting Plate 31551 Solenoid Service Kit 70171 8--32 x 3/8 Phil Tr HD Screw 70121 No. 8 Lockwasher 50752 Isolator 50789 Bumper Assembly 70423 Cotter Pin 10080... -
Page 21: Warranty
For a copy of the warranty applicable to your Cornelius and or Remcor product, in your country, please write, fax or telephone the IMI Cornelius office near- est you. Please provide the equipment model number, serial number and the date of purchase. - Page 22 CORPORATE HEADQUARTERS: Remcor Incorporated 500 Regency Drive Glendale Heights, IL 60139 708. 980.6900...
