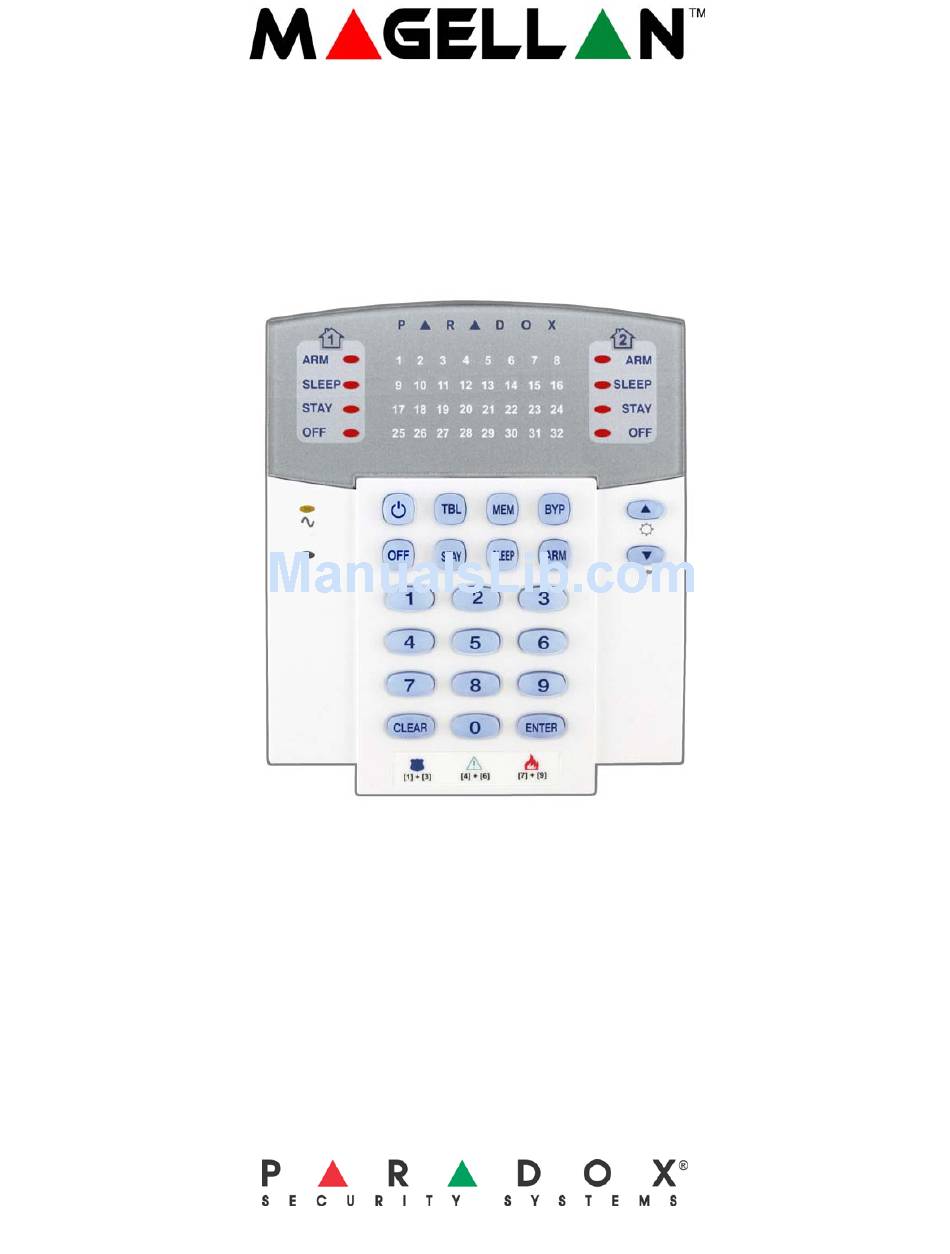

- Page 1 32-Zone Wireless Transceiver Control Panel MG5000 V1.0 User’s Guide...
-
Page 2: Table Of Contents
Table of Contents Programming Access Codes ......9 System Master Code (Default: 123456)....... 9 Master Codes............... 9 Duress Code ..............9 Overview ..........1 Programming Access Codes ........9 Quick Function Keys........10 Basic Operations ..........1 Test Report ..............10 Auditory Feedback............ -
Page 3: Overview
Partitioning Your Magellan system is equipped with a partitioning feature that can divide your alarm system into two distinct areas identified as Partition 1 and Partition 2. Partitioning can be used in installations where shared security systems are more practical, such as a home office or warehouse building. -
Page 4: Arming & Disarming
Arming & Disarming Take full advantage of your Magellan system by familiarizing yourself with all the arming methods. If your system is not partitioned (see Partitioning on page 3), everything is considered as belonging to Partition 1. If One-Touch Arming is programmed, you can increase the security level of your system (from Disarm... -
Page 5: Instant Arming
Regular arming. Exit and Sleep Arm Press and hold the [ ] key for 3 seconds to start the Exit Delay (see page 16). After the Exit Delay has elapsed, the system SLEEP will switch to Sleep arming. Magellan... -
Page 6: Auto-Arming
Enter Code Auto-Arming The Magellan alarm system can be programmed to automatically arm upon the following two conditions. Timed Auto Arming The alarm system can automatically arm itself at a specified time everyday. As with Regular arming (see page 4), the system will not arm if a zone is open. -
Page 7: Manual Bypass Programming
• Heating is the second leading cause of residential fires. However, heating fires are a larger problem in single family homes than in apartments since the heating systems in single family homes are often not professionally maintained. Magellan... -
Page 8: Fire Safety Tips
Panic Alarms In case of an emergency, the Magellan system can provide three panic alarms that can immediately generate an alarm after simultaneously pressing and holding two specific keys for three seconds. Based on your needs, these panic alarms can generate audible alarms (sirens or bells) or silent alarms and can communicate specific messages to your monitoring station. -
Page 9: System Features
PGM Keys (Programmable Outputs) Your Magellan system may include one or more programmable outputs (PGMs). When a specific event or condition occurs in the system, the PGM can be used to reset smoke detectors, activate light switches in your home or office, open/close garage doors and much more. -
Page 10: Trouble Display
Trouble Display Your alarm system continuously monitors several trouble conditions that can be reported directly to your monitoring station. When a trouble condition occurs, the [ ] key will illuminate. We strongly suggest that you inform your monitoring station of the trouble and allow them to service your system. -
Page 11: Advanced Features
Programming Access Codes Access codes are personal identification numbers that allow you to enter certain programming modes, arm or disarm your system as well as activate or deactivate PGMs. The Magellan security system supports the following: • 1 System Master Code •... -
Page 12: Quick Function Keys
Quick Function Keys Upon request of your installer or monitoring station you may have to perform one of the following. To enter Menu Programming, press [ ] and then enter your [ ]. In Menu programming, press: MASTER CODE Test Report ] + [2] If your system is monitored by your monitoring station, this feature will send a test report code to the monitoring station. -
Page 13: System Checklist
15:_________________ ______ Delayed? Y Fire Zone? Y 16:_________________ ______ Delayed? Y Fire Zone? Y 17:_________________ ______ Delayed? Y Fire Zone? Y 18:_________________ ______ Delayed? Y Fire Zone? Y 19:_________________ ______ Delayed? Y Fire Zone? Y 20:_________________ ______ Delayed? Y Magellan... - Page 14 Zone # and Partition Stay Force 24Hr Entry Delay Fire Zone/Delay Description 1 or 2 Fire Zone? Y 21:_________________ ______ Delayed? Y Fire Zone? Y 22:_________________ ______ Delayed? Y Fire Zone? Y 23:_________________ ______ Delayed? Y Fire Zone? Y 24:_________________ ______ Delayed? Y Fire Zone? Y...
-
Page 15: Access Codes
] One-Touch Sleep arming is activated SLEEP ] One-Touch Manual Bypass Programming is activated Panic Alarms [1] & [3] Police or __________ Silent Audible [4] & [6] Aux. or ___________ Silent Audible [7] & [9] Fire or ___________ Silent Audible Magellan... -
Page 16: Pgms
PGMs PGM 1: _________________________________________ PGM 2: _________________________________________ PGM 3: _________________________________________ PGM 4: _________________________________________ PGM 5: _________________________________________ PGM 6: _________________________________________ PGM 7: _________________________________________ PGM 8: _________________________________________ PGM 9: _________________________________________ PGM 10: ________________________________________ PGM 11: ________________________________________ PGM 12: ________________________________________ PGM 13: ________________________________________ PGM 14: ________________________________________ PGM 15: ________________________________________ PGM 16: ________________________________________... - Page 17 Notes...
- Page 18 Notes...
- Page 20 © 2002-2006 Paradox Security Systems Ltd. All rights reserved. Specifications may change without prior notice. One or more of the following US patents may apply: 6215399, 6111256, 5751803, 5721542, 5287111, 5119069, 5077549, 5920259 and 5886632. Canadian and international patents may also apply. Magellan is a trademark or registered trademark of Paradox Security Systems Ltd. or its affiliates in Canada, the United States and/or other countries.
-
Page 21: Communicator
Communicator Step 1: Press [ ] Step 2: Enter Master Code (default: 1234) Step 5 Step 6 Step 3: Select a menu: [ ] User ] Delay ] Communicator Notes ] System Options To call/answer WinLoad, send a test report, or cancel all communications Test Report Per # 1 Call/Ans.WinLoad... -
Page 22: Master Quick Menu
[3] for PM setting. If the hour is above 12, the system will automatically Step 6: YYYY select the 24Hr. format. Step 7: Step 8: 780 Industriel Blvd., Saint-Eustache (Quebec) J7R 5V3 CANADA Tel.: (450) 491-7444 Fax: (450) 491-7313 paradox.com Printed in Canada - 04/2006 MG5000-EU00...
