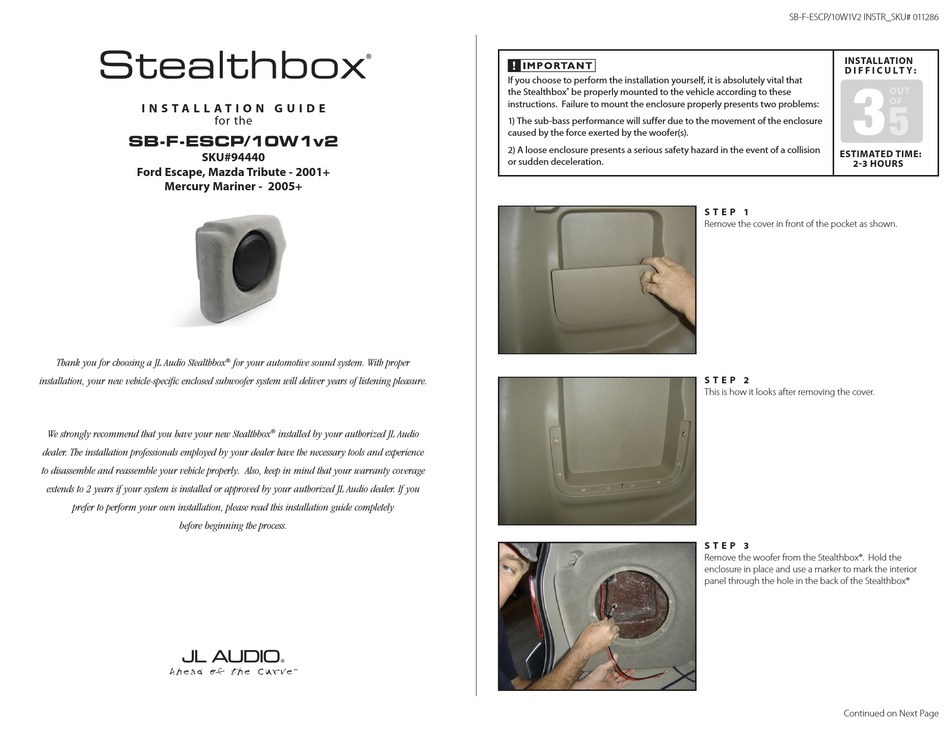

I n s t a l l a t I o n G u I d e
for the
SB-F-ESCP/10W1v2
sKu#94440
Ford escape, Mazda tribute - 2001+
Mercury Mariner - 2005+
Thank you for choosing a JL Audio Stealthbox
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage
extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you
prefer to perform your own installation, please read this installation guide completely
before beginning the process.
® for your automotive sound system. With proper
® installed by your authorized JL Audio
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-F-ESCP/10W1V2 INSTR_SKU# 011286
InstallatIon
d I F F I C u l t Y :
3
estIMated tIMe:
2-3 HouRs
s t e P 1
Remove the cover in front of the pocket as shown.
s t e P 2
This is how it looks after removing the cover.
s t e P 3
Remove the woofer from the Stealthbox®. Hold the
enclosure in place and use a marker to mark the interior
panel through the hole in the back of the Stealthbox®
Continued on Next Page
out
oF
5
