Crestron C2N-IRGW-F Operations & Installation Manual
Ir gateway
Hide thumbs
Also See for C2N-IRGW-F:
- Specification sheet (26 pages) ,
- Operations & installation manual (28 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Crestron C2N-IRGW-F
Summary of Contents for Crestron C2N-IRGW-F

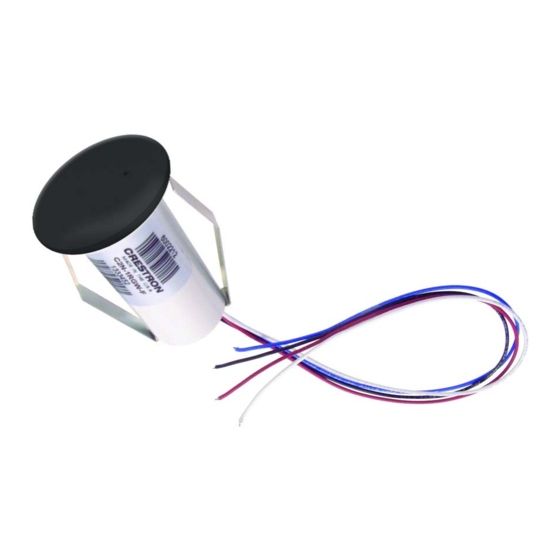

- Page 1 Crestron C2N-IRGW-F IR Gateway Operations & Installation Guide...
- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2007 Crestron Electronics, Inc.
-
Page 3: Table Of Contents
Hardware Hookup ....................... 9 Universal Remotes....................... 9 Programming Software ......................14 Earliest Version Software Requirements for the PC ..........14 Programming with Crestron D3 Pro or SystemBuilder ..........15 Programming with SIMPL Windows ................ 15 Uploading and Upgrading......................18 Establishing Communication..................18 Programs and Firmware .................... -
Page 5: Ir Gateway: C2N-Irgw-F
® • Seamless Cresnet integration • Compatible with any 2-Series control device • Easy one-piece mounting (no additional hardware required) Specifications Specifications for the C2N-IRGW-F are listed in the following table. C2N-IRGW-F Specifications SPECIFICATION DETAILS IR Wireless IR Frequency 36-38 kHz IR... - Page 6 Crestron CLS-IRHT8 Any universal remote capable of generating RC5 commands 1. The latest software versions can be obtained from the Crestron website. Refer to the NOTE following these footnotes. 2 • IR Gateway: C2N-IRGW-F Operations & Installation Guide – DOC. 6574A...
-
Page 7: Physical Description
Crestron C2N-IRGW-F IR Gateway 2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product Catalog for a complete list of 2-Series control systems. NOTE: Crestron software and any files on the website are for authorized Crestron dealers and Crestron Authorized Independent Programmers (CAIP) only. - Page 8 (1 red) Indicates IR signal reception, Cresnet network communication and setup/update. LED location shown; not visible unless lit. 11” 4-wire pigtail (24) Power White (Y) Data Blue Data Black (G) Ground 4 • IR Gateway: C2N-IRGW-F Operations & Installation Guide – DOC. 6574A...
-
Page 9: Industry Compliance
Crestron C2N-IRGW-F IR Gateway Industry Compliance As of the date of manufacture the C2N-IRGW-F has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling. NOTE: This device complies with part 15 of the FCC rules. Operation is... -
Page 10: Setup
For more details, refer to “Check Network Wiring” on page 21. Identity Code The Net ID of the C2N-IRGW-F has been factory set to 2D. The Net IDs of multiple C2N-IRGW-F devices in the same system must be unique. Net IDs are changed from a personal computer (PC) via the Crestron Toolbox™... - Page 11 Crestron C2N-IRGW-F IR Gateway C2N-IRGW-F Horizontal Reception Angle (Distance will depend on the remote/transmitter) Wall C2N-IRGW-F Vertical Reception Angle (Distance will depend on the remote/transmitter) Wall Floor IR Gateway: C2N-IRGW-F • 7 Operations & Installation Guide – DOC. 6574A...
- Page 12 5. Use the four supplied wire nuts to connect the wires (red to red, white to white, blue to blue and black to black) to the C2N-IRGW-F’s pigtail wires. 6. Press fit the C2N-IRGW-F into the hole; the mounting clips on either side of the C2N-IRGW-F hold it in place. C2N-IRGW-F Installation view...
-
Page 13: Hardware Hookup
Crestron C2N-IRGW-F IR Gateway NOTE: To ensure proper operation, the C2N-IRGW-F should not be painted. Hardware Hookup Make the necessary connection as called out in the illustrations that follow this paragraph. Refer to “Network Wiring” on page 6 before connecting the pigtail wires from the C2N-IRGW-F. Apply power after the connection has been made. - Page 14 (complete with batteries and manufacturer's manual). The control system should be running a valid SIMPL Windows program that includes the C2N-IRGW-F at the proper Net ID so that it can be polled. 1. Using Cresnet cable, connect the pigtail wires from the C2N-IRGW-F to the Crestron control system (NET port).
- Page 15 Crestron C2N-IRGW-F IR Gateway “Identify Transmitter” Window 5. Point the universal remote at the C2N-IRGW-F and program the remote with an RC5 code (some Sharp codes are acceptable as well) as outlined in the manufacturer's manual. NOTE: Crestron recommends that codes from manufacturers other than the manufacturer of the device being controlled be used to avoid IR transmission conflict.
- Page 16 (refer to “Code Verification” on page 10). If an acceptable code is transmitted during that procedure, Crestron assigns the code with an identifier in the “Identify Transmitter” window. For example, in the window shown below, the Transmitter ID (Hex): field shows the number 13.
- Page 17 Sample of Completed Mapping Table 7. Repeat this entire procedure (steps 2 through 6) for each source selection button on the universal remote that requires programming. IR Gateway: C2N-IRGW-F • 13 Operations & Installation Guide – DOC. 6574A...
-
Page 18: Programming Software
Have a question or comment about Crestron software? Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron website. To post a question or view questions you have submitted to Crestron’s True Blue Support, log in at http://support.crestron.com. -
Page 19: Programming With Crestron D3 Pro Or Systembuilder
Programming with Crestron D3 Pro or SystemBuilder Crestron D3 Pro or SystemBuilder is the easiest method of programming, but does not offer as much flexibility as SIMPL Windows. For additional details, download D3 Pro or SystemBuilder from the Crestron website and examine the extensive help files. - Page 20 Net ID as shown in the following illustration. C2Net Device, Slot 9 • Additional C2N-IRGW-F devices are assigned different Net ID numbers as they are added. • If necessary, double click a device to open the “Device Settings”...
- Page 21 • The ID code specified in the SIMPL Windows program must match the Net ID of each unit. Program Program Manager is the view where programmers “program” a Crestron Manager control system by assigning signals to symbols. The symbol can be viewed by double clicking on the icon or dragging it into Detail View.
-
Page 22: Uploading And Upgrading
(such as changing the device ID or creating an IP table) to ensure proper functioning. Establishing Communication Use Crestron Toolbox for communicating with the C2N-IRGW-F; refer to the Crestron Toolbox help file for details. There is a single method of communication: indirect communication. Indirect Communication SERIAL,... -
Page 23: Programs And Firmware
Crestron website as new features are developed after product releases. One has the option to upload programs via the programming software or to upload and upgrade via the Crestron Toolbox. For details on uploading and upgrading, refer to the SIMPL Windows help file or the Crestron Toolbox help file. -
Page 24: Problem Solving
IR Gateway Crestron C2N-IRGW-F Problem Solving Troubleshooting The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. C2N-IRGW-F Troubleshooting TROUBLE POSSIBLE CORRECTIVE CAUSE(S) ACTION Device does not Device is not Use Crestron Toolbox function. -
Page 25: Check Network Wiring
Calculate CAUTION: Use only Crestron power supplies for Crestron equipment. Power Failure to do so could cause equipment damage or void the Crestron warranty. CAUTION: Provide sufficient power to the system. Insufficient power can lead to unpredictable results or damage to the equipment. Please use the Crestron Power Calculator to help calculate how much power is needed for the system (http://www.crestron.com/calculators). -
Page 26: Reference Documents
For example, a Cresnet run using 18 AWG Crestron Certified Wire and drawing 20 watts should not have a length of run more than 333 feet. If Cresnet HP is used for the same run, its length could extend to 1250 feet. -
Page 27: Further Inquiries
Crestron website (http://www.crestron.com/) for a listing of Crestron worldwide offices. You can also log onto the online help section of the Crestron website to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. -
Page 28: Appendix: Mapping Table
SIMPL Windows program. PHYSICAL DEVICE BEING CONTROLLED: TRANSMITTER ID (HEX): BUTTON TITLE ON UNIVERSAL REMOTE BUTTON ID (DECIMAL) Sheet 24 • IR Gateway: C2N-IRGW-F Operations & Installation Guide – DOC. 6574A... -
Page 29: Return And Warranty Policies
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. - Page 30 IR Gateway Crestron C2N-IRGW-F This page is intentionally left blank. This page is intentionally left blank. 26 • IR Gateway: C2N-IRGW-F Operations & Installation Guide – DOC. 6574A...
- Page 31 Crestron C2N-IRGW-F IR Gateway This page is intentionally left blank. IR Gateway: C2N-IRGW-F • 27 Operations & Installation Guide – DOC. 6574A...
- Page 32 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6574A 15 Volvo Drive Rockleigh, NJ 07647 (2017771) Tel: 888.CRESTRON 03.07 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
