- Page 1 Crestron C2N-IRGW-1G & C2N-IRGW-F IR Gateway Operations & Installation Guide...
- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2007 Crestron Electronics, Inc.
-
Page 3: Table Of Contents
Hardware Hookup ..................... 10 Universal Remotes..................... 11 Programming Software ......................14 Earliest Version Software Requirements for the PC ..........14 Programming with Crestron D3 Pro or SystemBuilder ..........14 Programming with SIMPL Windows ................ 15 Uploading and Upgrading......................17 Establishing Communication..................17 Programs and Firmware .................... -
Page 5: Ir Gateway: C2N-Irgw-1G & C2N-Irgw-F
(not included) – C2N-IRGW-1G only • Easy one-piece mounting (no additional hardware required) – C2N-IRGW-F only Specifications Specifications for the C2N-IRGW-1G and C2N-IRGW-F are listed in the following table. C2N-IRGW-1G & C2N-IRGW-F Specifications SPECIFICATION DETAILS IR Wireless IR Frequency... - Page 6 Any universal remote capable of generating RC5 commands 1. The latest software versions can be obtained from the Crestron website. Refer to the NOTE following these footnotes. 2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product Catalog for a complete list of 2-Series control systems.
-
Page 7: Physical Description

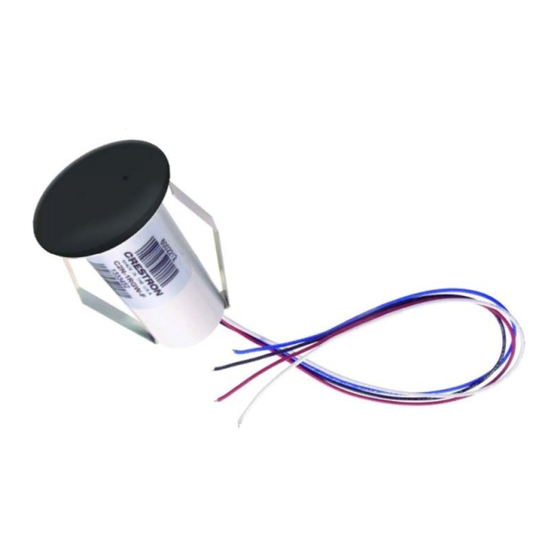

Physical Description This section provides information on the connections, controls, and indicators available on your C2N-IRGW-1G and C2N-IRGW-F. C2N-IRGW-1G Physical View (Faceplate not included) C2N-IRGW-F Physical View IR Gateway: C2N-IRGW-1G & C2N-IRGW-F • 3 Operations & Installation Guide – DOC. 6468A... - Page 8 (4.45 cm) 1.12 in (2.83 cm) C2N-IRGW-F Overall Dimensions 1.59 in (4.03 cm) 2.19 in (5.54 cm) 1.50 in (3.81 cm) 11" 4-wire pigtail (to Cresnet) 4 • IR Gateway: C2N-IRGW-1G & C2N-IRGW-F Operations & Installation Guide – DOC. 6468A...
-
Page 9: Industry Compliance
Black (G) Ground Industry Compliance As of the date of manufacture, the C2N-IRGW-1G and C2N-IRGW-F have been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling. NOTE: This device complies with part 15 of the FCC rules. Operation is subject to... -
Page 10: Setup
For more details, refer to “Check Network Wiring” on page 19. Identity Code The Net ID of the C2N-IRGW-1G and C2N-IRGW-F has been factory set to 2D. The Net IDs of multiple C2N-IRGW-1G and C2N-IRGW-F devices in the same system must be unique. Net IDs are changed from a personal computer (PC) via the Crestron Toolbox™. - Page 11 C2N-IRGW-1G & C2N-IRGW-F Horizontal Reception Angle (Distance will depend on the remote/transmitter) Wall C2N-IRGW-1G & C2N-IRGW-F Vertical Reception Angle (Distance will depend on the remote/transmitter) Wall Floor IR Gateway: C2N-IRGW-1G & C2N-IRGW-F • 7 Operations & Installation Guide – DOC. 6468A...
- Page 12 Standard single-gang electrical box (not supplied) After the Cresnet network wiring has been installed and verified, use the following procedure to install the C2N-IRGW-1G in a standard, single-gang electrical box (refer to illustration that follows this paragraph): 1. Turn Cresnet system power OFF.
- Page 13 Crestron C2N-IRGW-1G & C2N-IRGW-F IR Gateway 3. Attach the C2N-IRGW-1G to the electrical box using the supplied two ¾ in. combo head screws. 4. Attach faceplate. 5. Turn Cresnet system power ON. NOTE: To ensure proper operation, the C2N-IRGW-1G should not be painted.
-
Page 14: Hardware Hookup
Make the necessary connection as called out in the illustrations that follow this paragraph. Refer to “Network Wiring” on page 6 before attaching the 4-position terminal block connector from the C2N-IRGW-1G or connecting the pigtail wires from the C2N-IRGW-F. Apply power after the connection has been made. -
Page 15: Universal Remotes
(complete with batteries and manufacturer's manual). The control system should be running a valid SIMPL Windows program that includes the C2N-IRGW-1G or C2N-IRGW-F at the proper Net ID so that it can be polled. 1. Using Cresnet cable, attach the 4-position terminal block connector from the C2N-IRGW-1G or connect the pigtail wires from the C2N-IRGW-F to the Crestron control system (NET port). - Page 16 (refer to “Code Verification” on page 11). If an acceptable code is transmitted during that procedure, Crestron assigns the code with an identifier in the “Identify Transmitter” window. For example, in the window shown on the next page, the Transmitter ID (Hex): field shows the number 13.
- Page 17 Sample of Completed Mapping Table 7. Repeat this entire procedure (steps 2 through 6) for each source selection button on the universal remote that requires programming. IR Gateway: C2N-IRGW-1G & C2N-IRGW-F • 13 Operations & Installation Guide – DOC. 6468A...
-
Page 18: Programming Software
Have a question or comment about Crestron software? Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron website. To post a question or view questions you have submitted to Crestron’s True Blue Support, log in at http://support.crestron.com. -
Page 19: Programming With Simpl Windows
Crestron C2N-IRGW-1G & C2N-IRGW-F IR Gateway Programming with SIMPL Windows NOTE: While SIMPL Windows can be used to program the C2N-IRGW-1G and C2N-IRGW-F, it is recommended to use Crestron D3 Pro or SystemBuilder for configuring a system. SIMPL Windows is Crestron’s premier software for programming Crestron control systems. - Page 20 ID of each unit. Program Manager Program Manager is the view where programmers “program” a Crestron control system by assigning signals to symbols. The symbol can be viewed by double clicking on the icon or dragging it into Detail View. A description for each signal in the symbol is described in the SIMPL Windows help file (F1).
-
Page 21: Uploading And Upgrading
IP table) to ensure proper functioning. Establishing Communication Use Crestron Toolbox for communicating with the C2N-IRGW-1G and C2N-IRGW-F; refer to the Crestron Toolbox help file for details. There is a single method of communication: indirect serial communication. Indirect Serial Communication... -
Page 22: Program Checks
Display the network device tree (Tools | Network Device Tree) to show all network devices connected to the control system. Right-click on the C2N-IRGW-1G or C2N-IRGW-F to display actions that can be performed on the C2N-IRGW-1G or C2N-IRGW-F. 18 • IR Gateway: C2N-IRGW-1G & C2N-IRGW-F... -
Page 23: Problem Solving
Cresnet power usage of each network unit to be connected must be taken into consideration. Use Crestron Certified Wire only. If Cresnet units are to be daisy- chained on the run, the Cresnet power usage of each network unit to be daisy- IR Gateway: C2N-IRGW-1G &... -
Page 24: Reference Documents
Cresnet power usage of the entire chain. If the unit is a home-run from a Crestron system power supply network port, the Cresnet power usage of that unit is the Cresnet power usage of the entire run. -
Page 25: Future Updates
Crestron C2N-IRGW-1G & C2N-IRGW-F IR Gateway Future Updates As Crestron improves functions, adds new features and extends the capabilities of the C2N-IRGW-1G and C2N-IRGW-F, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision. -
Page 26: Appendix: Mapping Table
SIMPL Windows program. PHYSICAL DEVICE BEING CONTROLLED: TRANSMITTER ID (HEX): BUTTON TITLE ON UNIVERSAL REMOTE BUTTON ID (DECIMAL) Sheet 22 • IR Gateway: C2N-IRGW-1G & C2N-IRGW-F Operations & Installation Guide – DOC. 6468A... -
Page 27: Return And Warranty Policies
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, modification, or improper installation procedures. - Page 28 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6468A 15 Volvo Drive Rockleigh, NJ 07647 (2014708) Tel: 888.CRESTRON 02.07 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
