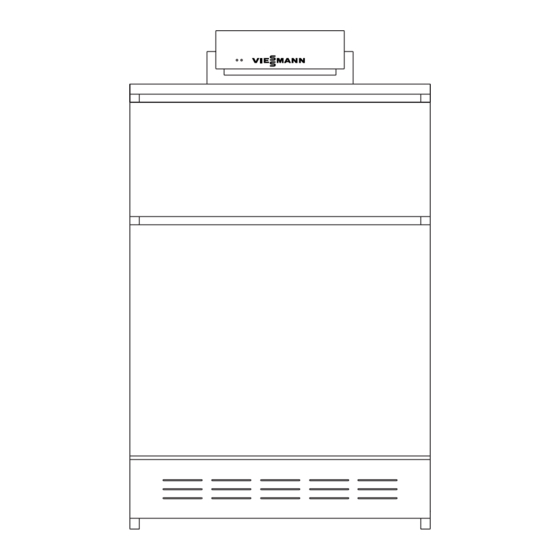

Installation / Service Manual
for Vitogas 050, RS Series
Gas-fired, atmospheric cast iron boiler
550 to 1050 MBH / 161 to 308 kW
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
These instructions cover the installation, operation and
servicing of the Viessmann Vitogas 50, RS series of cast-iron
sectional atmospheric gas-fired hot water boilers. These
instructions must be read thoroughly prior to installation.
These instructions must be saved and made available to
service technicians when required. Install boiler according to
these instructions.
The installation of this unit shall be in accordance with local
codes or, in the absence of local codes, use CSA-B149.1 or .2
Installation Codes for Gas Burning Appliances for Canada. For
U.S. installations use ANSI Z223.1. Always use latest editions
of codes.
Where required by the authority having jurisdiction, the
installation must conform to the Standard for Controls and
Safety Devices for Automatically Fired Boilers, ANSI/ASME
CSD-1.
These instructions must be placed in an envelope and affixed
to the boiler.
5167 456 v1.2 03/2007
Contents:
Technical Data ..........................................................................3
Boiler Features .........................................................................4
Installation.................................................................................4
Gas Connections ......................................................................7
Water Connections ...................................................................8
Vent Connections ...................................................................10
Accessories ............................................................................10
Start-up and Operating Instructions ........................................11
Maintenance ...........................................................................13
Troubleshooting ......................................................................17
Piping Layouts ........................................................................18
Wiring Diagrams .....................................................................22
Installation Checklist ...............................................................24
Replacement Parts List...........................................................25
Assembly of cast-iron block using draw tool ...........................30
®
Viessmann Manufacturing Company Inc.
750 McMurray Road
•
Waterloo, Ontario
N2V 2G5
•
Tel. (519) 885-6300
Fax (519) 885-0887
•
www.viessmann.ca
mail@viessmann.ca
Viessmann Manufacturing Company (U.S.) Inc.
45 Access Road
•
•
Warwick, RI
02886
U.S.A.
Tel.: (401) 732-0667 Fax: (401) 732-0590
•
www.viessmann-us.com
mail@viessmann-us.com
Page:
•
Canada
Advertisement
Table of Contents
Related Manuals for Viessmann Vitogas 050 Rs Series
Summary of Contents for Viessmann Vitogas 050 Rs Series
-
Page 1: Table Of Contents
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE Contents: Page: These instructions cover the installation, operation and servicing of the Viessmann Vitogas 50, RS series of cast-iron Technical Data ................3 sectional atmospheric gas-fired hot water boilers. These Boiler Features .................4 instructions must be read thoroughly prior to installation. - Page 2 This “Attention” symbol is located beside all Warning: important safety recommendations. Please follow the instructions in detail to avoid property damage, Before each heating season begins, have the following severe personal injury, or loss of life. service and maintenance done by a professional service technician: Boiler heat exchanger inspected and cleaned.
-
