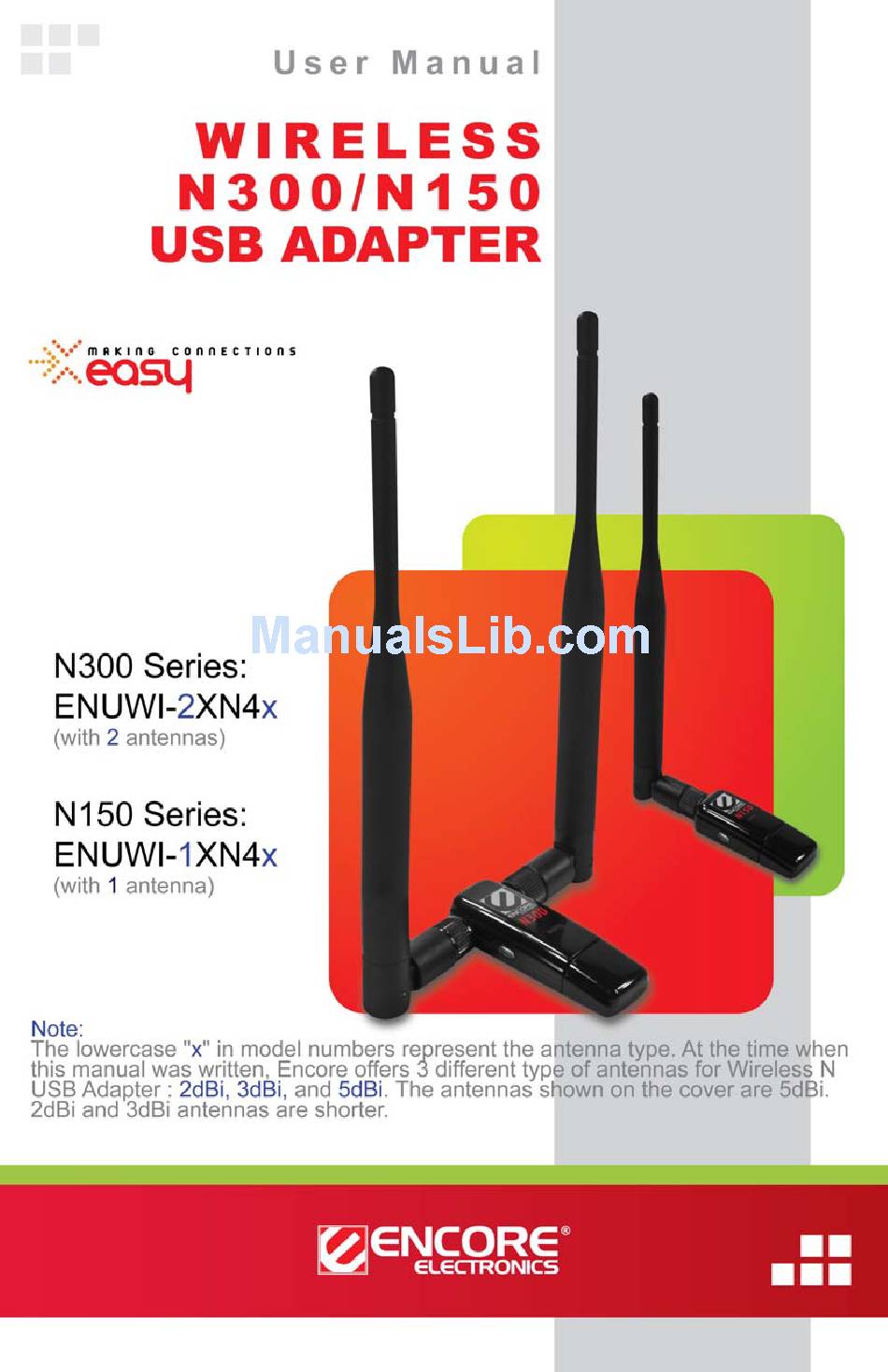

© 2010 Encore Electronics, Inc. All rights reserved.COVER
© 2011 Encore Electronics, Inc.
Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
All trademarks and brand names are the properties of their respective holders.

Advertisement

Table of Contents
loading

Related Manuals for Encore ENUWI-2XN4x

Summary of Contents for Encore ENUWI-2XN4x

  • Page 1 © 2010 Encore Electronics, Inc. All rights reserved.COVER © 2011 Encore Electronics, Inc. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. All trademarks and brand names are the properties of their respective holders.

  • Page 2: Table Of Contents

    ABLE OF ONTENTS CHAPTER 1: OVERVIEW ..............3 ............3 RODUCT VERVIEW LED I ..............4 NDICATOR ............4 ACKAGE ONTENTS ............. 4 YSTEM EQUIREMENTS CHAPTER 2: INSTALLATION..............5 ........... 5 ARDWARE NSTALLATION ............ 6 OFTWARE NSTALLATION ® ® 2.2.1 Windows 7 and Windows Vista ........
  • Page 3 Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. All trademarks and brand names are the properties of their respective holders. © 2011 Encore Electronics, Inc. All rights reserved. www.encore-usa.com...

  • Page 4: Chapter 1: Overview

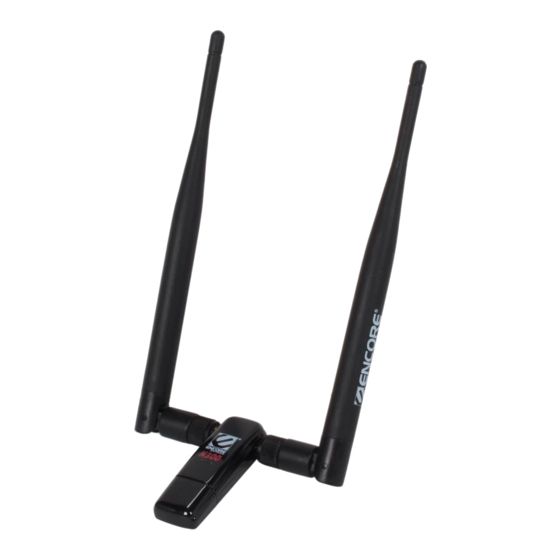

    Chapter 1: Overview Thank you for choosing Encore Electronics’ Wireless N300/N150 USB Adapter. With just a few steps, you will be enjoying the convenience of wireless networking at the speed that is much faster than the prior Wireless G technology. Place the laptop or desktop computer at any place you want to avoid the hassle and unsightly view of wires.

  • Page 5: Led Indicator

    LED Indicator The Activity LED will be blinking when:  The adapter is scanning for available wireless networks.  The adapter is transferring and/or receiving data. Package Contents N300 Series (ENUWI-2XN4x)  Wireless N300 USB Adapter x 1  External Detachable Antennas* ...

  • Page 6: Installation

    Chapter 2: Installation Hardware Installation Attach the antenna(s) to the wireless adapter. No need to shutdown your computer. Insert the Wireless N300/150 USB Adapter to an available USB port on your computer. www.encore-usa.com...

  • Page 7: Software Installation

    Software Installation ® ® 2.2.1 Windows 7 and Windows Vista ® ® The installation procedures are similar between Windows 7 and Windows Vista 1. Click “Cancel,” if you see the ‘Found New Hardware Wizard’ window. B. Insert the ‘Installation CD” that comes with the package to the CD-ROM drive. Depending on your computer’s configuration, one of the following 3 scenarios will happen (B-1 to B-3).
  • Page 8 If neither the ‘Encore Welcome  Screen’ nor the ‘AutoPlay’ window appears, type “D:\autorun.exe” in the “Run” command window in the Start menu (‘D’ is the drive letter of your CD-ROM drive). If the “Run” command window is not in ...
  • Page 9 Click “Install this driver software  anyway,” if you see ‘Windows can’t verify the publisher of this driver software’ in the ‘Windows Security’ window. Click “Next” to continue,  when you see the ‘ENCORE Wireless LAN Driver – USB Adapter’ window. 1.

  • Page 10: Windows ® Xp

    ® 2.2.2 Windows Click “Cancel,” if you see the ‘Found New Hardware Wizard’ window when you start Windows for the first time after installing the hardware. B. Insert the ‘Installation CD” that comes with the package to the CD-ROM drive. Depending on your computer’s configuration, one of the following 2 scenarios will happen (B-1 or B-2).
  • Page 11 Click “Software & Driver Installation  ” in the ‘Quick Setup’ window. Click “Yes” to continue,  if you see ‘A program needs your permission to continue’ in the ‘User Account Control’ window. Click ”Next” to continue,  when you see the ‘ENCORE Wireless Manager’...
  • Page 12 Click “Continue Anyway,”  if you see this warning message in the ‘Hardware Installation’ window. 1. Save any opened file in other program. 2. Check “Yes, I want to restart my computer now.” 3. Click “Finish” to restart the computer, when you see ‘InstallShield Wizard Complete’...

  • Page 13: Removing The Enuwi-2Xn4

    The saved network profiles will be erased after the upgrade. Download the upgrade from ENUWI-2XN4x or ENUWI-1XN4x’s SUPPORT page on Encore Electronics’ website. Remove the ENUWI-2XN4x or ENUWI-1XN4x software from your computer.

  • Page 14: Connecting To Wireless Networks In Windows 7

    ® Chapter 3: Connecting to Wireless Networks in Windows 7 After installation, please use the Windows Wireless Manager to connect to wireless networks by following the steps below. Left-click on the “Windows Wireless  .” Manager Tray Icon If you do not see the icon, click the ...
  • Page 15 1. Enter the “Security Key” (also called password, passphrase or pre-shared key); 2. Click “OK.” Once connected successfully, you will see the following two updates: 1. When Left-click on ‘Windows Wireless Manager Tray Icon,’ you will see ‘Connected’ next to the wireless network of your choice.

  • Page 16: Connecting To Wireless Networks In Windows Vista

    Chapter 4: Connecting to Wireless Networks in Windows ® Vista After installation, please use the Windows Wireless Manager to connect to wireless networks by following the steps below. Left-click on ‘Windows Wireless  .’ Manager Tray Icon Click “Connect to a network.” ...
  • Page 17 The “Save this network” and “Start this connection automatically” checkboxes are checked by default; Click “Close.” Note: If “Start this connection automatically” is checked, your computer will automatically connect to the same wireless network when you are at the same location next time.

  • Page 18: Connecting To Wireless Networks In Windows Xp

    The wireless USB adapter is connected to a wireless network with excellent connection quality. The wireless USB adapter is not connected to a wireless network. The ENUWI-2XN4x/1XN4x hardware is installed. The ENUWI-2XN4x/1XN4x hardware is removed. Next page provides step-by-step guide to connecting to wireless networks with your wireless adapter.
  • Page 19 Please follow the steps below to connect to wireless networks. Right-click on the ‘Encore Wireless Manager Tray Icon’ at the lower right corner of the screen; 2. Click “Set Wizard.” 1. Check “Wireless Local Area Networks (Infrastructure);” 2. Click “Next.” 1.
  • Page 20 1. “Obtain an IP address automatically” and “Obtain DNS server address automatically” are checked by default in the ‘Setup TCP/IP’ window. Note: For most users, no need to change these two options. 2. Click “Finish.” F. Two ways to know the connection is successful: F-1 Encore Wireless Manager Tray Icon F-1 The ‘Encore Wireless Manager Tray Icon’...

  • Page 21: Chapter 6: Technical Support

    Chapter 6: Technical Support If you have other questions, please visit the SUPPORT section on our website at www.Encore-USA.com first. You can submit your support request directly on our website. You can also reach us through one of the support hotlines or emails listed on the back of this user manual.

  • Page 22: Appendix A. Wireless Security Overview

    Appendix A. Wireless security Overview WEP, WPA and WPA2 comparison WEP, WPA-PSK and WPA2-PSK are standard wireless security options. When using any one of them, each device in the wireless network MUST use the SAME wireless security option and network security key (also called password, passphrase or pre-shared key).

  • Page 23: Enabling 802.1X In Windows

    ® Enabling 802.1X in Windows 802.1X authentication can help enhancing security for 802.11 wireless networks and wired Ethernet networks with user account verification. A digital certificate or a smart card is normally required to complete the authentication. 801.1X authentication is typically used for workplace connections and requires IT professionals to setup the system properly.

  • Page 24: Appendix B. Using Encore Wireless Manager In Windows

    ® Appendix B. Using Encore Wireless Manager in Windows XP The Encore Wireless Manager is the default wireless manager in Windows XP. While the Encore Wireless Wizard helps you connecting to wireless networks quickly, the Encore Wireless Manager offers you more control over your wireless networks. Starting Encore Wireless Manager You can open Encore Wireless Manager in three ways: 1.

  • Page 25: B2. Encore Wireless Manager Overview

    Encore Wireless Manager Overview Top Toolbar starts the Encore Wireless Wizard. Set Wizard: shows the software version. About: Tabs shows the connection status information. General: shows the previously saved wireless networks. Profile: shows the list of available wireless networks at your current Available Network: location.
  • Page 26 It is recommended using one wireless adapter as the same time. If you Disable Adapter: want to use another wireless adapter, such as a USB wireless adapter, you can easily disable the ENUWI-2XN4x or ENUWI-1XN4x by checking this checkbox. If checked, the ENUWI-2XN4x or ENUWI-1XN4x cannot connect to Radio Off: any wireless network.

  • Page 27: B3. Manual Connection

    Manual Connection 1. Go to the “Available Network” tab; 2. Select the “SSID” (wireless network name) of your choice; 3. Click “Add to Profile;” 4. If the selected network has wireless security enabled, Encore Wireless Manager will automatically detect the wireless security option.

  • Page 28: B4. Easy Connection With Wps

    Easy Connection with WPS Wi-Fi Protected Setup (WPS) allows your computer to connect to a wireless router or access point without a network security key (also called password, passphrase or pre-shared key). Please check the user manual of your router or access point to see if it supports WPS.

  • Page 29: B4.1. Wps - Pbc (Push Button Configuration)

    B4.1. WPS — PBC (Push Button Configuration) Push Button Configuration (PBC) allows your computer to connect to a wireless network by the click of a button. You do not need to memorize your router or access point’s wireless security password. Please check the user manual of your router or access point to see if it supports WPS - PBC.

  • Page 30: B4.2. Wps - Pin (Personal Information Number)

    B4.2. WPS — PIN (Personal Information Number) Personal Information Number (PIN) allows your computer to connect to a wireless network by entering your router or access point’s PIN code to the adapter or vice versa. Unlike wireless network security passwords, you do not need to memorize the PIN code. Please check the user manual of your router or access point to see if it supports WPS - PIN.
  • Page 31 Choose the network name (SSID) of the router or access point you want to connect. Click “Select.” Once connected, the tab will  automatically switch to the “General” tab. The ‘Signal Strength’ and ‘Link Quality’ bars will become active and green.
  • Page 32 [ Option 2: Entering the Adapter’s PIN Code to the Router or Access Point ] Note: To enter your adapter’s PIN code to your router or access point, you need to know your router or access point’s IP address. In addition, you need to have one of the following: A computer directly connects to the router or access point through wired ...

  • Page 33: B5. Using 802.1X

    Using 802.1X 802.1X is for advanced users who are familiar with using a RADIUS server and setting up digital certificates. Workplace networks often use 802.1X to tighten the network control. When connecting to a wireless network using WEP/WPA/WPA2 802.1X security, you need to provide two types of information in the ‘Wireless Network Properties’...

  • Page 34: Appendix C. Connecting To Wireless Networks With

    Appendix C. Connecting to Wireless Networks with Wireless ® Zero Connection in Windows XP Alternatively, you can use Windows Wireless Manager (also called Wireless Zero Connection or WZC) to connect to wireless networks in Windows XP by following the steps below.
  • Page 35 Enter and confirm the “Network key” (also called password, passphrase or pre-shared key); Click “Connect.” If no wireless security is turned on, an alternative window with the warning message Note: ‘Information sent over this network might be visible to others.’ will appear. Select “Connect Anyway”...

  • Page 36: Appendix D. Regulatory Information

    Appendix D. Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 37: Europe - Eu Declaration Of Conformity

    Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN 60 950-1: 2001 +A11: 2004 Safety of Information Technology Equipment EN 50385: 2002...
  • Page 38 Hereby, Encore Electronics Inc, declares that this ENHWI-G2 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. English Por medio de la presente Encore Electronics Inc declara que el ENHWI-G2 cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Español [Spanish] Directiva 1999/5/CE.

  • Page 39: Appendix E. Software End User License Agreement

    A special license permit from Encore Electronics, Inc. is required if the program is going to be installed on a network server for the sole purpose of distribution to other computers.

  • Page 40: Www.encore-Usa.com

    THE ENTIRE LIABILITY OF ENCORE ELECTRONICS, INC. ARE SET FORTH ABOVE. 6. No Liability for Consequential Damages. YOU AGREE THAT IN NO EVENT SHALL ENCORE ELECTRONICS, INC. OR ITS AGENTS BE LIABLE FOR ANY LOSS OF ANTICIPATED PROFITS, LOSS OF DATA, LOSS OF USE, BUSINESS INTERRUPTION,...

  • Page 41: Appendix F. User's Notice

    (collectively, "High Risk Activities"). Encore Electronics, Inc. EXPRESSLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR HIGH RISK ACTIVITIES. 11. Governing Law and Jurisdiction. This Agreement will be governed by and construed under the laws of the State of California. and the United States as applied to agreements entered into and to be performed entirely within California., without regard to conflicts of laws provisions...
  • Page 42 www.encore-usa.com...
