Summary of Contents for Encore ENUWI-22N4

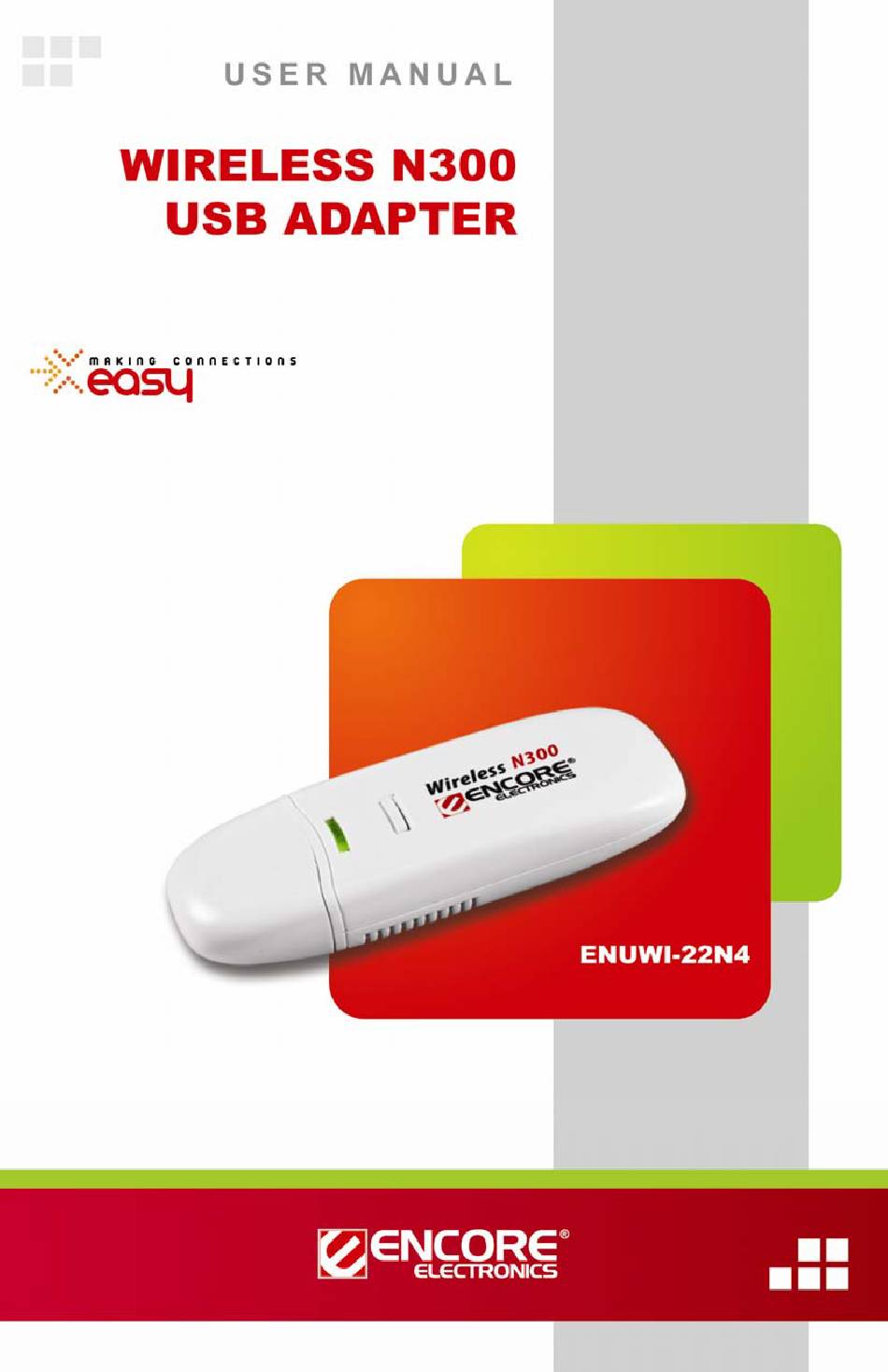

- Page 1 © 2010 Encore Electronics, Inc. All rights reserved.COVER © 2010 Encore Electronics, Inc. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. All trademarks and brand names are the properties of their respective holders.
-
Page 2: Table Of Contents
Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. All trademarks and brand names are the properties of their respective holders. © 2010 Encore Electronics, Inc. All rights reserved. www.encore-usa.com... - Page 3 This equipment should be installed and operated with a minimum distance of about eight inches (20cm) between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. www.encore-usa.com...
-
Page 4: Revision History
OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Revision History Revision History V1.0 1st release All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. www.encore-usa.com... -
Page 5: Introduction
300Mbps data transfer rates in 11n mode. You can sharing photos, files, music, video, printers, and storage once connected with ENUWI-22N4 adapter, and get the best Internet experience with faster wireless connection and enjoy smooth digital phone calls, gaming, downloading, and video streaming. -
Page 6: Led Indicator
The following installation was operated under Windows 7. (Procedures will be same for Windows Vista, XP and 2000 Operation System) Step1: Insert the ENUWI-22N4 Wireless USB adapter into the USB slot of your computer. The system will automatically find the device and search for its driver. For Windows 7 ... - Page 7 For Windows Vista/XP/2000 Please click Cancel to continue. Step2: Insert ENUWI-22N4 setup CD into CD-ROM drive then windows below will appear. Click Utility Software and Driver to begin device driver installation. www.encore-usa.com...
- Page 8 Step3: Select the language for this installation from the choices below and click Next to continue. Step4: The InstallShield Wizard will install Wireless LAN Driver and Utility on your computer. For next step, click Next to continue. www.encore-usa.com...
- Page 9 Step5: Click Install begins the installation. Step6: Please wait for a while for installing process. www.encore-usa.com...
- Page 10 And then, click Finish to compete the setup. Step8: When Utility setup is completed, a shortcut of Wireless LAN Utility will appear in the computer’s desktop. Double click the shortcut and start using the WLAN USB adapter. www.encore-usa.com...
- Page 11 To check if Wireless PCI card is properly installed, you can right-click Computer choose Properties click Device Manager. www.encore-usa.com...
- Page 12 [Configuring Wireless Network] Step 1: Open the ENCORE 11n USB Wireless LAN Utility and go to “Available Network” tab, double-click one wireless router (SSID) which you want to connect or click “Add to Profile” button to continue. Step 2: The “Wireless network properties” will be displayed, enter the network key if it is necessary.
- Page 13 Step 3: In the “Profile” tab, you can see the available network is listed. Step 4: You can surf internet now. www.encore-usa.com...
-
Page 14: Wireless Lan Utility
3. Wireless LAN Utility The Wireless LAN Utility is an application that helps you to configure the ENUWI-22N4 wireless N300 USB adapter, monitor the link status and statistics during the communication process. 3.1 General In the “General”, you can immediately monitor the link status. -
Page 15: Profile
Also you can duplicate the AP or set the currently AP as default. 3.3 Available Network The “Available Network” shows all Access Points, Routers or Adapters nearby when operating in Ad-Hoc mode. Click “Refresh” button to collect the SSID and Channel information of all the wireless devices nearby. www.encore-usa.com... - Page 16 WPA2-PSK (for WPA2 Personal): This option will be present only if the wireless network adapter and its driver support WPA2. WPA 802.1X: 802.1x authentication is required in WPA. In the 802.11 standard, 802.1x authentication was optional. www.encore-usa.com...
- Page 17 Enabled the WEP Data Encryption. When the item is selected, you have to continue setting the WEP Key Length & the key Index. TKIP: Enable the TKIP Data Encryption. When the item is selected, you have to continue setting the Network Key & Confirm network key. www.encore-usa.com...
- Page 18 128-bit: Input any 13 ASCII characters or 26 digit Hex values (in the “A-F”, “a-f”, and “0-9” range) as the encryption keys. For example: “01234567890123456789abcdef” Confirm Network Key: Re-type again the Network key in this text box. Key Index (Advanced): The maximum of key index is 4. www.encore-usa.com...
-
Page 19: Status
3.4 Status In the “Status”, you can see currently link status of ENUWI-22N4 wireless USB adapter. 3.5 Statistics In the “Statistics”, you can get the real time information about the packet transmission and receiving status. www.encore-usa.com... -
Page 20: Wi-Fi Protect Setup
Start to add to Registrar using PIN configuration method. Please remember that enter PIN Code read from you Enrollee before starting PIN If STA Registrar. Push Button Config (PBC ): Start to add to AP using PBC configuration method. www.encore-usa.com... -
Page 21: Soft-Ap Function
To have the ENUWI-22N4 wireless N300 USB adapter to bridge your wired and wireless network, the following requirements must be met： 1. The ENUWI-22N4 USB Adapter must be installed on a computer connected to the wired network. 2. Either configure network sharing or bridge the two interfaces (wireless and wired) on the computer. -
Page 22: Switch To Ap Mode
4.1 Switch to AP Mode Select “Access Point” from Mode(M) tab to make the ENUWI-22N4 wireless N300 USB adapter act as a wireless AP. After you select “Access Point”, the ENUWI-22N4 USB adapter availab options will change. You will see the basic configuration menu of the AP function:... -
Page 23: General
It shows the current SSID setting of the Wireless USB adapter. BSSID: It shows the current BSSID’s MAC address. AID: Raise value by current connection. MAC Address: The station MAC address of current connection Life Time: The status of current connection. www.encore-usa.com... -
Page 24: Advanced
Mode: This function will show up when Ad-hoc network type be selected. A preamble is a signal used in wireless environment to synchronize the transmitting timing including Synchronization and Start frame delimiter. Select from the pull-down menu to change the Preamble type into Long or Short. www.encore-usa.com... -
Page 25: Statistics
4.4 Statistics If you want to know detailed information about how your software access point works, you can view the Statistics tab. You can click “Reset” button to reset all counters to zero. www.encore-usa.com... -
Page 26: Ics
(ICS) function allows wireless clients to share a single internet con nection. In the setup, The ENUWI-22N4 USB adapter automatically assigns a virtual IP address to each of the wireless clients. (Please make sure your local network connection is connecting.) - Page 27 * Local tech-support numbers are provided in selectively countries. Service may change without prior notice. Please visit www.encore-usa.com for more details. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
