Viper 790XV Installation Manual

Hide thumbs Also See for 790XV:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

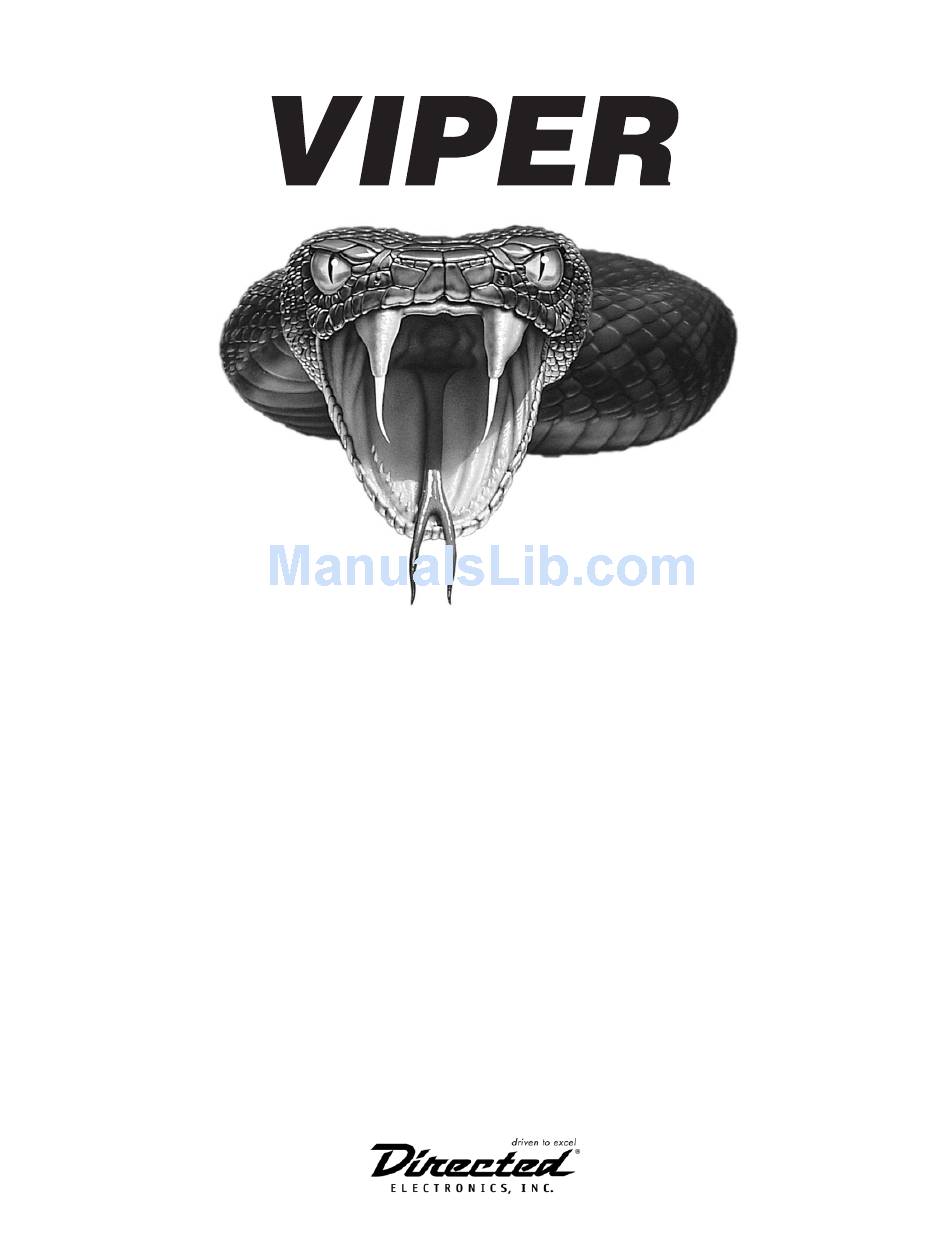

790XV
Installation Guide
NOTE:
This product is intended for installation by a professional installer only!
Any attempt to install this product by any person other than a trained professional
may result in severe damage to a vehicle's electrical system and components.
© 2002 Directed Electronics, Inc. Vista, CA
N554V 11-02
®

Advertisement

Table of Contents
loading

Related Manuals for Viper 790XV

Summary of Contents for Viper 790XV

  • Page 1 ® 790XV Installation Guide NOTE: This product is intended for installation by a professional installer only! Any attempt to install this product by any person other than a trained professional may result in severe damage to a vehicle’s electrical system and components.
  • Page 2 The Bitwriter (p/n 998T) ® requires chip version 1.4 or newer to program this unit. w w w w w w . . d d i i r r e e c c t t e e c c h h s s . . c c o o m m D D i i r r e e c c t t F F a a x x 8 8 0 0 0 0 - - 9 9 9 9 9 9 - - 1 1 3 3 2 2 9 9 T T e e c c h h n n i i c c a a l l S S u u p p p p o o r r t t 8 8 0 0 0 0 - - 7 7 5 5 3 3 - - 0 0 8 8 0 0 0 0 These resources are for authorized Directed Dealer use only.

  • Page 3: Table Of Contents

    Table of Contents Super Bright LED, 2-Pin WHITE Plug ..19 Valet/Program Switch, 2-Pin BLUE Plug 20 Programmer Interface, 3-Pin Port ..20 W W a a r r n n i i n n g g ! ! S S a a f f e e t t y y F F i i r r s s t t ..............4 4 Shock Sensor Harness, 4-Pin Connector..20 I I n n s s t t a a l l l l a a t t i i o o n n P P o o i i n n t t s s t t o o R R e e m m e e m m b b e e r r .
  • Page 4 Warning! Safety First Due to the complexity of this system, installation of this product must only be performed by an authorized Directed dealer. When properly installed, this system can start the vehicle via a command signal from the trans- mitter/receiver. Therefore, never operate the system in an area that does not have adequate ventilation.

  • Page 5: Before Beginning The Installation

    Installation Points to Remember Before Beginning the Installation IMPORTANT! This product is designed for fuel-injected, automatic transmission vehicles only. Installing it in a standard transmission vehicle is dangerous and is contrary to its intended use. Please read this entire installation guide before beginning the installation. The installation of this remote start system requires interfacing with many of the vehicle’s systems.

  • Page 6: Finding The Wait-To-Start Bulb Wire For Diesels

    3. Start and run the vehicle. 4. Probe the wire you suspect of being the tachometer wire with the red probe of the meter. 5. If this is the correct wire the meter will read between 1V and 6V. Increase the R.P.M., and the voltage should increase approximately 1V.

  • Page 7: Primary Harness (H1) Wiring Diagram

    Primary Harness (H1) Wire Connection Guide Primary Harness (H1) Wiring Diagram ORANGE (-) 500 mA Armed Output H1/1 WHITE (+)/(-) Selectable Light Flash Output H1/2 WHITE/BLUE (-) Remote Start Activation Input H1/3 BLACK/WHITE (-) 200 mA Domelight Supervision Output H1/4 GREEN (-) Door Trigger Input, Zone 3 H1/5...
  • Page 8 H1/2 WHITE (+/-) Selectable Light Flash Output As shipped, this wire should be connected to the (+) parking light wire. If the light flash polarity jumper is moved to the (-) position (see the Programming Jumper section of this guide), this wire supplies a (-) 200 mA output.
  • Page 9 H1/3 WHITE/BLUE Activation Input A momentary input on this wire will start or stop the motor, just as transmitting Channel 3 from the transmitter/receiver does. It is often connected to an optional momentary push-button switch to make activating Valet Take Over more convenient. H1/4 BLACK/WHITE (-) 200 mA Domelight Supervision Output Connect this wire to the optional domelight supervision relay as shown in the following diagram: IMPORTANT! This output is only intended to drive a relay.
  • Page 10 H1/6 BLUE (-) Multiplexed Trigger Input, Zone 1 and Trunk Icon This input will respond to a negative input with a WarnAway or instant trigger. It is ideal for hood ® and trunk pins and will report on Zone 1. It can also be used with Directed dual-stage sensors. The H1/6 BLUE WarnAway or instant trigger wire can also be used to shunt sensors during operation of ®...
  • Page 11 H1/10 BROWN (+) Siren Output Connect this to the red wire of the siren. Connect the black wire of the siren to (-) chassis ground, preferably at the same point you connected the control module’s black ground wire. H1/11 RED (+)12V Constant Power Input Before connecting this wire, remove the supplied fuse.

  • Page 12: Secondary Harness (H2) Wiring Diagram

    Secondary Harness (H2), Wire Connection Guide Secondary Harness (H2) Wiring Diagram H2/1 GRAY/BLACK (-) Wait-to-Start Input H2/2 LIGHT GREEN/BLACK (-) Factory Disarm/Special Accessory Output VIOLET/BLACK (-) Selectable Channel 4 Output H2/3 Secondary Harness Wire Descriptions H2/1 GRAY/BLACK (-) Diesel Wait-to-Start Bulb Input Connect this wire to the wire in the vehicle that sends the signal to turn on the WAIT-TO-START bulb in the dashboard.
  • Page 13 H2/2 LIGHT GREEN/BLACK (-) Factory Disarm Output This wire sends a negative pulse every time the remote start is activated or the alarm is disarmed. This can be used to pulse the disarm wire of the vehicle's factory anti-theft device. Use a relay to send a (-) or (+) pulse to the disarm wire as shown in the diagrams below.

  • Page 14: Heavy Gauge Relay Satellite Wiring Diagram

    IMPORTANT! Never use this wire to drive anything but a relay or a low-current input! This transistorized output can only supply 200 mA, and connecting directly to a solenoid, motor, or other high-current device will cause the module to fail. Relay Satellite Ignition Switch Interface Wire Connection Guide Heavy Gauge Relay Satellite Wiring Diagram...

  • Page 15: Remote Start Ribbon Harness Wiring Diagram

    ORANGE (+) Accessory Output Connect this wire to the accessory wire in the vehicle that powers the climate control system. PURPLE (+) Starter Output Connect this wire to the starter wire in the vehicle. NOTE: If failsafe starter kill is installed, be sure the PURPLE wire is connected to the car side of the failsafe starter kill relay.

  • Page 16: Remote Start Harness Wire Descriptions

    Remote Start Harness Wire Descriptions H3/1 BLUE Status Output This wire supplies a 200mA output as soon as the module begins the remote start process and is normally used to activate an immobilizer bypass module. The H3/1 BLUE wire can also be programmed to rearm a factory anti-theft system when the remote start shuts down.
  • Page 17 H3/3 GRAY (-) Hood Pinswitch Input, Zone 6 and Hood Icon This wire MUST be connected to hood pinswitch. This input will disable or shut down the remote start when the hood is opened. It will also trigger the security system if the hood is opened while the system is armed and report Zone 6.

  • Page 18: Testing The Neutral Safety Switch

    IMPORTANT! Always perform the Vehicle Safety Check section of this guide to verify that the vehicle cannot be started in ANY drive gear and that the override switch is functioning properly. Neutral Safety Switch Interface Some vehicles combine the column shift mechanism and the mechanical neutral safety switch into one mechanical part.

  • Page 19: Super Bright Led, 2-Pin White Plug

    Door Lock Harness (H4), Wire Connection Guide Green (-) Lock, (+) Unlock Output H2/A Empty Unless Using 451M H2/B H2/C Blue (-) Unlock, (+) Lock Output IMPORTANT! The door lock outputs are low current and should not be attached directly to any high current device; they are only to be used to activate relays NOTE: For detailed instructions about connecting to the vehicle’s power door lock systems, refer to the Door Lock Wiring guide (DirectFax Document 1041), available only to authorized dealers though the technical resources listed at the front of this guide.

  • Page 20: Valet/Program Switch, 2-Pin Blue Plug

    Valet/Program Switch, 2-Pin BLUE Plug The Valet/Program button should be accessible from the driver’s seat. It plugs into the BLUE port on the side of the unit. Since the system features Valet® by using the transmitter/receiver, the button can be well hidden. Consider how the button will be used before choosing a mounting location. Check for rear clearance before drilling a 9/32-inch hole and mounting the button.The GRAY wire in the two-pin plug may also be used as a (+) ghost switch input and can be connected to any (+) switch in the vehicle.

  • Page 21: Mounting The Transceiver

    GREEN (-) Multiplex Input If installing an optional Directed dual-stage sensor, connect to the GREEN wire off the shock sensor harness. RED and BLACK: RED is (+)12V Constant, BLACK is (-) Ground Do not use these for anything besides the plug-in shock sensor. Mounting the Transceiver Two-way in-vehicle transceiver position should be discussed with the vehicle owner prior to instal- lation, since the two-way in-vehicle transceiver may be visible to the vehicle’s operator.

  • Page 22: Light Flash Jumper

    Programming Jumpers Light Flash Jumper This jumper is used to determine the light flash output. In the (+) position, the on-board relay is enabled and the unit will output (+)12V on the WHITE wire, H1/2. In the (-) position, the on- board relay is disabled.

  • Page 23: System Features Learn Routine

    System Features Learn Routine The System Features Learn Routine dictates how the unit operates. Due to the number of steps, they have been broken up into three menus. It is possible to access and change any of the feature settings using the Valet/Program switch. However, this process can be greatly simplified by using the 998T Bitwriter.
  • Page 24 5. P P r r o o g g r r a a m m t t h h e e F F e e a a t t u u r r e e . . While HOLDING the Valet/Program switch, you can toggle the feature on and off using the transmitter/receiver.

  • Page 25: Menu #1 - Basic Features

    No activity for longer than 15 seconds. Press the Valet/Program switch too many times. System Features Menus Items in bold text have been programmed to the default setting at the factory. Menu #1 - Basic Features Feature One Chirp Two-Chirp Number Setting Setting...

  • Page 26: Menu #3 - Remote Start Features

    Menu #3 - Remote Start Features Feature One Chirp Two-Chirp Number Setting Setting Engine checking ON Engine checking OFF Engine checking TACH Engine checking VOLTAGE Run time: 12 minutes Run time: 24 or 60 minutes Parking lights flashing Parking lights constant Crank time 0.6 seconds 0.8, 1.0, 1.2, 1.4, 1.6, 1.8, 2.0, 4.0 Voltage check - high...
  • Page 27 NOTE: Remember, when passive arming is selected, the unit will chirp 20 seconds after the last door is closed. The system does not actually arm or lock the doors until 30 seconds after the door has been closed. 1-5 PANIC WITH IGNITION ON: This feature controls whether or not the panic mode is available with the ignition on.

  • Page 28: Menu #2 - Advanced Features

    Menu #2 - Advanced Features 2-1 SIREN OUTPUT CONSTANT/PULSED: The system can be programmed to output pulses instead of a continuous output when the system is triggered. This is useful to honk the factory horn in applications where a siren is undesirable. Remember that the unit is only capable of supplying 1 amp of current.

  • Page 29: Menu #3 - Remote Start Features

    2-7 IGNITION CONTROLLED DOME LIGHT SUPERVISION ON/OFF: If turned on, the system will turn on the dome light for 60 seconds when the ignition is turned off. The optional dome light supervision feature must be installed as described in the Wire Connection Guide. 2-8 DOUBLE PULSE UNLOCK ON/OFF: Some vehicles require two pulses on a single wire to unlock the doors.
  • Page 30 3-5 CRANK TIME 0.6/0.8/1.0/1.2/1.4/1.6/1.8/2.0/4.0 SECONDS: If the unit is programmed for no engine checking or voltage sense, the crank time must be set to the appropriate duration. The default setting is 0.6 second. If a different crank time is desired, select feature 3-5 and select either 0.6 second by using the one-chirp setting or toggle through the higher settings by using the two- chirp settings.
  • Page 31 K K e e y y . . Turn the ignition ON. (The heavy-gauge PINK wire of the relay satellite must be connected.) S S e e l l e e c c t t t t h h e e r r e e c c e e i i v v e e r r C C h h a a n n n n e e l l . . Press and release the Valet/program switch the number of times necessary to access the desired channel.

  • Page 32: Standard Configuration

    C C h h a a n n n n e e l l # # 1 1 0 0 : : If any button from a known transmitter is programmed to Channel 10, all trans- mitters will be erased from memory and the system features will revert to the default settings. This is useful in cases where the one of the customer's transmitters is lost or stolen.

  • Page 33: Single Button Arm/Disarm Configuration

    operate Remote Start operate Channel 4 DRW-226 The standard configuration also allows the user to utilize Multi-Level Security Arming, a feature that cannot be accessed from a single button arm/disarm configuration transmitter. Single Button Arm/Disarm Configuration When programmed for single button arm/disarm configuration, the transmitter buttons are assigned to the following functions: operates Arm/Disarm/Panic...

  • Page 34: Shutdown Diagnostics

    NOTE: A dim or pulsing LED when learning tach means the unit has not learned the tach signal. Test all connections, and if good, relocate the tach input wire and continue with tach learning procedure. Shutdown Diagnostics The unit has the ability to report the cause of the last shutdown of the remote start system. T T o o e e n n t t e e r r d d i i a a g g n n o o s s t t i i c c m m o o d d e e : : Turn the ignition off.

  • Page 35: Rapid Resume Logic

    LED FLASHES SHUTDOWN MODE System timed out Over-rev shutdown Low or no RPM Transmitter Shutdown (or optional push-button) (-) Hood Shutdown (H3/3 GRAY) or (+) Brake Shutdown (H3/4 BROWN) (-) Neutral safety shutdown (H3/6 BLACK/WHITE) Wait-to-start timed out Multi-Level Security Arming Multi-Level Security arming allows the operator to select which inputs and sensors are active during a particular arming cycle.

  • Page 36: Arm/Disarm Diagnostics

    Timer Mode Timer Mode allows the operator to program the remote start system to start the engine every three hours a total of 6 times. For a full description of Timer Mode activation refer to the owner's manual. Diagnostics The system’s microprocessor monitors and reports all active and violated zones when arming and disarming.
  • Page 37 Long-Term Event History The system stores the last two full triggers in memory. These are not erasable. Each time the unit sees a full trigger, the older of the two triggers in memory will be replaced by the new trigger. To access long term event history: With the ignition off, press and HOLD the Valet/Program switch.

  • Page 38: Safety Check

    Safety Check Before vehicle reassembly, the remote system must be checked to ensure safe and trouble-free operation. The following test procedure must be used to verify proper installation and operation of the system. The installation must be completed before testing, including connection to the brake switch and hood switch.

  • Page 39: Alarm Troubleshooting

    Troubleshooting Alarm Troubleshooting Starter kill doesn't work: Is the correct wire being interrupted? If the car starts when the starter kill relay is completely disconnected, the wrong starter wire has been cut and interrupted. Is the yellow wire of the starter kill relay going to primary ignition? This wire must be powered in the run and start positions.

  • Page 40: Remote Start Troubleshooting

    The Valet®/Program switch doesn't work. Is it plugged into the correct socket? See Plug-In LED and Valet®/Program Switch section of this guide. Status LED doesn't work. You've probably guessed already, but here goes: Is it plugged in? (See Plug-In LED and Valet®/Program Switch section of this guide.) Is the LED plugged into the correct socket? Door locks operate backwards.
  • Page 41 The vehicle starts, but immediately dies. Does the vehicle have an immobilizer? The vehicle’s immobilizer will cut the fuel and/or spark during unauthorized starting attempts. Is the remote start programmed for voltage sense? If so, the start time may not be set high enough, or you may have to adjust the voltage threshold in programming.
