Toshiba NB200 Maintenance Manual page 6

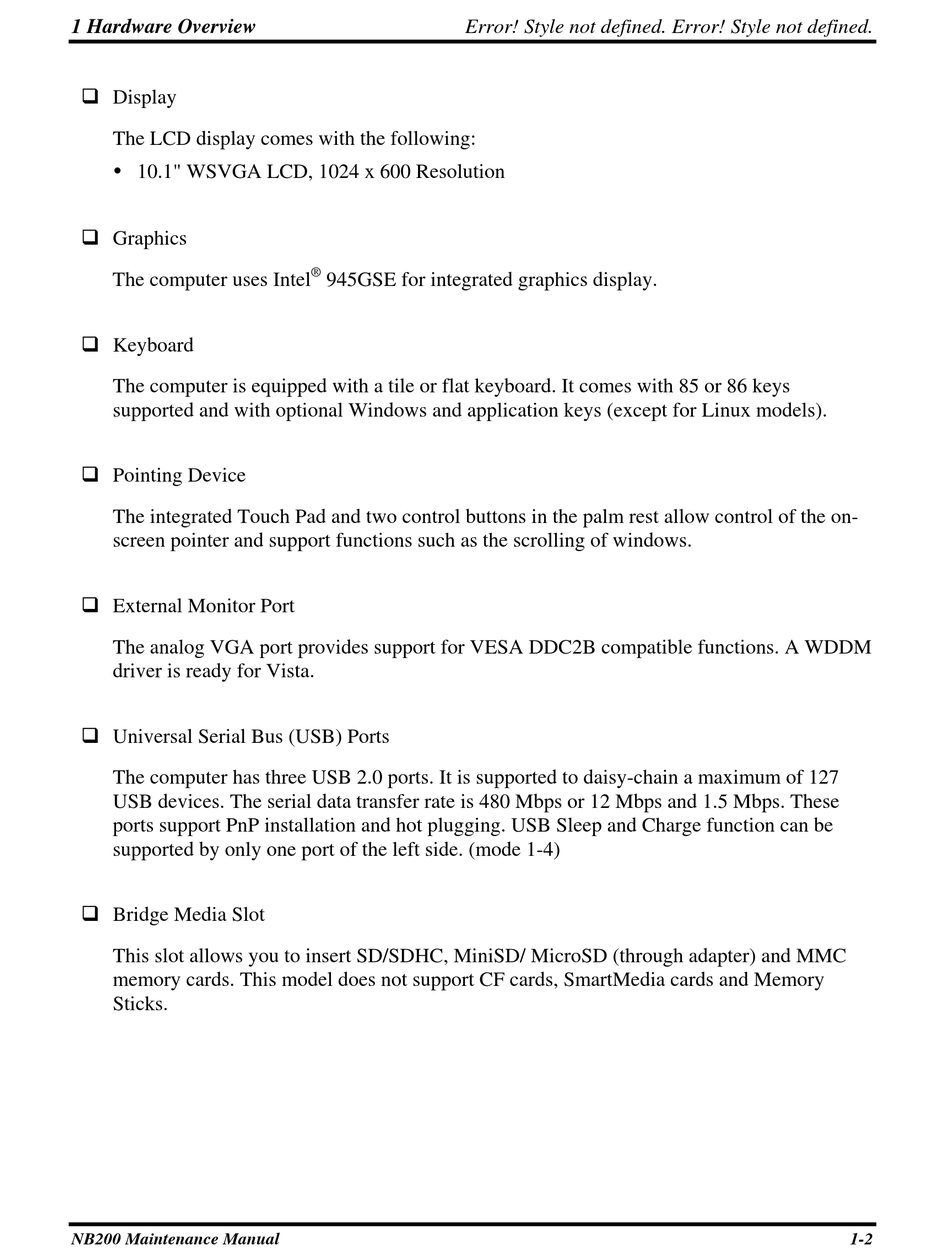

1 Hardware Overview
 Display
The LCD display comes with the following:
 10.1" WSVGA LCD, 1024 x 600 Resolution
 Graphics
The computer uses Intel
 Keyboard
The computer is equipped with a tile or flat keyboard. It comes with 85 or 86 keys
supported and with optional Windows and application keys (except for Linux models).
 Pointing Device
The integrated Touch Pad and two control buttons in the palm rest allow control of the on-
screen pointer and support functions such as the scrolling of windows.
 External Monitor Port
The analog VGA port provides support for VESA DDC2B compatible functions. A WDDM
driver is ready for Vista.
 Universal Serial Bus (USB) Ports
The computer has three USB 2.0 ports. It is supported to daisy-chain a maximum of 127
USB devices. The serial data transfer rate is 480 Mbps or 12 Mbps and 1.5 Mbps. These
ports support PnP installation and hot plugging. USB Sleep and Charge function can be
supported by only one port of the left side. (mode 1-4)
 Bridge Media Slot
This slot allows you to insert SD/SDHC, MiniSD/ MicroSD (through adapter) and MMC
memory cards. This model does not support CF cards, SmartMedia cards and Memory
Sticks.
NB200 Maintenance Manual
Error! Style not defined. Error! Style not defined.
®
945GSE for integrated graphics display.
1-2
