Page 1: Product Reference Guide

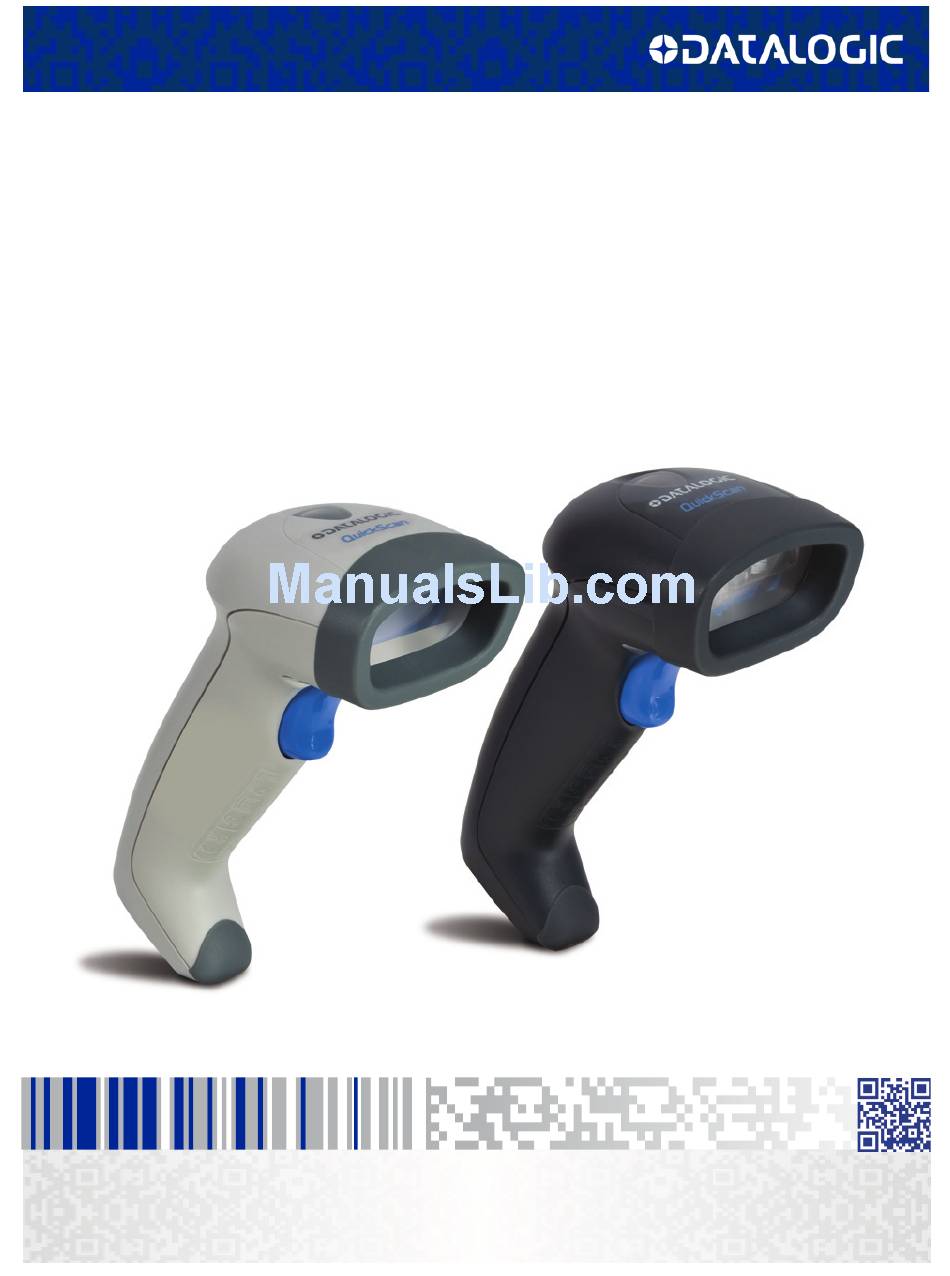

QuickScan QD2100 General Purpose Corded Handheld Linear Imager Bar Code Reader Product Reference Guide...
Page 2 An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures described therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic ADC, Inc. or its subsidiar- ies or affiliates ("Datalogic"...
Page 3: Table Of Contents
Chapter 1. Introduction..................................1 About this Guide .............................................1 Manual Overview ............................................1 Manual Conventions ..........................................2 References ..............................................2 Technical Support ...........................................3 Datalogic Website Support .......................................3 Reseller Technical Support ......................................3 Telephone Technical Support ....................................3 Chapter 2. Getting Started................................5 About the Imager ............................................5 Unpacking ..............................................5 Setting Up the Imager ...........................................6...
Page 4 Introduction ............................................41 RS-232 Standard Factory Settings ....................................41 Baud Rate ..............................................41 Data Bits ..............................................43 Stop Bits ..............................................44 Parity .................................................45 Handshaking Control ..........................................46 Chapter 6. RS-232/USB-Com Interfaces............................47 Introduction ............................................47 Standard Factory Settings .........................................47 Intercharacter Delay ..........................................48 Beep On ASCII BEL ..........................................50 Beep On Not on File ..........................................50 ACK NAK Options ..........................................51 ACK Character ..........................................52...
Page 5 Chapter 11. Data Editing................................97 Data Editing Overview ........................................97 Please Keep In Mind..........................................98 Global Prefix/Suffix ..........................................98 Example: Setting a Prefix ......................................98 Global AIM ID ............................................100 GS1-128 AIM ID ........................................... 102 Label ID ..............................................103 Label ID: Pre-loaded Sets .......................................
Page 6 GS1 DataBar Omnidirectional ....................................155 GS1 DataBar Omnidirectional Enable/Disable .............................. 155 GS1 DataBar Omnidirectional GS1-128 Emulation ............................155 GS1 DataBar Omnidirectional Minimum Reads ............................156 GS1 DataBar Expanded ....................................... 157 GS1 DataBar Expanded Enable/Disable ................................157 GS1 DataBar Expanded GS1-128 Emulation ..............................157 GS1 DataBar Expanded Minimum Reads ................................
Page 7 Interleaved 2 of 5 CIP HR Enable/Disable ................................ 214 Datalogic 2 of 5 ........................................... 214 Datalogic 2 of 5 Enable/Disable ..................................214 Datalogic 2 of 5 Check Character Calculation ..............................215 Datalogic 2 of 5 Minimum Reads ..................................216 Datalogic 2 of 5 Decoding Level ..................................216 Datalogic 2 of 5 Length Control ..................................
Page 8 Standard 2 of 5 Stitching ....................................... 271 Industrial 2 of 5 ........................................... 272 Industrial 2 of 5 Enable/Disable ..................................272 Industrial 2 of 5 Check Character Calculation ..............................272 Industrial 2 of 5 Check Character Transmission ............................273 Industrial 2 of 5 Length Control ..................................274 Industrial 2 of 5 Set Length 1 ....................................
Page 9 Code 4 Enable/Disable ......................................325 Code 4 Check Character Transmission ................................326 Code 4 Hex to Decimal Conversion ................................... 326 Code 5 ..............................................327 Code 5 Enable/Disable ......................................327 Code 5 Check Character Transmission ................................328 Code 5 Hex to Decimal Conversion ................................... 328 Code 4 and Code 5 Common Configuration Items ...............................
Page 10 NOTES QuickScan QD2100...
Page 11: Chapter 1 Introduction
Programming can alternatively be performed using the Datalogic Aladdin™ Configura- tion application which is downloadable from the Datalogic website listed on the back cover of this manual. This multi-platform utility program allows device configuration us- ing a PC.
Page 12: Manual Conventions
(QRG), the Datalogic Aladdin™ Configuration application, software/firmware and any additional manuals, instruction sheets and utilities for this product can be downloaded from the website listed on the back cover of this manual. Alternatively, printed copies or product support CDs can be purchased through your Datalogic reseller. QuickScan QD2100...
Page 13: Technical Support
Telephone Technical Support If you do not have internet or email access, you may contact Datalogic technical support at (541) 349-8283 or check the back cover of your manual for more contact information.
Page 14 Introduction NOTES QuickScan QD2100...
Page 15: Chapter 2. Getting Started
Chapter 2 Getting Started About the Imager Advancements in the LED technology used in this imager significantly improve the illu- mination of the target field of view, resulting in higher scan efficiency. Whether used in Single Trigger or Continuous Mode, the ergonomic design of the imager will help to promote comfortable handling during extended periods of use.
Page 16: Setting Up The Imager
Getting Started Setting Up the Imager Follow the steps provided in this section to connect and get your imager up and commu- nicating with its host: Install the Interface Cable Select the Interface Type Configure Interface Settings (only if not using factory settings for that interface) Configure Other Features (if modifications are needed from factory settings) Install the Interface Cable...
Page 17: Programming
Setting Up the Imager USB Connection — Connect the imager to a USB port on the terminal/PC using the Figure 2 correct USB cable for the interface type you ordered. Reference IBM Connection — Connect the imager to the IBM port on the terminal/PC using the Figure 2 correct IBM cable.
Page 18: Using The Programming Bar Codes
Getting Started Using the Programming bar codes This manual contains feature descriptions and bar codes which allow you to reconfigure Resetting the Product Configu- your imager. Some programming bar code labels, like ration to Defaults on page 9 , require only the scan of that single label to enact the change.
Page 19: Software Version Transmission
Resetting the Product Configuration to Defaults Software Version Transmission The software version of the device can be transmitted over the RS-232 and Keyboard in- terfaces by scanning the following label. Transmit Software Version Resetting the Product Configuration to Defaults If you aren't sure what programming options are in your imager, or you've changed some options and want to restore the Custom Default Configuration that may have been saved Restore Custom Default Configuration in the imager, scan the...
Page 20 Getting Started Resetting the Product Configuration to Defaults — cont. If you aren't sure what programming options are in your imager, or you've changed some options and want to restore the Factory Configuration, you have two options. You can Restore USA Factory Configuration Restore EU Factory Con- scan the bar code or the...
Page 21: Chapter 3. Interfaces
Chapter 3 Interfaces Interface Selection Each reader model will support one of the following sets of host interfaces: General Purpose Models (5 volt supply) RS-232 RS-232 OPOS Keyboard Wedge Wand Emulation Retail Point of Sale Models (4 to 14 volt supply) RS-232 RS-232 OPOS IBM 46XX...
Page 22 Features starting on page 85 IBM-46xx Port 9B reader interface Select IBM-P9B USB-OEM FEATURES Set USB- Interface USB-OEM Features (can be used for OPOS/UPOS/JavaPOS) starting on page 81 Select USB-OEM Download the correct USB Com driver from www.datalogic.com QuickScan QD2100...
Page 23 Configuring the Interface KEYBOARD FEATURES AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Standard Key Encoding Select KBD-AT Keyboard Wedge for IBM AT PS2 with stan- dard key encoding but without external key- board Select KBD-AT-NK AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 &...
Page 24 Interfaces KEYBOARD — cont. FEATURES Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make only keyboard Select KBD-IBM-M Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make break keyboard Select KBD-IBM-MB Keyboard Wedge for DIGITAL Terminals VT2xx, VT3xx, VT4xx Set KEYBOARD WEDGE Select KBD-DIG-VT...
Page 25: Global Interface Features
Global Interface Features Global Interface Features The following interface features are configurable by all interface types. To set features specific to your interface, turn to that section of this manual: RS-232 ONLY Interface on page 41 • Keyboard Interface on page 67 •...
Page 26: Usb Suspend Mode
Interfaces USB Suspend Mode This setting enables/disables the ability of USB interfaces to enter suspend mode. ENTER/EXIT PROGRAMMING MODE DEFAULT USB Suspend Mode = Disable USB Suspend Mode = Enable QuickScan QD2100...
Page 27: Chapter 4. General Features
Chapter 4 General Features Double Read Timeout To prevent a double read of the same label, the Double Read Timeout sets the minimum time allowed between reads of labels of the same symbology and data. If the unit reads a label and sees the same label again within the Double Read Timeout, the second read of the label will be ignored.
Page 28 General Features Double Read Timeout — continued ENTER/EXIT PROGRAMMING MODE Double Read Timeout = 0.5 Second Double Read Timeout = 0.6 Second Double Read Timeout = 0.7 Second Double Read Timeout = 0.8 Second Double Read Timeout = 0.9 Second Double Read Timeout = 1 Second QuickScan QD2100...
Page 29: Label Gone Timeout
Label Gone Timeout Label Gone Timeout This feature sets the time after the last label segment is seen before the reader prepares for a new label. The timeout can be set within a range of 10 milliseconds to 2,550 millisec- onds (2.55 seconds) in 10ms increments.
Page 30 General Features Label Gone Timeout — cont. ENTER/EXIT PROGRAMMING MODE Select Label Gone Timeout Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 016 = Timeout of 160 ms DEFAULT QuickScan...
Page 31: Led And Beeper Indicators
LED and Beeper Indicators LED and Beeper Indicators Power On Alert Disables or enables the indication (from the Beeper) that the reader is receiving power. ENTER/EXIT PROGRAMMING MODE Power On Alert = Disable (No Audible Indication) DEFAULT Power On Alert = Four Beeps Product Reference Guide...
Page 32: Good Read: When To Indicate
General Features Good Read: When to Indicate This feature specifies when the reader will provide indication (beep and/or flash its green LED) upon successfully reading a bar code. Choices are: • Good Read = Indicate after decode • Good Read = Indicate after transmit •...
Page 33: Good Read Beep Type
LED and Beeper Indicators Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound. ENTER/EXIT PROGRAMMING MODE DEFAULT Good Read Beep Type = Mono Good Read Beep Type = Bitonal Product Reference Guide...
Page 34: Good Read Beep Frequency
General Features Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, se- lectable from the list below. (Controls the beeper’s pitch/tone.) ENTER/EXIT PROGRAMMING MODE Good Read Beep Frequency = Low Good Read Beep Frequency = Medium DEFAULT Good Read Beep Frequency = High...
Page 35 LED and Beeper Indicators Good Read Beep Length — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Good Read Beep Length = 80 msec Good Read Beep Length = 100 msec Good Read Beep Length = 120 msec Good Read Beep Length = 140 msec Good Read Beep Length = 160 msec Good Read Beep Length = 180 msec Good Read Beep Length = 200 msec...
Page 36: Good Read Beep Volume
General Features Good Read Beep Volume Selects the beeper volume (loudness) upon a good read beep. There are three selectable volume levels. ENTER/EXIT PROGRAMMING MODE Good Read Beep Volume = Beeper Off Good Read Beep Volume = Low Good Read Beep Volume = Medium DEFAULT Good Read Beep Volume = High QuickScan...
Page 37: Good Read Led Duration
LED and Beeper Indicators Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 0.1 to 25.5 seconds in 100ms increments.
Page 38 General Features Good Read LED Duration — cont. ENTER/EXIT PROGRAMMING MODE Select Good Read LED Duration Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 020 = Good Read LED stays on for DEFAULT...
Page 39: Scanning Features
Scanning Features Scanning Features Scan Mode Selects the scan operating mode for the reader. Selections are: Trigger Single — When the trigger is pulled, scanning is activated until one of the fol- lowing occurs: Scanning Active Time has elapsed - a label has been read - the trigger is released This mode is associated with typical handheld reader operation: when the trigger is pulled, scanning starts and the product scans until the trigger is released, or a label is read,...
Page 40 General Features Scan Mode — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Scan Mode = Trigger Single Scan Mode = Trigger Hold Multiple Scan Mode = Trigger Pulse Multiple Scan Mode = Flashing Scan Mode = Always On Scan Mode = Stand Mode Scan Mode = Trigger Object Sense QuickScan QD2100...
Page 41: Stand Mode Triggered Timeout
Scanning Features Stand Mode Triggered Timeout Trigger Single This feature specifies the time to remain in mode after the trigger is Stand Mode. pulled while in This timeout is only used when the Scan Mode is configured as Stand Mode. NOTE ENTER/EXIT PROGRAMMING MODE Stand Mode Triggered Timeout = 0.5 Seconds...
Page 42 General Features Stand Mode Triggered Timeout — continued ENTER/EXIT PROGRAMMING MODE Stand Mode Triggered Timeout = 6 Seconds Stand Mode Triggered Timeout = 8 Seconds Stand Mode Triggered Timeout = Switch to Continuous Trigger Single Mode QuickScan QD2100...
Page 43: Scanning Active Time
Scanning Features Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second incre- ments. Follow these instructions to set this feature: 1.
Page 44 General Features Scanning Active Time — cont. ENTER/EXIT PROGRAMMING MODE Select Scanning Active Time Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL DEFAULT 005 = Scanning is active for 5 Seconds QuickScan...
Page 45: Flash On Time
Flash On Time Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The se- lectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond in- crements. Follow these instructions to set this feature. 1.
Page 46 General Features Flash On Time — cont. ENTER/EXIT PROGRAMMING MODE Select Flash ON Time Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 10 = Flash is ON for 1 Second DEFAULT QuickScan...
Page 47: Flash Off Time
Flash Off Time Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The se- lectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond in- crements. Follow these instructions to set this feature. 1.
Page 48 General Features Flash Off Time — cont. ENTER/EXIT PROGRAMMING MODE Select Flash OFF Time Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 06 = Flash is OFF for 600ms DEFAULT QuickScan...
Page 49: Stand Mode Sensitivity
Stand Mode Sensitivity Stand Mode Sensitivity Sets the sensitivity level for stand mode wakeup. Choices are low, medium and high. ENTER/EXIT PROGRAMMING MODE Stand Mode Sensitivity = Low DEFAULT Stand Mode Sensitivity = Medium Stand Mode Sensitivity = High Product Reference Guide...
Page 50: Green Spot Duration
General Features Green Spot Duration Specifies the duration of the good read pointer beam after a good read. ENTER/EXIT PROGRAMMING MODE Green Spot Duration = Disable (Green Spot is Off) DEFAULT Green Spot Duration = Short (300 msec) Green Spot Duration = Medium (500 msec) Green Spot Duration = Long (800 msec) QuickScan QD2100...
Page 51: Chapter 5. Rs-232 Only Interface
Chapter 5 RS-232 ONLY Interface Introduction Use the programming bar codes in this chapter if modifications to the standard RS-232 interface settings are necessary to meet your system’s requirements. Additional settings Chapter 6, RS-232/ which apply to both the RS-232 and USB interfaces are available in USB-Com Interfaces RS-232 Standard Factory Settings Appendix B, Standard Defaults...
Page 52 RS-232 ONLY Interface Baud Rate — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Baud Rate = 9600 Baud Rate = 19,200 Baud Rate = 38,400 Baud Rate = 57,600 Baud Rate = 115,200 QuickScan QD2100...
Page 53: Data Bits
Data Bits Data Bits This parameter allows the reader to interface with devices requiring a 7-bit or 8-bit AS- CII protocol for sending and receiving data. ENTER/EXIT PROGRAMMING MODE 7 Data Bits DEFAULT 8 Data Bits Product Reference Guide...
Page 54: Stop Bits
RS-232 ONLY Interface Stop Bits The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and prepares the receiving device for the next character in the serial data stream. The number of stop bits selected (one or two) depends on the number the receiv- ing terminal is programmed to accommodate.
Page 55: Parity
Parity Parity This feature specifies parity required for sending and receiving data. A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host device requirements. • Select None when no parity bit is required. •...
Page 56: Handshaking Control
RS-232 ONLY Interface Handshaking Control The data interface consists of an RS-232 port designed to operate either with or without the hardware handshaking lines, Request to Send (RTS), and Clear to Send (CTS). Hand- shaking Control includes the following options: •...
Page 57: Chapter 6. Rs-232/Usb-Com Interfaces
Chapter 6 RS-232/USB-Com Interfaces Introduction The programming bar codes in this chapter allow modifications to the standard RS-232 and USB-Com interfaces. Standard Factory Settings Appendix B, Standard Defaults Reference for a listing of standard factory settings. Product Reference Guide...
Page 58: Intercharacter Delay
RS-232/USB-Com Interfaces Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milli- seconds in 10ms increments. A setting of zero specifies no delay. To set the delay: 1.
Page 59 Intercharacter Delay Intercharacter Delay — cont. ENTER/EXIT PROGRAMMING MODE Intercharacter Delay = No Delay Select Intercharacter Delay Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 60: Beep On Ascii Bel
RS-232/USB-Com Interfaces Beep On ASCII BEL When this parameter is enabled, the reader issues a beep when a <BEL> character is de- tected on the RS-232 serial line. <BEL> is issued to gain a user's attention to an illegal entry or other important event. ENTER/EXIT PROGRAMMING MODE DEFAULT Beep On ASCII BEL = Disable...
Page 61: Ack Nak Options
ACK NAK Options ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK proto- col. When configured, the reader and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...
Page 62: Ack Character
RS-232/USB-Com Interfaces ACK Character This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these Data characters.
Page 63 ACK NAK Options ACK Character — cont. ENTER/EXIT PROGRAMMING MODE Select ACK Character Setting 0x06 ‘ACK’ Character DEFAULT Product Reference Guide...
Page 64: Nak Character
RS-232/USB-Com Interfaces NAK Character This setting specifies an ASCII character or hex value to be used as the NAK character. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these Data characters.
Page 65 ACK NAK Options NAK Character — cont. ENTER/EXIT PROGRAMMING MODE Select NAK Character Setting 0x15 ‘NAK’ Character DEFAULT Product Reference Guide...
Page 66: Ack Nak Timeout Value
RS-232/USB-Com Interfaces ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout. To set this value: 1.
Page 67 ACK NAK Options ACK NAK Timeout Value — cont. ENTER/EXIT PROGRAMMING MODE Select ACK NAK Timeout Value Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 ACK NAK Timeout value is 200ms DEFAULT...
Page 68: Ack Nak Retry Count
RS-232/USB-Com Interfaces ACK NAK Retry Count This feature specifies the number of times the reader retries a label transmission due to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0 disables the count, and a selection of 255 specifies unlimited retries. To set this feature: 1.
Page 69 ACK NAK Options ACK NAK Retry Count — cont. ENTER/EXIT PROGRAMMING MODE Select ACK NAK Retry Count Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 003 = 3 Retries DEFAULT...
Page 70: Ack Nak Error Handling
RS-232/USB-Com Interfaces ACK NAK Error Handling This feature specifies the method the reader uses to handle receive errors detected while waiting for an ACK character from the host. Options are: • Ignore errors detected • Process error as valid ACK character •...
Page 71: Indicate Transmission Failure
Indicate Transmission Failure Indicate Transmission Failure This option enables/disables the reader’s ability to sound an error beep to indicate a transmission failure while in ACK/NAK mode ENTER/EXIT PROGRAMMING MODE Indicate Transmission Failure = Disable Indication DEFAULT Indicate Transmission Failure = Enable Indication Product Reference Guide...
Page 72: Disable Character
RS-232/USB-Com Interfaces Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these Data characters.
Page 73 Disable Character Disable Character — cont. ENTER/EXIT PROGRAMMING MODE Select Disable Character Setting 0x44 = Disable Character is ‘D’ DEFAULT Product Reference Guide...
Page 74: Enable Character
RS-232/USB-Com Interfaces Enable Character Specifies the value of the RS-232 host command used to enable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these Data characters.
Page 75 Enable Character Enable Character — cont. ENTER/EXIT PROGRAMMING MODE Select Enable Character Setting 0x45 = Enable Character is ‘E’ DEFAULT Product Reference Guide...
Page 76 RS-232/USB-Com Interfaces NOTES QuickScan QD2100...
Page 77: Chapter 7. Keyboard Interface
Chapter 7 Keyboard Interface Introduction Use the programming bar codes in this chapter to select options for USB Keyboard and Wedge Interfaces. Standard Factory Settings Appendix B, Standard Defaults Reference for a listing of standard factory settings. Scancode Tables Information about control character emulation which applies to keyboard interfaces is Appendix F, Scancode Tables listed in Product Reference Guide...
Page 78: Country Mode
Keyboard Interface Country Mode This feature specifies the country/language supported by the keyboard. Only the following interfaces support ALL Country Modes. • USB Keyboard (without alternate key encoding) • AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Std Key Encoding •...
Page 79 Country Mode Country Mode — continued ENTER/EXIT PROGRAMMING MODE Supports only the interfaces listed in theCountry Mode fea- ture description. Country Mode = Denmark Country Mode = France Country Mode = Germany Supports only the interfaces listed in theCountry Mode fea- ture description.
Page 80 Keyboard Interface Country Mode — continued ENTER/EXIT PROGRAMMING MODE Supports only the interfaces listed in theCountry Mode fea- ture description. Country Mode = Poland Supports only the interfaces listed in theCountry Mode fea- ture description. Country Mode = Portugal Supports only the interfaces listed in theCountry Mode fea- ture description.
Page 81: Caps Lock State
Caps Lock State Caps Lock State This option specifies the format in which the reader sends character data. This applies to keyboard wedge interfaces. This does not apply when an alternate key encoding keyboard is selected. ENTER/EXIT PROGRAMMING MODE DEFAULT Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON Caps Lock State = AUTO Caps Lock Enable...
Page 82: Send Control Characters
Keyboard Interface Send Control Characters This feature Specifies how the reader transmits ASCII control characters to the host. Ref- Appendix F, Scancode Tables erence for more information about control characters. Options are as follows: Characters from 00 to 0x1F are sent as control character Ctrl+Keys, Control Character 00 —...
Page 83: Wedge Quiet Interval
Wedge Quiet Interval Wedge Quiet Interval This option specifies the amount of time to look for keyboard activity before the read- er breaks the keyboard connection in order to transmit data to host. The selectable range for this feature is from 0 to 990ms in 10ms increments. This feature applies ONLY to the Keyboard Wedge interface.
Page 84 Keyboard Interface Wedge Quiet Interval — cont. ENTER/EXIT PROGRAMMING MODE Select Wedge Quiet Interval Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 10 = Quiet Interval of 100 ms DEFAULT QuickScan...
Page 85: Intercharacter Delay
Intercharacter Delay Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay. This feature applies ONLY to the Keyboard Wedge interface.
Page 86 Keyboard Interface Intercharacter Delay — cont. ENTER/EXIT PROGRAMMING MODE Intercharacter Delay = No Delay Select Intercharacter Delay Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 87: Intercode Delay
Intercode Delay Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1. Determine the desired setting. 2.
Page 88 Keyboard Interface Intercode Delay — cont. ENTER/EXIT PROGRAMMING MODE Set Intercode Delay Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 00 = No Wedge Intercode Delay DEFAULT QuickScan QD2100...
Page 89: Usb Keyboard Speed
USB Keyboard Speed USB Keyboard Speed This option specifies the USB poll rate for a USB keyboard. This feature applies ONLY to the USB Keyboard interface. NOTE ENTER/EXIT PROGRAMMING MODE DEFAULT USB Keyboard Speed = 1ms USB Keyboard Speed = 2ms USB Keyboard Speed = 3ms USB Keyboard Speed = 4ms USB Keyboard Speed = 5ms...
Page 90 Keyboard Interface USB Keyboard Speed — continued ENTER/EXIT PROGRAMMING MODE USB Keyboard Speed = 6ms USB Keyboard Speed = 7ms USB Keyboard Speed = 8ms USB Keyboard Speed = 9ms USB Keyboard Speed = 10ms QuickScan QD2100...
Page 91: Chapter 8. Usb-Oem Interface
Chapter 8 USB-OEM Interface Introduction Feature settings for USB interfaces differ depending upon which host type the reader will Chapter 9, IBM 46XX be connected with. Use the feature settings in this chapter and Interface to specifically configure for the USB-OEM interface. Other USB interfaces are included in the approprite chapter for their host type.
Page 92: Usb-Oem Device Usage
USB-OEM Interface USB-OEM Device Usage The USB-OEM protocol allows for the reader to be identified as one of two different types of bar code scanners. Depending on what other scanners you may already have con- nected to a USB-OEM POS, you may need to change this setting to enable all devices to communicate.
Page 93: Usb-Oem Interface Options
USB-OEM Interface Options USB-OEM Interface Options This setting provides for an interface specific control mechanism.. Options are: • Obey — Obey Scanner Configuration Host Commands • Ignore — Ignore Scanner Configuration Host Commands ENTER/EXIT PROGRAMMING MODE USB-OEM Interface Options = Obey DEFAULT USB-OEM Interface Options = Ignore Product Reference Guide...
Page 94 USB-OEM Interface NOTES QuickScan QD2100...
Page 95: Chapter 9. Ibm 46Xx Interface
Chapter 9 IBM 46XX Interface Introduction Use the bar codes in this section to configure programmable features for available IBM 46XX interfaces. IBM Standard Factory Settings Appendix B, Standard Defaults Reference for a listing of standard factory settings. Product Reference Guide...
Page 96: 46Xx Number Of Host Resets
IBM 46XX Interface 46xx Number of Host Resets Specifies how many consecutive resets are processed before the reader starts a five-second period to allow the user to enter Programming Mode and configure the reader. The con- figurable range for this feature is 1 to 15 resets. ENTER/EXIT PROGRAMMING MODE 46xx Number of Host Resets = 1 46xx Number of Host Resets = 2...
Page 97 46xx Number of Host Resets 46xx Number of Host Resets — cont. ENTER/EXIT PROGRAMMING MODE 46xx Number of Host Resets = 7 46xx Number of Host Resets = 8 46xx Number of Host Resets = 9 46xx Number of Host Resets = 10 46xx Number of Host Resets = 11 46xx Number of Host Resets = 12 Product Reference Guide...
Page 98 IBM 46XX Interface 46xx Number of Host Resets — cont. ENTER/EXIT PROGRAMMING MODE 46xx Number of Host Resets = 13 46xx Number of Host Resets = 14 46xx Number of Host Resets = 15 QuickScan QD2100...
Page 99: Transmit Labels In Code 39 Format
Transmit Labels in Code 39 Format Transmit Labels in Code 39 Format This feature enable/disables translation to Code 39 before transmitting label data to an IBM-46XX or a USB-OEM host. Only the symbology identifier is modified for the translation. The data is not converted to Code 39 or verified to be valid for Code 39. Options are: Send labels in standard IBM format.
Page 100: Ibm 46Xx Interface Options
IBM 46XX Interface IBM 46XX Interface Options This setting provides for an interface specific control mechanism.. Options are: • Obey — Obey Scanner Configuration Host Commands • Ignore — Ignore Scanner Configuration Host Commands ENTER/EXIT PROGRAMMING MODE USB-OEM Interface Options = Obey DEFAULT USB-OEM Interface Options = Ignore QuickScan...
Page 101: Chapter 10. Wand Emulation Interface
Chapter 10 Wand Emulation Interface Introduction This chapter provides feature/settings configuration for the Wand Emulation interface. Wand Emulation Standard Factory Settings Appendix B, Standard Defaults Reference for a listing of standard factory settings. Wand Idle State This feature specifies the level of the Wand output signal when the reader is idle. TTL logic levels:...
Page 102: Wand Polarity
Wand Emulation Interface Wand Polarity This option specifies the polarity of the Wand output signal. Choices are: • Quiet zones and spaces are high, bars are low • Quiet zones and spaces are low, bars are high TTL logic levels: 0V <= Low <= 0.7V...
Page 103: Wand Signal Speed
Wand Signal Speed Wand Signal Speed This feature specifies the speed of the Wand output signal per nominal bar or space. Choices are: • 330 microseconds • 660 microseconds ENTER/EXIT PROGRAMMING MODE Wand Signal Speed = 330ms DEFAULT Wand Signal Speed = 660ms Product Reference Guide...
Page 104: Wand Label Symbology Conversion
Wand Emulation Interface Wand Label Symbology Conversion When this feature is enabled for the Wand Emulation interface, all bar code labels are converted to a single symbology. Options are: • No conversion • Convert to Code 39 symbology • Convert to Code 39 Full ASCII •...
Page 105: Wand Transmit Noise
Wand Transmit Noise Wand Transmit Noise This option specifies the leading/trailing noise for the Wand interface. Choices are: • Disable (no leading/trailing noise) • Enable leading noise • Enable trailing noise • Enable leading and trailing noise ENTER/EXIT PROGRAMMING MODE DEFAULT Transmit Noise = Disable Transmit Noise = Transmit leading noise...
Page 106 Wand Emulation Interface NOTES QuickScan QD2100...
Page 107: Chapter 11. Data Editing
ID code will be transmitted before the scanned bar code data. 00 - 20 Characters (ASCII) Additional advanced editing is available. See the Advanced Format- ting features in the Datalogic Aladdin Configuration Application or Technical Support on page 3 contact for more information.
Page 108: Please Keep In Mind
Data Editing Please Keep In Mind... • Modifying a message string is not a mandatory requirement. Data editing is sophisticated feature allowing highly customizable output for advanced users. Factory default settings for data editing is typically set to NONE. Symbologies •...
Page 109 Global Prefix/Suffix 5. If less than the expected string of 20 characters are selected, scan the ENTER/EXIT bar code to terminate the string. 6. Scan the ENTER/EXIT bar code once again to exit Programming Mode. 7. The resulting message string would appear as follows: Scanned bar code data:12345 Resulting message string output: $12345 This option sets up to 20 characters each from the set of ASCII characters or any hex val-...
Page 110: Global Aim Id
Data Editing Global AIM ID This feature enables/disables addition of AIM IDs for all sym- bology types. NOTE AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. AIM label identifiers consist of three characters as follows: •...
Page 111 Global AIM ID Global AIM ID — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Global AIM ID = Disable Global AIM ID = Enable Product Reference Guide...
Page 112: Gs1-128 Aim Id
Data Editing GS1-128 AIM ID If Global AIM ID is disabled, the AIM ID for GS1-128 can be enabled/disabled inde- pendently. The AIM ID for GS1-128 is a ]C1, ]C2 or ]C3. AIM IDs for other symbologies can be enabled/disabled independently as well. Contact Customer Support for assistance.
Page 113: Label Id
Label ID Label ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01-0xFF), used to identify a bar code (symbology) type. It can be appended pre- vious to or following the transmitted bar code data depending upon how this option is enabled.
Page 114 230000 540000 CODE32 410000 580000 CODE39 2A0000 560000 CODE4 340000 340000 CODE5 6A0000 6A0000 CODE93 & 260000 550000 DATALOGIC 2OF5 730000 730000 EAN13 460000 420000 EAN13 P2 460000 4C0000 EAN13 P5 460000 4D0000 EAN13 P8 460000 230000 EAN8 464600 410000...
Page 115 Label ID Symbology USA Label ID set EU Label ID set I2OF5 690000 4E0000 IATA 494100 & 260000 Industrial 2 of 5 570000 570000 Interleaved 2 of 5 CIP HR 650000 650000 ISBN 490000 400000 ISBT128 660000 660000 ISSN 6E0000 6E0000 400000 5A0000...
Page 116: Label Id: Set Individually Per Symbology
Data Editing Label ID: Set Individually Per Symbology To configure a Label ID individually for a single symbology: 1. Scan the ENTER/EXIT bar code. 2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suf- Label ID Control on page 108.
Page 117 Label ID Label ID — continued Table 18 . Label ID Examples STEP ACTION EXAMPLES Scan the ENTER/EXIT bar code (Scanner enters Programming Mode) Determine placement of the Label ID characters BEFORE or AFTER with regard to Enable as Prefix Enable as Suffix Enable as Prefix Enable as Suffix Label ID scanned data using...
Page 118: Label Id Control
Data Editing Label ID — continued Label ID Control This option controls whether a Label ID is disabled, or sent as a prefix or suffix for a given symbology type. ENTER/EXIT PROGRAMMING MODE DEFAULT Label ID Transmission = Disable Label ID Transmission = Enable as Prefix Label ID Transmission = Enable as Suffix Make a mistake? Scan the CANCEL bar code to abort and not save the entry string.
Page 119: Label Id Symbology Selection
Label ID Label ID — continued Label ID Symbology Selection Label ID This option selects the symbology for which a Label ID is to be configured. See on page 103 for full instructions. ENTER/EXIT PROGRAMMING MODE Set UPC-A Label ID Character(s) Set UPC-A/P2 Label ID Character(s) Set UPC-A/P5 Label ID Character(s) Set UPC-A/GS1-128 Label ID Character(s)
Page 120 Data Editing Label ID — continued Label ID Symbology Selection — continued Label ID This option selects the symbology for which a Label ID is to be configured. See on page 103 for full instructions. ENTER/EXIT PROGRAMMING MODE Set UPC-E/P5 Label ID Character(s) Set UPC-E/GS1-128 Label ID Character(s) Set EAN 13 Label ID Character(s) Set EAN 13/P2 Label ID Character(s)
Page 121 Label ID Label ID — continued Label ID Symbology Selection — continued Label ID This option selects the symbology for which a Label ID is to be configured. See on page 103 for full instructions. ENTER/EXIT PROGRAMMING MODE Set EAN 8 Label ID Character(s) Set EAN 8/P2 Label ID Character(s) Set EAN 8/P5 Label ID Character(s) Set EAN 8/GS1-128 Label ID Character(s)
Page 122 Data Editing Label ID — continued Label ID Symbology Selection — continued Label ID This option selects the symbology for which a Label ID is to be configured. See on page 103 for full instructions. ENTER/EXIT PROGRAMMING MODE Set GTIN/P5 Label ID Character(s) Set GTIN/GS1-128 Label ID Character(s) Set GS1 DataBar Omnidirectional Label ID Character(s) Set GS1 DataBar Expanded Label ID Character(s)
Page 123 Set Code 128 Label ID Character(s) Set GS1-128 Label ID Character(s) Set Interleaved 2 of 5 Label ID Character(s) Set Interleaved 2 of 5 CIP HR Label ID Character(s) Set Datalogic 2 of 5 CIP HR Label ID Character(s) Product Reference Guide...
Page 124 Data Editing Label ID — continued Label ID Symbology Selection — continued Label ID This option selects the symbology for which a Label ID is to be configured. See on page 103 for full instructions. ENTER/EXIT PROGRAMMING MODE Set Codabar Label ID Character(s) Set ABC Codabar Label ID Character(s) Set Code 11 Label ID Character(s) Set Standard 2 of 5 Label ID Character(s)
Page 125 Label ID Label ID — continued Label ID Symbology Selection — continued Label ID This option selects the symbology for which a Label ID is to be configured. See on page 103 for full instructions. ENTER/EXIT PROGRAMMING MODE Set IATA Label ID Character(s) Set Concatinated ISBT 128 Label ID Character(s) Set MSI Label ID Character(s) Set Plessey Label ID Character(s)
Page 126 Data Editing Label ID — continued Label ID Symbology Selection — continued Label ID This option selects the symbology for which a Label ID is to be configured. See on page 103 for full instructions. ENTER/EXIT PROGRAMMING MODE Set Codablock F Label ID Character(s) Set Code 4 Label ID Character(s) Set Code 5 Label ID Character(s) Set Follett 2 of 5 Label ID Character(s)
Page 127: Case Conversion
Case Conversion Case Conversion This feature allows conversion of the case of all alphabetic characters to upper or lower case. Case conversion affects ONLY scanned bar code data, and does not affect Label ID, Prefix, Suffix, or other appended data. NOTE ENTER/EXIT PROGRAMMING MODE DEFAULT...
Page 128: Character Conversion
Data Editing Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the char- acter that will be converted. The second character in the pair is the character to convert to.
Page 129 Character Conversion Character Conversion — continued ENTER/EXIT PROGRAMMING MODE Configure Character Conversion 0xFFFFFFFFFFFFFFFF DEFAULT (No character conversion) Product Reference Guide...
Page 130 Data Editing NOTES QuickScan QD2100...
Page 131: Chapter 12. Symbologies
Chapter 12 Symbologies Introduction The reader supports the following symbologies (bar code types). Options for each sym- bology are included in this chapter. Symbologies UPC-A Datalogic 2 of 5 • • UPC-E Codabar • • GTIN Formatting ABC Codabar •...
Page 132: Standard Factory Settings For Symbologies
Symbologies Standard Factory Settings for Symbologies Default settings are indicated at each feature/option with a green arrow. Also reference Appendix B, Standard Defaults for a listing of the most widely used set of standard fac- tory settings. That section also provides space to record any custom settings needed or implemented for your system.
Page 133: Coupon Control
Coupon Control Coupon Control This feature is used to control the method of processing coupon labels. Options are: • Allow all — allow all coupon bar codes to be decoded • Enable only UPC/EAN — enables only UPC/EAN coupon decoding •...
Page 134: Upc-A
Symbologies UPC-A The following options apply to the UPC-A symbology. UPC-A Enable/Disable When disabled, the reader will not read UPC-A bar codes. ENTER/EXIT PROGRAMMING MODE UPC-A = Disable DEFAULT UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A bar code data. ENTER/EXIT PROGRAMMING MODE UPC-A Check Character Transmission = Don’t Send DEFAULT...
Page 135: Expand Upc-A To Ean-13
UPC-A UPC-A — cont. Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. ENTER/EXIT PROGRAMMING MODE DEFAULT UPC-A to EAN-13 = Don’t Expand UPC-A to EAN-13 = Expand UPC-A Number System Character Transmission This feature enables/disables transmission of the UPC-A number system character.
Page 136: In-Store Minimum Reads
Symbologies UPC-A — cont. In-Store Minimum Reads This feature specifies the minimum number of consecutive times an in-store label must be decoded before it is accepted as good read. In-store labels are defined as UPC-A labels with a number-system character of 2 or 4 as well as EAN 8 and EAN 13 labels with a Flag1 character of 2 or an EAN 13 label starting with the three characters '980'.
Page 137: Upc-E
UPC-E UPC-E The following options apply to the UPC-E symbology. UPC-E Enable/Disable When disabled, the reader will not read UPC-E bar codes. ENTER/EXIT PROGRAMMING MODE UPC-E = Disable DEFAULT UPC-E = Enable UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E bar code data. ENTER/EXIT PROGRAMMING MODE UPC-E Check Character Transmission = Don’t Send DEFAULT...
Page 138: Expand Upc-E To Ean-13
Symbologies UPC-E — cont. Expand UPC-E to EAN-13 Expands UPC-E data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. ENTER/EXIT PROGRAMMING MODE DEFAULT UPC-E to EAN-13 = Don’t Expand UPC-E to EAN-13 = Expand Expand UPC-E to UPC-A Expands UPC-E data to the UPC-A data format.
Page 139: Upc-E Number System Character Transmission
UPC-E UPC-E — cont. UPC-E Number System Character Transmission This feature enables/disables transmission of the UPC-E system number character. ENTER/EXIT PROGRAMMING MODE UPC-E Number System Character = Do not transmit DEFAULT UPC-E Number System Character = Transmit Product Reference Guide...
Page 140: Upc-E Minimum Reads
Symbologies UPC-E — cont. UPC-E Minimum Reads This feature specifies the minimum number of consecutive times a UPC-E label must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE UPC-E Minimum Reads = 1 DEFAULT UPC-E Minimum Reads = 2 UPC-E Minimum Reads = 3 UPC-E Minimum Reads = 4 QuickScan...
Page 141: Gtin Formatting
GTIN Formatting GTIN Formatting This feature enables/disables the ability to convert UPC-E, UPC-A, EAN 8, and EAN 13 labels into the GTIN 14-character format. If add-on information is present on the base label prior to the conversion taking place, the addon information will be appended to the converted GTIN label.
Page 142: Ean 13
Symbologies EAN 13 The following options apply to the EAN 13 (Jan 13) symbology. EAN 13 Enable/Disable When disabled, the reader will not read EAN 13/JAN 13 bar codes. ENTER/EXIT PROGRAMMING MODE EAN 13 = Disable DEFAULT EAN 13 = Enable EAN 13 Check Character Transmission Enable this option to transmit the check character along with EAN 13 bar code data.
Page 143: Ean-13 Flag 1 Character
EAN 13 EAN 13 — cont. EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN13 Flag1 character. The Flag 1 character is the first character of the label. ENTER/EXIT PROGRAMMING MODE EAN-13 Flag 1 Char= Don’t transmit DEFAULT EAN-13 Flag 1 Char= Transmit Product Reference Guide...
Page 144: Ean-13 Isbn Conversion
Symbologies EAN-13 ISBN Conversion This option enables/disables conversion of EAN 13/JAN 13 Bookland labels starting with 978 to ISBN labels. ENTER/EXIT PROGRAMMING MODE DEFAULT EAN-13 ISBN Conversion = Disable EAN-13 ISBN Conversion = Convert to ISBN ISSN Enable/Disable Enables/disables conversion of EAN/JAN13 Bookland labels starting with 977 to ISSN labels.
Page 145: Ean 13 Minimum Reads
EAN 13 EAN 13 — cont. EAN 13 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 13 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT EAN 13 Minimum Reads = 1 EAN 13 Minimum Reads = 2 EAN 13 Minimum Reads = 3 EAN 13 Minimum Reads = 4...
Page 146: Ean 8
Symbologies EAN 8 The following options apply to the EAN 8 (Jan 8) symbology. EAN 8 Enable/Disable When disabled, the reader will not read EAN 8/JAN 8 bar codes. ENTER/EXIT PROGRAMMING MODE EAN 8 = Disable DEFAULT EAN 8 = Enable EAN 8 Check Character Transmission Enable this option to transmit the check character along with EAN 8 bar code data.
Page 147: Expand Ean 8 To Ean 13
EAN 8 EAN 8 — cont. Expand EAN 8 to EAN 13 Enable this option to expand EAN 8/JAN 8 labels to EAN 13/JAN 13. ENTER/EXIT PROGRAMMING MODE DEFAULT Expand EAN 8 to EAN 13 = Disable Expand EAN 8 to EAN 13 = Enable Product Reference Guide...
Page 148: Ean 8 Minimum Reads
Symbologies EAN 8 — cont. EAN 8 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 8 (Jan 8) label must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE DEFAULT EAN 8 Minimum Reads = 1 EAN 8 Minimum Reads = 2 EAN 8 Minimum Reads = 3 EAN 8 Minimum Reads = 4...
Page 149: Upc/Ean Global Settings
UPC/EAN Global Settings UPC/EAN Global Settings This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 symbologies, and affects all of these unless otherwise marked for each feature description. UPC/EAN Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
Page 150 Symbologies UPC/EAN Global Settings — cont. UPC/EAN Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE UPC/EAN Decoding Level = 1 DEFAULT UPC/EAN Decoding Level = 2 UPC/EAN Decoding Level = 3 UPC/EAN Decoding Level = 4 UPC/EAN Decoding Level = 5 QuickScan QD2100...
Page 151: Upc/Ean Correlation
UPC/EAN Global Settings UPC/EAN Global Settings — cont. UPC/EAN Correlation When correlation is enabled, the bar code reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 152: Upc/Ean Price Weight Check
Symbologies UPC/EAN Global Settings — cont. UPC/EAN Price Weight Check This feature enables/disables calculation and verification of price/weight check digits. Options are • Disabled • Enable 4-digit price-weight check-digit calculation • Enable 5-digit price-weight check-digit calculation • Enable European 4-digit price-weight check-digit calculation •...
Page 153: Upc-A Minimum Reads
UPC/EAN Global Settings UPC/EAN Global Settings — cont. UPC-A Minimum Reads This feature specifies the minimum number of consecutive times a UPC-A label must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE DEFAULT UPC-A Minimum Reads = 1 UPC-A Minimum Reads = 2 UPC-A Minimum Reads = 3 UPC-A Minimum Reads = 4...
Page 154: Add-Ons
Symbologies Add-Ons The following features apply to optional add-ons. Contact Customer Support for advanced programming of optional and conditional add-ons. NOTE Optional Add-ons The reader can be enabled to optionally read the following add-ons (supplementals): • • • GS1-128 If a UPC/EAN base label and a an add-on are both decoded, the reader will transmit the base label and add-on.
Page 155 Add-Ons Add-Ons — cont. Optional Add-ons — cont. ENTER/EXIT PROGRAMMING MODE Optional Add-Ons = Enable P5 DEFAULT Optional Add-Ons = Disable GS1-128 Optional Add-Ons = Enable GS1-128 Product Reference Guide...
Page 156: Optional Add-On Timer
Symbologies Add-Ons — cont. Optional Add-On Timer This option sets the time the reader will look for an add-on when an add-on fragment Optional GS1-128 Add-On has been seen and optional add-ons are enabled. (Also see Timer on page 149 ENTER/EXIT PROGRAMMING MODE Optional Add-on Timer = 10ms Optional Add-on Timer = 20ms...
Page 157 Add-Ons Add-Ons — cont. Optional Add-On Timer — cont. ENTER/EXIT PROGRAMMING MODE Optional Add-on Timer = 60ms DEFAULT Optional Add-on Timer = 70ms Optional Add-on Timer = 100ms Optional Add-on Timer = 120ms Optional Add-on Timer = 140ms Optional Add-on Timer = 160ms Product Reference Guide...
Page 158 Symbologies Add-Ons — cont. Optional Add-On Timer — cont. ENTER/EXIT PROGRAMMING MODE Optional Add-on Timer = 180ms Optional Add-on Timer = 200ms Optional Add-on Timer = 220ms Optional Add-on Timer = 240ms Optional Add-on Timer = 260ms Optional Add-on Timer = 280ms Optional Add-on Timer = 300ms QuickScan QD2100...
Page 159: Optional Gs1-128 Add-On Timer
Add-Ons Add-Ons — cont. Optional GS1-128 Add-On Timer This option sets the timer expiration value to read the additional part after reading the Option- linear EAN/UPC part. For UPC/EAN add-ons other than those of this type, see al Add-On Timer on page 146 ENTER/EXIT PROGRAMMING MODE DEFAULT Optional GS1-128 Add-On Timer = Disable...
Page 160 Symbologies Add-Ons — cont. Optional GS1-128 Add-On Timer — cont. ENTER/EXIT PROGRAMMING MODE Optional GS1-128 Add-On Timer = 60ms Optional GS1-128 Add-On Timer = 70ms Optional GS1-128 Add-On Timer = 100ms Optional GS1-128 Add-On Timer = 120ms Optional GS1-128 Add-On Timer = 140ms Optional GS1-128 Add-On Timer = 160ms QuickScan QD2100...
Page 161 Add-Ons Add-Ons — cont. Optional GS1-128 Add-On Timer — cont. ENTER/EXIT PROGRAMMING MODE Optional GS1-128 Add-On Timer = 180ms Optional GS1-128 Add-On Timer = 200ms Optional GS1-128 Add-On Timer = 220ms Optional GS1-128 Add-On Timer = 240ms Optional GS1-128 Add-On Timer = 260ms Optional GS1-128 Add-On Timer = 280ms Optional GS1-128 Add-On Timer = 300ms Product Reference Guide...
Page 162: P2 Add-Ons Minimum Reads
Symbologies Add-Ons — cont. P2 Add-Ons Minimum Reads This feature specifies the minimum number of times a P2 add-on must be read before it is marked as valid and then combined with a base label ENTER/EXIT PROGRAMMING MODE P2 Add-Ons Minimum Reads = 1 DEFAULT P2 Add-Ons Minimum Reads = 2 P2 Add-Ons Minimum Reads = 3...
Page 163: P5 Add-Ons Minimum Reads
Add-Ons Add-Ons — cont. P5 Add-Ons Minimum Reads This feature specifies the minimum number of times a P5 add-on must be read before it is marked as valid and then combined with a base label ENTER/EXIT PROGRAMMING MODE DEFAULT P5 Add-Ons Minimum Reads = 1 P5 Add-Ons Minimum Reads = 2 P5 Add-Ons Minimum Reads = 3 P5 Add-Ons Minimum Reads = 4...
Page 164: Gs1-128 Add-Ons Minimum Reads
Symbologies Add-Ons — cont. GS1-128 Add-Ons Minimum Reads This feature specifies the minimum number of times an GS1-128 add-on must be read before it is marked as valid and then combined with a base label ENTER/EXIT PROGRAMMING MODE DEFAULT GS1-128 Add-Ons Minimum Reads = 1 GS1-128 Add-Ons Minimum Reads = 2 GS1-128 Add-Ons Minimum Reads = 3 GS1-128 Add-Ons Minimum Reads = 4...
Page 165: Gs1 Databar Tm Omnidirectional
GS1 DataBar Omnidirectional GS1 DataBar Omnidirectional The following options apply to the GS1 DataBar Omnidirectional (formerly RSS-14) symbology. GS1 DataBar Omnidirectional Enable/Disable When disabled, the reader will not read GS1 DataBar Omnidirectional bar codes. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar Omnidirectional = Disable GS1 DataBar Omnidirectional = Enable GS1 DataBar Omnidirectional GS1-128 Emulation When enabled, GS1 DataBar Omnidirectional bar codes will be translated to the GS1-...
Page 166: Gs1 Databar Omnidirectional Minimum Reads
Symbologies GS1 DataBarTM Omnidirectional — cont. GS1 DataBar Omnidirectional Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar Omni- directional label must be decoded before it is accepted as good read ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar Omnidirectional Minimum Reads = 1 GS1 DataBar Omnidirectional Minimum Reads = 2 GS1 DataBar Omnidirectional Minimum Reads = 3...
Page 167: Gs1 Databar Tm Expanded
GS1 DataBar Expanded GS1 DataBar Expanded The following options apply to the GS1 DataBar Expanded (formerly RSS Expanded) symbology. GS1 DataBar Expanded Enable/Disable When disabled, the reader will not read GS1 DataBar Expanded bar codes. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar Expanded = Disable GS1 DataBar Expanded = Enable GS1 DataBar Expanded GS1-128 Emulation When enabled, GS1 DataBar Expanded bar codes will be translated to the GS1-128 label...
Page 168: Gs1 Databar Expanded Minimum Reads
Symbologies GS1 DataBarTM Expanded — cont. GS1 DataBar Expanded Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar Ex- panded label must be decoded before it is accepted as good read ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar Expanded Minimum Reads = 1 GS1 DataBar Expanded Minimum Reads = 2 GS1 DataBar Expanded Minimum Reads = 3...
Page 169: Gs1 Databar Expanded Length Control
GS1 DataBar Expanded GS1 DataBarTM Expanded — cont. GS1 DataBar Expanded Length Control This feature specifies either variable length decoding or fixed length decoding for the GS1 DataBar Expanded symbology. For variable-length decoding, a minimum length may be set. Variable Length — For fixed-length decoding, two different lengths may be set.
Page 170: Gs1 Databar Expanded Set Length 1
Symbologies GS1 DataBarTM Expanded — cont. GS1 DataBar Expanded Set Length 1 GS1 DataBar Expanded Length This feature specifies one of the bar code lengths for Control Variable Length . Length 1 is the minimum label length if in Mode, or the first Fixed Length fixed length if in Mode.
Page 171 GS1 DataBar Expanded GS1 DataBarTM Expanded — cont. GS1 DataBar Expanded Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select GS1 DataBar Expanded Set Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 172: Gs1 Databar Expanded Set Length 2
Symbologies GS1 DataBarTM Expanded — cont. GS1 DataBar Expanded Set Length 2 GS1 DataBar Expanded Length This feature specifies one of the bar code lengths for Control Variable Length . Length 2 is the maximum label length if in Mode, or the sec- Fixed Length ond fixed length if in Mode.
Page 173 GS1 DataBar Expanded GS1 DataBarTM Expanded — cont. GS1 DataBar Expanded Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select GS1 DataBar Expanded Set Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 174: Gs1 Databar Tm Limited
Symbologies GS1 DataBar Limited The following options apply to the GS1 DataBar Limited (formerly RSS Limited) sym- bology. GS1 DataBar Limited Enable/Disable When disabled, the reader will not read GS1 DataBar Limited bar codes. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar Limited = Disable GS1 DataBar Limited = Enable GS1 DataBar Limited GS1-128 Emulation When enabled, GS1 DataBar Limited bar codes will be translated to the GS1-128 label...
Page 175: Gs1 Databar Limited Minimum Reads
GS1 DataBar Limited GS1 DataBarTM Limited — cont. GS1 DataBar Limited Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar Limited label must be decoded before it is accepted as good read ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar Limited Minimum Reads = 1 GS1 DataBar Limited Minimum Reads = 2...
Page 176: Code 39
Symbologies Code 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable When disabled, the reader will not read Code 39 bar codes. ENTER/EXIT PROGRAMMING MODE Code 39 = Disable DEFAULT Code 39 = Enable QuickScan QD2100...
Page 177: Code 39 Check Character Calculation
Code 39 Code 39 — cont. Code 39 Check Character Calculation Enable this option to enable/disable calculation and verification of an optional Code 39 check character. When disabled, any check character in the label is treated as a data char- acter ENTER/EXIT PROGRAMMING MODE DEFAULT...
Page 178: Code 39 Check Character Transmission
Symbologies Code 39 — cont. Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 bar code data. ENTER/EXIT PROGRAMMING MODE Code 39 Check Character Transmission = Don’t Send DEFAULT Code 39 Check Character Transmission = Send Code 39 Start/Stop Character Transmission Enable this option to enable/disable transmission of Code 39 start and stop characters ENTER/EXIT PROGRAMMING MODE...
Page 179: Code 39 Full Ascii
Code 39 Code 39 — cont. Code 39 Full ASCII In Code 39 decoding, this enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 39 Full ASCII = Disable Code 39 Full ASCII = Enable Product Reference Guide...
Page 180: Code 39 Quiet Zones
Symbologies Code 39 — cont. Code 39 Quiet Zones This feature specifies the number of quiet zones for Code 39 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrowest bar or space in the label.
Page 181: Code 39 Minimum Reads
Code 39 Code 39 — cont. Code 39 Minimum Reads This feature specifies the minimum number of consecutive times a Code 39 label must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE Code 39 Minimum Reads = 1 DEFAULT Code 39 Minimum Reads = 2 Code 39 Minimum Reads = 3...
Page 182: Code 39 Decoding Level
Symbologies Code 39 — cont. Code 39 Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
Page 183 Code 39 Code 39 — cont. Code 39 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Code 39 Decoding Level = 1 Code 39 Decoding Level = 2 DEFAULT Code 39 Decoding Level = 3 Code 39 Decoding Level = 4 Code 39 Decoding Level = 5 Product Reference Guide...
Page 184: Code 39 Length Control
Symbologies Code 39 — cont. Code 39 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 39 symbology. For variable length decoding, a minimum and maximum length may be Variable Length — set. For fixed length decoding, two different lengths may be set.
Page 185: Code 39 Set Length 1
Code 39 Code 39 — cont. Code 39 Set Length 1 Code 39 Length Control This feature specifies one of the bar code lengths for . Length 1 Variable Length is the minimum label length if in Mode, or the first fixed length if in Fixed Length Mode.
Page 186 Symbologies Code 39 — cont. Code 39 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 39 Set Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 187: Code 39 Set Length 2
Code 39 Code 39 — cont. Code 39 Set Length 2 Code 39 Length Control This feature specifies one of the bar code lengths for . Length 2 Variable Length is the maximum label length if in Mode, or the second fixed length if Fixed Length Mode.
Page 188 Symbologies Code 39 — cont. Code 39 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 39Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 189: Code 39 Interdigit Ratio
Code 39 Code 39 — cont. Code 39 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 39 labels. ENTER/EXIT PROGRAMMING MODE Code 39 Interdigit Ratio = Disable Code 39 Interdigit Ratio = 1 Code 39 Interdigit Ratio = 2 Code 39 Interdigit Ratio = 3 DEFAULT...
Page 190 Symbologies Code 39 — cont. Code 39 Interdigit Ratio — cont. ENTER/EXIT PROGRAMMING MODE Code 39 Interdigit Ratio = 6 Code 39 Interdigit Ratio = 7 Code 39 Interdigit Ratio = 8 Code 39 Interdigit Ratio = 9 Code 39 Interdigit Ratio = 10 QuickScan QD2100...
Page 191: Code 39 Character Correlation
Code 39 Code 39 — cont. Code 39 Character Correlation When correlation is enabled, the bar code reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 192: Code 39 Stitching
Symbologies Code 39 Stitching This option enables/disables stitching for Code 39 labels. When parts of a Code 39 bar code are presented to the reader with this feature enabled, the bar code parts will be as- sembled by the reader’s software, and the data will be decoded if all bar code proofing requirements are met.
Page 193: Code 32 (Italian Pharmaceutical)
Code 32 (Italian Pharmaceutical) Code 32 (Italian Pharmaceutical) The following options apply to the Code 32 symbology. Code 32 Enable/Disable When disabled, the reader will not read Code 32 bar codes. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 32 = Disable Code 32 = Enable Code 32 Feature Setting Exceptions The following features are set for Code 32 by using these Code 39 set- tings:...
Page 194: Code 32 Check Character Transmission
Symbologies Code 32 (Italian Pharmaceutical) — cont. Code 32 Check Character Transmission Enable this option to transmit the check character along with Code 32 bar code data. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 32 Check Character Transmission = Don’t Send Code 32 Check Character Transmission = Send Code 32 Start/Stop Character Transmission This option enables/disable transmission of Code 32 start and stop characters ENTER/EXIT PROGRAMMING MODE...
Page 195: Code 39 Cip (French Pharmaceutical)
Code 39 CIP (French Pharmaceutical) Code 39 CIP (French Pharmaceutical) The following options apply to the Code 39 CIP symbology. Code 39 CIP Enable/Disable Enables/Disables ability of the reader to decode Code 39 CIP labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 39 CIP = Disable Code 39 CIP = Enable Code 128 The following options apply to the Code 128 symbology.
Page 196: Expand Code 128 To Code 39
Symbologies Code 128 — cont. Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 128 to Code 39 = Don’t Expand Code 128 to Code 39 = Expand Code 128 Check Character Transmission Enable this option to transmit the check character along with Code 128 bar code data.
Page 197: Code 128 Function Character Transmission
Code 128 Code 128 — cont. Code 128 Function Character Transmission Enables/disables transmission of Code128 function characters 1, 2, 3, and 4. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 128 Function Character Transmission = Don’t Send Code 128 Function Character Transmission = Send Product Reference Guide...
Page 198: Code 128 Sub-Code Change Transmission
Symbologies Code 128 — cont. Code 128 Sub-Code Change Transmission Enables/disables the transmission of “Sub-Code exchange” characters (NOT transmitted by standard decoding). ENTER/EXIT PROGRAMMING MODE DEFAULT Code 128 Sub-Code Change Transmission = Disable Code 128 Sub-Code Change Transmission = Enable QuickScan QD2100...
Page 199: Code 128 Quiet Zones
Code 128 Code 128 — cont. Code 128 Quiet Zones This feature specifies the number of quiet zones for Code 128 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrowest bar or space in the label.
Page 200: Code 128 Minimum Reads
Symbologies Code 128 — cont. Code 128 Minimum Reads This feature specifies the minimum number of consecutive times a Code 128 label must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 128 Minimum Reads = 1 Code 128 Minimum Reads = 2 Code 128 Minimum Reads = 3 Code 128 Minimum Reads = 4...
Page 201: Code 128 Decoding Level
Code 128 Code 128 — cont. Code 128 Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
Page 202 Symbologies Code 128 — cont. Code 128 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Code 128 Decoding Level = 1 Code 128 Decoding Level = 2 DEFAULT Code 128 Decoding Level = 3 Code 128 Decoding Level = 4 Code 128 Decoding Level = 5 QuickScan QD2100...
Page 203: Code 128 Length Control
Code 128 Code 128 — cont. Code 128 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 128 symbology. For variable length decoding, a minimum and maximum length may be Variable Length — set.
Page 204: Code 128 Set Length 1
Symbologies Code 128 — cont. Code 128 Set Length 1 Code 128 Length Control This feature specifies one of the bar code lengths for . Length Variable Length 1 is the minimum label length if in Mode, or the first fixed length if in Fixed Length Mode.
Page 205 Code 128 Code 128 — cont. Code 128 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 128 Set Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 206: Code 128 Set Length 2
Symbologies Code 128 — cont. Code 128 Set Length 2 Code 128 Length Control This feature specifies one of the bar code lengths for . Length Variable Length 2 is the maximum label length if in Mode, or the second fixed length if Fixed Length Mode.
Page 207 Code 128 Code 128 — cont. Code 128 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 128 Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 208: Code 128 Character Correlation
Symbologies Code 128 — cont. Code 128 Character Correlation When correlation is enabled, the bar code reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 209: Code 128 Stitching
Code 128 Code 128 — cont. Code 128 Stitching This option enables/disables stitching for Code 128 labels. When parts of a Code 128 bar code are presented to the reader with this feature enabled, the bar code parts will be assembled by the reader’s software, and the data will be decoded if all bar code proofing requirements are met.
Page 210: Gs1-128
Symbologies GS1-128 The following options apply to the GS1-128 symbology. (Also known as USS-128, GTIN-128, UCC-128.) GS1-128 Enable This option enables/disables the ability of the reader to translate GS1-128 labels to the GS1-128 data format. Options are: • Transmit GS1-128 labels in Code 128 data format. •...
Page 211: Interleaved 2 Of 5 (I 2 Of 5)
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) The following options apply to the I 2 of 5 symbology. I 2 of 5 Enable/Disable When disabled, the reader will not read I 2 of 5 bar codes. ENTER/EXIT PROGRAMMING MODE DEFAULT I 2 of 5 = Disable...
Page 212: I 2 Of 5 Check Character Calculation
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional I 2 of 5 check character. When disabled, any check character in label is treated as a data character. ENTER/EXIT PROGRAMMING MODE DEFAULT I 2 of 5 Check Character Calculation = Disable...
Page 213: I 2 Of 5 Check Character Transmission
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Check Character Calculation — cont. ENTER/EXIT PROGRAMMING MODE I 2 of 5 Check Character Calculation = Check Italian Post I 2 of 5 Check Character Transmission Enable this option to transmit the check character along with I 2 of 5 bar code data.
Page 214: I 2 Of 5 Minimum Reads
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an I 2 of 5 label must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE I 2 of 5 Minimum Reads = 1 DEFAULT...
Page 215: Of 5 Decoding Level
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. 2 of 5 Decoding Level This configuration item applies to Interleaved 2 of 5, Datalogic 2 of 5 and Standard 2 of 5. NOTE Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
Page 216 Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. 2 of 5 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE 2 of 5 Decoding Level = 1 2 of 5 Decoding Level = 2 DEFAULT 2 of 5 Decoding Level = 3 2 of 5 Decoding Level = 4 2 of 5 Decoding Level = 5 QuickScan...
Page 217: I 2 Of 5 Length Control
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the I 2 of 5 symbology. For variable length decoding, a minimum and maximum length may be Variable Length —...
Page 218: I 2 Of 5 Set Length 1
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Set Length 1 I 2 of 5 Length Control This feature specifies one of the bar code lengths for . Length 1 Variable Length is the minimum label length if in Mode, or the first fixed length if in Fixed Length Mode.
Page 219 Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. Datalogic 2 of 5 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select I 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string.
Page 220: I 2 Of 5 Set Length 2
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Set Length 2 I 2 of 5 Length Control This feature specifies one of the bar code lengths for . Length 2 Variable Length is the maximum label length if in Mode, or the second fixed length if Fixed Length Mode.
Page 221 Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select I 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string.
Page 222: I 2 Of 5 Character Correlation
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Character Correlation When correlation is enabled, the bar code reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids.
Page 223: I 2 Of 5 Stitching
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Stitching This option enables/disables stitching for I 2 of 5 labels. When parts of a I 2 of 5 bar code are presented to the reader with this feature enabled, the bar code parts will be assembled by the reader’s software, and the data will be decoded if all bar code proofing require- ments are met.
Page 224: Interleaved 2 Of 5 Cip Hr
Datalogic 2 of 5 The following options apply to the Datalogic 2 of 5 symbology. Datalogic 2 of 5 Enable/Disable When disabled, the reader will not read Datalogic 2 of 5 bar codes. ENTER/EXIT PROGRAMMING MODE DEFAULT Datalogic 2 of 5 = Disable...
Page 225: Datalogic 2 Of 5 Check Character Calculation
Datalogic 2 of 5 Datalogic 2 of 5 — cont. Datalogic 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional Datalogic 2 of 5 check character. ENTER/EXIT PROGRAMMING MODE DEFAULT Datalogic 2 of 5 Check Character Calculation = Disable...
Page 226: Datalogic 2 Of 5 Minimum Reads
Datalogic 2 of 5 — cont. Datalogic 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an Datalogic 2 of 5 la- bel must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE...
Page 227: Datalogic 2 Of 5 Length Control
Variable Length — set. For fixed length decoding, two different lengths may be set. Fixed Length — ENTER/EXIT PROGRAMMING MODE DEFAULT Datalogic 2 of 5 Length Control = Variable Length Datalogic 2 of 5 Length Control = Fixed Length Product Reference Guide...
Page 228: Datalogic 2 Of 5 Set Length 1
6. Scan the ENTER/EXIT PROGRAMMING MODE bar code to exit Programming Mode. Table 27 This completes the procedure. See for some examples of how to set this feature. Table 27. Datalogic 2 of 5 Length 1 Setting Examples STEP ACTION EXAMPLES Desired Setting...
Page 229 Datalogic 2 of 5 Datalogic 2 of 5 — cont. Datalogic 2 of 5 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Datalogic 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string.
Page 230: Datalogic 2 Of 5 Set Length 2
20, etc. 3. Scan the ENTER/EXIT PROGRAMMING MODE bar code to enter Programming Mode. 4. Scan the bar code: SELECT Datalogic 2 of 5 LENGTH 2 SETTING. Appendix E, Keypad, that represent 5. Scan the appropriate two digits from the keypad in the length setting which was determined in the steps above.
Page 231 Datalogic 2 of 5 Datalogic 2 of 5 — cont. Datalogic 2 of 5 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Datalogic 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string.
Page 232: Datalogic 2 Of 5 Interdigit Maximum Ratio
This feature specifies the maximum ratio between intercharacter space and module for Datalogic 2 of 5. ENTER/EXIT PROGRAMMING MODE Datalogic 2 of 5 Interdigit Maximum Ratio = Disable Datalogic 2 of 5 Interdigit Maximum Ratio = 1 Datalogic 2 of 5 Interdigit Maximum Ratio = 2...
Page 233 Datalogic 2 of 5 Datalogic 2 of 5 Interdigit Maximum Ratio — cont. Datalogic 2 of 5 Interdigit Maximum Ratio = 6 Datalogic 2 of 5 Interdigit Maximum Ratio = 7 Datalogic 2 of 5 Interdigit Maximum Ratio = 8...
Page 234: Datalogic 2 Of 5 Character Correlation
Symbologies Datalogic 2 of 5 — cont. Datalogic 2 of 5 Character Correlation When correlation is enabled, the bar code reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids.
Page 235: Datalogic 2 Of 5 Stitching
Datalogic 2 of 5 — cont. Datalogic 2 of 5 Stitching This option enables/disables stitching for Datalogic 2 of 5 labels. When parts of a Data- logic 2 of 5 bar code are presented to the reader with this feature enabled, the bar code parts will be assembled by the reader’s software, and the data will be decoded if all bar...
Page 236: Codabar
Symbologies Codabar The following options apply to the Codabar symbology. Codabar Enable/Disable When disabled, the reader will not read Codabar bar codes. ENTER/EXIT PROGRAMMING MODE DEFAULT Codabar = Disable Codabar = Enable QuickScan QD2100...
Page 237: Codabar Check Character Calculation
Codabar Codabar — cont. Codabar Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Cod- abar check character. When disabled, any check characters in the label are treated as data character ENTER/EXIT PROGRAMMING MODE DEFAULT Codabar Check Character Calculation = Don’t Calculate Codabar Check Character Calculation = Enable AIM stan- dard check char.
Page 238: Codabar Check Character Transmission
Symbologies Codabar — cont. Codabar Check Character Transmission Enable this option to transmit the check character along with Codabar bar code data. ENTER/EXIT PROGRAMMING MODE Codabar Check Character Transmission = Don’t Send DEFAULT Codabar Check Character Transmission = Send Codabar Start/Stop Character Transmission Enable this option to enable/disable transmission of Codabar start and stop characters ENTER/EXIT PROGRAMMING MODE Codabar Start/Stop Character Transmission = Don’t Trans-...
Page 239: Codabar Start/Stop Character Set
Codabar Codabar — cont. Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop characters ENTER/EXIT PROGRAMMING MODE Codabar Check Character Set = ABCD/TN*E Codabar Check Character Set = ABCD/ABCD Codabar Check Character Set = abcd/tn*e DEFAULT Codabar Check Character Set = abcd/abcd Product Reference Guide...
Page 240: Codabar Start/Stop Character Match
Symbologies Codabar — cont. Codabar Start/Stop Character Match When enabled, this option requires that start and stop characters match ENTER/EXIT PROGRAMMING MODE DEFAULT Codabar Start/Stop Character Match = Don’t Require Match Codabar Start/Stop Character Match = Require Match QuickScan QD2100...
Page 241: Codabar Quiet Zones
Codabar Codabar — cont. Codabar Quiet Zones This feature specifies the number of quiet zones for Codabar labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrowest bar or space in the label.
Page 242: Codabar Minimum Reads
Symbologies Codabar — cont. Codabar Minimum Reads This feature specifies the minimum number of consecutive times a Codabar label must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE Codabar Minimum Reads = 1 DEFAULT Codabar Minimum Reads = 2 Codabar Minimum Reads = 3 Codabar Minimum Reads = 4 QuickScan...
Page 243: Codabar Decoding Level
Codabar Codabar — cont. Codabar Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
Page 244 Symbologies Codabar — cont. Codabar Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Codabar Decoding Level = 1 Codabar Decoding Level = 2 DEFAULT Codabar Decoding Level = 3 Codabar Decoding Level = 4 Codabar Decoding Level = 5 QuickScan QD2100...
Page 245: Codabar Length Control
Codabar Codabar — cont. Codabar Length Control This feature specifies either variable length decoding or fixed length decoding for the Codabar symbology. For variable length decoding, a minimum and maximum length may be Variable Length — set. For fixed length decoding, two different lengths may be set. Fixed Length —...
Page 246: Codabar Set Length 1
Symbologies Codabar — cont. Codabar Set Length 1 Codabar Length Control This feature specifies one of the bar code lengths for . Length 1 Variable Length is the minimum label length if in Mode, or the first fixed length if in Fixed Length Mode.
Page 247 Codabar Codabar — cont. Codabar Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Codabar Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 248: Codabar Set Length 2
Symbologies Codabar — cont. Codabar Set Length 2 Codabar Length Control This feature specifies one of the bar code lengths for . Length 2 Variable Length is the maximum label length if in Mode, or the second fixed length if Fixed Length Mode.
Page 249 Codabar Codabar — cont. Codabar Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select CodabarLength 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 250: Codabar Interdigit Ratio
Symbologies Codabar — cont. Codabar Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Codabar labels. ENTER/EXIT PROGRAMMING MODE Codabar Interdigit Ratio = Disable Codabar Interdigit Ratio = 1 Codabar Interdigit Ratio = 2 Codabar Interdigit Ratio = 3 DEFAULT Codabar Interdigit Ratio = 4 Codabar Interdigit Ratio = 5...
Page 251 Codabar Codabar — cont. Codabar Interdigit Ratio — cont. ENTER/EXIT PROGRAMMING MODE Codabar Interdigit Ratio = 6 Codabar Interdigit Ratio = 7 Codabar Interdigit Ratio = 8 Codabar Interdigit Ratio = 9 Codabar Interdigit Ratio = 10 Product Reference Guide...
Page 252: Codabar Character Correlation
Symbologies Codabar — cont. Codabar Character Correlation When correlation is enabled, the bar code reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 253: Codabar Stitching
Codabar Codabar — cont. Codabar Stitching This option enables/disables stitching for Codabar labels. When parts of a Codabar bar code are presented to the reader with this feature enabled, the bar code parts will be as- sembled by the reader’s software, and the data will be decoded if all bar code proofing requirements are met.
Page 254: Abc Codabar
Symbologies ABC Codabar The following options apply to the ABC Codabar symbology. ABC Codabar Enable/Disable Enables/Disables ability of reader to decode ABC Codabar labels. ENTER/EXIT PROGRAMMING MODE DEFAULT ABC Codabar = Disable ABC Codabar = Enable ABC Codabar Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
Page 255: Abc Codabar Dynamic Concatenation Timeout
ABC Codabar ABC Codabar — cont. ABC Codabar Dynamic Concatenation Timeout Specifies the timeout in 10-millisecond ticks used by the ABC Codabar Dynamic Con- catenation Mode. ENTER/EXIT PROGRAMMING MODE ABC Codabar Dynamic Concatenation Timeout = 50 msec ABC Codabar Dynamic Concatenation Timeout = 100 msec DEFAULT ABC Codabar Dynamic Concatenation Timeout = 200 msec...
Page 256: Abc Codabar Force Concatenation
Symbologies ABC Codabar — cont. ABC Codabar Force Concatenation Forces labels starting or ending with D to be concatenated. ENTER/EXIT PROGRAMMING MODE DEFAULT ABC Codabar Force Concatenation = Disable ABC Codabar Force Concatenation = Enable QuickScan QD2100...
Page 257: Code 11
Code 11 Code 11 The following options apply to the Code 11 symbology. Code 11 Enable/Disable When disabled, the reader will not read Code 11 bar codes. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 11 = Disable Code 11 = Enable Product Reference Guide...
Page 258: Code 11 Check Character Calculation
Symbologies Code 11 — cont. Code 11 Check Character Calculation This option enables/disables calculation and verification of optional Code 11 check char- acter. ENTER/EXIT PROGRAMMING MODE Code 11 Check Character Calculation = Disable Code 11 Check Character Calculation = Check C Code 11 Check Character Calculation = Check K DEFAULT Code 11 Check Character Calculation = Check C and K...
Page 259: Code 11 Check Character Transmission
Code 11 Code 11 — cont. Code 11 Check Character Transmission This feature enables/disables transmission of an optional Code 11 check character. ENTER/EXIT PROGRAMMING MODE Code 11 Check Character Transmission = Don’t Send DEFAULT Code 11 Check Character Transmission = Send Product Reference Guide...
Page 260: Code 11 Minimum Reads
Symbologies Code 11 — cont. Code 11 Minimum Reads This feature specifies the minimum number of consecutive times a Code 11 label must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE Code 11 Minimum Reads = 1 DEFAULT Code 11 Minimum Reads = 2 Code 11 Minimum Reads = 3...
Page 261: Code 11 Length Control
Code 11 Code 11 — cont. Code 11 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 11 symbology. For variable length decoding, a minimum and maximum length may be Variable Length — set.
Page 262: Code 11 Set Length 1
Symbologies Code 11 — cont. Code 11 Set Length 1 Code 11 Length Control This feature specifies one of the bar code lengths for . Length 1 Variable Length is the minimum label length if in Mode, or the first fixed length if in Fixed Length Mode.
Page 263 Code 11 Code 11 — cont. Code 11 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 11 Set Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 264: Code 11 Set Length 2
Symbologies Code 11 — cont. Code 11 Set Length 2 Code 11 Length Control This feature specifies one of the bar code lengths for . Length 2 Variable Length is the maximum label length if in Mode, or the second fixed length if Fixed Length Mode.
Page 265 Code 11 Code 11 — cont. Code 11 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 11 Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 266: Code 11 Interdigit Ratio
Symbologies Code 11 — cont. Code 11 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 11 labels. ENTER/EXIT PROGRAMMING MODE Code 11 Interdigit Ratio = Disable Code 11 Interdigit Ratio = 1 Code 11 Interdigit Ratio = 2 Code11 Interdigit Ratio = 3 DEFAULT Code 11 Interdigit Ratio = 4...
Page 267 Code 11 Code 11 — cont. Code 11 Interdigit Ratio — cont. ENTER/EXIT PROGRAMMING MODE Code 11 Interdigit Ratio = 6 Code 11 Interdigit Ratio = 7 Code 11 Interdigit Ratio = 8 Code 11 Interdigit Ratio = 9 Code 11 Interdigit Ratio = 10 Product Reference Guide...
Page 268: Code 11 Decoding Level
Symbologies Code 11 Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
Page 269 Code 11 Code 11 — cont. Code 11 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Codabar Decoding Level = 1 Codabar Decoding Level = 2 DEFAULT Codabar Decoding Level = 3 Codabar Decoding Level = 4 Codabar Decoding Level = 5 Product Reference Guide...
Page 270: Code 11 Character Correlation
Symbologies Code 11 — cont. Code 11 Character Correlation When correlation is enabled, the bar code reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 271: Code 11 Stitching
Code 11 Code 11 Stitching This option enables/disables stitching for Code 11 labels. When parts of a Code 11 bar code are presented to the reader with this feature enabled, the bar code parts will be as- sembled by the reader’s software, and the data will be decoded if all bar code proofing requirements are met.
Page 272: Standard 2 Of 5
Symbologies Standard 2 of 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the reader will not read Standard 2 of 5 bar codes. ENTER/EXIT PROGRAMMING MODE DEFAULT Standard 2 of 5 = Disable Standard 2 of 5 = Enable QuickScan QD2100...
Page 273: Standard 2 Of 5 Check Character Calculation
Standard 2 of 5 Standard 2 of 5 — cont. Standard 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional Standard 2 of 5 check character. ENTER/EXIT PROGRAMMING MODE DEFAULT Standard 2 of 5 Check Character Calculation = Disable Standard 2 of 5 Check Character Calculation = Enable Standard 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Standard 2 of 5 check character.
Page 274: Standard 2 Of 5 Minimum Reads
Symbologies Standard 2 of 5 — cont. Standard 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times a Standard 2 of 5 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Minimum Reads = 1 DEFAULT Standard 2 of 5 Minimum Reads = 2...
Page 275: Standard 2 Of 5 Length Control
Standard 2 of 5 Standard 2 of 5 — cont. Standard 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Standard 2 of 5 symbology. For variable length decoding, a minimum and maximum length may be Variable Length —...
Page 276: Standard 2 Of 5 Set Length 1
Symbologies Standard 2 of 5 — cont. Standard 2 of 5 Set Length 1 Standard 2 of 5 Length Control This feature specifies one of the bar code lengths for Variable Length Length 1 is the minimum label length if in Mode, or the first fixed Fixed Length length if in...
Page 277 Standard 2 of 5 Standard 2 of 5 — cont. Standard 2 of 5 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Standard 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string.
Page 278: Standard 2 Of 5 Set Length 2
Symbologies Standard 2 of 5 — cont. Standard 2 of 5 Set Length 2 Standard 2 of 5 Length Control This feature specifies one of the bar code lengths for Variable Length Length 2 is the maximum label length if in Mode, or the second fixed Fixed Length length if in...
Page 279 Standard 2 of 5 Standard 2 of 5 — cont. Standard 2 of 5 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Standard 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string.
Page 280: Standard 2 Of 5 Character Correlation
Symbologies Standard 2 of 5 — cont. Standard 2 of 5 Character Correlation When correlation is enabled, the bar code reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids.
Page 281: Standard 2 Of 5 Stitching
Standard 2 of 5 Standard 2 of 5 Stitching This option enables/disables stitching for Standard 2 of 5 labels. When parts of a Stan- dard 2 of 5 bar code are presented to the reader with this feature enabled, the bar code parts will be assembled by the reader’s software, and the data will be decoded if all bar code proofing requirements are met.
Page 282: Industrial 2 Of 5
Symbologies Industrial 2 of 5 The following options apply to the Industrial 2 of 5 symbology. Industrial 2 of 5 Enable/Disable Enables/Disables ability of reader to decode Industrial 2 of 5 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Industrial 2 of 5 = Disable Industrial 2 of 5 = Enable Industrial 2 of 5 Check Character Calculation Enables/Disables calculation and verification of an optional Industrial 2 of 5 check char-...
Page 283: Industrial 2 Of 5 Check Character Transmission
Industrial 2 of 5 Industrial 2 of 5 — cont. Industrial 2 of 5 Check Character Transmission Enables/disables transmission of an Industrial 2 of 5 check character. ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Check Character Transmission = Disable DEFAULT Industrial 2 of 5 Check Character Transmission = Enable Product Reference Guide...
Page 284: Industrial 2 Of 5 Length Control
Symbologies Industrial 2 of 5 — cont. Industrial 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the In- dustrial 2 of 5 symbology. For variable length decoding, a minimum and maximum length may be Variable Length —...
Page 285: Industrial 2 Of 5 Set Length 1
Industrial 2 of 5 Industrial 2 of 5 — cont. Industrial 2 of 5 Set Length 1 Industrial 2 of 5 Length Control This feature specifies one of the bar code lengths for Variable Length Length 1 is the minimum label length if in Mode, or the first fixed Fixed Length length if in...
Page 286 Symbologies Industrial 2 of 5 — cont. Industrial 2 of 5 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Industrial 2 of 5 Set Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 287: Industrial 2 Of 5 Set Length 2
Industrial 2 of 5 Industrial 2 of 5 — cont. Industrial 2 of 5 Set Length 2 Industrial 2 of 5 Length Control This feature specifies one of the bar code lengths for Variable Length Length 2 is the maximum label length if in Mode, or the second fixed Fixed Length length if in...
Page 288: Industrial 2 Of 5 Set Length 2
Symbologies Industrial 2 of 5 — cont. Industrial 2 of 5 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Industrial 2 of5 Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 289: Industrial 2 Of 5 Minimum Reads
Industrial 2 of 5 Industrial 2 of 5 — cont. Industrial 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an Industrial 2 of 5 la- bel must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE DEFAULT Industrial 2 of 5 Minimum Reads = 1...
Page 290: Industrial 2 Of 5 Stitching
Symbologies Industrial 2 of 5 — cont. Industrial 2 of 5 Stitching Enables/disables fixed length stitching for Industrial 2 of 5. ENTER/EXIT PROGRAMMING MODE DEFAULT Industrial 2 of 5 Stitching = Disable Industrial 2 of 5 Stitching = Enable Industrial 2 of 5 Character Correlation Enable/disables character correlation for Industrial 2 of 5.
Page 291: Iata
IATA IATA The following options apply to the IATA symbology. IATA Enable/Disable Enables/Disables the ability of the reader to decode IATA labels. ENTER/EXIT PROGRAMMING MODE DEFAULT IATA = Disable IATA = Enable IATA Check Character Transmission Enables/Disables calculation and verification of an optional Industrial 2 of 5 check char- acter.
Page 292: Isbt 128
Symbologies ISBT 128 The following options apply to the ISBT 128 symbology. ISBT 128 Concatenation Enables/disables ISBT128 concatenation of 2 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT ISBN 128 Concatenation = Disable ISBN 128 Concatenation = Enable QuickScan QD2100...
Page 293: Isbt 128 Concatenation Mode
ISBT 128 ISBT 128 Concatenation Mode Specifies the concatenation mode between Static and Dynamic. ISBT 128 Concatenation see page 282 This option is only valid when is enabled ( NOTE ENTER/EXIT PROGRAMMING MODE DEFAULT ISBT 128 Concatenation Mode = Static ISBT 128 Concatenation Mode = Dynamic Product Reference Guide...
Page 294: Isbt 128 Dynamic Concatenation Timeout
Symbologies ISBT 128 — cont. ISBT 128 Dynamic Concatenation Timeout Specifies the timeout used by the ISBT 128 Dynamic Concatenation Mode. ENTER/EXIT PROGRAMMING MODE ISBT 128 Dynamic Concatenation Timeout = 50 msec ISBT 128 Dynamic Concatenation Timeout = 100 msec DEFAULT ISBT 128 Dynamic Concatenation Timeout = 200 msec ISBT 128 Dynamic Concatenation Timeout = 500 msec...
Page 295: Isbt 128 Force Concatenation
DEFAULT ISBT 128 Force Concatenation = Disable ISBT 128 Force Concatenation = Enable ISBT 128 Advanced Concatenation Options Use the Datalogic Aladdin configuration application or Contact Customer Support to set up pairs of label types for concatena- tion. NOTE Product Reference Guide...
Page 296: Msi
Symbologies The following options apply to the MSI symbology. MSI Enable/Disable Enables/Disables ability of reader to decode MSI labels. ENTER/EXIT PROGRAMMING MODE DEFAULT MSI = Disable MSI = Enable QuickScan QD2100...
Page 297: Msi Check Character Calculation
MSI — cont. MSI Check Character Calculation Enables/Disables calculation and verification of an optional MSI check character. ENTER/EXIT PROGRAMMING MODE MSI Check Character Calculation = Disable DEFAULT MSI Check Character Calculation = Enable Mod10 MSI Check Character Calculation = Enable Mod11/10 MSI Check Character Calculation = Enable Mod10/10 Product Reference Guide...
Page 298: Msi Check Character Transmission
Symbologies MSI — cont. MSI Check Character Transmission Enables/disables transmission of an MSI check character. ENTER/EXIT PROGRAMMING MODE MSI Check Character Transmission = Disable DEFAULT MSI Check Character Transmission = Enable MSI Length Control This feature specifies either variable length decoding or fixed length decoding for the MSI symbology.
Page 299: Msi Set Length 1
MSI — cont. MSI Set Length 1 MSI Length Control This feature specifies one of the bar code lengths for . Length 1 is Variable Length the minimum label length if in Mode, or the first fixed length if in Fixed Length Mode.
Page 300 Symbologies MSI — cont. MSI Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select MSI Set Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 301: Msi Set Length 2
MSI — cont. MSI Set Length 2 MSI Length Control This feature specifies one of the bar code lengths for . Length 2 is Variable Length the maximum label length if in Mode, or the second fixed length if in Fixed Length Mode.
Page 302 Symbologies MSI — cont. MSI Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select MSI Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 303: Msi Minimum Reads
MSI — cont. MSI Minimum Reads This feature specifies the minimum number of consecutive times an MSI label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE MSI Minimum Reads = 1 MSI Minimum Reads = 2 MSI Minimum Reads = 3 DEFAULT MSI Minimum Reads = 4...
Page 304: Msi Decoding Level
Symbologies MSI — cont. MSI Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
Page 305 MSI — cont. MSI Decoding Level — cont. DEFAULT MSI Decoding Level = 3 MSI Decoding Level = 4 MSI Decoding Level = 5 Product Reference Guide...
Page 306: Plessey
Symbologies Plessey The following options apply to the Plessey symbology. Plessey Enable/Disable Enables/Disables ability of reader to decode Plessey labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Plessey = Disable Plessey = Enable QuickScan QD2100...
Page 307: Plessey Check Character Calculation
Plessey Plessey — cont. Plessey Check Character Calculation Enables/Disables calculation and verification of an optional Plessey check character. ENTER/EXIT PROGRAMMING MODE Plessey Check Character Calculation = Disable DEFAULT Plessey Check Character Calculation = Enable Plessey std. check char. verification Plessey Check Character Calculation = Enable Anker check char.
Page 308: Plessey Check Character Transmission
Symbologies Plessey — cont. Plessey Check Character Transmission Enables/disables transmission of an MSI check character. ENTER/EXIT PROGRAMMING MODE Plessey Check Character Transmission = Disable DEFAULT Plessey Check Character Transmission = Enable PLessey Length Control This feature specifies either variable length decoding or fixed length decoding for the Plessey symbology.
Page 309: Plessey Set Length 1
Plessey Plessey — cont. Plessey Set Length 1 PLessey Length Control This feature specifies one of the bar code lengths for . Length 1 Variable Length is the minimum label length if in Mode, or the first fixed length if in Fixed Length Mode.
Page 310 Symbologies Plessey — cont. Plessey Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Plessey Set Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 311: Plessey Set Length 2
Plessey Plessey — cont. Plessey Set Length 2 PLessey Length Control This feature specifies one of the bar code lengths for . Length 2 Variable Length is the maximum label length if in Mode, or the second fixed length if Fixed Length Mode.
Page 312 Symbologies Plessey — cont. Plessey Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Plessey Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 313: Plessey Minimum Reads
Plessey Plessey — cont. Plessey Minimum Reads This feature specifies the minimum number of consecutive times a Plessey label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE Plessey Minimum Reads = 1 Plessey Minimum Reads = 2 Plessey Minimum Reads = 3 DEFAULT Plessey Minimum Reads = 4...
Page 314: Plessey Decoding Level
Symbologies Plessey — cont. Plessey Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
Page 315: Plessey Stitching
Plessey Plessey — cont. Plessey Decoding Level — cont. DEFAULT Plessey Decoding Level = 3 Plessey Decoding Level = 4 Plessey Decoding Level = 5 Plessey Stitching Enables/disables fixed length stitching for Plessey. ENTER/EXIT PROGRAMMING MODE DEFAULT Plessey Stitching = Disable Plessey Stitching = Enable Product Reference Guide...
Page 316: Plessey Character Correlation
Symbologies Plessey — cont. Plessey Character Correlation Enables/disables Character Correlation for Plessey. ENTER/EXIT PROGRAMMING MODE DEFAULT Plessey Character Correlation = Disable Plessey Character Correlation = Enable Code 93 The following options apply to the Code 93 symbology. Code 93 Enable/Disable Enables/Disables ability of reader to decode Code 93 labels.
Page 317: Code 93 Check Character Calculation
Code 93 Code 93 — cont. Code 93 Check Character Calculation Enables/disables calculation and verification of an optional Code 93 check character. ENTER/EXIT PROGRAMMING MODE Code 93 Check Character Calculation = Disable Code 93 Check Character Calculation = Enable Check C Code 93 Check Character Calculation = Enable Check K DEFAULT Code 93 Check Character Calculation = Enable Check C...
Page 318: Code 93 Check Character Transmission
Symbologies Code 93 — cont. Code 93 Check Character Transmission Enables/disables transmission of an optional Code 93 check character. ENTER/EXIT PROGRAMMING MODE Code 93 Check Character Transmission = Disable DEFAULT Code 93 Check Character Transmission = Enable Code 93 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 93 symbology.
Page 319: Code 93 Set Length 1
Code 93 Code 93 — cont. Code 93 Set Length 1 Code 93 Length Control This feature specifies one of the bar code lengths for . Length 1 Variable Length is the minimum label length if in Mode, or the first fixed length if in Fixed Length Mode.
Page 320 Symbologies Code 93 — cont. Code 93 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 93 Set Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 321: Code 93 Set Length 2
Code 93 Code 93 — cont. Code 93 Set Length 2 Code 93 Length Control This feature specifies one of the bar code lengths for . Length 2 Variable Length is the maximum label length if in Mode, or the second fixed length if Fixed Length Mode.
Page 322 Symbologies Code 93 — cont. Code 93 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 93 Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 323: Code 93 Minimum Reads
Code 93 Code 93 — cont. Code 93 Minimum Reads This feature specifies the minimum number of consecutive times a Code 93 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 93 Minimum Reads = 1 Code 93 Minimum Reads = 2 Code 93 Minimum Reads = 3 Code 93 Minimum Reads = 4...
Page 324: Code 93 Decoding Level
Symbologies Code 93 — cont. Code 93 Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
Page 325 Code 93 Code 93 — cont. Code 93 Decoding Level — cont. DEFAULT Code 93 Decoding Level = 3 Code 93 Decoding Level = 4 Code 93 Decoding Level = 5 Product Reference Guide...
Page 326: Code 93 Quiet Zones
Symbologies Code 93 — cont. Code 93 Quiet Zones Enables/disables fixed length stitching for Code 93. ENTER/EXIT PROGRAMMING MODE Code 93 Quiet Zones = No Quiet Zones Code 93 Quiet Zones = Quiet Zone on one side Code 93 Quiet Zones = Quiet Zones on two sides DEFAULT Code 93 Quiet Zones = Auto Code 93 Quiet Zones = Virtual Quiet Zones on two sides...
Page 327: Code 93 Stitching
Code 93 Code 93 — cont. Code 93 Stitching Disable/enable fixed or variable length stitching for Code 93. ENTER/EXIT PROGRAMMING MODE Code 93 Stitching = Disable DEFAULT Code 93 Stitching = Enable Code 93 Character Correlation Enables/disables Character Correlation for Code 93. ENTER/EXIT PROGRAMMING MODE Code 93 Character Correlation = Disable DEFAULT...
Page 328: Codablock F
Symbologies Codablock F The following options apply to the Codablock F symbology. Codablock F Enable/Disable Enables/Disables the ability of the imager to decode Codablock F labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Codablock F = Disable Codablock F = Enable QuickScan QD2100...
Page 329: Codablock F Ean Enable/Disable
Codablock F Codablock F — cont. Codablock F EAN Enable/Disable Enables/Disables the Codablock F EAN subtype (code with FNC1 in the first position). ENTER/EXIT PROGRAMMING MODE DEFAULT Codablock F EAN = Disable Codablock F EAN = Enable Codablock F AIM Check Specifies if Check Digit calculation algorithm is AIM compliant or not.
Page 330: Codablock F Length Control
Symbologies Codablock F — cont. Codablock F Length Control This feature specifies either variable length decoding or fixed length decoding for the Codablock F symbology. For variable length decoding, a minimum and maximum length may be Variable Length — set. For fixed length decoding, two different lengths may be set.
Page 331: Codablock F Set Length 1
Codablock F Codablock F — cont. Codablock F Set Length 1 Codablock F Length Control This feature specifies one of the bar code lengths for Variable Length Length 1 is the minimum label length if in Mode, or the first fixed Fixed Length length if in Mode.
Page 332 Symbologies Codablock F — cont. Codablock F Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Codablock F Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 333: Codablock F Set Length 2
Codablock F Codablock F — cont. Codablock F Set Length 2 Codablock F Length Control This feature specifies one of the bar code lengths for Variable Length Length 2 is the maximum label length if in Mode, or the second fixed Fixed Length length if in Mode.
Page 334 Symbologies Codablock F — cont. Codablock F Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Codablock F Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 335: Code 4
Code 4 Code 4 The following options apply to the Code 4 symbology. Code 4 Enable/Disable Enables/Disables ability of imager to decode Code 4 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 4 = Disable Code 4 = Enable Product Reference Guide...
Page 336: Code 4 Check Character Transmission
Symbologies Code 4 — cont. Code 4 Check Character Transmission This feature enables/disables transmission of an optional Code 4 check character. ENTER/EXIT PROGRAMMING MODE Code 4 Check Character Transmission = Don’t Send DEFAULT Code 4 Check Character Transmission = Send Code 4 Hex to Decimal Conversion This feature enables/disables the conversion of hexidecimal label data to decimal label da- ENTER/EXIT PROGRAMMING MODE...
Page 337: Code 5
Code 5 Code 5 The following options apply to the Code 5 symbology. Code 5 Enable/Disable Enables/Disables ability of imager to decode Code 5 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 5 = Disable Code 5 = Enable Product Reference Guide...
Page 338: Code 5 Check Character Transmission
Symbologies Code 5 — cont. Code 5 Check Character Transmission This feature enables/disables transmission of an optional Code 5 check character. ENTER/EXIT PROGRAMMING MODE Code 5 Check Character Transmission = Don’t Send DEFAULT Code 5 Check Character Transmission = Send Code 5 Hex to Decimal Conversion This feature enables/disables the conversion of hexidecimal label data to decimal label da- ENTER/EXIT PROGRAMMING MODE...
Page 339: Code 4 And Code 5 Common Configuration Items
Code 4 and Code 5 Common Configuration Items Code 4 and Code 5 Common Configuration Items The following options apply to both Code 4 and Code 5 symbologies. Code 4 and 5 Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
Page 340 Symbologies Code 4 and Code 5 Common Configuration Items — cont. Code 4 and 5 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Code 4 and Code 5 Decoding Level = 1 Code 4 and Code 5 Decoding Level = 2 DEFAULT Code 4 and Code 5 Decoding Level = 3 Code 4 and Code 5 Decoding Level = 4...
Page 341: Code 4 And Code 5 Minimum Reads
Code 4 and Code 5 Common Configuration Items Code 4 and Code 5 Common Configuration Items — cont. Code 4 and Code 5 Minimum Reads This feature specifies the minimum number of consecutive times a Code 4 or Code 5 label must be decoded before it is accepted as good read.
Page 342: Follett 2 Of 5
Symbologies Follett 2 of 5 The following options apply to the Follett 2 of 5 symbology. Follett 2 of 5 Enable/Disable Enables/Disables ability of imager to decode Follett 2 of 5 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Follett 2 of 5 = Disable Follett 2 of 5 = Enable QuickScan QD2100...
Page 343: Appendix A. Technical Specifications
Appendix A Technical Specifications Table 45 contains Physical and Performance Characteristics, User Environment and Table 46 Regulatory information. provides Standard Cable Pinouts. Table 45. Technical Specifications Item Description Physical Characteristics 2.8 in. H x 6.7 in. L x 2.6 in. W Dimensions (7.1 cm H x 17.1 cm L x 6.6 cm W) Weight (without cable)
Page 344 Decode Capability GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded; EAN 13 ISBN; Datalogic 2 of 5; Follet 2/5; Code 4, code RS-232 Std., RS-232 Wincor-Nixdorf, RS-232 OPOS, IBM 46xx (ports 5B and 9B), USB Com Std., USB Keyboard, USB Alternate...
Page 345: Standard Cable Pinouts
Standard Cable Pinouts Standard Cable Pinouts Figure 7 Table 46 provide standard pinout information for the imager’s cable. Figure 7. Standard Cable Pinouts Bottom of Imager Cable Interface Cable Port Cable Strain Relief Pin 1 Pin 10 To Host Cable Clip (Latch) Table 46 The signal descriptions in apply to the connector on the imager and are for ref-...
Page 346 NOTES QuickScan QD2100...
Page 347: Appendix B. Standard Defaults
Appendix B Standard Defaults Table 47 The most common configuration settings are listed in the “Default” column of Table 48 The settings in this table are as applied to a standard RS-232 interface. See a listing of default exceptions to this list as appled to other interface types. Page references are also provided for feature descriptions and programming bar codes for each parameter.
Page 348 Parameter Default Your Setting Page Number Baud Rate 9600 Data Bits 8 Data Bits Stop Bits 1 Stop Bit Parity None Handshaking Control Disable RS-232/USB-COM Intercharacter Delay No Delay Beep On ASCII BEL Disable Beep On Not on File Enable ACK Character ‘ACK’...
Page 349 Parameter Default Your Setting Page Number 46xx Number of Host Resets Transmit Labels in Code 39 Format IBM Std Format IBM 46XX Interface Options Ignore Wand Emulation Wand Idle State High QZ & Spaces High, Wand Polarity Bars Low Wand Signal Speed 660ms Wand Label Symbology Conversion No Conversion...
Page 350 Parameter Default Your Setting Page Number Expand UPC-E to EAN-13 Don’t Expand Expand UPC-E to UPC-A Don’t Expand UPC-E Number System Character Transmit Transmission UPC-E Minimum Reads GTIN GTIN Formatting Disable EAN 13 EAN 13 Enable/Disable Enable EAN 13 Check Character Transmis- Send sion EAN-13 Flag 1 Character...
Page 351 Parameter Default Your Setting Page Number GS1 DataBar Omnidirectional GS1 DataBar Omnidirectional Disable Enable/Disable GS1 DataBar Omnidirectional GS1- Disable 128 Emulation GS1 DataBar Omnidirectional Mini- mum Reads GS1 DataBar Expanded GS1 DataBar Expanded Enable/Dis- Disable able GS1 DataBar Expanded GS1-128 Disable Emulation GS1 DataBar Expanded Minimum...
Page 352 Parameter Default Your Setting Page Number Code 39 Length Control Variable Code 39 Set Length 1 Code 39 Set Length 2 Code 39 Interdigit Ratio Code 39 Character Correlation Disable Code 39 Stitching Enable Code 32 Code 32 Enable/Disable Disable Code 32 Feature Setting Exceptions Code 32 Check Character Transmis- Don’t Send...
Page 353 Disable Calculation Datalogic 2 of 5 Minimum Reads Datalogic 2 of 5 Length Control Variable Datalogic 2 of 5 Set Length 1 Datalogic 2 of 5 Set Length 2 Datalogic 2 of 5 Character Correla- Disable tion Datalogic 2 of 5 Stitching...
Page 354 Parameter Default Your Setting Page Number Codabar Quiet Zones Auto Codabar Minimum Reads Codabar Decoding Level Codabar Length Control Variable Codabar Set Length 1 Codabar Set Length 2 Codabar Interdigit Ratio Codabar Character Correlation Disable Codabar Stitching Disable ABC Codabar ABC Codabar Enable/Disable Disable ABC Codabar Concatenation Mode...
Page 355 Parameter Default Your Setting Page Number Standard 2 of 5 Check Character Cal- Disable culation Standard 2 of 5 Check Character Send Transmission Standard 2 of 5 Minimum Reads Standard 2 of 5 Decoding Level Standard 2 of 5 Length Control Variable Standard 2 of 5 Set Length 1 Standard 2 of 5 Set Length 2...
Page 356 Parameter Default Your Setting Page Number ISBT 128 Advanced Concatenation Disable Options MSI Enable/Disable Disable MSI Check Character Calculation Enable Mod10 MSI Check Character Transmission Enable MSI Length Control Variable MSI Set Length 1 1 Character MSI Set Length 2 50 Characters MSI Minimum Reads 4 Reads...
Page 357 Parameter Default Your Setting Page Number Code 93 Minimum Reads 1 Read Code 93 Decoding Level Level 3 Code 93 Quiet Zones Auto Code 93 Stitching Enable Code 93 Character Correlation Enable Codablock F Codablock F Enable/Disable Disable Codablock F EAN Enable/Disable Disable Codablock F AIM Check Enable Check C...
Page 358: Default Exceptions
Code Standard 2/5 Label ID Character(s) Codabar Label ID Character(s) Code 128 Label ID Character(s) GS1-128 Label ID Character(s) Datalogic 2 of 5 Label ID Character(s) ISBT 128 Label ID Character(s) UPCE P2 Label ID Character(s) UPCE/P5 Label ID Character(s)
Page 359 Default Exceptions Parameter Default Excption EAN13/P2 Label ID Character(s) EAN13/P5 Label ID Character(s) EAN13/GS1-128 Label ID Character(s) GS1 DataBar 14 (Omnidirectional) Label ID Character(s) GS1 DataBar Expanded Label ID Character(s) GS1 DataBar Limited Label ID Character(s) Character Conversion CR to ` Interface: RS232-OPOS Baud Rate 115200 Baud...
Page 360 Parameter Default Excption EAN13/P5 Label ID Character(s) EAN13/GS1-128 Label ID Character(s) GS1 DataBar 14 (Omnidirectional) Label ID Character(s) GS1 DataBar Expanded Label ID Character(s) GS1 DataBar Limited Label ID Character(s) GTIN W/o Add on Label ID Character(s) GTIN Addon 2 Label ID Character(s) GTIN Add on 5 Label ID Character(s) GTIN Add on 8 Label ID Character(s) QuickScan...
Page 361: Appendix C. Led And Beeper Indications
Appendix C LED and Beeper Indications The imager’s beeper sounds and its LED illuminates to indicate various functions or er- rors on the imager. An optional “Green Spot” also performs useful functions. The tables below list these indications. One exception to the behaviors listed in the tables is that the imager’s functions are programmable, and may or may not be turned on.
Page 362: Led And Beeper Indications
LED and Beeper Indications INDICATION DESCRIPTION BEEPER Imager beeps four times at high- The imager is in the process of Power-up Beep est frequency and volume upon powering-up. power-up. The imager will beep once at LED behavior for this indi- current frequency, volume, A label has been successfully cation is configurable via...
Page 363: Error Codes
Error Codes Error Codes Upon startup, if the imager sounds a long tone, this means the imager has not passed its automatic Selftest and has entered FRU isolation mode. If the imager is reset, the se- quence will be repeated. The following table describes the LED flashes/beep codes asso- ciated with an error found.
Page 364 NOTES QuickScan QD2100...
Page 365: Appendix D Sample Bar Codes
Appendix D Sample bar codes The sample bar codes in this appendix are typical representations for their symbology types. UPC-A 12345 67890 EAN-13 3 4 5 67 8 9 0 1 2 3 4 0 Code 39 123ABC Code 128 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 Interleaved 2 of 5 12345678901231...
Page 366 Sample bar codes — continued Code 32 Codabar Code 93 Code 11 QuickScan QD2100...
Page 367: Gs1 Databar (Rss)
GS1 DataBar (RSS) GS1 DataBar (RSS) GS1 DataBar variants must be enabled to read the bar codes below GS1 DataBar (RSS) on page 357 (see NOTE 10293847560192837465019283746029478450366523 (GS1 DataBar Expanded Stacked) 1234890hjio9900mnb (GS1 DataBar Expanded) 08672345650916 (GS1 DataBar Limited) GS1 DataBar-14 55432198673467 (GS1 DataBar Omnidirectional Truncated) 90876523412674...
Page 368 NOTES QuickScan QD2100...
Page 369: Appendix E. Keypad
Appendix E Keypad Use the bar codes in this appendix to enter numbers as you would select digits/characters from a keypad. Product Reference Guide...
Page 370 QuickScan QD2100...
Page 371 Product Reference Guide...
Page 372 NOTES QuickScan QD2100...
Page 373: Appendix F. Scancode Tables
Appendix F Scancode Tables Control Character Emulation Control character emulation selects from different scancode tables as listed in this appen- dix. Each of the control character sets below are detailed by interface type in the tables. These apply to Wedge and USB Keyboard platforms. Characters from 00 to 0x1F are sent as control character Ctrl+Keys, Control Character 00 —...
Page 374: Interface Type Pc At Ps/2 Or Usb-Keyboard
Interface Type PC AT PS/2 or USB-Keyboard Table 49. Scancode Set When Control Character is 00 or 01 NULL C(S)+@ C(S)+A C(S)+B C(S)+C C(S)+E C(S)+F C(S)+G C(S)+H C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W C(S)+X C(S)+Y...
Page 375 Interface Type PC AT PS/2 or USB-Keyboard — cont. Table 50. Scancode Set When Control Character is 02 Ar Ar Al Al  Cl  Cl  Cr  Cr   S+ Tab Enter Enter Pg Up Keypd Home ...
Page 376: Interface Type Pc At Ps/2 Alt Mode Or Usb-Keyboard Alt Mode
Interface type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode Table 51. Scancode Set When Control Character is 00 or 01 Alt+000 Alt+001 Alt+002 Alt+003 Alt+004 Alt+005 Alt+006 Alt+007 Alt+008 Alt+010 Alt+011 Alt+012 Alt+014 Alt+015 Enter Alt+016 Alt+017 Alt+018 Alt+019 Alt+020 Alt+021...
Page 377 Interface type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode — cont. Table 52. Scancode Set When Control Character is 02 Ar Al Cl Cr  S+ Tab Enter Enter Pg Up     Keypd Home  ...
Page 378: Digital Interface
Digital Interface Table 53. Scancode Set When Control Character is 00 or 01 NULL C(S)+@ C(S)+A C(S)+B C(S)+C C(S)+E C(S)+F C(S)+G C(S)+H C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W C(S)+X C(S)+Y C(S)+Z C(S)+\ C(S)+^ C(S)+_ Space...
Page 379 Digital Interface — cont. Table 54. Scancode Set When Control Character is 02 Cl Cl  S+ Tab Enter Enter Keypd    Space “ & ‘ < > Product Reference Guide...
Page 380: Ibm31Xx 102-Key
IBM31xx 102-key Table 55. Scancode Set When Control Character is 00 or 01 NULL C(S)+@ C(S)+A C(S)+B C(S)+C C(S)+E C(S)+F C(S)+G C(S)+H C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W C(S)+X C(S)+Y C(S)+Z C(S)+\ C(S)+^ C(S)+_ Space...
Page 381 IBM31xx 102-key — cont. Table 56. Scancode Set When Control Character is 02 Ar Ar Al Al Cl Cl Cr Cr  S+ Tab Enter Enter Pg Up Keypd    Home Space “ & ‘ < > ‘ Product Reference Guide...
Page 382: Ibm Xt
IBM XT Table 57. Scancode Set When Control Character is 00 or 01 NULL C(S)+@ C(S)+A C(S)+B C(S)+C C(S)+E C(S)+F C(S)+G C(S)+H C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W C(S)+X C(S)+Y C(S)+Z C(S)+\ C(S)+^ C(S)+_ Space...
Page 383 IBM XT — cont. Table 58. Scancode Set When Control Character is 02 Ar Ar Al Al Cl Cl Cr Cr  S+ Tab Enter Enter Pg Up Keypd    Home Space “ & ‘ < > ‘ Product Reference Guide...
Page 384: Microsoft Windows Codepage 1252
Microsoft Windows Codepage 1252 Windows-1252 is a character encoding of the Latin alphabet, used by default in the leg- acy components of Microsoft Windows in English and some other Western languages. QuickScan QD2100...
Page 385: Index
Index bar codes Good Read, Beeper RS-232 Pitch baud rate Volume RS-232 parameters Good Read, Beeper – parity Good Read, Beeper Pitch – 325, 327, 330, barcodes Good Read, Beeper Volume – cancel Green Spot numeric barcodes RS-232 parameters parity Beeper Handheld Scanner 82, 83,...
Page 386 Table Top Scanner 82, 83, trailing noise numbers lock key USB Connection Performance Characteristics USB interface selection Physical Characteristics User Environment Pitch – Good Read, Beeper Pitch Tolerance Polarity (wand) Prefix/Suffix Volume – Good Read, Beeper Print Contrast Minimum Product Specifications Programming Barcodes XON/XOFF Read, Beeper –...
Page 387: Ascii Character Set
ASCII Character Set The table on this page shows a set of ASCII characters and their corresponding Hex Values. The Hex Values in this table are needed for setting sym- bology specific label identifiers, as well as enabling custom prefix and suffix characters. ASCII ASCII ASCII...
Page 388 © 2008-2014 Datalogic ADC, Inc. • All rights reserved. •  Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic ADC, Inc. 959 Terry Street Eugene |OR 97402...

Datalogic QuickScan i QD2100 Reference Manual

Chapter 1 Introduction

Product Reference Guide

Chapter 2. Getting Started

Chapter 3. Interfaces

Chapter 4. General Features

Chapter 5. RS-232 ONLY Interface

Chapter 6. RS-232/USB-Com Interfaces

Chapter 7. Keyboard Interface

Chapter 8. USB-OEM Interface

Chapter 9. IBM 46XX Interface

Chapter 10. Wand Emulation Interface

Chapter 11. Data Editing

Chapter 12. Symbologies

Quick Links

Product Reference Guide

Related Manuals for Datalogic QuickScan i QD2100

Summary of Contents for Datalogic QuickScan i QD2100
