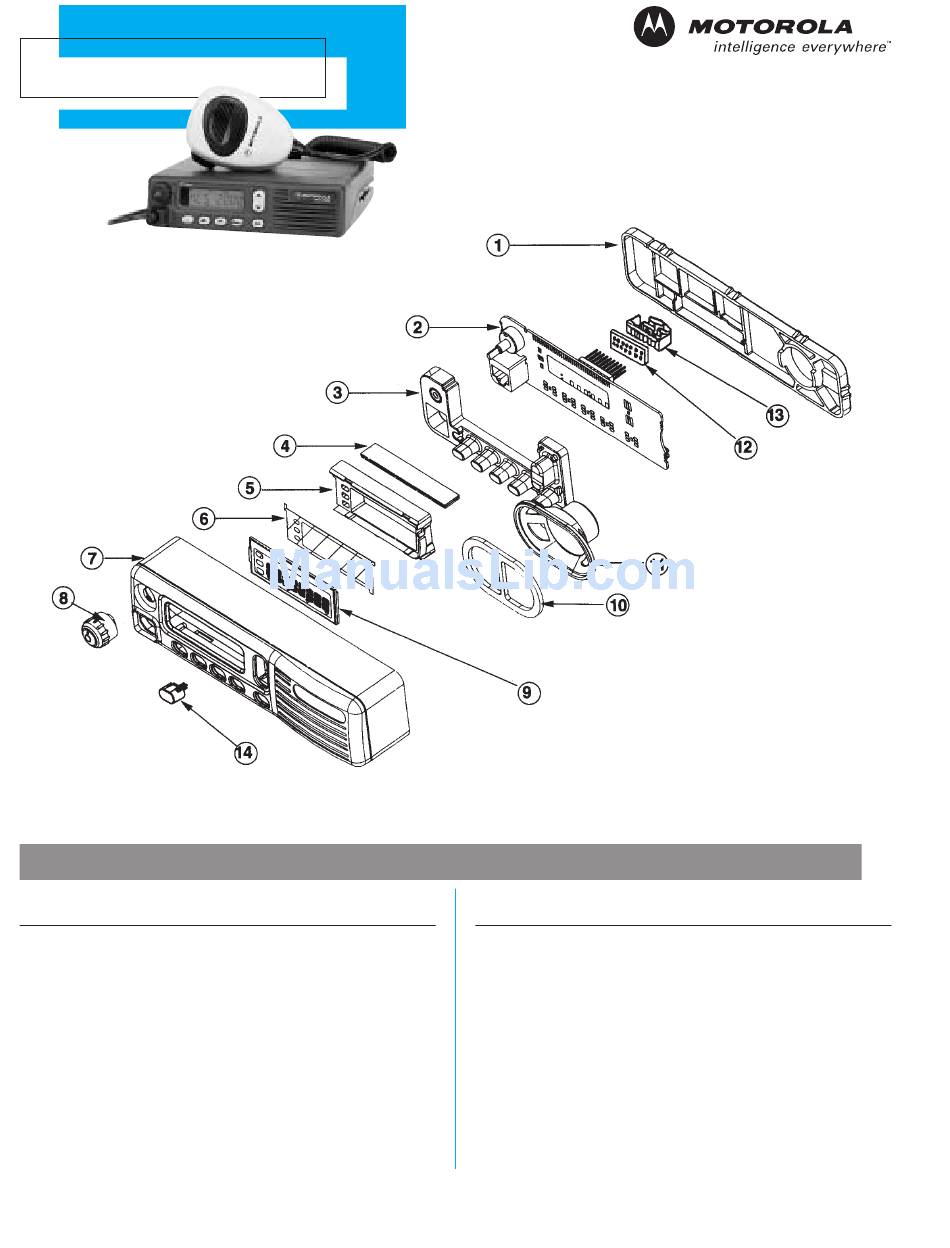

MCS2000 Series
Control Head Model I
REF.
NO.
PART NO.
DESCRIPTION
1
0702103U01
Frame Lock
2
0180758T08
Front End
3
7502101U05
Keypad, Elastomeric
4
2802102U01
Connector, Elastomeric
5
0702103U01
Frame, LCD
6
9102100U01
Color Sheet, LCD
7
1502102U05
Housing, Control Head Model I
8
3605893W02
Volume Knob
9
7202100U03
LCD Glass
10/03
Parts List
REF.
NO.
PART NO.
10
3205932V02
11
5005156Z02
12
---
13
1580365K01
14
---
* Parts have been obsoleted on newer kits
** Refer to Service Manual
DESCRIPTION
Gasket, Speaker
Speaker
Ferrite Plate*
Shroud, white*
Replaceable Pushbutton**
Advertisement
Table of Contents
Related Manuals for Motorola MCS2000 Series
Summary of Contents for Motorola MCS2000 Series
-
Page 1: Parts List
MCS2000 Series Parts List Control Head Model I REF. REF. PART NO. DESCRIPTION PART NO. DESCRIPTION 0702103U01 Frame Lock 3205932V02 Gasket, Speaker 0180758T08 Front End 5005156Z02 Speaker 7502101U05 Keypad, Elastomeric Ferrite Plate* 2802102U01 Connector, Elastomeric 1580365K01 Shroud, white* 0702103U01 Frame, LCD... - Page 2 MCS2000 Series Parts List Control Head Model II REF. PART NO. DESCRIPTION 1502455Y05 Housing, Back 3202462Y03 Gasket, Housing 4602100U01 PCB Retainer HCN4058 PCB Assembly* 6102082U04 Light Guide 7502565Y04 Keypad, standard with Text 7505241Z03 Keypad, for use with Replaceable Pushbuttons 1502100U14...
- Page 3 MCS2000 Series Parts List Control Head Model III REF. PART NO. DESCRIPTION 1502455Y05 Housing, Back 3202462Y03 Gasket, Housing 4602100U01 PCB Retainer HCN4059 PCB Assembly 6102082U04 Light Guide 7502566Y04 Keypad 7505242Z03 Keypad, for use with Replaceable Pushbuttons 1502100U15 Housing, Control Head Model III...
- Page 4 MCS2000 Series Parts List Low Power Radio REF. PART NO. DESCRIPTION 3205931V02 Gasket, Front Cover 1505908V02 Top Cover 3205934V01 Gasket, Top Cover 2605652W02 Pressure Plate 5584300B04 Handle, 800 MHz only 2604802K01 PA Shield, 800 MHz only 4205938V01 Clip Spring, 2 pcs.
- Page 5 MCS2000 Series Parts List Mid Power Radio REF. PART NO. DESCRIPTION 3205931V02 Gasket, Front Cover 1505764X01 Top Cover Assembly 3205082E97 Gasket, Top Cover 5584300B04 Handle 2605625X03 PA Shield 4205938V01 Clip Spring, 2 pcs. 0905902V04 Power Connector 3205457Z04 Gasket, Power Connector...
- Page 6 MCS2000 Series Parts List High Power Radio REF. PART NO. DESCRIPTION 2705815W02 Chassis, High Power 3305179X01 Name Plate 4205938V01 Clip, Spring 0905902V04 Power Connector 3205457Z04 Gasket, Power Connector 0905901V08 RF Connector 3205457Z01 Gasket, RF Connector HUD4021 PA Board, VHF R1...
- Page 7 MCS2000 Series Mobile Accessories Microphones Speakers HMN4069E Standard White HSN4038A 7.5W Water External Palm Microphone Resistant Speaker (requires HKN6127 adapter cable for dash mounted compatibility) HMN4072E Classic White Palm Microphone HSN4039A 13W External Water NMN6210D 3x4 Button Keypad Mic Resistant Remote Speaker (requires...
-
Page 8: Miscellaneous Accessories
MCS2000 Series Accessories, Antennas Remote Mount Kits Miscellaneous Accessories Converts a low or mid power radio from dash to remotemount. GLN7282A Alarm Buzzer Includes 17’ control head cable, 20' power cable, 40’ power cable, control head back plate and mounting hardware,... -
Page 9: Service Aids
MCS2000 Series Antennas, Service Aids Antennas Service Aids Programming Software HAD4006A 1/4 Wave, roof top (136-144 MHz) Utilizing your personal computer, the software enables you to add or reprogram frequencies as your requirements change. Compatible with IBM XT, AT, Model 30, 50, 60 and 80. Requires Radio Interface HAD4007A 1/4 Wave, roof top (144-152 MHz) Box and appropriate cables;... - Page 10 MCS2000 Series Service Aids, Manuals Service Aids Service Manuals Radio Interface Box 6881083C20 Includes all common features for all Links radio programming cable and units except 25W VHF & UHF computer interface together. Provides required voltage shift to enable 6881080C43...
