Assembly Manual
Manual en Español Latino Americano: http://support.nautilus.com

Advertisement

Table of Contents
loading

Related Manuals for Bowflex TreadClimber TC5

Summary of Contents for Bowflex TreadClimber TC5

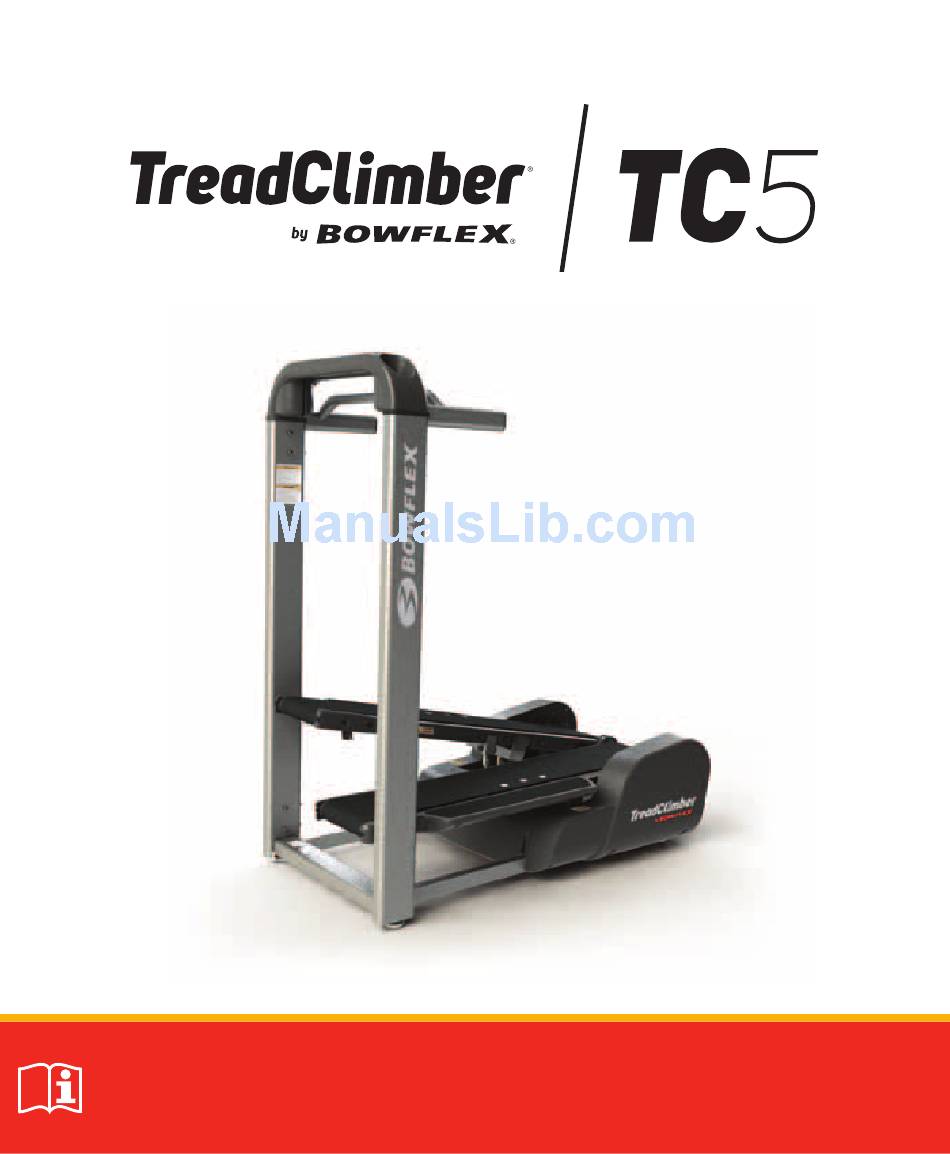

  • Page 1 Assembly Manual Manual en Español Latino Americano: http://support.nautilus.com...

  • Page 2: Table Of Contents

    3369, tcinquiry@nautilus.com | outside U.S. +01-360-859-5180, technics-APLA@nautilus.com | Printed in China | © 2011 Nautilus, Inc., All rights reserved. ™ and ® indicate a trademark or registered trademark. Nautilus, Inc. (www. NautilusInc.com) trademarks include NAUTILUS®, BOWFLEX®, SCHWINN®, TreadClimber® and UNIVERSAL® and respective logos. Other trademarks are the property of their respective owners.

  • Page 3: Important Safety Instructions

    Important Safety Instructions This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury. Obey the following warnings: Read and understand all Warnings on this machine. Carefully read and understand the Assembly Manual. •...

  • Page 4: Specifi Cations And Tools

    Specifications and Tools Included Not Included #2 Short 5 mm 6 mm (recommended) 13 mm ( 1/2” ) (recommended) Required: 2 AA size batteries (LR6), which are not included.

  • Page 5: Before Assembly

    Before Assembly Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a hard, level surface. Allow a minimum workout area of 66” x 123” (167.6 cm x 312.4 cm). Basic Assembly Tips Follow these basic points when you assemble your machine: •...

  • Page 6: Parts

    Parts ( 2 BOXES ) BOX 1 Item Description Item Description Console / Handlebar Assembly Rear Cover Upright, Right Side Cover, Left Upright, Left Flywheel Assembly Side Cover, Right Front Cover...
  • Page 7 Parts BOX 2 Item Description Item Description Belt Lubrication Kit Treadle Assembly * Hardware Card Junction Cover, Right Document Kit Junction Cover, Left Bowfl ex Weight Loss Plan Foot Rail Cover, Left ® Treadle Support Block Foot Rail Cover, Right *Do no cut Shipping Strap until instructed.

  • Page 8: Hardware

    Parts Hardware Item Description Item Description Button Head Hex Screw, M8x25 Hex Nut, M8 Phillips Screw, M4x12 Lock Washer, M10x18 Flat Washer, M8x16 Lock Washer, M8x14.8 Black Lock Washer, M8x14 Flat Washer, M8x21 Flat Washer, M4x10 Flat Washer, M8x24 Wide Black Bearing Tube Phillips Screw, M4x16 Self Tapping...

  • Page 9: Assembly

    Assembly Do not wear loose clothing or jewelry. This machine contains moving parts. Do not put fi ngers or other objects into moving parts of the exercise equipment. Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps involving these parts.
  • Page 10 Assembly 2. Cut the Shipping Strap and place the Treadle Support Block under the Treadles Note: Do not lift the Treadles more than necessary to place the Support Block.
  • Page 11 Assembly 3. Inspect and Adjust the One Way Bearings Both of the One Way Bearings must be toward the Transport Wheels, or the back of the machine. If either of the One Way Bearings are forward, they must be adjusted. From the front of the machine, grasp each Treadle by the Walking Belt and lift.
  • Page 12 Assembly 4. Connect the Dependency to the Treadle Assembly Note: The Walking Belts may need to be slightly adjusted to align the bolt holes. Remove the Treadle Support Block after tightening hardware. The Walking Belts can abruptly move. To avoid possible serious injury, keep hands away from the edges of the Walking Belts.
  • Page 13 Assembly 5. Attach the Foot Rail Covers to the Treadle Assembly The Walking Belts can abruptly move. To avoid possible serious injury, keep hands away from the edges of the Walking Belts. Be aware that the Drive Chain and the Walking Belts are connected and when either of these parts move the other does as well.
  • Page 14 Assembly 6. Run the Speed Sensor Cable through the Right Upright Note: Speed Sensor Cable may be inside Transport Hand Bar. Do not crimp the Speed Sensor Cable.
  • Page 15 Assembly 7. Attach the Uprights to the Treadle Assembly In order to avoid possible serious injury, when inserting the tube ends into the Treadle Assembly be careful to avoid fi ngers or hands being caught or pinched. Note: * Hand tighten this hardware fi rst. Do not crimp the Speed Sensor Cable.
  • Page 16 Assembly 8. Attach the Junction Covers and Console/Handlebar Assembly after routing the Speed Sensor Cable into the Console/ Handlebar Assembly In order to avoid possible serious injury, when inserting the tube ends into the Base Assembly be careful to avoid fi ngers or hands being caught or pinched. Note: Do not crimp the Speed Sensor Cable.
  • Page 17 Assembly 9. Secure the Console/ Handlebar Assembly Note: * Hand tighten this hardware fi rst until inner bolt holes align. Once all hardware has been hand tightened, fully tighten ALL hardware from previous steps.
  • Page 18 Assembly 10. Attach the Flywheel Assembly to the Treadle Assembly Note: Be sure the Speed Sensor Magnet on the Flywheel Assembly is toward the Treadle Assembly. Push and hold the Walking Belt still when tightening the bolt. The Walking Belts can abruptly move. To avoid possible serious injury, keep hands away from the edges of the Walking Belts.
  • Page 19 Assembly 11. Lower a Treadle and Attach the Side Cover to the Treadle Assembly Completely lower a Treadle by safely pushing the Walking Belt with your foot toward the back of the machine. With the Treadle lowered, tilt the front of the Side Cover downward. Then bring the back of the Side Cover up and over to the Walking Deck, and gently push into position.
  • Page 20 Assembly 12. Attach the Rear Cover to the Treadle Assembly Note: Do not fully tighten hardware until instructed.
  • Page 21 Assembly 13. Attach the Front Cover to the Treadle Assembly Note: Adjust the Treadles for additional clearance. Tighten all hardware.
  • Page 22 Assembly 14. Install Batteries into Console/Handlebar Assembly Note: The console uses 2 AA size batteries (LR6), which are not included. Make sure that the batteries point in the direction of the +/– indicators in the battery bay. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (Ni-Cd, Ni-MH, etc) batteries.

  • Page 23: Adjustments

    Adjustments Moving Your Machine The TreadClimber fi tness machine weighs approximately 163 lbs (74 kg) when ® fully assembled and requires caution when being moved. Use the Transport Handle Bar found under the front of the machine to move it. To get access to the Transport Handle Bar, turn the Levelers until you have suffi...
  • Page 24 Adjustments Leveling Your Machine Levelers are found on the front of the TreadClimber machine. Make sure the TreadClimber machine is level and ® ® stable before you exercise. To adjust: 1. Loosen the upper locking nut. 2. Turn the leveler to adjust the height. 3.
  • Page 25 [ This page left blank. ]...
  • Page 26 [ This page left blank. ]...
  • Page 27 [ This page left blank. ]...
  • Page 28 Nautilus Bowflex Schwinn Universal ® ® ® ® 003-3856.013112.C...
