- Page 1 CABINET PARTS REFRIGERATOR For Model: JFI2089ATS2 (Stainless Steel) 6−09 Litho In U.S.A. (rrm) (eeb) Part No. W10274769 Rev. A...
-
Page 2: Cabinet Parts

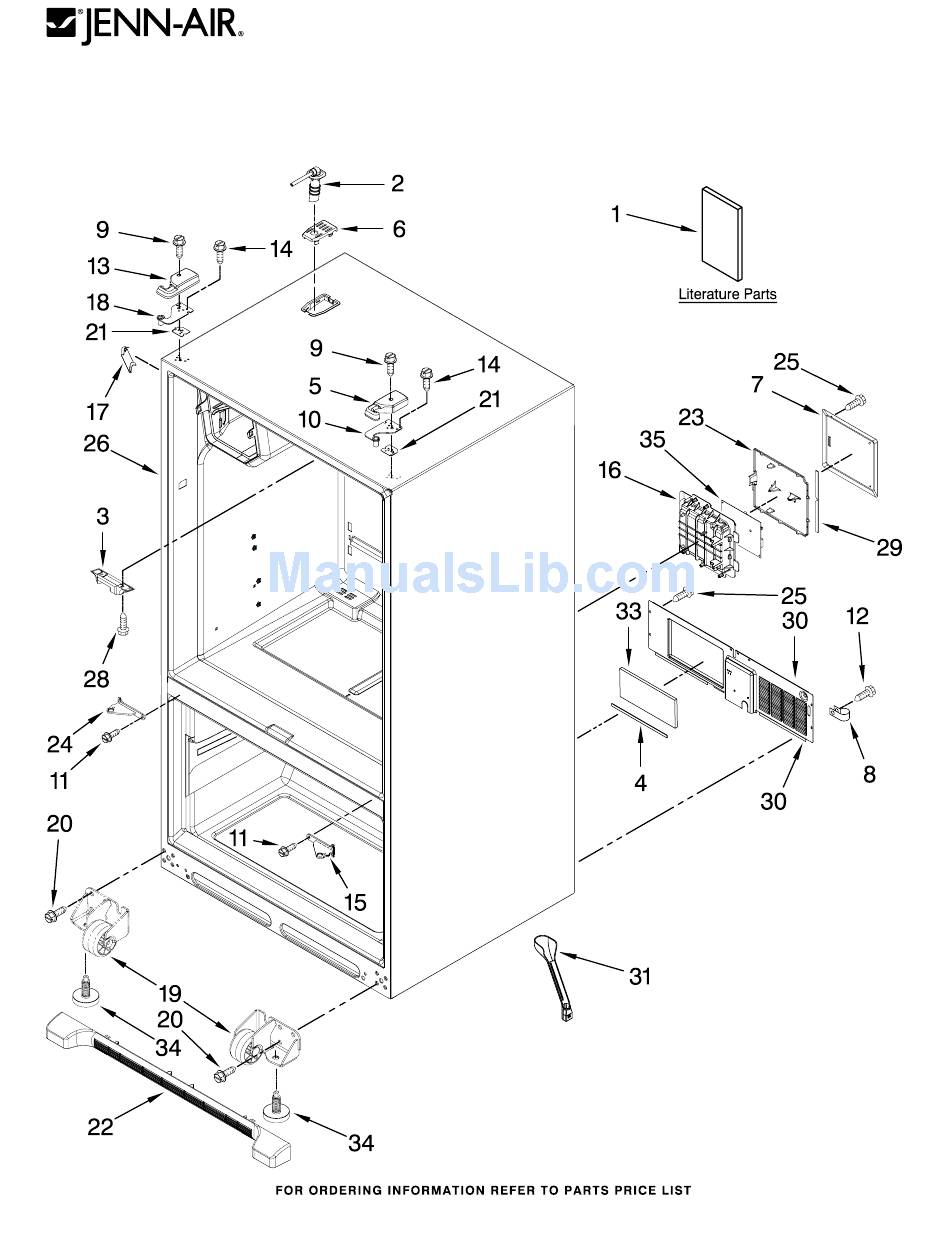

CABINET PARTS For Model: JFI2089ATS2 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 12990511 Screw (3) Shim, Top Hinge W10238851 Tech Sheet Cover, Top Hinge 12999501 Left 12828144SP Use & Care Guide (Left) 12999502 Right... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: JFI2089ATS2 (Stainless Steel) W10274769... - Page 4 REFRIGERATOR LINER PARTS For Model: JFI2089ATS2 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 12905803 Module, Light 12691605 Foil, Light 12921801 Cover, Light 13008201 Grille, Air 12466103 Switch, Light (2) 12905902 Cover, Light 12806601V Housing, Light 9 W10194422V Bulb, Light...
-
Page 5: Shelf Parts
SHELF PARTS For Model: JFI2089ATS2 (Stainless Steel) W10274769... - Page 6 SHELF PARTS For Model: JFI2089ATS2 (Stainless Steel) Illus. Part DESCRIPTION 12204829 Glass, Pantry 2 W10231478 Trim, Crisper 12709301 Divider−Pantry 4 12655902SP Support, Pantry(2) 5 12227305WD Brace, Pantry (2) 12531901 Track, Pantry 12656901 Gasket, Pantry 12656202 Housing, Control 12463912 Shelf, Glide (3)
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: JFI2089ATS2 (Stainless Steel) W10274769... - Page 8 MOTOR AND ICE CONTAINER PARTS For Model: JFI2089ATS2 (Stainless Steel) Illus. Part DESCRIPTION 13012604 Ice Bin Assembly (Includes Auger) 2 W10121282 Inlet, Blower 3 W10121281 Scroll, Blower 4 W10162697 Motor, Fan 5 W10123444 Wheel, Blower 6 12956603SP Clip, Fan Motor...
-
Page 9: Icemaker Parts
ICEMAKER PARTS For Model: JFI2089ATS2 (Stainless Steel) W10274769... - Page 10 ICEMAKER PARTS For Model: JFI2089ATS2 (Stainless Steel) Illus. Part DESCRIPTION 1 W10122527 Mold & Heater Assembly (Also Order 542638 Grease) 2 W10175514 Arm, Shutoff 628515 Cup, Fill 627843 Ejector 2182124 Ice Stripper 2194712 Support, Housing 2315522 Retainer, Thermostat 628397 Thermostat...
-
Page 11: Freezer Liner Parts
FREEZER LINER PARTS For Model: JFI2089ATS2 (Stainless Steel) W10274769... - Page 12 FREEZER LINER PARTS For Model: JFI2089ATS2 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 12002497 Gear (Left) 5 12812903WD Shaft, Rack 12570701 Socket, Light 12002497 Gear, (Right) 12990521 Screw, Bracket 9 W10194422 Bulb, Light 10 12476401SP Housing, Light...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: JFI2089ATS2 (Stainless Steel) W10274769... - Page 14 REFRIGERATOR DOOR PARTS For Model: JFI2089ATS2 (Stainless Steel) Illus. Part DESCRIPTION Door, Left 12978014BQ Black 12977401 Bin, Upper Door 3 12804701SP Door, Dairy 4 12369502SP Tray, Dairy 5 12945801SP Bin, Shelf (Chiller Top) 12990204 Screw 12991202 Screw, Handle Gasket, Door...
-
Page 15: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: JFI2089ATS2 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Housing, Dispenser Chute, Ext/Yoke Control Assembly (Not Serviced) (Includes Switch) W10259995 Black Facade, Dispenser 13005702B Black Sump, Dispenser 13051017BSP Black 12990513 Screw 13050701B Black... -
Page 16: Freezer Door Parts
FREEZER DOOR PARTS For Model: JFI2089ATS2 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Freezer Door 7 13002603SP Adapter, Bin Retainer, Glide 12977808BQ Black (Outer) 13002702SP Right Handle, Door 13002701SP Left 13002402 Bin, Upper 12850918 Stainless 12945201 Mount, Handle... -
Page 17: Unit Parts
UNIT PARTS For Model: JFI2089ATS2 (Stainless Steel) W10274769... - Page 18 UNIT PARTS For Model: JFI2089ATS2 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12992301 Screw 10547003 Clip, Drier Following Parts Not Illustrated 12825803 Blade, Fan 20 12225403WD Tray, Drip and Optional Parts Not Included 3 W10210985 Basepan...
- Page 19 OPTIONAL PARTS (NOT INCLUDED) For Model: JFI2089ATS2 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous TORX SCREW WRENCH Parts Not Illustrated and Optional Parts (Not Included) 1117510 Torx Key 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl Customer Touch−Up Material...
