CABINET PARTS
REFRIGERATOR

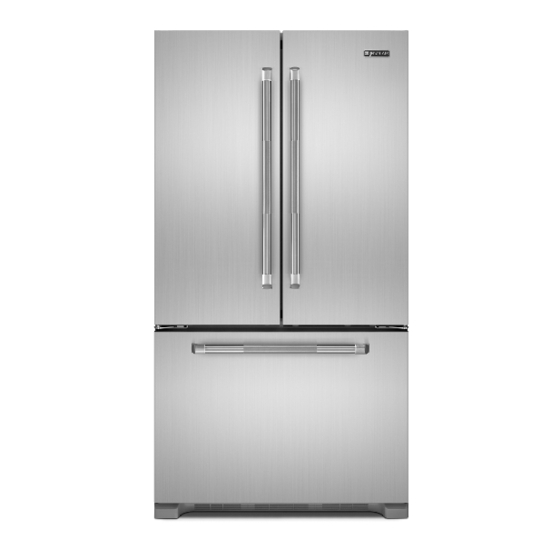

For Models: JFC2290VEP10
(Stainless Steel)
2−11 Litho In U.S.A (MMS) (psw)
1
Part No. W10210879 Rev.B

Advertisement

Table of Contents
loading

Related Manuals for Jenn-Air JFC2290VEP10

Summary of Contents for Jenn-Air JFC2290VEP10

  • Page 1 CABINET PARTS REFRIGERATOR For Models: JFC2290VEP10 (Stainless Steel) 2−11 Litho In U.S.A (MMS) (psw) Part No. W10210879 Rev.B...

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: JFC2290VEP10 (Stainless Steel) Illus. Part DESCRIPTION Literature Parts 12828196SP Use & Care Guide W10214832 Energy Guide 12827964 Tech Sheet Cabinet (Not a Servicable Part) B5759649 Gasket Roller Assembly W10212382 Left W10212381 Right 5 W10141622 Foot, Brake 67006521 Screw Cover, Hinge W10120102 Apollo Grey, Left...

  • Page 3: Freezer Liner Parts

    FREEZER LINER PARTS For Models: JFC2290VEP10 (Stainless Steel) W10210879...
  • Page 4 FREEZER LINER PARTS For Models: JFC2290VEP10 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 12002497 Gear (Left) (Includes Item 7) 67003905 Cover, Light 67004017 Shaft Y12570701 Socket, Light 12002497 Gear(Right) (Includes Item 3) 67006473 Screw (8) A0282812 Bulb, Light 67001035 Housing, Light 11 W10203139 Cover, Evaporator...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: JFC2290VEP10 (Stainless Steel) W10210879...
  • Page 6 REFRIGERATOR LINER PARTS For Models: JFC2290VEP10 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2 W10203323 Module, Light 4 W10185585 Module, Control 5 W10116216 Board, Control 12466104 Switch, Light 67003897 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light (2) Y12570701 Socket, Light (2) 67003900 Insert, Damper Cover...

  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: JFC2290VEP10 (Stainless Steel) W10210879...
  • Page 8 REFRIGERATOR DOOR PARTS For Models: JFC2290VEP10 (Stainless Steel) Illus. Part DESCRIPTION Door, Refrigerator 13094708SQ Stainless, LH 67006901 Screw 67003819 Door, Dairy 67001279 Tray, Dairy 5 W10119841 Bucket, Medium (3) Gasket, Door W10163997 Apollo Grey Handle, Door W10210624 Stainless 67006113 Mount, Handle Closure, Door W10191100 Apollo Grey 13062401 Nameplate...

  • Page 9: Unit Parts

    UNIT PARTS For Models: JFC2290VEP10 (Stainless Steel) W10210879...
  • Page 10 UNIT PARTS For Models: JFC2290VEP10 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006433 Screw 2 W10156818 Blade, Fan W10203109 Right Side Following Parts Not Illustrated 67005889 Basepan W10203108 Left Side and Optional Parts Not Included 67006425 Screw 67004432 Motor, Fan 67005491 Block, Condenser 10428101 Clip, Heater...

  • Page 11: Shelf Parts

    SHELF PARTS For Models: JFC2290VEP10 (Stainless Steel) W10210879...
  • Page 12 SHELF PARTS For Models: JFC2290VEP10 (Stainless Steel) Illus. Part DESCRIPTION 67002332 Glass, Pantry 67003791 Knob, Temp Control 12656822 Lid, Pantry Drawer 4 W10119222 Knob, Humidity Control (2) 67002330 Brace, Pantry (2) 2204542 Roller, Basket 7 W10119854 Basket, Middle 8 W10132468 Bin Assembly 67002329 Gasket, Pantry 67005625 Housing, Control 11 W10156631 Shelf, Stationary...

  • Page 13: Icemaker Parts

    ICEMAKER PARTS For Models: JFC2290VEP10 (Stainless Steel) W10210879...
  • Page 14 ICEMAKER PARTS For Models: JFC2290VEP10 (Stainless Steel) Illus. Part DESCRIPTION 2256086 Bracket, Ice Maker 67003729 Tube, Plastic 67003932 Clamp 489276 Screw 67006531 Valve−Inlet 67004028 Arm−Shut Off 7 W10153710 Cover, Front A3223101 Insert, Tube 9 W10122527 Mold & Heater Assembly (Also Order 542638) 628515 Cup Water fill 627843 Ejector...

  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Models: JFC2290VEP10 (Stainless Steel) Illus. Part DESCRIPTION Door, Freezer 13094904SQ Stainless Handle, Door W10210625 Stainless Gasket, Door W10164042 Apollo Grey Plug, Button (2) A3076901 Black 67006901 Screw 67006113 Mount, Handle W10210879...

  • Page 16: Optional Parts

    OPTIONAL PARTS For Models: JFC2290VEP10 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous PAINT, TOUCH−UP (1/2oz.) TORX SCREW WRENCH 72017 White 1117510 Torx Key 212643 Sealer, Gum 72032 Black (4 Feet) 4392901 Biscuit 479502 Tape, Vinyl ACCESSORIES (3/4 x 108") 505587 Sealer, Mastic...
