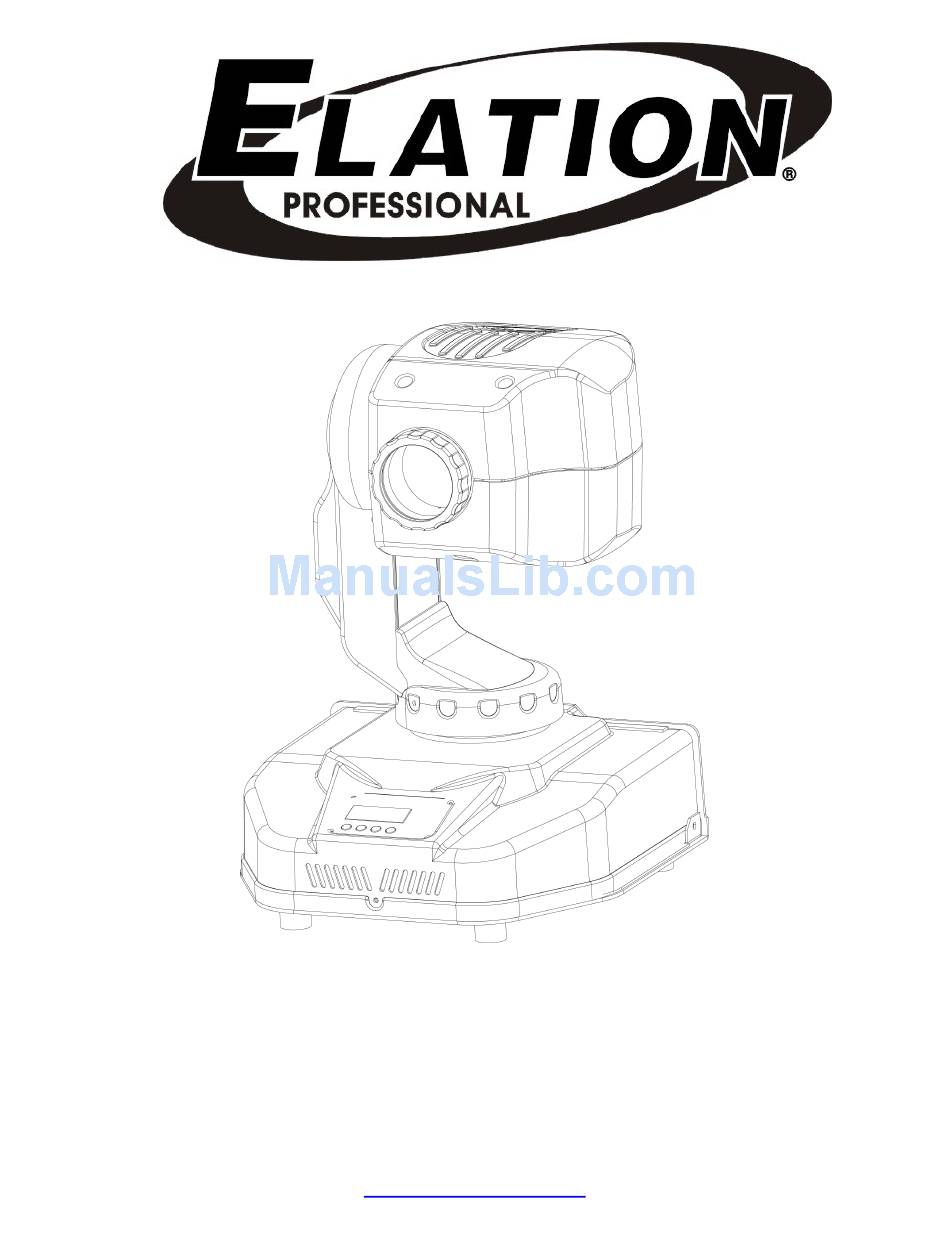

- Page 1 FOCUS SPOT 250R Elation Professional 4295 Charter Street Los Angeles, Ca 90058 www.elationlighting.com Rev 10/28/05...
- Page 2 Focus Spot 250R™ ©Elation Professional® Focus Spot 250R™...
-
Page 3: Table Of Contents
Focus Spot 250R™ Contents 1. General Information……………………………………………………… 3 a. Introduction…………………………………………………………. 3 b. Unpacking………………………………………………………..…. 3 c. Customer Support…………………………………………….……. 3 d. Warranty Registration……………………………………………… 4 e. Discharge Lamp Warning…………………………………………. 4 2. Safety Instructions……………………………………………………….. 6 3. Features…………………………………………………………………… 8 4. General Guidelines………………………………………………………. 9 5. Lamp Installation…………………………………………………………. 10 a. -
Page 4: General Information
1. General Information INTRODUCTION: Congratulations, you have just purchased one of the most innovative and reliable lighting fixtures on the market today! The Focus Spot 250R™, has been designed to perform reliably for years when the guidelines in this booklet are followed. -
Page 5: Warranty Registration
Focus Spot 250R™ WARRANTY REGISTRATION: The Focus Spot 250R™ carries a two year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. -
Page 6: Discharge Lamp Warning
Focus Spot 250R™ Extreme caution should be used when operated this or any fixture fitted with a gas discharge lamp. Never open this fixture while in use! During the initial operation of this fixture, a light smoke or smell may emit from the interior of the fixture. -
Page 7: Safety Instructions
2. Never touch the fixture during normal operation. This can cause severe personal injuries and/or damage to the fixture. 3. Be sure to unplug the FOCUS SPOT 250R™ from the power outlet before performing any service related issues. 4. Lamp Replacement; Allow at least 30 minutes after disconnecting main power before you open the FOCUS SPOT 250R™. - Page 8 Focus Spot 250R™ 11. Do not attempt to operate this fixture if the power cord has become damaged or frayed. Important Notice: Damages resulting from the disregard of safety and general user instructions found in this user manual are not subject to any warranty claims.
-
Page 9: Features
Focus Spot 250R™ 3. Features • Pan 630° or 540˚ (User selectable) / Tilt 265° • 18° Beam Angle • 8 Dichroic color plus spot, for a total of 9 colors • 7 Rotating Gobos • Strobe: 0~10Hz • Electronic Focus via DMX •... -
Page 10: General Guidelines
Focus Spot 250R™ 4. GENERAL GUIDELINES This fixture is a professional lighting effect for designed for use on stage, in nightclubs, in theatres, etc. Do not attempt operation or installation without a proper knowledge on how to This fixture was designed for indoor use only. -
Page 11: Lamp Installation
Focus Spot 250R™ 5. LAMP INSTALLATION INSTRUCTIONS Installing or replacing the lamp Only install the lamp with the device unplugged from the mains. The lamp has to be replaced when it is damaged or deformed. Before replacing the lamp be sure the unit has ample time to cool, to avoid injury to yourself never touch the lamp when it is hot. -
Page 12: Lamp Optimization
The minimum deviation amount is 1.0mm. Running the fixture within a lower deviation can cause damage to the lamp and/or lens. The Focus Spot 250R™ lamp holder is aligned at the factory. However, due to slight imperfections in all lamps, fine adjustments will improve light performance. Please follow the procedure below for proper lamp optimization: 1. -
Page 13: Mounting And Installation
Mounting points The FOCUS SPOT 250R™ has been designed to hold multiple clamps on the bottom of the unit in several different orientations. Always use an appropriately rated clamp to mount this fixture to truss. Refer to the printed instructions on the bottom of the fixture for proper clamp ©Elation Professional®... - Page 14 Secure the FOCUS SPOT 250R™ Regardless of the rigging option you choose for your FOCUS SPOT 250R™ always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the underside of the fixture, be sure to use this point and never secure a safety cable to a carrying handle.
-
Page 15: Understanding Dmx
Focus Spot 250R™ 7. Understanding DMX Data Cable (DMX Cable) Requirements (For DMX and Master/Slave Operation): Your fixture and your DMX controller require a standard 3-pin XLR connector for data input and data output (see figure below). If you are constructing your own cables be sure to use two conductor shielded digital cable rated at a 120 ohms (this cable can be purchased at almost all professional sound and lighting stores). -
Page 16: Dmx Terminator
Focus Spot 250R™ DMX-512 connection with DMX terminator When longer runs of cable are used, you may need to use a terminator on the last fixture to avoid erratic behavior. A terminator is a 90-120 ohm 1/4 watt resistor that is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). - Page 17 In the case of the Focus Spot 250R™, which is a 11 channel fixture, you should set the starting address of the first unit to 1, the second unit to 12 (11 + 1), the third to 23 (12 + 11), and so on.
- Page 18 Focus Spot 250R™ signal the display will flash "A.XXX" (XXX representing the actual DMX address). If your fixture is connected to a DMX controller and the display is flashing (not receiving a DMX signal), please check the following: The 3 PIN XLR plug (cable with DMX signal from controller) is not connected or is not inserted completely into the DMX input jack.
-
Page 19: Fixture Menu
Control Board: The control panel located on the top of the fixture allows you to access the main menu and make all necessary adjustments to the Focus Spot 250R™. During normal operation, tapping the “MODE” key once will access the fixture’s main menu. Once in the main menu you can navigate through the different functions and access the sub-menus with the Up and Down buttons. - Page 20 Focus Spot 250R™ RESE Reset all motors and returns fixture to home SCAN Reset only motors for pan/tilt COLR Reset only motors for colors GOBO Reset only motors for gobo and rotation SHTR Reset only motors for shutter and/or dimmer...
-
Page 21: Menu Functions
(Value) - This is where you set the fixtures DMX address. Setting/Changing the DMX Address After applying power to the FOCUS SPOT 250R™ the LED will display the fixture’s current DMX address immediately after the reset sequence. If the fixture is not receiving a DMX signal the display will flash continuously. - Page 22 Focus Spot 250R™ channels. For example: If you press the up button until “T-03” is displayed, the unit will test the color channel, changing the color one by one and show the rainbow effect with different speeds. There are 11 channels, but only channels 1, 3, 5, 6, 8, and 9 can be tested.
- Page 23 Focus Spot 250R™ 5. Press Mode/Esc to return to the main menu. 4. LAMP MENU - ON/OFF Manually switches the lamp on and off. LAMP MENU - LAMP – This menu function will manually turn the lamp on and off.
- Page 24 Focus Spot 250R™ mirror motor. 1. Access the main menu. 2. Tap the UP button until “RESE” is displayed, press ENTER. 3. Tap the UP button until “SCAN” is displayed, press ENTER to confirm. 4. The display will show “ON/OFF”. Press the UP button to select “ON” to reset the color motor.
- Page 25 Focus Spot 250R™ 6. TIME MENU - LIFE - Displays the fixtures total running time. LAMP - Displays the lamp running time. CLMP - Clears the lamp running time. TIME MAIN MENU LIFE - With this function you can display the total running time of the unit.
- Page 26 Focus Spot 250R™ This menu setting reverses the Pan movements. RPAN MENU - RPAN – This menu function will reverse the mirror PAN movements. 1. Access the main menu. 2. Tap the UP button until“RPAN”is displayed, press ENTER. 3. The display will show“ON/OFF”.
- Page 27 Focus Spot 250R™ 16bit mode the unit will have 11 DMX channels that includes two pan movement channels and two tilt movement channels. In 8bit mode the fixture will only have one pan and one tilt movement channel for a total of nine DMX channels.
- Page 28 Focus Spot 250R™ 12. DISPLAY MENU - VALU (DMX-512 Value) - Display the DMX-512 value of each channel. D ON (Display On) – Turns the digital display on or off. - “Flips” the digital display 180 degrees. FLIP DISP MENU - This menu function will control the various on-board display features.
- Page 29 Focus Spot 250R™ 5. Press the UP button to select “O N ” to activate this function, or “ O F F ” to deactivate this function. 6. Press ENTER to confirm. 7. Press MODE/ESC to return to the main menu.
- Page 30 Focus Spot 250R™ 3. Tap the UP button until “RDMX” is displayed, press ENTER. 4. The display will show “ON/OFF.” 5. Press the UP button to display “ON” to activate this function, or “OFF” to deactivate this function. 6. Press ENTER to confirm.
- Page 31 Focus Spot 250R™ 2. Tap the UP button until “SPEC” is displayed, press ENTER. 3. Tap the UP button until “DLAY” is displayed, press ENTER. 4. The display will show “D-XX.” 5. Press the UP and DOWN buttons to adjust the delay time.
- Page 32 Focus Spot 250R™ 2. Tap the UP button until “SPEC” is displayed, press ENTER. 3. Tap the UP button until “FEED” is displayed, press ENTER. 4. The display will show “ON/OFF.” 5. Press the UP button to display “ON” to activate this function, or “OFF” to deactivate this function.
- Page 33 Focus Spot 250R™ number of steps under Step (S-01- S-48). You can edit the individual scenes under Edit. 1. Access the main menu. 2. Tap the UP button until “EDIT” is displayed, press ENTER. 3. Tap the UP button until “RUN” is displayed, press ENTER.
- Page 34 Focus Spot 250R™ 2. Tap the UP button until “EDIT” is displayed and press ENTER. 3. The display will show “SC-01” , this stands for the scene number. For example, “SC-01” is displayed, it means you will be editing scene 1, press ENTER.
- Page 35 Focus Spot 250R™ Press [MODE/ESC], the display shows “SC01”. Press [MODE/ESC], the display shows “C-01”. Select "CEDT" by pressing [UP] or [DN]. Press [MODE/ESC], the display shows "OFF". Press [UP], the display shows "ON". Press [MODE/ESC], the display shows "SC02". You successfully downloaded the first scene.
-
Page 36: Dmx Channel Traits
Focus Spot 250R™ 9. DMX Channel Traits: The chart below details the channel layout for 11 DMX channels (default). In 8bit mode the “Pan Fine” and “Tilt Fine” channels are not used, thus converting the fixture into a 9 channel DMX fixture. - Page 37 Focus Spot 250R™ DMX channel function and values: Channel 1 – PAN Coarse 8bit : Channel 2 – PAN Fine 16bit Channel 3 – TILT Coarse 8bit Channel 4 – TILT Fine 16bit Channel 5 - Color Wheel : 0-13...
- Page 38 Focus Spot 250R™ Channel 8 - Shutter, Strobe: 0-31 Shutter Closed 32-63 Dimmer (close to open) 64-95 Strobe Effect (slow to fast) 96-127 No function (shutter open) 128-159 Pulse-effect in sequences 160-191 No function (shutter open) 192-223 Random strobe effect slow to fast...
-
Page 39: Error Codes
Focus Spot 250R™ 10. ERROR CODES: When power is applied, the unit will automatically enter a “reset/test” mode. This mode brings all the internal motors to a home position. If there is an internal problem with one or more of the motors an error code will flash in the display in the form of “XXer” were as XX will represent a function number. - Page 40 Focus Spot 250R™ 05Er - Color-wheel error: The color wheel is not located in the default position after start-up or after a reset command. This message will appear after a fixture reset if the color wheel’s magnetic-indexing circuit malfunctions (sensor failed or magnet is missing) or there is a stepper motor failure (defective motor or a defective motor IC drive on the main PCB).
-
Page 41: Cleaning And Maintenance
Focus Spot 250R™ CLEANING AND MAINTENANCE The following points have to be considered during the inspection: 1. All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2. There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling, suspension, trussing). -
Page 42: Warranty
United States of America, including possessions and territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional factory. All ®... - Page 43 The consumer’s and or Dealer’s sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Elation Professional® be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
-
Page 44: Technical Specifications
Focus Spot 250R™ 13. TECHNICAL SPECIFICATIONS Power supply (user selectable) : _98VAC,50Hz;_120VAC,50Hz;_208VAC,50Hz; _220VAC,50Hz;_230VAC,50Hz;_240VAC,50Hz; _98VAC, 60Hz;_120VAC,60Hz;_208VAC,60Hz; _220VAC,60Hz;_230VAC,60Hz;_240VAC,60Hz; Power consumption : max. 400W: Lamp: MSD250 GY9.5 socket, Metal Halide (250w, 8500˚K, 3000hrs) Fuse: GMA 250v/8A Motors: 7 micro motors Pan Movement: 630˚ in 3.5 sec. (default) 540˚ (user selectable) Tilt Movement: 265˚... -
Page 45: Photometric Data
Focus Spot 250R™ Photometric Data: Gobos: Dimensional Drawings: ©Elation Professional® Focus Spot 250R™... - Page 46 Focus Spot 250R™ ©Elation Professional® Focus Spot 250R™...
- Page 47 Focus Spot 250R™ ©Elation Professional® Focus Spot 250R™...
- Page 48 Focus Spot 250R™ Elation Professional 4295 Charter Street Los Angeles, CA. 90058 323-582-3322 / 323-582-3108 fax www.ElationLighting.com / info@ElationLighitng.com ©Elation Professional® Focus Spot 250R™...
