Inglis IM70000 Parts List
29" gas dryer
Hide thumbs
Also See for IM70000:
- User instructions (8 pages) ,
- Installation instructions manual (12 pages)
Related Manuals for Inglis IM70000
Summary of Contents for Inglis IM70000

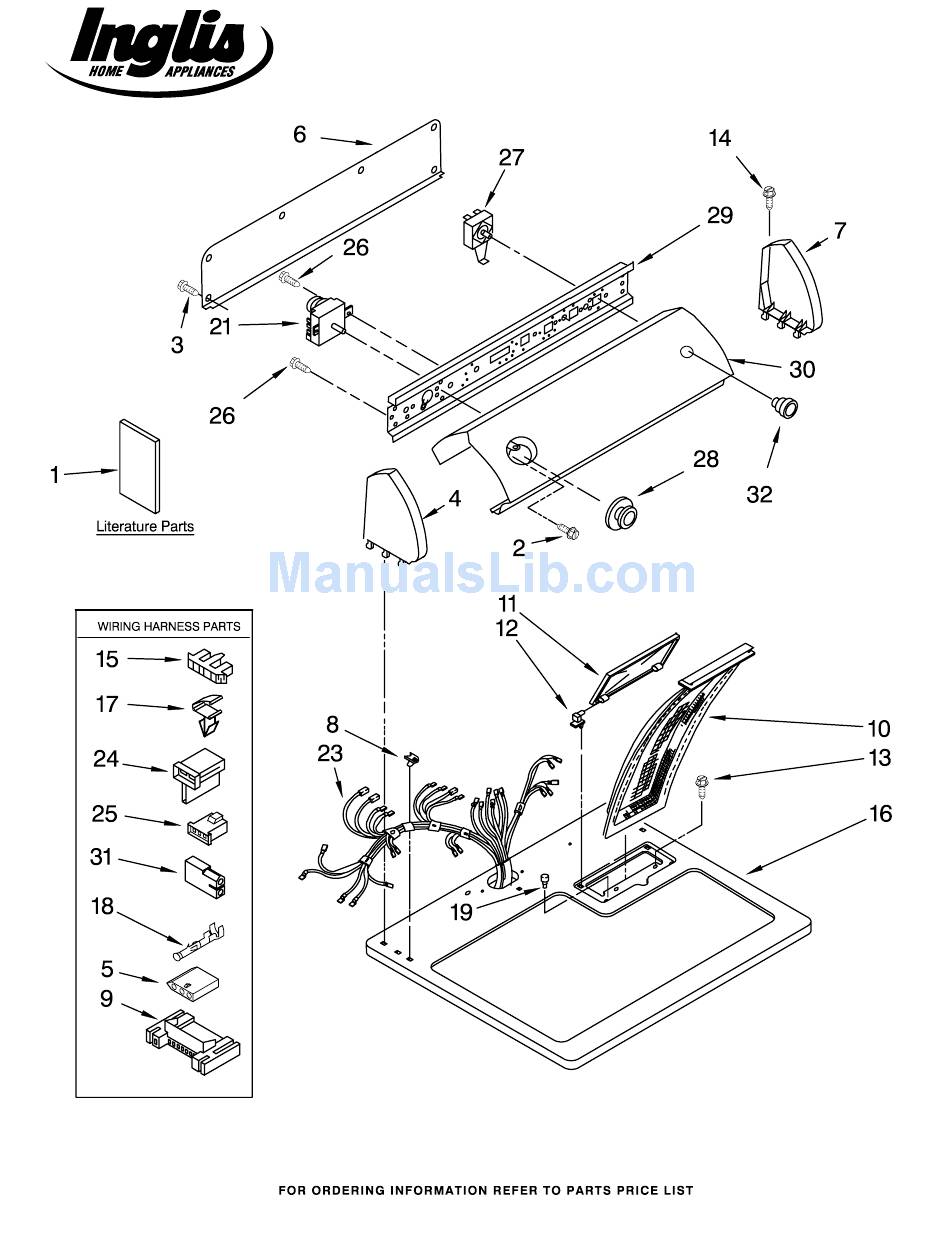

- Page 1 TOP AND CONSOLE PARTS 29" GAS DRYER ® For Model: IM70000 (Designer White) 11−03 Litho in U.S.A. (djc) Part No. 8180170...
- Page 2 TOP AND CONSOLE PARTS For Model: IM70000 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 8274261 Panel, Rear 3976584 Timer Assembly, LIT8546085 Use & Care Guide Console 60 Hz. LIT8535915 Installation 8274434 Cap, End (R.H.)
-
Page 3: Cabinet Parts
CABINET PARTS For Model: IM70000 (Designer White) 8180170... - Page 4 CABINET PARTS For Model: IM70000 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 697776 Screw, 10−32 x 5/8 238088 Hinge, Top (2) 98234 Clip, Ground (2) 343641 Screw, 10−16 x 1/2 3394332 Idler & Slide 690363 Lock, Front Top (2) 694091 Screw, 8−18 x 3/8...
-
Page 5: Burner Assembly
8318272 BURNER ASSEMBLY For Model: IM70000 (Designer White) 8180170... - Page 6 8318272 BURNER ASSEMBLY For Model: IM70000 (Designer White) Illus. Part DESCRIPTION 8318272 Burner Assembly 60 Hz. (Type 1) (White Rodgers) 688617 Tube, Burner 694298 Bracket, Ignitor 686590 Ignitor 3393909 Screw & Washer (8−32 x 5/8) 343641 Screw, 10−16 x 1/2 693986 Base, Burner 3387057 Screw, 8−18 x 3/8...
- Page 7 BULKHEAD PARTS For Model: IM70000 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 694283 Lint Chute 690997 Ring, Tri 3398161 Clip Assembly 3399506 Shaft, L.H. 489463 Screw, 8−18 x 5/8 343641 Screw, 10−16 x 1/2 3399507 Shaft, R.H.
