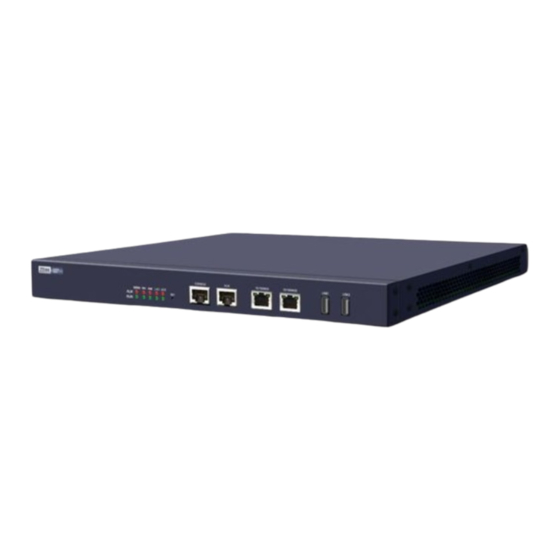

Zte ZXR10 ZSR Hardware Installation Manual
Intelligent integrated multi-service router
Hide thumbs
Also See for ZXR10 ZSR:
- Configuration manual (313 pages) ,
- Configuration manual (system management (192 pages) ,
- Product description (86 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Zte ZXR10 ZSR
Summary of Contents for Zte ZXR10 ZSR
- Page 1 ZXR10 ZSR Intelligent Integrated Multi-Service Router Hardware Installation Manual Version: V2.8.11 ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755-26771900 Fax: +86-755-26770801 URL: http://ensupport.zte.com.cn E-mail: support@zte.com.cn...
- Page 2 ZTE CORPORATION is prohibited. Additionally, the contents of this document are protected by contractual confidentiality obligations. All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respective owners.
-
Page 3: Table Of Contents
Contents About This Manual ..................I Chapter 1 Safety Instructions..............1-1 1.1 Safety Introduction ..................... 1-1 1.2 Safety Description ....................1-1 Chapter 2 Installation Overview ..............2-1 2.1 Equipment Configuration ..................2-1 2.1.1 Installation Content................... 2-1 2.1.2 Equipment Composition................2-1 2.1.3 Main Device..................... - Page 4 7.4 E1 Cables Installation ..................7-4 7.4.1 120Ω Twisted Pair Installation ..............7-4 7.4.2 120ΩE1 (DB44) Cable Installation ............. 7-5 7.4.3 75Ω Coaxial Cable Installation ..............7-7 7.4.4 75ΩE1 (DB44+BNC) Cable Installation ............7-8 7.5 USB Prolong Cable Installation ................7-8 7.6 Fiber Installation....................
-
Page 5: About This Manual
About This Manual Purpose At first, thank you for choosing ZXR10 routers of ZTE Corporation! This manual provides procedures and guidelines that support the operation of ZXR10 ZSR (V2.8.11) Intelligent Integrated Multi-Service Router. Intended Audience This manual is intended for the following engineers:... - Page 6 Typeface Meaning CAPS Keys on the keyboard and buttons on screens and company name. Constant Text that you type, program codes, filenames, directory names, function names. width Optional parameters. Mandatory parameters. Separates individual parameter in series of parameters. Danger: Indicates an imminently hazardous situation, which if not avoided, will result in death or serious injury.
-
Page 7: Chapter 1 Safety Instructions
ZTE bears no responsibility in case of universal safety operation requirements violation and safety standards violation in designing, manufacturing and equipment usage. 1.2 Safety Description Contents deserving special attention during configuration of ZXR10 ZSR are explained in the following table. Table 1-1 SAFETY DESCRIPTION Convention... - Page 8 ZXR10 ZSR Hardware Installation Manual This page intentionally left blank. SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential...
-
Page 9: Chapter 2 Installation Overview
2-1, where the continuous thick lines show the parts which are to be installed. Figure 2-1 ZXR10 ZSR Installation Sketch Map 2.1.2 Equipment Composition The following devices are needed for configuring ZXR10 ZSR: ZXR10 ZSR main device SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... -
Page 10: Main Device
Main device can either be installed in a 19-inch standard cabinet or on the work platform directly. As shown in Table 2-1, ZXR10 ZSR can be configured to the router of different models. Table 2-1 ZXR10 ZSR Series Models Model Cabinet Structure... -
Page 11: Figure 2-2 Zxr10 Zsr (1U) Front View
RA-2884-DC RA-3842-AC RA-3842-DC RA-3884-AC RA-3884-DC All ZXR10 ZSR enclosures support both DC and AC power supplies and can provide DC and AC input according to user demands. The appearance of ZXR10 ZSR (1U) is shown in Figure 2-2. Figure 2-2 ZXR10 ZSR (1U) Front View... -
Page 12: Figure 2-4 Zxr10 Zsr (3U) Front View
2-5. Figure 2-5 ZXR10 ZSR 1809 (Soho) Front View The appearances of ZXR10 1809 R series products are shown in Figure 2-6 Figure 2-7. Figure 2-6 ZXR10 ZSR R (Compact Model) (1U) Front View SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... -
Page 13: Hardware Installation Flow
Chapter 2 Installation Overview Figure 2-7 ZXR10 ZSR R (Compact Model) (2U) Front View For parameters of ZXR10 ZSR main device, please refer to Table 2-2 Table 2-3. Table 2-2 ZXR10 ZSR Device Parameters Items 1800 (1U) 1800/2800/3800 (2U) 2800/3800 (3U) Slot Number Size (mm) (W×H×D) -
Page 14: Figure 2-8 Hardware Installation Flow Diagram
ZXR10 ZSR Hardware Installation Manual Figure 2-8 Hardware Installation Flow Diagram Prepare Installation Before hardware installation, prepare the following items: Know device locations in the lab and lab environment Know device configurations and composition Prepare engineering design documents and installation instruction documents needed... -
Page 15: Figure 2-9 Main Device Installation Flow Diagram
This part introduces the connection of all cables. For details, refer to Chapter 6. Check Hardware Installation After all hardware are installed, it is necessary to check the installation so as to make preparation to subsequent software installation and system debugging. For details, refer to Chapter 7. SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... - Page 16 ZXR10 ZSR Hardware Installation Manual This page intentionally left blank. SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential...
-
Page 17: Chapter 3 Installation Preparation
Net height of the NOC room It must be more than 3.20m; if not, it must be specified particularly in engineering design document and cable laying mode shall also be illustrated. Aisle in NOC room SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... -
Page 18: Indoor Environment Of Noc Room Inspection
ZXR10 ZSR Hardware Installation Manual The sizes of doors, corridors, stairs (etc.) of NOC room must be big enough for handling equipment. In usual cases, the width of door must be more than 1.8m and the height mustn't be lower than 2.2m. In addition, both door locks and keys must be available. -
Page 19: Table 3-1 Temperature And Humidity Requirements
The detailed requirements to temperature and humidity are shown in Table 3-1. Table 3-1 Temperature and Humidity Requirements Temperature Relative Humidity Long-Term Short-Term Working Working Long-Term Short-Term Condition (Note Condition (Note Working Working Items Conditions Conditions Range 15℃~30℃ -5℃~45℃ 40%~65% 20%~90% SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... - Page 20 ZXR10 ZSR Hardware Installation Manual Note: When equipment works in normal environment, temperature and humidity à measurement points refer to values measured at points 2m above the floor and 0.4m in front of equipment (they must be measured when there is no protection plate in front and back of cabinet).
-
Page 21: Power Supply Requirements Inspection
The lab must comply with national Level 2 fire protection standard. 3.3 Power Supply Requirements Inspection Nominal voltage of power supply provided for ZXR10 ZSR router by power device in lab is -48V and the allowed variation range is -57V~-40V. -
Page 22: Technical Document Preparation
3.7 Technical Document Preparation Installation engineering personnels must take the following technical documents with them for reference: ZXR10 ZSR (V2.8.11) Intelligent Integrated Multi-Service Router Hardware Installation Manual ZXR10 ZSR (V2.8.11) Intelligent Integrated Multi-Service Router Hardware Manual SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... -
Page 23: Chapter 4 Cabinet Installation
6. Fix and fasten the flanges to the square holes of 19-inch cabinet with screws and fix the enclosure into the cabinet. The installation is shown in Figure 4-1. SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... -
Page 24: Figure 4-1 Enclosure Installation
ZXR10 ZSR Hardware Installation Manual Figure 4-1 Enclosure Installation SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... -
Page 25: Chapter 5 Installing The Worktable
5. Screw on fixed screws. 6. Insert the blank panel into the idle slot. ZXR10 ZSR router is compatible with partial interface cards of ZXR10 GAR. Among these cards, the LIC cards whose types end with –R (such as RA-8FE-R) are not applicable to SJ-20110803091932-002|2011-08-30 (R2.0) - Page 26 ZXR10 ZSR Hardware Installation Manual ZSR system and can not be used. While ZXR10 ZSR can be compatible with LIC cards ending with other characters or without special identifiers. And these LIC cards can be used. SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential...
-
Page 27: Chapter 6 Power Cables And Grounding Wires Installation
Figure 6-1, standard print power cable is used as the AC power cable. One end is connected to AC power socket on AC power module of ZXR10 ZSR and the other end is connected to 220V AC power socket. Figure 6-1 AC Power Cable 6.2 DC Power Cable Installation... -
Page 28: Grounding Wire Installation
Protective Earth (PE). 6.3 Grounding Wire Installation There is a grounding screw on the back of ZXR10 ZSR enclosure, and the screw is on the left bottom. For using yellow-green cabinet protect cable, connect one end of the cable to grounding screw and the other end of the cable to protective earth of cabinet. -
Page 29: Chapter 7 External Cable Installation
7.2 Configuration Cable Installation 7.2.1 Console Cable Installation Serial console cable is the basic cable used to configure and maintain ZXR10 ZSR. The model is C-232-007. One end of the cable is the DB9 female plug, connected to the serial interface on background terminal. -
Page 30: Table 7-1 Serial Console Cable Connection
ZXR10 ZSR Hardware Installation Manual Figure 7-1 Serial Console Cable Note: Terminal A is connected to serial interface of PC and terminal B is connected to console port of device Connection of serial console cable is shown in Table 7-1. -
Page 31: Aux Port Cable Installation
Cables can be classified into the following two types according to different cable crimping order in the plug: Straight-through network cable RJ45: the cable connection relationship is in the one-to-one correspondence at both ends. The specific connection relationship is shown in Table 7-3. SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... -
Page 32: E1 Cables Installation
White and Brown Brown 7.4 E1 Cables Installation ZXR10 ZSR provides many kinds of channelized E1 cards, which use different interfaces and cables. 7.4.1 120Ω Twisted Pair Installation 8/4 port channelized E1 interface card (RA-8CE1/RA-4CE1) provides a RJ48 socket and can be connected with 120Ω... -
Page 33: 120Ωe1 (Db44) Cable Installation
Un-connected If the peer device uses BNC connector, it is needed to add a RJ48-to-BNC interface converter. Now ZXR10 ZSR is connected to converter with straight-through E1 cable, while the peer device is connected to converter through coaxial cable. The connection relationship of the straight-through E1 cable ends is shown in Table 7-6. -
Page 34: Table 7-7 Line Order At Db44 Interface
ZXR10 ZSR Hardware Installation Manual Table 7-7 Line Order at DB44 Interface Sending/Receiving Port ID Plug Pin Direction Signal Illustration RX END TX END RX END TX END RX END TX END RX END TX END RX END TX END... -
Page 35: Coaxial Cable Installation
As the eight single-core cables are in the same one sheath, the lengths of the eight single-core cables have been adjusted to match the sockets on the backplane. Connect the cables as shown in Figure 7-3. SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... -
Page 36: E1 (Db44+Bnc) Cable Installation
BNC connectors. The cable length is variable. 7.5 USB Prolong Cable Installation One end of the USB extension cable of ZXR10 ZSR is USBAM, and the other end is USBAFM. The example is shown in Figure 7-4. -
Page 37: V.35/V.24 Cable Installation
Different types of optical interfaces use different models of optical connectors. The end of the fiber needs to match corresponding connector. ZXR10 ZSR provides the following three models of optical interfaces: SC interface: a fiber with two square interfaces for transmission and reception and using SC connectors. -
Page 38: Figure 7-5 V.35C Cable
ZXR10 ZSR Hardware Installation Manual Figure 7-5 V.35C Cable The connection of V.35C1 cable is shown in Table 7-8. Table 7-8 V.35C1 Cable Connection Terminal A (D36 Cable Chro- Terminal Terminal A (D36 Cable Chro- Terminal Plug) matogram (V.35 Plug, pin) -
Page 39: Figure 7-6 V.35Da Cable
A Short Cir- minal Short cuited Circuited C and D of Termi- C and D of Termi- nal B2 Short Cir- nal B1 Short Cir- cuited cuited White White Orange Orange White White Green Green 7-11 SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... -
Page 40: Cable Installation
ZXR10 ZSR Hardware Installation Manual Terminal A (D36 Cable Chro- Terminal Terminal A (D36 Cable Chro- Terminal Plug) matogram (V.35 plug, pin) Plug) matogram (V.35 plug, pin) White White Brown Brown Blue Blue Orange Orange Green Green Brown Brown 7.7.2 V.24 Cable Installation V.24AA... -
Page 41: Figure 7-8 V.24Ba Cable
V.24BA cable is used when the serial interface card is used as DCE in V.24 service. The figure is shown in Figure 7-8. Figure 7-8 V.24BA Cable The connection of V.24BA cable is shown in Table 7-11. 7-13 SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... -
Page 42: Figure 7-9 V24A Rj45 Cable
ZXR10 ZSR Hardware Installation Manual Table 7-11 V.24BA Cable Connection Terminal Cable Chro- Terminal Terminal Cable Chro- Terminal (D36 Plug) matogram (DB25, Pin) (D36 Plug) matogram (DB25, Pin) White White Blue Blue 2 and 3 of Termi- 11 and 12 of Ter-... -
Page 43: Table 7-12 V24A Rj45 Cable Connection
RJ45 Connector (Terminal B1) (Black) Grey (White RTS0 (Note: 1) Blue) CTS0 (Note: 1) (White DTR0 Orange) DSR0 (White 4 (Note 1) Green) TCLK0 (White TCLK0 Brown) TXD0 RXD0 (Red) Brown V35TXD0 (Red RCLK0 7-15 SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... -
Page 44: Figure 7-10 V24A Db9 Cable
ZXR10 ZSR Hardware Installation Manual D36 Plug (DCE) RJ45 Plug (Terminal B2) Conductor Signal Conductor Signal Pin No. Conductor Color Name Name Pin No. Grey) RCLK0 (Yellow RXD0 TXD0 Blue) V35RXD0 (Yellow ECLK0 Orange) ECLK0 (Yellow ECLKA0 Green) V35ECLKA0 Note: Connect pins 4 and 5 of RJ45 rather than connect GND cables of M_CD and RJ45 connectors of MDR-36 plug. -
Page 45: Table 7-13 V24A Db9 Cable Connection
DB9 Female Plug (Terminal B1) (Black) Grey (White RTS0 (Note: 1) Blue) CTS0 (Note: 1) (White DTR0 Orange) DSR0 (White 5 (Note 1) Green) TCLK0 (White TCLK0 Brown) TXD0 RXD0 (Red) Brown V35TXD0 (Red RCLK0 7-17 SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... -
Page 46: Figure 7-11 Modem Cable
ZXR10 ZSR Hardware Installation Manual D36 Plug (DCE) DB9 Female Plug (Terminal B2) Conductor Signal Conductor Signal Pin No. Conductor Color Name Name Pin No. Grey) RCLK0 (Yellow RXD0 TXD0 Blue) V35RXD0 (Yellow ECLK0 Orange) ECLK0 (Yellow ECLKA0 Green) V35ECLKA0... -
Page 47: Table 7-14 Modem Cable Connection
(Note 1) 4 Blue) CTS0 (Note 1) <— CTS0 (Note 1) 5 (White DTR0 —> DTR0 Orange) DSR0 <— DSR0 (White <— Green) TCLK0 —> ETC0 (White TCLK0 Brown) TXD0 —> (Red) Brown V35TXD0 7-19 SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... -
Page 48: Scsi-V.24 Cable Installation
ZXR10 ZSR Hardware Installation Manual D36 Plug (DCE) Signal Direction 2# DB25 Male Plug Schematic Conductor Diagram Signal Conductor Pin No. Colour Name Signal Name Pin No. (Red RCLK0 —> ERC0 Grey) RCLK0 (Yellow RXD0 <— Blue) V35RXD0 (Yellow ECLK0 <—... -
Page 49: Figure 7-12 V.24-Ds-001 Cable
2 (Note) Blue (Note) RTS0 18 (Note) Blue (Note) RTS4 (Note) White (Note) CTS0 55 (Note) White (Note) CTS4 Orange DTR0 Orange DTR4 White DSR0 White DSR4 Green Green White White Brown Brown 7-21 SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... - Page 50 ZXR10 ZSR Hardware Installation Manual Signal at Termi- Cable Chro- Terminal Terminal Cable Chro- Signal at nal A matogram Terminal B matogram Terminal B Terminal B White White 6 (Note) Blue (Note) RTS1 22 (Note) Blue (Note) RTS5 (Note) White...
-
Page 51: Figure 7-13 V.24-Ds-002 Cable
2 (Note) Blue 5 (Note) CTS0 (Note) Blue (Note) RTS4 39 (Note) White 4 (Note) RTS0 (Note) White (Note) Orange Orange White DSR0 White DSR4 Green DTR0 Green DTR4 White White Brown Brown 7-23 SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... - Page 52 ZXR10 ZSR Hardware Installation Manual Signal at Terminal Cable Chro- Terminal Termi- Cable Chro- Signal at matogram Terminal B nal A matogram Terminal B Terminal B White White 6 (Note) Blue 5 (Note) CTS1 (Note) Blue (Note) CTS5 43 (Note)
-
Page 53: Figure 7-14 V.24-Ds-003 Cable
Chro- Signal at nal A matogram Terminal B Terminal B Terminal A matogram Terminal B Terminal B White White Blue Blue White White Orange Orange White White Green Green White White Brown Brown 7-25 SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... -
Page 54: Figure 7-15 Scsi 68 Plug And Db9 Female Plug Multi-Core Cable
ZXR10 ZSR Hardware Installation Manual Cable Termi- Cable Chro- Signal at Chro- Signal at nal A matogram Terminal B Terminal B Terminal A matogram Terminal B Terminal B White White Blue Blue White White Orange Orange White White Green Green... -
Page 55: Table 7-18 Scsi 68 Plug And Db9 Female Plug Multi-Core Cable Connection
GND0 5 (Note 1) M_TX0 —> M_RX0 <— SCSI 68 Plug DB9 Female Plug (Terminal B2) GND1 — GND1 M_RTS1 — M_CTS1 — M_DTR1 — SCSI 68 Plug DB9 Female Plug (Terminal B2) 7-27 SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... - Page 56 ZXR10 ZSR Hardware Installation Manual SCSI 68 Plug (DCE) Signal Direction DB9 Female Plug (Terminal B1) Schematic Conductor Diagram Signal Conductor Pin No. Color Name Signal Name Pin No. M_DSR1 — M_CD1 — GND1 5 (Note 1) M_TX1 —> M_RX1 <—...
- Page 57 M_TX6 —> M_RX6 <— SCSI 68 Plug DB9 Female Plug (Terminal B8) GND7 — GND7 M_RTS7 — M_CTS7 — M_DTR7 — M_DSR7 — M_CD7 — GND7 5 (Note 1) M_TX7 —> M_RX7 <— 7-29 SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential...
-
Page 58: Label Style
ZXR10 ZSR Hardware Installation Manual Note: Connect pins 4 and 5 of DB9 rather than connect GND cables of M_CD and DB9 connectors of SCSI 68 PLUG. 7.8 Label Style Transverse English labels on panels and plugs Transverse English label is used on panels and plugs whose areas are larger than label area. -
Page 59: Figure 7-17 Roll-Up Self-Mulching Laser Print Type Ii Labels
It is pasted on the cable through the self-contained cellulose tape. Labels Pasted on Cables Power Cable Label à A flag-type label worked out by ZTE can be used as an engineering marker for power cables, as shown in Figure 7-18. Figure 7-18 Power Cable Label The paste position is 2cm from the lug. -
Page 60: Figure 7-19 Paste Position Of Power Cable Label
ZXR10 ZSR Hardware Installation Manual Figure 7-19 Paste Position of Power Cable Label The flag-type power cable is divided into two areas: L and R. Their specific meanings are as follows: L: In this area, fill location code of local device. That is, it indicates the location of local device connected with power cable. - Page 61 Both sides of the coaxial cable label are marked with L and R. The specific meanings are as follows: When label is stuck to coaxial cable on ZXR10 ZSR side. The R side of the label must be filled with the actual content of the DDF: row and column numbers of the DDF, the layer of the cable in the DDF and cable number.
- Page 62 ZXR10 ZSR Hardware Installation Manual Figure 7-22 Transverse English Type-1 Label 7-34 SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential...
-
Page 63: Chapter 8 Hardware Installation Inspection
ALM (red) indicator must be on when alarm is generated. 8.2 Power Cable Inspection Power cable Check if 3-pin plug and 3-core connector at two ends of power cable are correctly and reliably connected. DC power SJ-20110803091932-002|2011-08-30 (R2.0) ZTE Proprietary and Confidential... -
Page 64: Cabling Inspection
ZXR10 ZSR Hardware Installation Manual Check if -48V, -48VGND, GND and PE cables are connected correctly and reliably. Grounding wire Check if the protective earth of the enclosure is connected correctly and reliably. 8.3 Cabling Inspection Cables must be laid neatly. -
Page 65: Figures
Figure 2-4 ZXR10 ZSR (3U) Front View..............2-4 Figure 2-5 ZXR10 ZSR 1809 (Soho) Front View ............2-4 Figure 2-6 ZXR10 ZSR R (Compact Model) (1U) Front View ........2-4 Figure 2-7 ZXR10 ZSR R (Compact Model) (2U) Front View ........2-5 Figure 2-8 Hardware Installation Flow Diagram............ - Page 66 ZXR10 ZSR Hardware Installation Manual Figure 7-20 Meaning and Composition of Fiber Engineering Label ......7-32 Figure 7-21 Meaning and Composition of Coaxial Cable Engineering Label.... 7-33 Figure 7-22 Transverse English Type-1 Label ............7-34...
-
Page 67: Tables
Table 2-1 ZXR10 ZSR Series Models................ 2-2 Table 2-2 ZXR10 ZSR Device Parameters ..............2-5 Table 2-3 Newly Added ZXR10 ZSR Device Parameters .......... 2-5 Table 3-1 Temperature and Humidity Requirements..........3-3 Table 6-1 Corresponding Relationship between Two Ends of DC Power Cable .......................
