¨ RT-AC66U Dual Band 3x3 802.11AC Gigabit Router Quick Start Guide K7417 / First Edition / July 2014 apac7417_rt-ac66u_qsg_korean_added.indb 1 2014/8/4 15:06:08...
Page 2
Table of contents English .....................3 繁體中文 ..................16 ..................29 簡體中文 한국어 .....................42 Bahasa Indonesia .................55 ไทย ....................68 หมายเหต CATATAN NOTE / 注意 / 注意 / 참고/ • For more details, refer to the user manual included in the support CD. • 更多資訊,請參考驅動程式與公用程式光碟中的使用手...

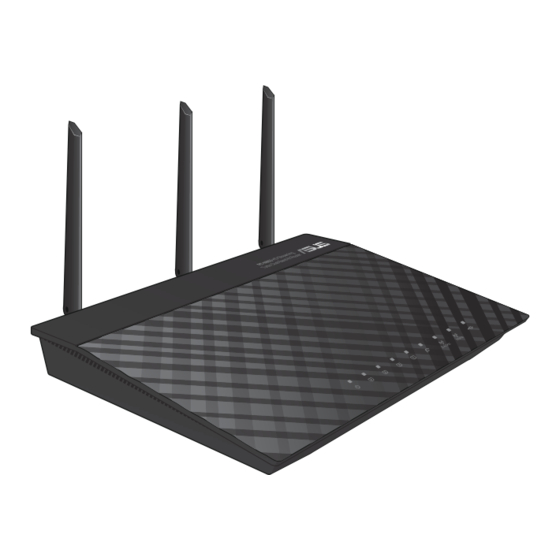

Package contents RT-AC66U AC adapter Network cable Quick Start Guide Support CD (User Manual/utilities) Warranty card Stand NOTE: If any of the items is damaged or missing, contact your retailer. A quick look 1) Power LED 5) 5GHz LED USB 2.0 ports 2) LAN LED 6) USB 2.0 LED...
Page 4
Incorrect removal of the USB disk may cause data corruption. • For the list of file system and hard disk partitions that the wireless router supports, visit http://event.asus.com/networks/ disksupport • For the list of printers that the wireless router supports, visit http://event.asus.com/networks/printersupport...
• For optimum performance, adjust the internal cooling system. Refer to the user manual for details. • Always update to the latest firmware. Visit the ASUS website at http://www.asus.com to get the latest firmware updates. apac7417_rt-ac66u_qsg_korean_added.indb 5 2014/8/4 15:06:09...
Mounting to the stand • Align and insert the stand’s mounting hooks to the wireless router’s mounting holes. Before you proceed 1. Unplug and disconnect the wires/cables from your existing modem setup and release your computer’s outmoded IP address. a: Unplug the AC adapter from the power outlet and disconnect it from your cable/ADSL modem.
Page 7
WARNING! Before disconnecting the wires/cables, ensure that your cable/ADSL modem has been turned off for at least two minutes. If your modem has a backup battery, remove it as well. 2. Set up your wireless environment. Wall Power Outlet RT-AC66U Power Modem Computer Power a: Insert your wireless router’s AC adapter to the DC-IN port and plug it to a...
3. Disable some settings on your computer. A. Disable the proxy server, if enabled. B. Set the TCP/IP settings to automatically obtain an IP address. C. Disable the dial-up connection, if enabled. NOTE: For more details on disabling your computer settings, refer to Frequently Asked Questions (FAQs).
Page 9
NOTE: If QIS does not launch automatically, follow these steps to manually launch QIS: • On your web browser, key in http://192.168.1.1 and run the Quick Internet Setup (QIS) Wizard again. • Disable the proxy settings, dial-up connection, and set your TCP/IP settings to automatically obtain an IP address.
Frequently Asked Questions (FAQs) After following the steps, I still cannot access the wireless router’s web graphics user interface (web GUI) to configure the wireless router settings. A. Disable the proxy server, if enabled. Windows® 7 1. Click Start > Internet Explorer to launch the web browser.
Page 11
MAC OS 1. From your Safari browser, click Safari > Prefer- ences > Advanced > Change Settings... 2. From the Network screen, deselect FTP Proxy and Web Proxy (HTTP). 3. Cllick Apply Now when done. NOTE: Refer to your browser's help feature for details on disabling the proxy server.
Page 12
3. To obtain the iPv4 IP settings automatically, tick Obtain an IP address automatically. 4. Click OK when done. MAC OS 1. Click the Apple icon located on the top left of your screen. 2. Click System Preferences > Network > Configure...
Page 13
C. Disable the dial-up connection, if enabled. Windows® 7 1. Click Start > Internet Explorer to launch the browser. 2. Click Tools > Internet options > Connections tab. 3. Tick Never dial a connection. 4. Click OK when done. NOTE: Refer to your browser's help feature for details on disabling the dial-up connection settings.
Page 14
• Try setting up the wired connection and configuring the wireless encryption again. • Press the Reset button of the wireless router for more than five seconds. • Factory default settings: User name / Password: IP address: SSID: ASUS admin / admin 192.168.1.1 apac7417_rt-ac66u_qsg_korean_added.indb 14 2014/8/4 15:06:11...
Page 15
Where can I find more information about the wireless router? • User Manual in the support CD http://support.asus.com/faq • Online FAQ site: http://support.asus.com/techserv • Technical Support site: • Customer Hotline: Refer to the Support Hotline in this Quick Start Guide...
Page 28
• 技術支援網址: http://support.asus.com/techserv • 客戶服務熱線:請參閱此快速使用指南的支援熱線 SUPPORT HOTLINE Area Hotline Number Support Availability Languages Taiwan 0800-093-456; Traditional Mon. to Fri. 02-81439000 Chinese 9:00-12:00; 13:30-18:00 USA/ 1-812-282-2787 English Mon. to Fri. Canada 8:30-12:00am EST (5:30am-9:00pm PST) Sat. to Sun. 9:00am-6:00pm EST (6:00am-3:00pm PST) Brazil 4003 0988 (Capital) Portuguese Mon.
Page 38
3. 欲自動獲取 IPv4 IP 設置,勾選 “自動獲得 IP 地址”。 4. 完成後點擊【確定】。 MAC OS 1. 點擊左上角的蘋果圖標 。 2. 點擊【System Preferences】>【網絡】>【設 置...】 3. 點擊【TCP/IP】標籤,在“配置 IPv4”下拉 列表中選擇【使用 DHCP】。 4. 完成後點擊【現在應用】。 注意:請參考您的操作系統中幫助與支持功能,獲取更多設置 TCP/ IP 相關信息。 apac7417_rt-ac66u_qsg_korean_added.indb 38 2014/8/4 15:06:15...
Page 39
C. 關閉撥號連接 Windows® 7 1. 點 擊【開始】>【Internet Explorer】開啟瀏覽 器。 2. 點擊【工具】>【Internet 選項】>【連接】標 籤。 3. 勾 選“從不進行撥號連接”。 4. 完成後點擊【確定】。 注意:請參考瀏覽器的幫助菜單進行關閉撥號連接。 D. 關閉所有運作中的網絡瀏覽器。 Le client ne peut pas établir de connexion sans fil avec le routeur. 無法建立無線網絡連接。 超出有效範圍: • 請將路由器放置於較靠近客戶端設備之處。 • 嘗試進行頻道設置的變更。 認證問題:...
Page 41
哪裡可以找到更多的無線路由器信息? • 驅動程序與公用程序光盤中的用戶手冊 • 線上 FAQ 網址: http://support.asus.com/faq • 技術支持網址: http://support.asus.com/techserv • 客戶服務熱線:8008206655/021-34074610 SUPPORT HOTLINE Area Hotline Number Support Availability Languages Mon. to Fri. Taiwan 0800-093-456; Traditional 02-81439000 Chinese 9:00-12:00; 13:30-18:00 USA/ Mon. to Fri. 1-812-282-2787 English Canada 8:30-12:00am EST (5:30am-9:00pm PST) Sat. to Sun. 9:00am-6:00pm EST (6:00am-3:00pm PST)
Page 42
Package contents RT-AC66U AC 어댑터 네트워크 케이블 퀵스타트가이드 설치 CD (매뉴얼/유틸리티) 품질보증카드 스탠드 참고: 내용물이 손상되었거나 없는 경우, 구입처에 문의하십시오. 각 부분의 이름과 역할 전원 LED 5GHz LED USB 2.0 포트 LAN LED USB 2.0 LED 리셋 버튼 WAN LED 전원...
Page 43
릭합니다. • USB 디스크를 올바르게 제거하지 않는 경우 데이터가 손상될 수 있습니다. • 무선 라우터가 지원하는 파일 시스템과 하드 디스크 파티션 은 다음 웹 페이지를 참고하십시오. http://event.asus.com/ networks/disksupport • 무선 라우터가 지원하는 프린터 목록은 다음 웹 페이지를 참고하 십시오. http://event.asus.com/networks/printersupport apac7417_rt-ac66u_qsg_korean_added.indb 43...
Page 44
• 무선 신호을 최상의 품질로 전송하기 위해 세 개의 탈착식 안테나를 아래 그림과 같은 방향으로 조정하십시오. • 최적의 성능을 위해 내부 냉각 시스템을 조절하십시오. 보다 자세한 사항은 사용자 매뉴얼을 참조하십시오. • 항상 최신 펌웨어로 유지하십시오. ASUS 웹 사이트 http://www.asus.com 에서 업데이트 정보를 얻을 수 있습니다. apac7417_rt-ac66u_qsg_korean_added.indb 44 2014/8/4 15:06:16...
Page 45
스탠드 고정 • 스탠드의 연결 부위를 무선 라우터의 연결 홀에 삽입 후 그림과 같은 방향으로 고정 시킵니다. 연결 준비 1. 모뎀에 연결되어 있는 전원/네트워크 케이블을 분리하여 컴퓨터에 할당된 IP주소를 해제합니다 a: AC 어댑터를 전원 콘센트에서 연결을 해제하고 케이블/ADSL 모뎀에서 분리합니다. b: 케이블/ADSL 모뎀에서...
Page 46
주의! 전선/케이블을 뽑기 전에, 케이블/ADSL 모뎀을 최소한 2분 간 꺼두십시오. 모뎀에 백업 배터리가 있는 경우 함께 제거하여야 합니다 2. 무선 환경 설정 Wall Power Outlet RT-AC66U Power Modem Computer Power a: 무선 라우터의 AC어댑터를 전원 입력 단자 및 전원 콘센트에 플러그에...
Page 47
3. 컴퓨터에서 설정이 필요한 사항 프록시 서버를 사용하지 않도록 설정합니다 . B. TCP/IP 설정에서 자동으로 IP 주소를 할당 받도록 설정합니다 . C. 전화 연결을 " 사용하지 않음 " 으로 설정합니다 . 참고: 설정과 관련된 보다 자세한 내용은자주 있는 질문들 (FAQs) 을...
Page 48
• 프록시 서버 및 전화 연결을 사용하지 않도록 설정하고 TCP/ IP 설정에서 IP 주소를 자동으로 할당 받도록 합니다. 보다 자세 한 내용은 FAQ 을 참조하거나 설치 CD 에 포함되어 있는 ASUS Setup Wizard 유틸리티를 사용하십시오 b: 무선 라우터의 인터넷 연결 마법사(QIS)는 인터넷 연결 형식이 유동 IP, PPPoE, PPTP, L2TP, 또는...
Page 49
자주 있는 질문들 (FAQs) 안내된 방법들을 따라 해도 무선 라우터의 설정 페이지에 접속하여 무선 라우터 설정을 할 수 없습니다. A. 프록시 서버를 사용하지 않도록 설정하는 방법. Windows® 7 의 경우 1. 시작 버튼을 클릭하고 > 인터넷 익스플로러를 실행하여 웹 브라우저를 실행합니다. 2.
Page 50
MAC OS 의 경우 1. 사파리 브라우저에서, 사파리 > 기본 설정 > 고급 > 설정 변경...을 클릭합니다. 2. 네트워크 화면에서, FTP Proxy 와 Web Proxy (HTTP) 를 선택 해제 합니다. 3. 바로 적용 버튼을 클릭하여 완료합니다. 참고: 사용 중인 브라우저의 도움말 기능을 참조하면 프록시 서버 를...
Page 51
3. iPv4 IP 설정을 자동으로 얻으려면, IP 주소 자동으로 얻기를 클릭합니다. 4. 완료 버튼을 클릭하여 마칩니다. MAC OS 의 경우 1. 1. 화면에서 왼쪽 상단에 애플 아이콘 을 클릭합니다 2. 시스템 설정 > 네트워크 >구성... 을 선택합 니다.TCP/IP 탭에서 IPv4 구성 드롭 다운 리 스트의...
Page 52
C. 전화 연결을 사용하지 않도록 설정하기 Windows® 7 의 경우 1. 시작 > 인터넷 익스플로러 를 실행합니다. 2. 도구 > 인터넷 옵션 > 연결 탭으로 갑니다. 3. 전화 연결을 사용하지 않음을 선택합니다. 4. 확인을 클릭하여 마칩니다. 참고: 사용자 브라우저의 도움말 기능에서 전화 연결을 사용하지 않도록...
Page 53
라우터를 찾을 수 없는 경우: • 뒷면 패널의 리셋 버튼을 5 초 이상 누릅니다 . • 무선 어댑터의 SSID 와 암호화 설정을 확인합니다 . 무선 LAN 어댑터를 통해 인터넷에 연결할 수 없습니다. • 라우터를 무선 클라이언트 근처로 옮깁니다 . • 무선 어댑터가 올바른 무선 라우터에 연결되었는지 확인합니다 . •...
Page 54
192.168.1.1 ASUS 무선 라우터에 대한 더 많은 정보를 얻을 수 있는 곳은? • 동봉된 지원CD 내의 사용자 매뉴얼 • 온라인 FAQ 사이트: http://support.asus.com/faq • 기술 지원 사이트: http://support.asus.com • 고객 핫라인: 본 문서의 고객 지원 핫라인 참조 apac7417_rt-ac66u_qsg_korean_added.indb 54 2014/8/4 15:06:18...
Isi kemasan RT-AC66U Adaptor AC Kabel jaringan Panduan Ringkas CD Dukungan (Panduan Pengguna/utilitas) Kartu jaminan Dudukan CATATAN Jika salah satu item tersebut rusak atau tidak ada, hubungi peritel. Info singkat 1) LED Daya 5) LED 5GHz Port USB 2.0 2) LED LAN 6) LED USB 2.0...
Page 56
• Pelepasan disk USB yang tidak benar dapat menyebabkan kerusakan data. • Untuk mengetahui daftar partisi hard disk dan sistem file yang didukung router nirkabel, kunjungi http://event.asus.com/ networks/disksupport • Untuk mengetahui daftar printer yang didukung router nirkabel, kunjungi http://event.asus.com/networks/printersupport apac7417_rt-ac66u_qsg_korean_added.indb 56...
Page 57
• Untuk performa optimal, sesuaikan sistem pendinginan internal. Untuk informasi rinci, lihat panduan pengguna. • Selalu memperbarui ke firmware terkini. Untuk mendapatkan pembaruan firmware terkini, kunjungi situs Web ASUS http://www.asus.com. apac7417_rt-ac66u_qsg_korean_added.indb 57 2014/8/4 15:06:18...
Page 58
Pemasangan pada dudukan • Sejajarkan dan masukkan kait pemasangan pada dudukan ke lubang pemasangan pada router nirkabel. Persiapan 1. Lepas kabel dari stopkontak dan modem yang ada, lalu hapus alamat IP sebelumnya di komputer. a: Lepaskan adaptor AC dari stopkontak dan dari kabel/modem ADSL. b: Lepaskan kabel jaringan dari kabel/modem ADSL.
Page 59
PERINGATAN! Sebelum melepas kabel, pastikan modem kabel/ADSL telah dimatikan minimal selama dua menit. Jika modem dilengkapi baterai cadangan, lepas baterai. 2. Mengkonfigurasi lingkungan nirkabel. Wall Power Outlet RT-AC66U Power Modem Computer Power a: Pasang adaptor AC router nirkabel ke port DC-IN, lalu sambungkan ke stopkontak.
Page 60
3. Menonaktifkan beberapa pengaturan di komputer. A. Menonaktifkan server proxy, jika sedang diaktifkan. B. Menetapkan pengaturan TCP/IP untuk mengambil alamat IP secara otomatis. C. Menonaktifkan sambungan dial-up, jika sedang diaktifkan. CATATAN: Untuk informasi lebih rinci tentang cara menonaktifkan pengaturan komputer, lihat Tanya Jawab. Persiapan 1.
Page 61
CATATAN: Jika QIS tidak berjalan secara otomatis, ikuti langkah-langkah berikut untuk menjalankan QIS secara manual: • Di browser Web, masukkan http://192.168.1.1 dan jalankan kembali Quick Internet Setup (QIS) Wizard (Wizard Quick Internet Setup (QIS)). • Nonaktifkan pengaturan proxy dan sambungan dial-up, serta tetapkan pengaturan TCP/IP untuk mengambil alamat IP secara otomatis.
Page 62
Tanya Jawab Setelah mengikuti langkah-langkah tersebut, saya masih tidak dapat mengakses GUI Web (antarmuka pengguna grafis Web) router nirkabel untuk mengkonfigurasi pengaturan router nirkabel. A. Disable the proxy server, if enabled. Windows® 7 1. Klik Start (Mulai) > Internet Explorer untuk membuka browser Web.
Page 63
MAC OS 1. Dari panel menu, klik tab Safari > Preferences... (Preferensi...) > Advanced (Lanjutan) > Change Settings... (Ubah Pengaturan...). 2. Dari daftar protokol, hapus tanda centang pada FTP Proxy (Proxy FTP) dan Web Proxy (HTTP) (Proxy Web (HTTP)). 3. Klik Apply Now (Terapkan Sekarang) setelah selesai.
Page 64
3. Untuk mendapatkan pengaturan IP iPv4 secara otomatis, centang Obtain an IP address auto- matically (Dapatkan alamat IP secara otoma- tis). 4. Klik OK setelah selesai. MAC OS 1. Klik ikon Apple yang berada di kiri atas layar. 2. Klik System Preferences (Preferensi Sistem) >...
Page 65
C. Menonaktifkan sambungan dial-up, jika sedang diaktifkan. Windows® 7 1. Klik Start (Mulai) > Internet Explorer untuk membuka browser Web. 2. Klik tab Tools (Alat) > Internet options (Opsi internet) > Connections (Sambungan). 3. Centang Never dial a connection (Jangan aktifkan sambungan).
Page 66
• Tekan tombol Atur ulang selama lebih dari lima detik untuk mengatur ulang atau mengembalikan sistem ke pengaturan default pabrik. • Pengaturan default pabrik: SSID: ASUS Nama pengguna / Sandi: admin / admin Alamat IP: 192.168.1.1 apac7417_rt-ac66u_qsg_korean_added.indb 66...
Page 67
Di mana saya dapat memperoleh informasi lengkap tentang router nirkabel? • Panduan Pengguna dalam CD dukungan http://support.asus.com/faq • Situs tanya jawab online: http://support-org.asus.com/ • Situs Dukungan Teknis: • Hotline Pelanggan: Lihat Hotline Dukungan dalam Panduan Tambahan. SUPPORT HOTLINE Area Hotline Number...
Page 82
Region Country Hotline Numbers Service Hours Australia 1300-278788 09:00-18:00 Mon-Fri New Zealand 0800-278788 09:00-18:00 Mon-Fri 09:00-18:00 Mon-Fri 0800-1232787 09:00-17:00 Sat-Sun Japan 09:00-18:00 Mon-Fri 0081-473905630 (Non-Toll Free) 09:00-17:00 Sat-Sun Korea 0082-215666868 09:30-17:00 Mon-Fri Thailand 0066-24011717 09:00-18:00 Mon-Fri 1800-8525201 0065-64157917 11:00-19:00 Mon-Fri Asia-Pacific Singapore 0065-67203835...
Page 83
09:00-17:00 Mon-Fri Slovenia 00368-59045400 08:00-16:00 Mon-Fri 00368-59045401 Estonia 00372-6671796 09:00-18:00 Mon-Fri Latvia 00371-67408838 09:00-18:00 Mon-Fri Lithua- 00370-37329000 09:00-18:00 Mon-Fri nia-Kaunas Lithuania-Vil- 00370-522101160 09:00-18:00 Mon-Fri nius NOTE: For more information, visit the ASUS support site at: http://support.asus.com apac7417_rt-ac66u_qsg_korean_added.indb 83 2014/8/4 15:06:22...
Page 84
* 其他相關的保固說明細節,請上華碩官方網站查詢:http://www.asus.com。 For Australian Warranty Statement Only *ASUS products come with guarantees that connect be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the products repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Page 85
* To ensure the validity of the warranty, please fill in the shop name, name of servicing personnel, date of purchase and other information accurately. * 為保障您的權益,請確實填寫店名、承辦業務人員、購買日期等資料 * Please mail back this form to your local ASUS sales representative for ASUS Advantage mileage program point accumulation (dependent on local sales policies / web availability). * 本收執聯與經銷商活動積點辦法實際執行,由各區華碩人員公告之...
