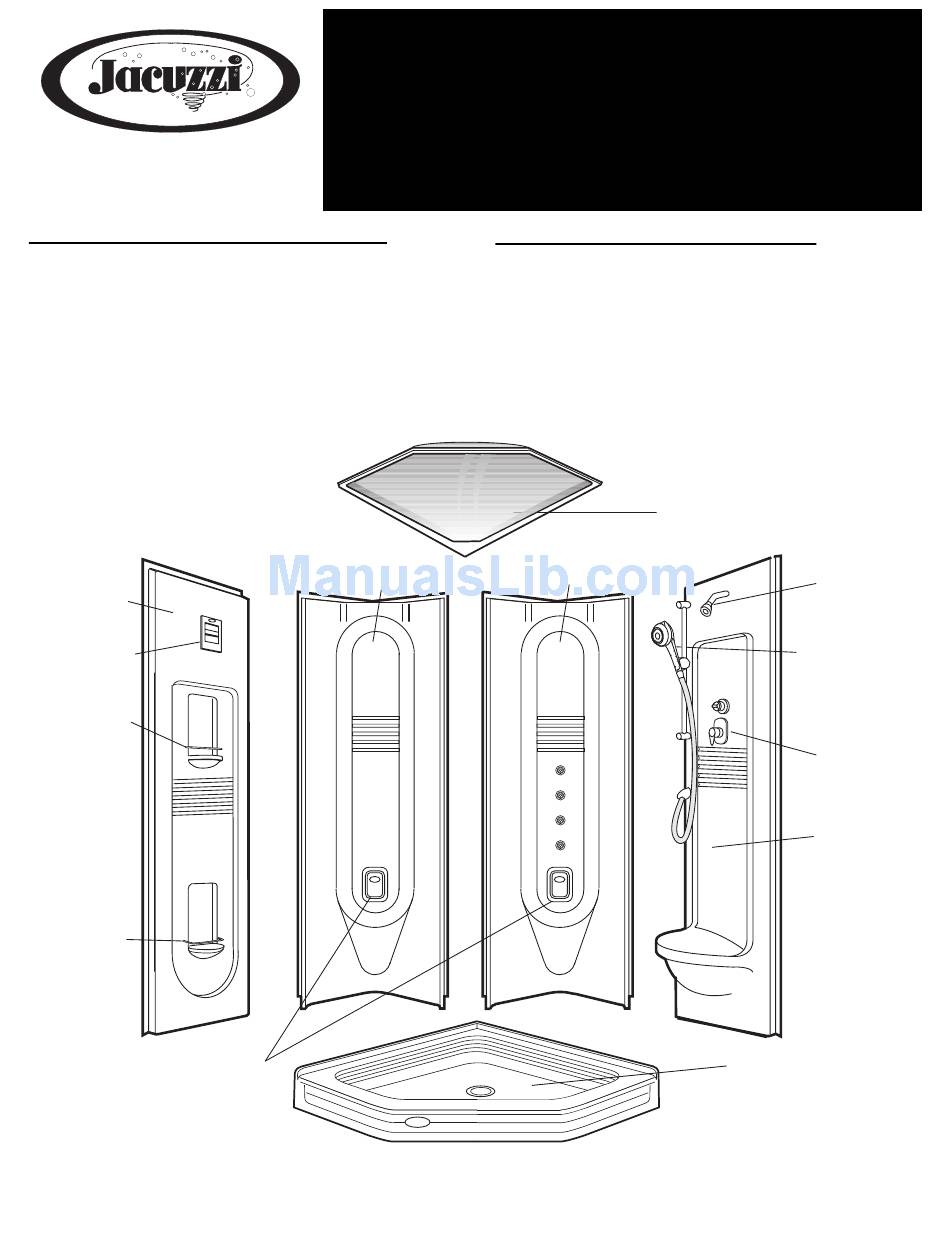

BASIC COMPONENTS

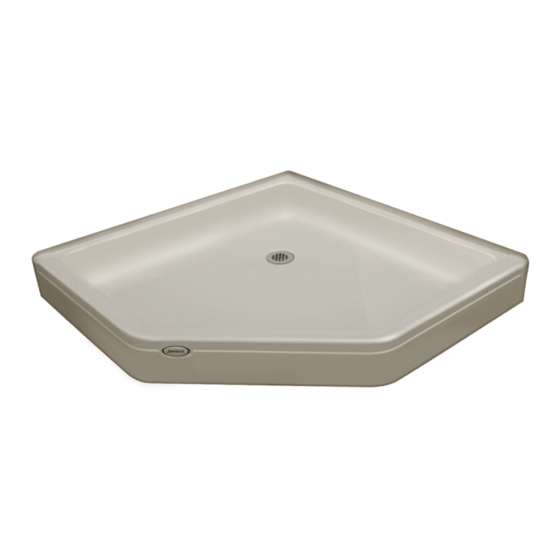

• Neo Shower Base
Back Wall
Seat Wall (LH or RH)
Shelf Wall (LH or RH) with accessory bracket
(purchased separately, chrome or brass)
OR
• Neo Shower Base
Body Spray Wall
2 Shelf Walls with accessory brackets
(purchased separately, chrome or brass)
SHELF WALL
*
DIGITAL
CONTROLLER
ACCESSORY
BRACKET
ACCESSORY
BRACKET
*
STEAM HEAD
& STEAM SHIELD
NOTE: The body spray jets require a minimum operating water pressure of 30 psi.
Use installation instructions provided with product. Product specifications are subject to change without notice.
Neo Angle Shower System
R
BATH
BACK WALL
Illustration shown here features a right hand seat wall unit with all options.
WITHOUT BODY SPRAY OR
WITH BODY SPRAY
INSTALLATION INSTRUCTIONS
*OPTIONAL FEATURES
™
• Optica
™
• Optica
• 6-Port Showerhead
• Dome (clear)
• SteamPro
• Digital Controller for SteamPro
• Steam/Shower Door
BODY SPRAY WALL
OR
Wall Mount Shower Set
300 Shower Mixer Valve
™
Steam Generator
™
DOME (CLEAR)
NEO
SHOWER
BASE
*
SHOWER
HEAD
*
OPTICA
WALL MOUNT
SHOWER SET
*
OPTICA 300
SHOWER
MIXER VALVE
