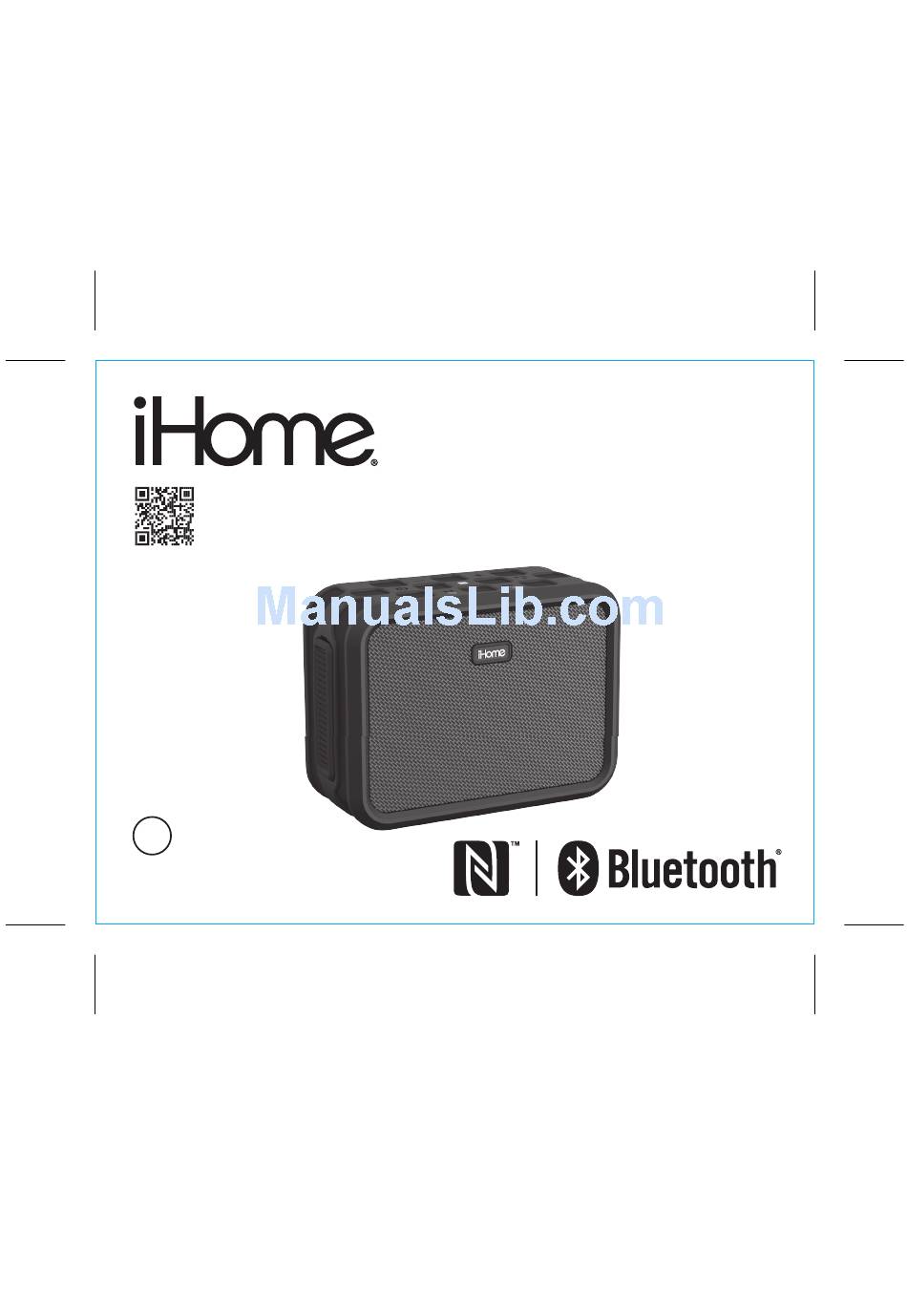

- Page 1 IB (English) 18 pages Size: 153mm x 120mm Color: Black Apr. 10, 2014 iBN6 Waterproof Rechargeable NFC Bluetooth Stereo Speaker System with speakerphone and USB mobile device charging CHARGE BEFORE instruction manual...
- Page 2 Introduction Thank you for purchasing the iHome iBN6. This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod, computer, or other Bluetooth audio device. Along with the included Quick Bluetooth Connection Guide this instruction booklet explains the basic operation and care of the unit.
- Page 3 Maintenance • Place the unit on a level surface away from sources of direct sunlight or excessive heat. • Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.
-
Page 4: Table Of Contents
Table of Contents Included / Meet Your iBN6 ..................... 1-2 Setting Up the Unit / Turning the Unit ON and OFF..............3 Waterproof Operation ......................4 Charging the iBN6/ECO Battery Mode................5 Using Bluetooth: Pairing Your Device Using NFC ..............6 Using Bluetooth: Pairing Your Device Manually...............7 Playing Audio Via Bluetooth....................8... -
Page 5: Product View And Contents
Included 1. iBN6 Speaker 2. 100V-240V universal AC adaptor 3. Stereo 3.5 mm audio cable 4. Bottle opener/carabiner clip To remove carabiner clip: 1. Hold clip sideways to unit. 2. Press clip hinge post inwards and slide strap loop off of hinge post. -
Page 6: Included / Meet Your Ibn6
Meet Your iBN6 NFC Antenna Volume Down Button Volume Up Button Power On/Off Button Play/Pause/Pairing Button Reverse/End Call Button Forward/Answer Call Button Top view Front Power/Bluetooth Status Indicator Waterproof Gasket DC Jack Aux-in Jack Reset Speakerphone Mic DC 5V/3A... -
Page 7: Setting Up The Unit / Turning The Unit On And Off
Setting Up the Unit Using the To charge the unit and operate the unit on AC power, connect the included AC adaptor to the DC jack located on the side of the unit and connect the other end to a working wall outlet. -
Page 8: Waterproof Operation
Using the IMPORTANT INFORMATION ABOUT WATERPROOF OPERATION For proper waterproof operation, make sure the waterproof gasket on the left side of the unit is completely flush with the unit by pressing along the entire edge of the gasket until it is completely and securely in place. -
Page 9: Charging The Ibn6/Eco Battery Mode
Charging the Unit Using the To charge the internal battery for portable operation, connect the included AC adaptor to the DC jack located on the side of the unit and connect the other end to a working outlet wall outlet. While charging, the Battery Charge Indicator light on the front of the unit will glow solid red. -
Page 10: Using Bluetooth: Pairing Your Device Using Nfc
The iBN6 will turn on and enter automatic pairing mode, a tone will sound and the light will flash blue while the unit attempts to pair. “iHome iBN6” should appear on your device’s menu. If your device asks if you wish to pair, accept (select “Yes”... -
Page 11: Using Bluetooth: Pairing Your Device Manually
If “Not Paired”, “Not Connected” or similar message appears, select “iHome iBN6” on device to begin/complete pairing. -
Page 12: Playing Audio Via Bluetooth
Using the Pairing with a Different Device When you power ON the speaker, it will automatically link with the previously paired Bluetooth device as long as that device is still within range (about 30 feet). To pair with a different device by NFC, follow steps 1 –... -
Page 13: Using The Speakerphone Feature
Using the Using the Speakerphone feature NOTE: The unit must be powered on to receive a call. A Bluetooth phone must be linked. Talk Button to answer the call, When a call is received, playing music is muted to hear the ring tone. Press the End Button to ignore it. -
Page 14: Charging Devices Via Usb Port
Note: When operating on internal battery, the unit must be powered ON to charge devices via the USB Port. The iBN6 will charge devices when connected to AC power OR when operating on the internal battery (provided the battery has enough charge). To charge devices via USB while operating on the internal battery, we recommend that the unit be fully charged first. -
Page 15: Consumer Product Safety Guide
Consumer Product Safety Guide IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. - Page 16 13. Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel. Questions? Visit www.ihome.com or call 1-800-288-2792 Toll Free...
-
Page 17: Troubleshooting
• Check that all connections are correct and properly plugged in. • For internal battery operation, make sure the unit is fully charged. • Make sure your device is properly paired with the iBN6. • Make sure the Power is ON. -
Page 18: Warranty
Limited 1 Year Warranty iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.
