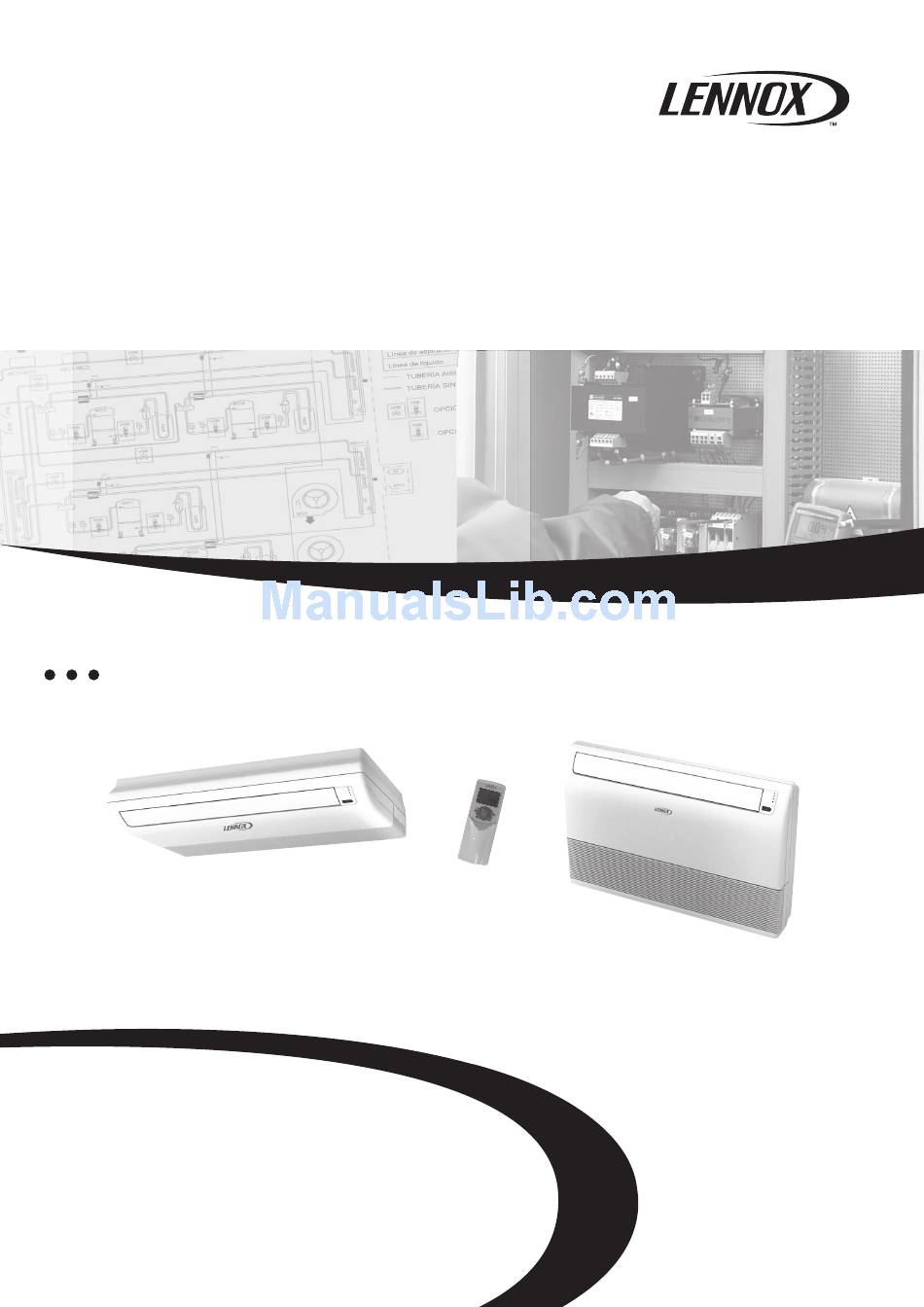

Page 1: User Manual
User manual SWING Providing indoor climate comfort SWING-OWN-1205-E... -
Page 3: Table Of Contents
CONTENT Parts names ....................2 Operation attention ..................3 Remote Controller ..................4 Remote Controller Specification ..............5 Performance Feature..................5 Introduction of Function Button on the Remote Controller......5 Names and Fuctions of Indicator on Remote Controller .......6 Usage of the Remote Controller...............7 Warning ......................8 Maintenance.................... -
Page 4: Parts Names

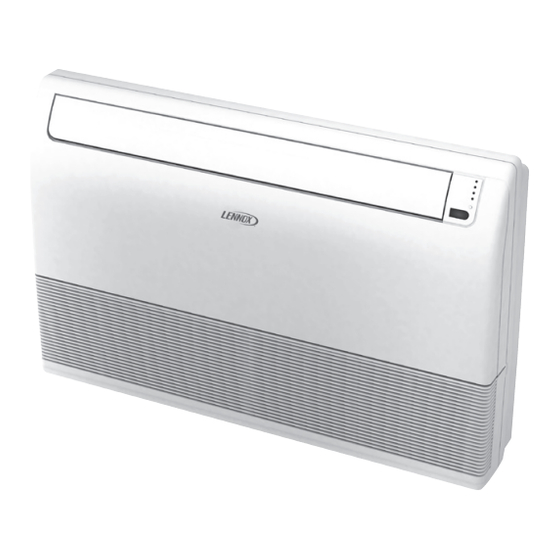

PARTS NAMES The air conditioner consists of the indoor unit, the outdoor unit, the connecting pipe and the remote controller. NOTICE! The chart is based on modell 24 type. So, a little differences may exist on the outlook and functions from yours. NAMES AND FUNCTIONS indoor unit outdoor unit... -
Page 5: Operation Attention
OPERATION ATTENTION Read the owner manual book seriously before operating and mastering the mastering the main points. Please consult the local dealer in difficulty. The air conditioner is designed to supply comfortable room circumstance. It is only used for the purpose according to the manual book. Check before operating •... -
Page 6: Air Conditioner Operating Conditions
Air conditioner operating conditions For proper performance, run the air conditioner under the following temperature conditions: Outdoor temperature: 18 to 43 ºC Room temperature: above 17 ºC Cooling operation CAUTION Room relative humidity less than 80%. If the air conditioner operates in excess of this figure, the surface of the air conditioner may attract condensation. -
Page 7: Remote Controller
Set temperature ºC AUTO COOL HEAT HIGH ▼ TEMP. ▲ MODE ON/OOF FAN SPEED SWING ECONOMIC RUNNING TIMER Fig. 1 RESET LOCK CANCEL 1. TEMP Button : Push the button to make the indoor setting temperature decrease, or adjust the Timer in the anti-clockwise direction. -
Page 8: Names And Functions Of Indicators On Remote Controller
3. SWING Button: Pushing Chis switch button to change the swing angle of louver. 4. RESET Button: When push the RESET button, all the current settings are cancelled and get into the condition of the beginning. 5. ECONOMIC RUNNING Button: Push Chis button, it is Energy-Saving operation mode. -
Page 9: Usage Of The Remote Controller
Usage of the Remote Controller Replacing Batteries The Remote Controller uses two alkaline dry batteries (R03/Ir03X2). For the first time of using Slide the back cover of the battery compartment, according the Direction (+and -)shown on the surface inserí a couple new batters. To replace the old batteries in the same way as the mentioned aboye. - Page 10 DRY Operation Push the MODE button to select DRY. Push the TEMP button to set the desired temperature from 21 °C to 28°C. Push the ON/OFF button, the operation lamp lights and the air conditioner start to operate DRY. Push the ON/OFF button agair to stop it. NOTE In light of the difference of the setting temperature and indoor temperature, Air Conditioner in DRY mode will automatically operate many times without running the COOL and FAN...
-
Page 11: Warning
Warning Be cure there are no barriers between the remote controller and the receiver of indoor unit otherwise the air conditioner will not work. Avoid any liquid of soaking the Remote Controller. Keep the remote controller form the high temperature and radiation ares. The receiver of the indoor unit can' t not be uncovered under the direct sunlight. -
Page 12: Adjusting Air Flow Direction
ADJUSTING AIR FLOW DIRECTION Adjust the air direction up and down Auto-swing Manual Swing Press SWING button, the louver will swing up Adjust the louver to achieve better and down automatically. cooling/ heating effects when cooling/heating. When cooling When heating Adjust the louver horizontally. -
Page 13: Maintenance
MAINTENANCE WARNING Before you clean the air conditioner, be sure to disconnect the power supply plug. Cleaning the indoor unit and remote controller CAUTIONS • Use a dry cloth to wipe the indoor unit and remote controller. A cloth dampened with cold water may be used on the indoor unit if it is very dirty. - Page 14 Open the air-in grill Push the grill switthes towards the middle simultaneously as indicated in sketch A. Then pull down the air-in grill. Take out the air-in grill. Dismantle the air filter Clean the air filter (Vacuum cleaner or pure water may be used to clean the air filter. If the dust accumulation is too heavy , please use soft brush and mild detergent to clean it and dry out in cool place) .
-
Page 15: Troubles And Cause
TROUBLES AND CAUSES Before you ask for servicing or repairs, Check the following points. ReCheck Inoperative • The power fuse is blown or the circuit breaker has been tripped. • The batteries in the remote controller are exhausted. • The timer is set. Does not cool or heat well. -
Page 16: Troubles And Causes
TROUBLES AND CAUSES (REMOTE CONTROLLER) Before you ask for servicing or repairs, Check the following points. Setting Change is Impossible Symptoms Causes Reason and Disposal • Check whether the MODE When the automatic mode is selected, the air conditioner automatically selects the fan indicated on the display is speed. - Page 18 BELGIUM, LUXEMBOURG RUSSIA Due to Lennox’s ongoing commitment to quality, www.lennoxbelgium.com www.lennoxrussia.com the Specifications, Ratings and Dimensions are subject to change without notice and without incurring liability. CZECH REPUBLIC SLOVAKIA Improper installation, adjustment, alteration, www.lennoxczech.com www.lennoxdistribution.com service or maintenance can cause property damage or personal injury.
