Page 1: Theater System
5.1Ch Stylish Home Theater System HT-XQ100 HT-XQ100W HT-TXQ100 THIS APPLIANCE IS MANUFACTURED BY: Instruction Manual AH68-01852B COMPACT DIGITAL AUDIO... -
Page 2: Safety Warnings
Safety Warnings Precautions Use of controls, adjustments or performance of procedures other than CLASS 1 LASER PRODUCT those specified herein may result in hazardous radiation exposure. KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE CAUTION-INVISIBLE LASER RADIATION WHEN OPEN KLASS 1 LASER APPARAT AND INTERLOCKS DEFEATED, AVOID PRODUCTO LASER CLASE 1 EXPOSURE TO BEAM. -
Page 3: Table Of Contents
EZ VIEW Function..............38 Bonus Group / Navigating Pages........39 Power Saving Function Selecting Audio/Subtitle Language........40 The HT-XQ100/HT-XQ100W/HT-TXQ100 automatically shuts itself off after 20 minutes in the Playing Media Files using the USB HOST feature.....41 Moving Directly to a Scene/Song ........43 stop mode. -
Page 4: Notes On Discs
Notes on Discs Disc Recording Format DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall. This product does not support Secure (DRM) Media files. -
Page 5: Description

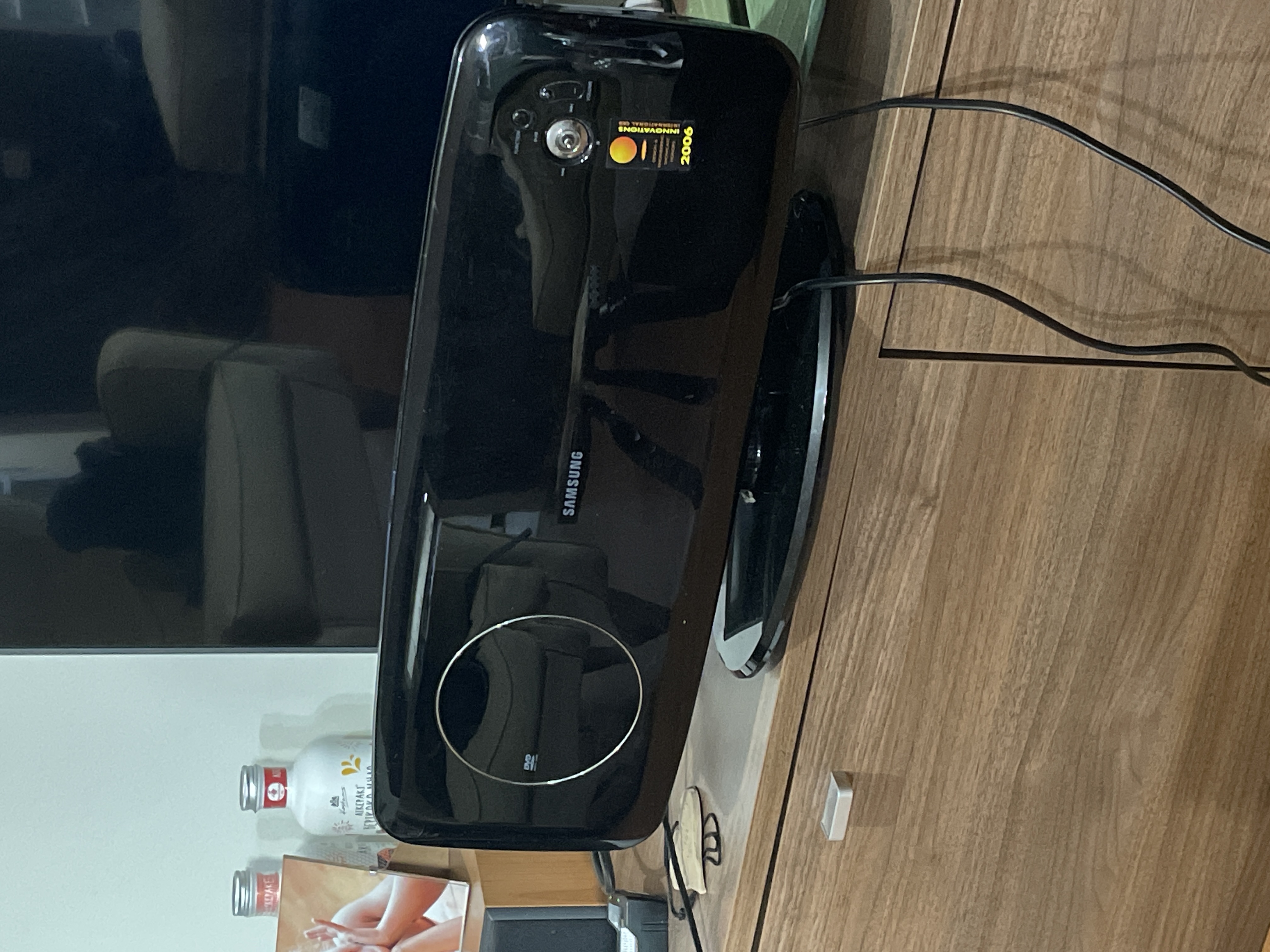

Description —Front Panel— —Side Panel— Eject button Video Output Connector Disc Insert Hole Display Connect the TV's video input jacks Function button Power ( ) button (VIDEO IN) to the VIDEO OUT connector. Volume control External Digital Optical button Input Connector Use this to connect external equipment Headphone Jack capable of digital output. -
Page 6: Remote Control
Description —Remote Control— Insert Remote Batteries DVD button TUNER button TV button AUX button USB button DVD Receiver button Remove the battery Insert two 1.5V AAA Replace the battery EJECT button cover in the direction batteries, paying cover. POWER button TV/VIDEO button of the arrow. -
Page 7: Connecting The Speakers
Connecting the Speakers HT-TXQ100 HT-XQ100/HT-XQ100W Center Speaker Center Speaker Front Speaker (L) Front Speaker (R) Front Speaker (R) Front Speaker (L) Subwoofer Rear Speaker (R) Rear Speaker (L) Subwoofer Rear Speaker (R) Rear Speaker (L) Connecting the Speakers Position of the Home Theater... - Page 8 Connecting the Speakers HT-TXQ100 Speaker Packages HT-XQ100/HT-XQ100W Please confirm that all the following contents are included in the package. Speaker Packages Speaker Accessories Please confirm that all the following contents are included in the package. Speaker Accessories Front Speaker (2EA)
-
Page 9: Installing The Dvd Player
Installing the DVD player Connecting the optional Wireless Receiving Amplifier To connect the rear speakers wirelessly, you have to additionally purchase the wireless receiving module and TX card from your Samsung retailer. cover(A) Separate the rear cover(A). Center Speaker Front Speaker (R) Front Speaker (L) Remove the 1 screw of the cover(B). -
Page 10: Connecting The Video Out To Tv
Connecting the Video Out to TV When you have purchased the wireless receiving module (SWA-3000) Choose one of the three methods for connecting to a TV. Resetting Wireless Communication Reset the system if a communication failure occurs, or if the Link indicator (blue LED) on the wireless receiver does not light up and the "REAR CHK"... -
Page 11: Hdmi Function
HDMI Function HDMI Function What is HDMI (High Definition Multimedia Interface)? Resolution Selection • This function allows the user to select screen resolution for HDMI output. This device transmits DVD video signal digitally without the process of converting to analog. You can get sharper digital pictures by connecting the video to your TV using an HDMI connection cable. -
Page 12: Connecting External Components
Connecting External Components Connecting the FM Antenna Connecting an External Digital / Analog Component Example: Digital signal components such as a Set-Top Box or CD Recorder. Analog signal components such as a VCR. FM Antenna (supplied) Audio Cable (not supplied) If the external analog Optical Cable component has only one... -
Page 13: Before Using Your Home Theater
• By default, the video format is set to "PAL". • By default, the remote control is set to work with Samsung TVs. • "NTSC" or "PAL" will appear in the display. At this time, press the NT/PAL button See page 69 for more information about remote control operation with other manufacturer's TVs. -
Page 14: Disc Playback
Before Using Your Home Theater Disc Playback Disc terminology Groups and tracks (DVD-AUDIO) • DVD-audio is divided into several large sections called "groups" and Load a disc vertically into the Disc smaller sections called "tracks". Numbers are allotted to these sections. Insert Hole. -
Page 15: Mp3/Wma-Cd Playback
MP3/WMA-CD Playback Displaying Disc Information Data CDs (CD-ROM, CD-R, CD-RW) encoded in MP3/WMA format can be played. You can view disc playback information on the TV screen. In Stop mode, use to select Load the MP3/WMA Press INFO button. the album, and then disc. -
Page 16: Jpeg File Playback
JPEG File Playback JPEG Digest Function Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then You can view 9 JPEG images on the TV screen. played back with this Home Theater. Press DIGEST Press Cursor buttons... -
Page 17: Divx Playback
DivX Playback Subtitle Display • The functions on this page apply to DIVX disc playback. Press the SUBTITLE button. Skip Forward/Back • Each time you press the button, your selection will toggle between “SUBTITLE (1/1, 1/2 ...)” and “SUBTITLE OFF”. During playback, press the button. -
Page 18: Checking The Remaining Time
Checking the Remaining Time Fast/Slow Playback Fast Playback Slow Playback Press Press the REMAIN button. Press SLOW button. • Each time the button is pressed during playback, • • For checking the total and remaining time of a title or chapter Each time the button is pressed during playback, the playback speed changes as follows: the playback speed changes as follows:... -
Page 19: Repeat Playback
Repeat Playback A-B Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). You can repeatedly play back a designated section of a DVD. JPEG Press REPEAT button. • Press Cursor button Each time the button is pressed during playback, the repeat playback mode changes as follows: Press INFO button to move to REPEAT... -
Page 20: Step Function
Step Function Zoom (Screen Enlarge) Function This function allows you to enlarge a particular area of the displayed image. Press STEP button. • The picture moves forward one frame each time the button is pressed Press Cursor during playback. Press ENTER Press ZOOM buttons to button. -
Page 21: Bonus Group / Navigating Pages
Bonus Group / Navigating Pages Selecting Audio/Subtitle Language Audio Language Selection Function Bonus Group DVD- AUDIO Press Cursor Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key Press INFO button buttons or numeric number to access. See the disc packaging for details and the-key number. twice. -
Page 22: Playing Media Files Using The Usb Host Feature
Playing Media Files using the USB HOST feature You can enjoy media files such as pictures, movies and music saved in an MP3 player, USB memory or digital camera in high Compatible Devices quality video with 5.1 channel home theater sound by connecting the storage device to the USB port of the home theater. 1. -
Page 23: Moving Directly To A Scene/Song
Moving Directly to a Scene/Song Using Disc Menu You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc. Press Cursor Press Cursor In Stop mode, Moving to a Title/Track Moving to a Chapter buttons to move to buttons to... -
Page 24: Setting The Language
Setting the Language OSD (On-Screen Display) language is set to English by default. Press Cursor Press Cursor Press Cursor Select ‘Language’ In Stop mode, button to select ‘OSD button to select the button to move to and then press press MENU Language’... -
Page 25: Setting Tv Screen Type
Setting TV Screen type Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio. Adjusting the TV Aspect Ratio (Screen Size) Press Cursor In Stop mode, button to move to The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high press MENU ‘Setup’... -
Page 26: Setting Parental Controls (Rating Level)
Setting Parental Controls (Rating Level) Setting the Password Use this to restrict playback of adult or violent DVDs you do not want children to view. You can set the password for the Parental (rating level) setting. Press Cursor Press Cursor In Stop mode, button to move to button to move to... -
Page 27: Setting The Wallpaper
Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. MOVE SELECT RETURN EXIT MOVE SELECT RETURN EXIT Select this to set the Select this to set the desired Samsung Logo image as image as your wallpaper. your wallpaper. -
Page 28: Dvd Playback Mode
DVD Playback Mode Setting the Speaker Mode Some DVD-Audio discs contain DVD-Video as well as DVD-Audio. Signal outputs and frequency responses from the speakers will automatically be adjusted according to your To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode. speaker configuration and whether certain speakers are used or not. -
Page 29: Setting The Delay Time
Setting the Delay Time If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers. Press Cursor Press Cursor button Press Cursor button In Stop mode, , buttons to move... -
Page 30: Setting The Test Tone
Setting the Test Tone Setting the DRC (Dynamic Range Compression) Use the Test Tone feature to check the speaker connections. This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night. In Stop or no Press Cursor Press Cursor... -
Page 31: Setting The Audio
Setting the Audio You can adjust the balance and level for each speaker. When adjusting the audio quality using the setup screen When manually adjusting with the SOUND EDIT button Method 1 Method 2 Adjusting Front Speaker Balance Adjusting Rear Speaker Balance Adjusting Center Speaker Level Press Cursor In Stop mode,... -
Page 32: Av Sync Setup
AV SYNC Setup Sound Field (DSP)/EQ Function Video may look slower than the audio if it is connected to a digital TV. DSP(Digital Signal Processor) DSP modes have been designed to simulate different acoustic environments. EQ: You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing If this occurs, adjust the audio delay time to to match the video. -
Page 33: Dolby Pro Logic Ii Mode
Dolby Pro Logic II Mode Dolby Pro Logic II Effect You can select the desired Dolby Pro Logic II audio mode. This function works only in Dolby Pro Logic MUSIC mode. Press PL II EFFECT button Press PL II MODE Press PL II MODE button. -
Page 34: Listening To Radio
Listening to Radio Presetting Stations Remote Control Unit Example: Presetting FM 89.1 in the memory Press the TUNER Press the TUNER Tune in to the Press the TUNER Press TUNING/CH button and select button and select the desired station. MEMORY button. to select "89.10". -
Page 35: Convenient Functions
Convenient Functions Sleep Timer Function Mute Function You can set the time that the Home Theater will shut itself off. This is useful when answering a doorbell or telephone call. Press SLEEP button. Press MUTE button. • Each time the button is pressed, the preset time changes as follows: •... -
Page 36: Operating A Tv With The Remote Control
TV. Mitsubishi/MGA 18, 40, 59, 60, 75 • If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default. -
Page 37: Before Calling For Service
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom... -
Page 38: Cautions On Handling And Storing Discs
Cautions on Handling and Storing Discs Language Code List Small scratches on the disc may reduce sound and picture quality or cause skipping. Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” Be especially careful not to scratch discs when handling them. and/or “Disc Menu”... -
Page 39: Usb Host Feature Supported Products
Digital Camera 80W x 2(3Ω) Iriver H320 Iriver 20G HDD MP3 Player Front speaker output Coolpix 4100 Nikon Digital Camera YH-920 Samsung 20G HDD MP3 Player Center speaker output Coolpix 5200 Nikon Digital Camera YP-T7 Samsung MP3 Player Stylus 410 digital... -
Page 40: Specifications
Specifications Memo HT - XQ100/HT - XQ100W 5.1ch speaker system Speaker system Front/Center/Rear speaker Subwoofer speaker Impedance 3Ω 3Ω Frequency range 150Hz~20kHz 40Hz~200Hz Output sound pressure level 82dB/W/M 85dB/W/M Rated input 100W Maximum input 160W 200W Front 98 x 482 x 76 mm Rear 98 x 206 x 80 mm Dimensions (W x H x D)
