Ives Offset Top Pivot 7245F Installation Instructions

Right hand
installation
1. Prepare and mortise hinge stile of door and hinge side jamb to receive pivot set. Determine
pivot location using dimensions on reverse side. The pivots are handed and must match
hand of door. To determine hand of door and proper pivot position, see diagrams above.
Install top and bottom pivot sets before installing intermediate pivot.
2. Locate, drill, and tap 1/4-20 mounting holes for metal door or metal frame. Locate and drill
pilot holes for #14 wood screws for wood door or wood frame. Then hang door.
3. Open door about 90°. Install pivot leafs with 1/4-20 x 3/4" FHMS or #14 FHWS screws provided.
4. The door weight should be balanced between bottom and intermediate pivots. Refer to
diagram above. To adjust intermediate pivot:
A. Use 5/32" Allen wrench to remove pivot cap from frame leaf.
B. Insert Allen wrench into pivot pin height adjuster.
C. Turn clockwise until pivot pin makes contact with steel ball inside door leaf.
D. Adjust carefully to balance the weight of the door.
5. Re-install pivot cap.
!
Improper pivot set installation can lead to personal injury or property damage. Follow
all instructions carefully. For questions contact Technical Support at 1-888-371-7331.
26366 Rev. 3 © 2006 Ingersoll-Rand Company Limited

Installation Instructions

7244F and 7245F

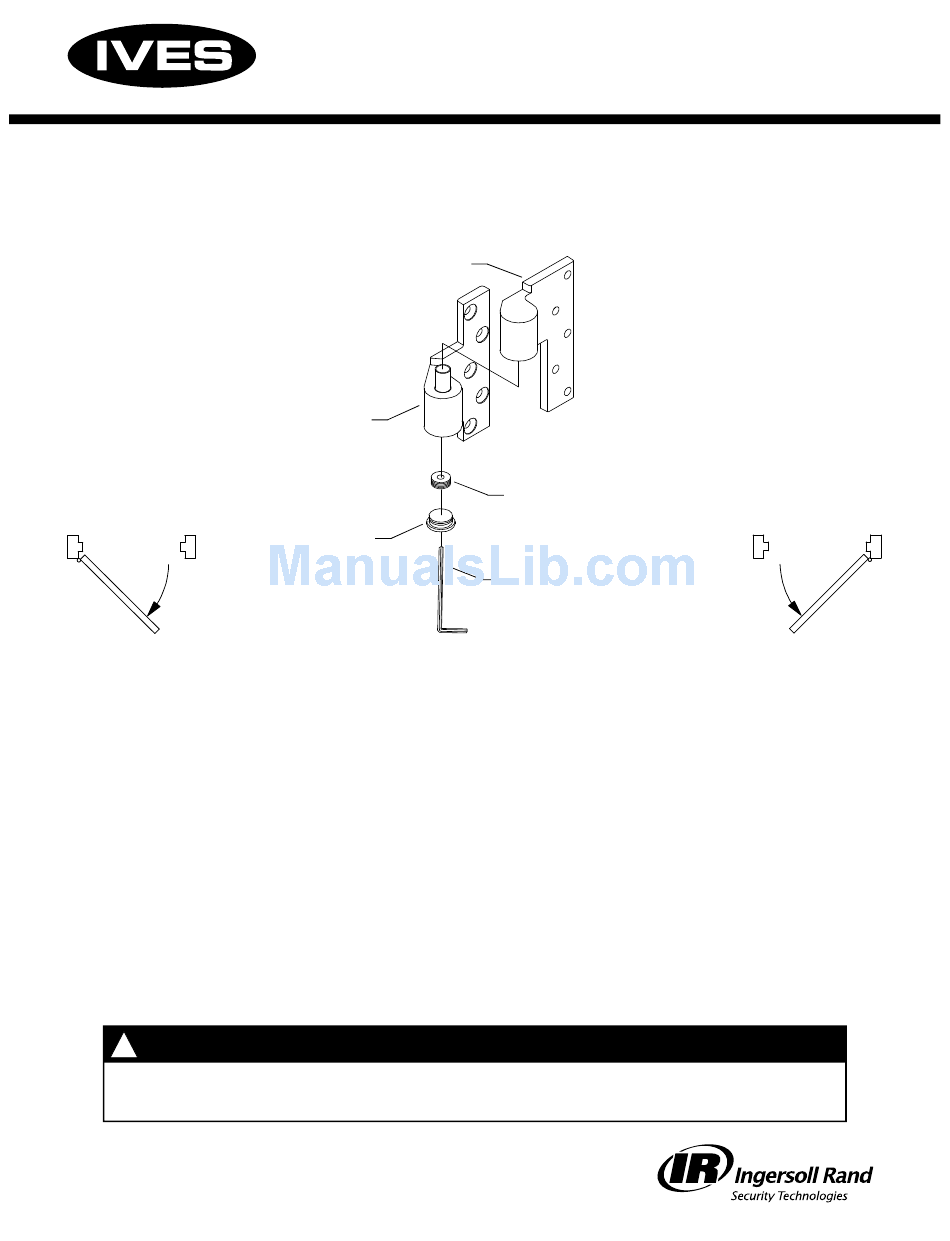

1-1/2" Intermediate Pivot
Door leaf
Frame
leaf
Pivot
cap
CAUTION
installation shown;
left hand opposite
Pivot pin height
adjuster
5/32" Allen
wrench
Right hand
Left hand
installation
