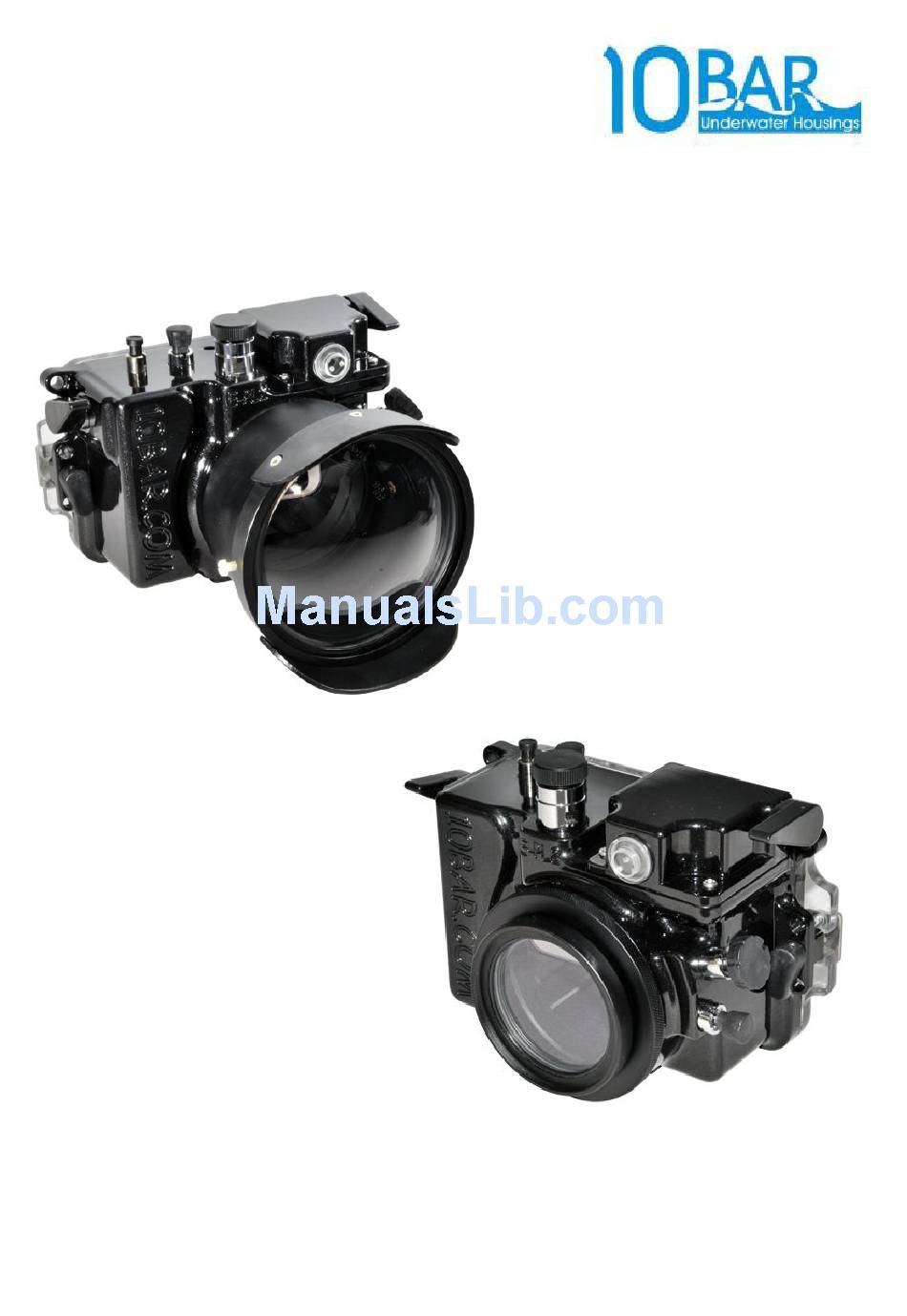

- Page 1 Underwater Housing for Olympus E-PL2 User Manual...
-
Page 2: Table Of Contents
1. Introduction Made of sturdy 6061 aluminum, 10Bar housing for the Olympus E-PL2 is the ideal choice for those who favor small cameras. Our housing is equipped with control buttons for all camera functions, bulkhead connector for external flash and interchangeable ports for conversion lenses. -
Page 3: Function Controls
3. Function Controls Function Control Buttons (1) Flash Off (2) Bulkhead (3) Mode Dial (4) Power On / Off (5) Shutter (6) Key-Hole Lock (7) Flash On (8) Movie (9) Close-up Playback (10) Info (11) Index / Calendar Display (12) Exposure Compensation (13) Single-Frame Playback (14) AF Target (15) OK... - Page 4 Control Buttons Details 1. Flash Off Press the lever down to turn off the flash. · Make sure that the Flash is turned off before removing the camera from the housing. · Bulkhead For connecting the sync cord. · Unscrew the rubber protective plug and install the sync cord. ·...
- Page 5 21. Zoom Control Press and turn to adjust the zoom. 22. Zoom Control Press and turn to adjust the zoom. 23. Focus Control Press and turn to adjust the focus. 24. Lens Release For use with LUMIX DMW-MA1 four third lens mount adaptor For details of camera functions and settings accessed by each control button, please consult the Olympus E-PL2 camera instruction manual.
-
Page 6: Set-Up Instructions
Each housing is individually inspected and hydrostatically tested in the factory. However, the responsibility for ensuring the integrity of the watertight seal lies entirely with the user. 10Bar accepts no liability for damage to, or loss of any equipment used with, or placed inside the housing. It is highly recommended that an in-water test of the housing without the camera be carried out before the first dive, after changing ports or alteration of housing configuration. - Page 7 Mounting the Gear Rings on the Lens In order to adjust the zoom and focus controls on the lens inside the housing, gear rings have to be installed on the lens before mounting onto the camera. Olympus M. ZUIKO 14-42 f/3.5-5/6 II Lens l Slide the Zoom and Focus Gear Rings onto the lens from the direction as shown by the red arrows below.
- Page 8 Olympus M. ZUIKO 14-42 f/3.5-5/6 Lens l Slide the Zoom and Focus Gear Rings onto the lens from the direction as shown by the red arrows below. l Use Zoom Control Button - 22 and Focus Control Button - 23 on the housing to adjust zoom and focus for this lens Panasonic LUMIX G VARIO 7-14 f/4.0 ASPH Lens.
- Page 9 Panasonic LUMIX G VARIO 14-45 f/3.5-5.6 ASPH MEGA O.I.S.Lens l Slide the Zoom and Focus Gear Rings onto the lens from the direction as shown by the red arrows below. l Use Zoom Control Button - 23 and Focus Control Button - 21 on the housing to adjust zoom and focus for this lens Olympus M.
- Page 10 Dome Port for 8mm Wide Angle Conversion Lens...
- Page 11 Mounting the Camera in the Housing Slide the hot shoe plug into the hot shoe as shown below Store the hot shoe plug cable as illustrated below. Replacing the Lid Replace the lid and make sure the lever is perpendicular to the side wall of the housing. ·...
- Page 12 Note: If the O-ring has formed a good seal, a continuous thin black line, about 0.5 to 1mm in width should be visible where the O-ring is in contact with the lid. Follow this line all the way round the lid as a final check that the seal is good.
- Page 13 If the O-ring is damaged or suspected of being damaged, discard it immediately. · Spare O-rings are supplied with your housing, or replacement O-rings can be ordered from 10Bar. · If the O-ring is contaminated, clean it with a clean cloth.
-
Page 14: Use & Care Of Housing
(e.g., being dropped), the alignment of the housing may have been altered. It is essential that you stop diving with the housing and send it to 10Bar immediately for servicing. Put a note inside the housing stating the nature of the accident to assist our technicians in assessing the damage. -
Page 15: Service
6. Service To ensure the continued performance of your housing, it should be sent in to us for servicing annually, or after every 200 dives, whichever is earlier. A full service will include: Inspect all components for wear or damage and report if repair is necessary. ·... -
Page 16: Warranty
The warranty is valid for two years from the date of purchase. The warranty applies only to the housing itself. 10Bar does not accept any liability either implicit or otherwise for any equipment housed inside, or used together with the housing. In the event of the housing flooded within the warranty period, 10Bar will repair or replace the housing.
