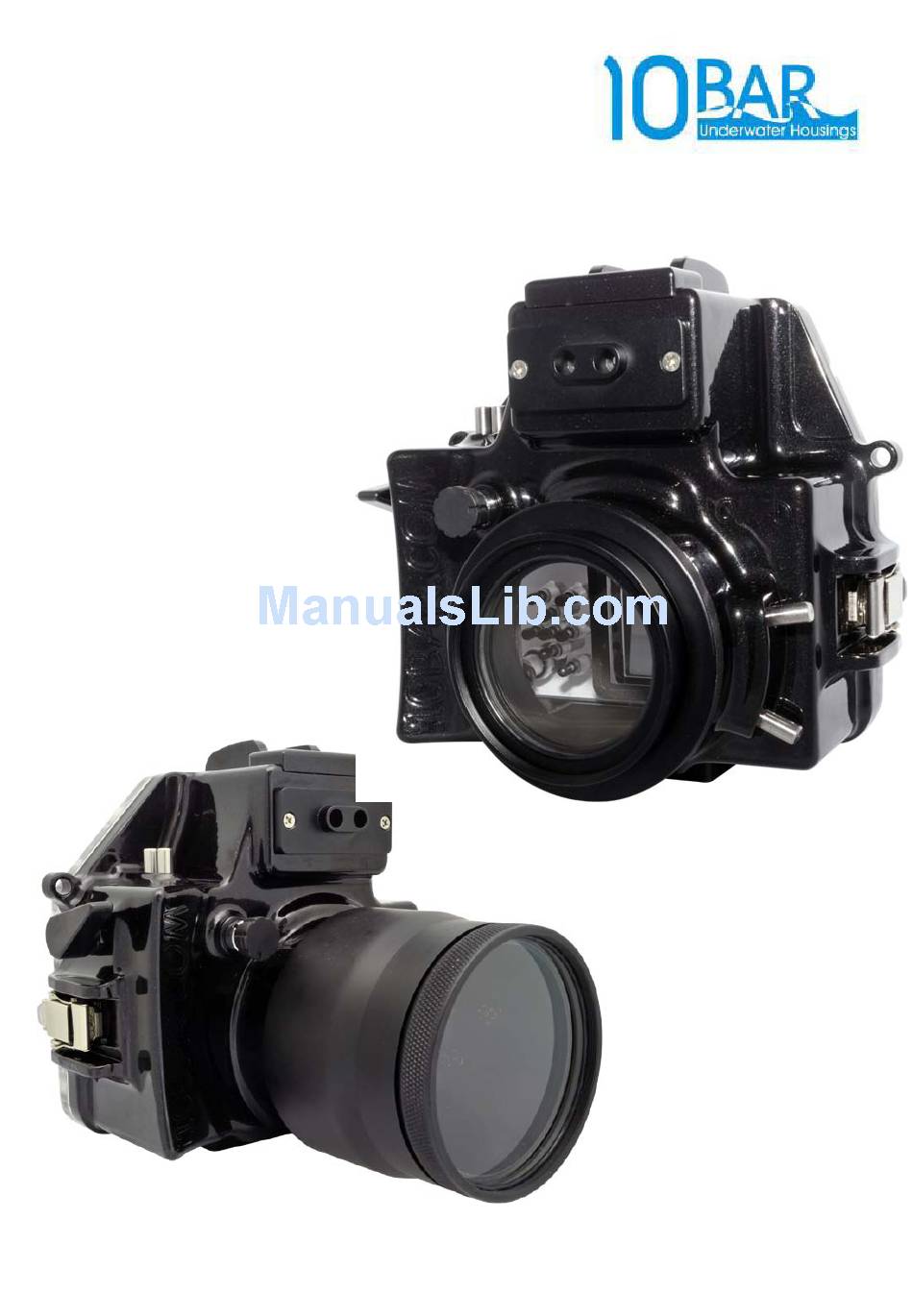

- Page 1 Underwater Housing for Olympus OM-D E-M5 User Manual...
-
Page 2: Table Of Contents
O-ring and stainless steel locking latch design provide ease of use and added security. An extensive line of accessories like arms, filters and fibre optics cable is also available from 10Bar. Our housing for the OMD extends the camera’s outstanding performance from land to beneath the sea. -
Page 3: Specifications
2. Specifications Housings Individually Tested to 10 Bar (90 m / 300 ft.) Tested Pressure Recommended Working Pressure : 60 m Closure Design Double O-ring, Stainless Steel Locking Latch Body Material 6061 Aluminum, Acrylic Overall Size 185 x 172 x 165mm (L x W x H) with 12-50mm Lens Port. 180 x 172 x 165mm (L x W x H) with 60mm Lens Port. -
Page 4: Function Controls
3. Function Controls Function Control Buttons (1) Shutter (2) Movie (3) Fn2 (4) Sub Dial (5) Focus Control (6) Zoom Control (7) L-Fn (8) Macro (9) Mode Dial (10) Main Dial (11) LV (12) Playback (13) Fn1 (14) Menu (15) Info (16) Up (17) Left (18) OK... - Page 5 ontrol Buttons Details 1. Shutter Press down to activate the shutter. 2. Movie Press to start or stop recording video. 3. Fn2 Press to activate. 4. Sub Dial Turn to rotate Sub Dial. 5. Focus Control Press and turn to manually adjust the focus. 6.
-
Page 6: Set-Up Instructions
Each housing is individually inspected and hydrostatically tested in the factory. However, the responsibility for ensuring the integrity of the watertight seal lies entirely with the user. 10Bar accepts no liability for damage to, or loss of any equipment used with, or placed inside the housing. It is highly recommended that an in-water test of the housing without the camera be carried out before the first dive, after changing ports or alteration of housing configuration. - Page 7 Mounting Gear Rings on the Lens for Manual Focus and Zoom • Gear rings have to be installed in order to manually turn the zoom and focus rings on the lens. • Due to the lens mount design on the OM-D 5, our standard port M77 x 100DZ cannot support manual focus or zoom function for the following lenses: Olympus M.
- Page 8 Panasonic LUMIX G VARIO 14-42 f/3.5-5.6 ASPH MEGA O.I.S.Lens • Slide the Zoom and Focus Gear Rings onto the lens from the direction as shown by the red arrows below. Use Zoom Control Button (5/D2) on the housing to manually adjust the zoom. •...
- Page 9 Dome Port for 8mm Wide Angle Lens 60mm Macro Lens with Port Conversion Kit...
- Page 10 Replacing the Lid • When replacing the lid, please make sure the latch is properly locked as illustrated below. After locking the lid, make a final visual inspection of the main O-ring for contamination. • Note: If the O-ring has formed a good seal, a continuous thin black line, about 0.5 to 1mm in width should be visible where the O-ring is in contact with the lid.
- Page 11 Maintaining the O-rings The O-ring is the main seal in keeping sea water out of the housing. It is an effective barrier only if the O-ring is properly maintained. The O-ring should be inspected before every dive. The following information is provided for your guidance in using and maintaining the O-ring. •...
- Page 12 • If the O-ring is damaged or suspected of being damaged, discard it immediately. Spare O-rings are supplied with your housing, or replacement O-rings can be ordered from 10Bar. • • If the O-ring is contaminated, clean it with a clean cloth.
-
Page 13: Use & Care Of Housing
(e.g., being dropped), the alignment of the housing may have been altered. It is essential that you stop diving with the housing and send it to 10Bar immediately for servicing. Put a note inside the housing stating the nature of the accident to assist our technicians in assessing the damage. -
Page 14: Service
6. Service To ensure the continued performance of your housing, it should be sent in to us for servicing annually, or after every 200 dives, whichever is earlier. A full service will include: • Inspect all components for wear or damage and report if repair is necessary. Clean all sealing surfaces. -
Page 15: Warranty
In the event of the housing flooded within the warranty period, 10Bar will repair or replace the housing. Disassembly of the housing will invalidate the warranty. To register a warranty, please complete the form below...
