Sony VX2000/150 Operating Manual

Operating Guide for Sony VX2000/150
APS Work Order Required
Proficiency Required
Media Loan VX-2000 Package includes:

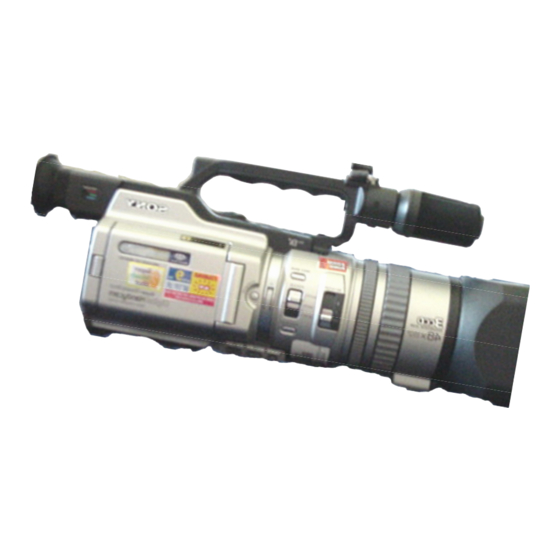

Sony VX-2000 Digital Camcorder
AC Adapter with DC Cable
Remote Control
RCA & S-VHS Dubbing Cables
Density Case
Specifications:
Image Device: 3 CCDʼs (Charged Coupled Device)
Video Recording System: Two rotary heads, helical
scanning system
Video Signal: NTSC color
Format: Use mini DV cassette ME (metal evaporative)
Recording and Playback Time: 1 hour with a DVM60ME
tape @SP
Resolution: Over 500 lines
Viewfinder: Color LCD
Zoom: 12x optical; 48x digital;
Photo shot: Captures more than 510 images in SP mode on
a 60-minute tape
Minimum Illumination: 2 lux (F 1.6);
Audio Recording Format: Rotary heads, PCM (Pulse Code
Modulation) system:16 bit(48 kHz), or 12 bit(32kHz)
Mic: 4-capsule stereo w/external mini jack
Battery Power: Typical recording time (with a full charged
battery) 40 min with standard, 4.5 hours with extended
Manual Controls:
Program Auto Exposure (3-mode AE): Shutter priority, Iris
priority, and Natural night mode
Manual exposure: Iris and gain (20 step), shutter speed
(16 speeds)
Manual White Balance
Custom Preset: Controls auto exposure shift, white balance
shift, color level control, gain shift and
sharpness control
Manual Focus Ring: With focus indicator
Media Loan
The Evergreen State College
Recycled & Recyclable
3 Chip Digital Camcorder
Avoid mechanical shock
Keep camcorder away from strong magnetic
fields or mechanical vibration
Keep Power switch set to off when not in use
Do NOT get wet or use near water
Do NOT aim at the sun or other bright objects
Do NOT expose camcorder to extreme
temperatures
Do NOT leave unattended (remember borrow-
er is totally responsible for loss or damage)
Do NOT touch lens surface
Do NOT try to clean viewfinder or LCD panel
Do NOT lift or carry by viewfinder
Do NOT wrap up the camcorder and use, to
prevent internal heat buildup
Do NOT force camera to accept tape
Make sure that there are no protruding labels
on the tape (may interfere with cassette inser-
tion)
Remember to always test equipment before
checking out & returning to Media Loan
Special Features:
A/V Digital Fader and Overlap Transitions: Fades to
Photo Mode: Records still image and audio signal
Interval and Frame Recording: For six frame recording
2-Speed Search Feature
Steadyshot Picture Stabilization
Zebra-Pattern Feature: Indicates overexposed areas
Full Range Auto Focus: From macro to infinity
ND Filter: Prevents picture from going out of focus under
Editing:
DV Interface: For direct input and output, digital-to digital
Time Code: For hour, minute, second, and frame; identifies
Control L (LANC): Local Application Control Bus
The Library Group
http://www.evergreen.edu/media
from black or from previous still pictures
for 7 seconds
and time-lapse effects
bright conditions
audio and video editing with virtually no quality
loss (A/V control)
and locates scenes for editing
System; used for controlling the tape transport of
video equipment and attached peripherals
(360) 867-6253
Olympia, WA 98505
VX-2000150camcorder/1/27/06/lc
