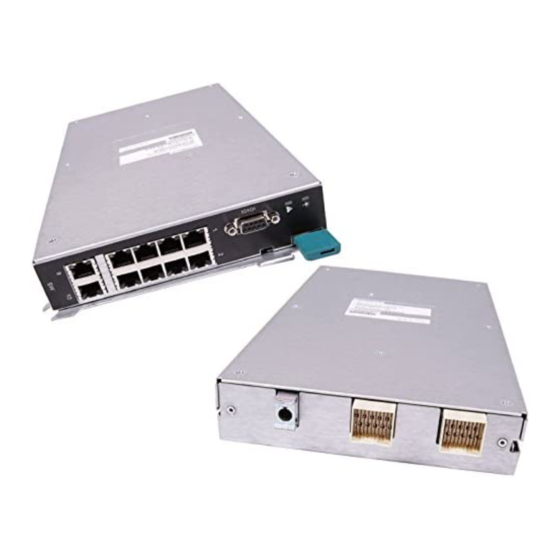

Intel® Gigabit Ethernet Switch
AXXSW1GB User Guide
A Guide for System Administrators of Intel® Server Products
Intel Order Number D95362-004

Advertisement

Table of Contents
loading

Related Manuals for Intel AXXSW1GB

Summary of Contents for Intel AXXSW1GB

  • Page 1 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide A Guide for System Administrators of Intel® Server Products Intel Order Number D95362-004...
  • Page 2 Information in this document is provided in connection with Intel® products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel's Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any...

  • Page 3: Safety Information

    Safety Information Important Safety Instructions Read all caution and safety statements in this document before performing any of the instructions. See also Intel® Server Boards and Server Chassis Safety Information at http://support.intel.com/support/motherboards/server/sb/cs-010770.htm. Wichtige Sicherheitshinweise Lesen Sie zunächst sämtliche Warnund Sicherheitshinweise in diesem Dokument, bevor Sie eine der Anweisungen ausführen.
  • Page 4 Reinstalling enclosure cover: To protect internal components and for proper cooling and airflow, the server compute module should not be inserted into the chassis with the cover removed; operating it without the enclosure cover in place can damage system parts. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 5: Preface

    Section 9, Configuring Spanning Tree — Provides information about configuring Spanning Tree Protocol and the Rapid Spanning Tree Protocol. • Section 10, Configuring Quality of Service — Provides information about configuring Quality of Service on the device. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 6: Intended Audience

    Section 13, Viewing Statistics — Provides information about viewing device statistics, including RMON statistics, device history events, and port and LAG utilization statistics. Intended Audience This guide is intended for network administrators familiar with IT concepts and terminology. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 7: Table Of Contents

    Defining VLAN Membership ...50 Defining VLAN Interface Settings ...53 Defining VLAN Groups ...56 Configuring GARP ...66 Chapter 7: Defining Forwarding Database ... 71 Defining Static Forwarding Database Entries ...72 Defining Dynamic Forwarding Database Entries ...74 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 8 A Troubleshooting ...166 B Installation/Assembly Safety Instructions ...168 English ... 168 Deutsch ... 170 Français ... 173 Español ... 175 Italiano ... 177 C Safety Information ...180 English ... 180 Français ... 191 viii Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 9: List Of Tables

    List of Tables Table 1. Additional Information and Software ... 8 Table 2. Product Certification Markings ...42 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 10 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 11 Figure 38. Interface Settings Page... 53 Figure 39. VLAN Interface Settings Page ... 55 Figure 40. VLAN MAC-based Groups Page... 57 Figure 41. Add VLAN MAC-based Groups Page ... 58 Figure 42. MAC Groups Settings Page ... 58 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 12 Figure 85. Class Map Page ... 119 Figure 86. Add QoS Class Map Page... 120 Figure 87. Aggregated Policier Page ... 121 Figure 88. Add Aggregated Policier Page... 122 Figure 89. Edit QoS Aggregate Policer Page ... 122 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 13 Figure 111. RMON Events Control Page ... 159 Figure 112. RMON Events Logs Page ... 161 Figure 113. RMON Alarm Page ... 162 Figure 114. Add Alarm Entry Page... 163 Figure 115. RMON Alarms Definition Page... 164 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide xiii...

  • Page 14: Chapter 1: Getting Started

    This section provides an introduction to the user interface, and includes the following topics: • Starting the Embedded Web Interface • Understanding the Embedded Web Interface • Using Screen and Table Options • Resetting the Device • Logging Off the Device Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 15: Starting The Embedded Web Interface

    2. Ensure that pop-up blockers are disabled. If pop-up blockers are enabled, the edit, add, and device information messages may not open. 3. Enter the device IP address in the address bar and press Enter. Figure 1. Embedded Web Interface Home Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 16: Understanding The Embedded Web Interface

    3 Zoom View 4 Web Interface Information Links Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Table 1. Interface Components Description Tree View provides easy navigation through the configurable device features. The main branches expand to display the sub-features. Device View provides information about device ports, current configuration and status, table information, and feature components.

  • Page 17: Figure 3. Device Representation

    The Embedded Web Interface Home Page contains a graphical panel representation of the device. An explanation of the port settings displays when you move your mouse over the port. Figure 3. Device Representation Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 18 Configuration Management buttons and icons provide an easy method of configuring device information, and include the following: Table 1: Web Interface Configuration Buttons Button Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Table 2. Button Name Clear Logs Clears system logs.

  • Page 19: Using Screen And Table Options

    3. Define the relevant fields. 4. Click updated. . An add page opens, such as the Add MAC Based ACL: Figure 4. Add MAC Based ACL . The configuration information is saved, and the device is Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 20: Figure 5. Storm Control Settings Page

    2. Select a table row. 3. Select the Delete checkbox. 4. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . A modification page, such as the Storm Control Settings Page Figure 5. Storm Control Settings Page . The fields are modified, and the information is saved to the...

  • Page 21: Resetting The Device

    4. Click OK. The device is reset, and a prompt for a user name and password is displayed. 5. Enter a user name and password to reconnect to the Web Interface. Logging Off the Device 1. Click Figure 6. Reset Page . The Embedded Web Interface Home Page closes. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 22: Chapter 2: Managing Device Information

    System Contact — Defines the name of the contact person. The field range is 0-160 characters. • System Object ID — Displays the vendor’s authoritative identification of the network management subsystem contained in the entity. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 7. System Information Page...

  • Page 23: Figure 8. Reset Page

    To reset the device: 1. Click System > Reset. The Reset Page opens: 2. Click Figure 8. Reset Page The Ethernet switch is reset, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 24: Chapter 3: Configuring Device Security

    The system measures the incoming Broadcast, Multicast or Unknown Unicast frame rates separately on each port, and discards the frames when the rate exceeds a user-defined rate. The Storm Control Page provides fields for configuring packet storm control. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 25: Figure 9. Storm Control Page

    — Broadcast, Multicast, & Unknown Unicast — Counts Broadcast, Multicast, and Unicast traffic. — Multicast & Broadcast — Counts Broadcast and Multicast traffic together. — Broadcast Only — Counts only Broadcast traffic. Figure 9. Storm Control Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 26: Figure 10. Storm Control Settings Page

    2. Click . The Storm Control Settings Page opens: Figure 10. Storm Control Settings Page 3. Modify the relevant fields. 4. Click . Storm control is enabled on the device. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 27: Managing Port Security

    Disabled ports are activated from the Port Security Page. To define port security: 1. Click Network Security > Traffic Control > Port Security. The Port Security Page opens. Figure 11. Port Security Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 28 — Enable — Enables traps. — Disable — Disables traps. • Trap Frequency (Sec) — The amount of time (in seconds) between traps. The range 1–1,000,000. is between Intel® Gigabit Ethernet Switch AXXSW1GB User Guide The default value is 10 seconds.

  • Page 29: Figure 12. Edit Port Security Settings Page

    . The Edit Port Security Settings Page opens: Figure 12. Edit Port Security Settings Page 3. Modify the relevant fields. 4. Click . The port security settings are defined, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 30: Defining Access Control Lists

    1. Define an ACL and the initial ACL Rule. 2. Add additional rules to the ACL. This section contains the following topics: • Defining MAC Based Access Control Lists • Defining IP Based Access Control Lists Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 31: Figure 13. Mac Based Acl Page

    MAC Address. Wildcard masks specify which bits are used and which are ignored. A wildcard mask of FF:FF:FF:FF:FF:FF Figure 13. MAC Based ACL Page contains the following fields: Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 32 — Deny — Drops packets which meet the ACL criteria. — Shutdown — Drops packet that meet the ACL criteria, and disables the port to which the packet was addressed. Ports are reactivated from the Port Configuration Page. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 33: Figure 14. Add Mac Based Acl And First Rule Page

    . The MAC Based ACLs are defined, and the device is updated. . The Add ACL Rule Page opens: Figure 15. Add ACL Rule Page . The ACL rule is defined, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 34: Figure 16. Edit Rule Page

    Rule Page opens. 2. Click . The Edit Rule Page opens: Figure 16. Edit Rule Page 3. Modify the relevant fields. 4. Click . The MAC-based rule is modified, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 35: Figure 17. Ip Based Acl Page

    • Priority — Indicates the Rule priority that determines which rule is matched to a packet based on a first-match basis. The possible field value is 1-2147483647. Figure 17. IP Based ACL Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 36 PIM — Matches the packet to Protocol Independent Multicast (PIM). L2TP— Matches the packet to Layer 2 Internet Protocol (L2IP). ISIS — Intermediate System - Intermediate System (ISIS). Distributes IP routing information throughout a single Autonomous System in IP networks Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 37 — Match IP Precedence — Matches the packet IP Precedence value to the rule. Either the DSCP value or the IP Precedence value is used to match packets to ACLs. The possible field range is 0-7. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 38: Figure 18. Add Ip Based Acl And First Rule Page

    3. Define the relevant fields. 4. Click updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The Add IP Based ACL and First Rule Page opens: . The IP based ACL and first rule are defined, and the device is...

  • Page 39: Figure 19. Add Ip Based Rule Page

    . The Add IP Based Rule Page opens: Figure 19. Add IP Based Rule Page 3. Define the relevant fields. 4. Click . The IP based rules are defined, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 40: Figure 20. Edit Rule Page

    2. Select an ACL. 3. Click . The Edit Rule Page opens: Figure 20. Edit Rule Page 4. Modify the relevant fields. 5. Click . The IP based rule is defined, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 41: Binding Device Security Acls

    LAGs — Indicates the LAG membership. • Interface — Indicates the interface to which the ACL is bound. • ACL Name — Indicates the ACL which is bound the interface. Figure 21. ACL Binding Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 42: Figure 22. Edit Acl Binding Page

    3. Click . The Edit ACL Binding Page opens: Figure 22. Edit ACL Binding Page 4. Define the relevant fields. • Click . The ACL is bound the interface, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 43 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 44: Chapter 4: Configuring Ports

    — 100 — Indicates the port is currently operating at 100 Mbps. — 1000 — Indicates the port is currently operating at 1000 Mbps. — 10G — Indicates the port is currently operating at 10 Gbps. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 23. Port Configuration Page...
  • Page 45 Ethernet cable can be used, and the pairs are matched up properly. When two hubs or switches are connected to each other, or two end stations are connected to each other, a crossover cable is used to ensure that the correct pairs are connected.

  • Page 46: Figure 24. Port Configuration Settings Page

    Reactivate Suspended Port — Reactivates a port if the port has been disabled through the locked port security option. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The port configuration settings are defined, and the device is . The Port Configuration Settings Page opens:...
  • Page 47 Current MDI/MDIX — Displays the current MDI/MDIX setting.Define the relevant fields. 2. Click updated. The possible field values are those specified in the Admin process. . The port configuration settings are defined, and the device is Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 48: Chapter 5: Aggregating Ports

    LAG, the original port configuration is applied to the ports. • LAGs can be configured only on external ports. This section contains the following topics: • Configuring LAGs • Defining LAG Members • Configuring LACP • Configuring Virtual Trunk Group Failover Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 49: Configuring Lags

    Auto Negotiation — Indicates if auto-negotiation is enabled on the LAG. The possible field values are: — Enable — Indicates that auto-negotiation is enabled on the LAG. — Disable — Indicates that auto-negotiation is disable on the LAG. Figure 25. LAG Configuration Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 50: Figure 26. Lag Configuration Settings Page

    3. Click updated. To modify the LAG configuration: 1. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The LAG configuration settings are saved, and the device is . The LAG Configuration Settings Page opens: Figure 26. LAG Configuration Settings Page...
  • Page 51 LAG. Flow Control mode is effective on the ports operating in Full Duplex in the LAG. The possible field values are those specified in the Admin process. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 52 • Current Flow Control — The current Flow Control setting. 2. Define the relevant fields. 3. Click . The LAG configuration is saved, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 53: Defining Lag Members

    Member — Displays the ports which are currently configured to the LAG. 2. Define the relevant fields. 3. Click updated. Figure 27. LAG Membership Page . The LAG membership settings are saved, and the device is Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 54: Figure 28. Lag Membership Settings Page

    LACP — Enables LACP on the selected LAG. 2. Define the relevant fields. 3. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The LAG Membership Settings Page opens: Figure 28. LAG Membership Settings Page . The LAG configuration is saved, and the device is updated.

  • Page 55: Configuring Lacp

    LACP Timeout — Displays the administrative LACP timeout. The possible field values are: — Long — Specifies the long timeout value. — Short — Specifies the short timeout value. Figure 29. LACP Parameters Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 56: Figure 30. Lacp Parameters Settings Page

    1. Click 2. Modify the relevant fields. 3. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The LACP parameters are saved, and the device is updated. . The LACP Parameters Settings Page opens: Figure 30. LACP Parameters Settings Page...

  • Page 57: Configuring Virtual Trunk Group Failover

    Device. External switch ports can also be an Associated port. For example, a server connected to an external switch port as well as to a dependent group of ports on an Uplink port that forwards traffic to the external network.

  • Page 58: Figure 31. Trunk Group Fail Over Page

    • Type — Displays the port type. The possible field values are: — Uplink — Ports that connect the switch and external network to the associated internal ports and server NIC. — Associated — Ports that are associated with an Uplink port.

  • Page 59: Figure 32. Edit Fail Over Group Page

    2. Select a Fail Over Group to be defined. 3. Define the Ext. or Server ports as a Uplink or Associated port. 4. Click . The Group Fail Over groups are defined, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 60: Chapter 6: Configuring Vlans

    Combining VLANs and Generic Attribute Registration Protocol (GARP) allows network managers to define network nodes into Broadcast domains. This section contains the following topics: • Defining VLAN Properties • Defining VLAN Membership • Defining VLAN Interface Settings • Configuring GARP Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 61: Defining Vlan Properties

    — Dynamic — Indicates the VLAN was dynamically created through GARP. — Static — Indicates the VLAN is user-defined. — Default — Indicates the VLAN is the default VLAN. Figure 33. VLAN Properties Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 62: Figure 34. Add Vlan Page

    1. Click Layer 2 > VLAN > Properties. The VLAN Properties Page opens. 2. Click 3. Modify the relevant fields. 4. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The Add VLAN Page opens: Figure 34. Add VLAN Page . The VLAN ID is defined, and the device is updated.

  • Page 63: Defining Vlan Membership

    — Default — Indicates the VLAN is the default VLAN. • Ports — Indicates the port membership. • LAGs — Indicates the LAG membership. • Interface — Displays the VLAN interfaces. Figure 36. VLAN Membership Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 64 Access mode, the packet types which are accepted on the port cannot be designated. Ingress filtering cannot be enabled or disabled on an access port. 2. Define the relevant fields. 3. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The VLAN membership is defined, and the device is updated.

  • Page 65: Figure 37. Edit Vlan Membership Page

    To modify the VLAN membership: 1. Click . The Edit VLAN Membership Page opens: Figure 37. Edit VLAN Membership Page 2. Modify the relevant fields. 3. Click . The VLAN membership is modified Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 66: Defining Vlan Interface Settings

    — Access — Indicates a interface belongs to a single untagged VLAN. When an interface is in Access mode, the packet types which are accepted on the port Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 38. Interface Settings Page...
  • Page 67 VLANs of which the specific port is not a member. — Disable — Disables ingress filtering on the interface. • Reserved VLAN — Indicates the VLAN selected by the user to be the reserved VLAN if not in use by the system. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 68: Figure 39. Vlan Interface Settings Page

    VLAN if not in use by the system. 2. Modify the relevant fields. 3. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The Interface Settings Page opens: Figure 39. VLAN Interface Settings Page . The VLAN membership is modified...

  • Page 69: Defining Vlan Groups

    MAC addresses, network subnets, and protocols. This section contains the following topics: • Defining VLAN MAC Based Groups • Defining VLAN Subnet Based Groups • Defining VLAN Protocol Based Groups • Mapping Groups to VLANs Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 70: Figure 40. Vlan Mac-Based Groups Page

    Prefix — Displays the MAC prefix associated with the VLAN group. • Group ID — Displays the VLAN Group ID. 2. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 40. VLAN MAC-based Groups Page . The Add VLAN MAC-based Groups Page opens:...

  • Page 71: Figure 41. Add Vlan Mac-Based Groups Page

    . The MAC based VLAN group is defined, and the device is . The MAC Groups Settings Page opens: Figure 42. MAC Groups Settings Page . The MAC based VLAN group is modified, and the device is Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 72: Figure 43. Vlan Subnet-Based Groups Page

    Prefix — Displays the network prefix associated with the VLAN group. • Group ID — Displays the VLAN group ID associated with the VLAN subnet group. 2. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 43. VLAN Subnet-based Groups Page . The Add VLAN Subnet-based Groups Page opens:...

  • Page 73: Figure 44. Add Vlan Subnet-Based Groups Page

    1. Click Layer 2 > > VLAN > VLAN Groups > Subnet-based Groups. The VLAN Subnet-based Groups Page opens. 2. Click . The Subnet based VLAN group is defined, and the device is . The Subnet-based Group Settings opens. Figure 45. Subnet-based Group Settings Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 74: Figure 46. Vlan Protocol Groups Page

    Group ID — Displays the ID number assigned to frames containing specified protocol value. The possible field range is 1 - 2147483647. 2. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 46. VLAN Protocol Groups Page . The Add Protocol-based Groups Page opens:...

  • Page 75: Figure 47. Add Protocol-Based Groups Page

    Ethernet-Based Protocol Value — Displays the Ethernet protocol value. 3. Define the fields. 4. Click updated. Figure 47. Add Protocol-based Groups Page . The protocol based VLAN group is defined, and the device is Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 76: Figure 48. Protocol-Based Groups Settings Page

    Figure 48. Protocol-based Groups Settings Page 3. Modify the fields. 4. Click updated. au Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The Protocol-based Groups Settings Page opens: . The protocol based VLAN group is defined, and the device is...

  • Page 77: Figure 49. Mapping Groups To Vlan Page

    Interface — Displays the interface attached to the VLAN group. • Group ID — Displays the VLAN Group ID. • VLAN ID — Displays the VLAN ID. Figure 49. Mapping Groups to VLAN Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 78: Figure 50. Mapping Groups To Vlan Settings Page

    Figure 50. Mapping Groups to VLAN Settings Page 3. Modify the fields. 4. Click updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The Mapping Groups to VLAN Settings Page Mapping . The interfaces mappings are modified, and the device is...

  • Page 79: Configuring Garp

    Layer 2-connected devices, the GARP application does not operate successfully. To define the GARP settings on the device: 1. Click Layer 2 > VLAN > GARP Settings. The GARP Settings Page opens: Figure 51. GARP Settings Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 80: Figure 52. Garp Parameters Settings Page

    2. Click 3. Define the relevant fields. 4. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The GARP Parameters Settings Page opens: Figure 52. GARP Parameters Settings Page . The GARP parameters are defined, and the device is updated.

  • Page 81: Figure 53. Gvrp Parameters Page

    Ports — Displays the Port GVRP settings. • LAGs — Displays the LAG GVRP settings. • Interface — Displays the port or LAG on which GVRP is enabled. Figure 53. GVRP Parameters Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 82: Figure 54. Gvrp Parameters Settings Page

    1. Click 2. Define the relevant fields. 3. Click updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The GVRP parameters are defined, and the device is updated. . The GVRP Parameters Settings Page opens: Figure 54. GVRP Parameters Settings Page...
  • Page 83 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 84: Chapter 7: Defining Forwarding Database

    This section contains information for defining both static and dynamic forwarding database entries, and includes the following topics: • Defining Static Forwarding Database Entries • Defining Dynamic Forwarding Database Entries Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 85: Defining Static Forwarding Database Entries

    — Port — The specific port number to which the forwarding database parameters refer. — LAG — The specific LAG number to which the forwarding database parameters refer. Figure 55. Static Addresses Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 86: Figure 56. Add Static Mac Address Page

    In addition to the fields in the Static Addresses Page, the Add Static MAC Address Page contains the following additional field: • VLAN Name — Displays the user-defined VLAN name. 3. Define the relevant fields. 4. Click . The Static MAC Addresses are defined, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 87: Defining Dynamic Forwarding Database Entries

    Address Table Sort Key — Specifies the means by which the Dynamic MAC Address Table is sorted. The address table can be sorted by MAC address, VLAN or interface. Figure 57. Dynamic Addresses Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Page...
  • Page 88 1. Click Layer 2 > Address Table > Dynamic Addresses. The Dynamic Addresses Page opens. 2. Select an Address Table Sort Key. 3. Click . The Dynamic MAC Address Table is queried, and the results are displayed. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 89 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 90: Chapter 8: Configuring Multicast Forwarding

    Configuring Multicast Forwarding This section contains information for configuring Multicast forwarding, and includes the following sections: • Defining IGMP Snooping • Defining Multicast Groups • Defining Multicast Forward All Settings Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 91: Defining Igmp Snooping

    The possible field values are: — Checked — Enables IGMP Snooping on the device. — Unchecked — Disables IGMP Snooping on the device. • VLAN ID — Specifies the VLAN ID. Figure 58. IGMP Snooping Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 92: Figure 59. Igmp Snooping Settings Page

    IGMP group and not receiving a Join message from another station, before timing out. If a Leave Timeout occurs, the switch notifies the Multicast device to stop sending traffic. The Leave Timeout value is either user-defined, or an immediate leave value.

  • Page 93: Defining Multicast Groups

    MAC address. The first three octets of such a mapped MAC address have the standard form of 01:00:5E:XX:XX:XX. To define multicast groups: 1. Click Layer 2 > Multicast > Multicast Group. The Multicast Group Page opens: Figure 60. Multicast Group Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 94: Figure 61. Add Multicast Group Page

    2. Click 3. Define the relevant fields. 4. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The Add Multicast Group Page opens: Figure 61. Add Multicast Group Page . The Multicast group is defined, and the device is updated.

  • Page 95: Figure 62. Edit Multicast Group Page

    1. Click . The Edit Multicast Group Page opens: Figure 62. Edit Multicast Group Page 2. Modify the relevant fields. 3. Click . The Multicast group is defined, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 96: Defining Multicast Forward All Settings

    The Multicast Forward-ALL Page allows users to define the ports which are filtered by the IGMP snooping protocol. The IGMP Snooping protocol filters ports during the forwarding process to a neighboring Multicast router or switch. Ports can either be defined •...

  • Page 97: Figure 64. Edit Multicast Forward All Page

    . The Multicast Forward All settings are defined, and the device . The Multicast Forward All Page opens: Figure 64. Edit Multicast Forward All Page . The Multicast Forward All settings are defined, and the device Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 98: Chapter 9: Configuring Spanning Tree

    Multiple STP — Provides various load balancing scenarios. For example, if port A is blocked in one STP instance, the same port can be placed in the Forwarding State in another STP instance. For more information on configuring Multiple STP, see Defining Multiple STP. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 99: Defining Spanning Tree

    — Classic STP — Enables Classic STP on the device. — Rapid STP — Enables Rapid STP on the device. This is the default value. — Multiple STP — Enables Multiple STP on the device. Figure 65. Spanning Tree Properties Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 100 Last Topology Change — Indicates the amount of time that has elapsed since the bridge was initialized or reset, and the last topographic change that occurred. The time is displayed in a day-hour-minute-second format, such as 2 days 5 hours 10 minutes and 4 seconds. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 101 2. Define the relevant fields. 3. Click . STP is enabled, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 102: Defining Spanning Tree Interface Settings

    Port Fast— Indicates if Fast Link is enabled on the port. If Fast Link mode is enabled for a port, the Port State is automatically placed in the Forwarding state when the port Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 103 Port Role — Displays the port role assigned by the STP algorithm to provide to STP paths. The possible field values are: — Root — Provides the lowest cost path to forward packets to the root switch. — Designated — The port or LAG through which the designated switch is attached to the LAN.
  • Page 104 Port Role — Displays the port role assigned by the STP algorithm to provide to STP paths. The possible field values are: — Root — Provides the lowest cost path to forward packets to the root switch. — Designated — The port or LAG through which the designated switch is attached to the LAN.

  • Page 105: Figure 67. Spanning Tree Interface Settings Page

    3. Select Enable in the STP field. 4. Define the relevant fields. 5. Click . The Spanning Tree Interface Settings Page opens: . STP is enabled on the interface, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 106: Defining Rapid Stp

    Ports — Displays the port on which RSTP is enabled. • LAGs — Indicates the LAG to which the port belongs. • Interface — Displays the port or LAG for which the information is displayed. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 68. Rapid STP Page...
  • Page 107 Role — Displays the port role assigned by the STP algorithm to provide to STP paths. The possible field values are: — Root — Provides the lowest cost path to forward packets to the root switch. — Designated — The port or LAG through which the designated switch is attached to the LAN.

  • Page 108: Figure 69. Rapid Spanning Tree Settings Page

    . The Rapid Spanning Tree Settings Page opens: Figure 69. Rapid Spanning Tree Settings Page 3. Define the relevant fields. 4. Click . Rapid STP is defined for the interface, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 109: Defining Multiple Stp

    The IST Master identifies the Bridge priority and the MAC address. 2. Define the relevant fields. 3. Click updated. Figure 70. Multiple STP Properties Page . The Multiple STP properties are defined, and the device is Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 110: Defining Multiple Stp Instance To Vlan Settings

    Instance ID (0-7) — Specifies the VLAN group to which the interface is assigned. 2. Define the relevant fields. 3. Click is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 71. Instance To VLAN Settings Page . The Instance To VLAN Settings Page is defined, and the device...

  • Page 111: Figure 72. Instance Settings Page

    Bridge Priority — Specifies the selected spanning tree instance device priority. The field range is 0-61440. The default value is 32768. The bridge priority value is determined in increments of 4096. Figure 72. Instance Settings Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 112 • Remaining Hops — Indicates the number of hops remaining to the next destination. 2. Define the relevant fields. 3. Click updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The Instance Settings Page is defined, and the device is...

  • Page 113: Figure 73. Interface Settings Page

    — Boundary Port — Indicates that the port is a Boundary port. A Boundary port attaches MST bridges to LANs in an outlying region. If the port is a Boundary Figure 73. Interface Settings Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 114 Forward Transitions — Indicates the number of times the port or LAG has been changed from a Forwarding state to a Discarding state. • Remain Hops — Indicates the hops remaining to the next destination. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 115: Figure 74. Interface Table Page

    2. Click . The Interface Table Page opens. Figure 74. Interface Table Page 3. Define the relevant fields. 4. Click . The Interface Settings Page is defined, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 116: Chapter 10: Configuring Quality Of Service

    Configuring Quality of Service This section contains information for configuring QoS, and includes the following topics: • Quality of Service Overview • Defining General QoS Settings • Configuring Basic QoS Settings • Configuring Advanced QoS Settings Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 117: Quality Of Service Overview

    WRR queues can share the bandwidth with the SP queues. This ensures that the remaining bandwidth is distributed according to the weight ratio. If WRR is selected, the following weights are assigned to the queues: 1, 2, 4, 8. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 118: Defining General Qos Settings

    Defining General QoS Settings This section contains information for defining general QoS settings and includes the following topics: • Configuring CoS General Parameters • Configure Bandwidth Settings • Defining Queues Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 119: Figure 75. Cos Global Settings Page

    Default CoS — Determines the default CoS value for incoming packets for which a VLAN priority is not defined. The possible field values are 0-7. The default CoS is 0. Figure 75. CoS Global Settings Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 120: Figure 76. Modify Port Priority Page

    1. Click QoS > General > CoS. The CoS Global Settings Page opens. 2. Check the Restore Defaults checkbox next to the corresponding Interface. 3. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . Quality of Service is enabled on the device. . The Modify Port Priority Page opens: Figure 76.

  • Page 121: Defining Queues

    Each queue has a weight range, queues 1-7 have the range 0-255, and queue 8 has the range 1-255. • % of WRR Bandwidth — Indicates the amount of bandwidth assigned to the QoS queue. Figure 77. Queue Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 122 2. Define the relevant fields. 3. Click . The Queue settings are set, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 123: Figure 78. Bandwidth Settings Page

    Ingress Rate Limit — Indicates the traffic limit for the port. — Status — Indicates if Ingress Rate Limit is enabled on the interface. — Rate Limit — Defines the rate limit at which network traffic is forwarded. Figure 78. Bandwidth Settings Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 124: Figure 79. Modify Bandwidth Settings Page

    4. Modify the relevant fields. 5. Click updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The Modify Bandwidth Settings Page opens. Figure 79. Modify Bandwidth Settings Page . The Bandwidth Settings are saved to interface, and the device is...

  • Page 125: Figure 80. Cos To Queue Page

    2. Define the queue number in the Queue field next to the required CoS value. 3. Click Figure 80. CoS to Queue Page . The CoS value is mapped to a queue, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 126: Figure 81. Dscp To Queue Page

    2. Define the queue number in the Queue field next to the required DSCP value. 3. Click updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 81. DSCP to Queue Page . The DSCP value is mapped to a queue, and the device is...

  • Page 127: Configuring Basic Qos Settings

    The Basic Mode General Settings Page contains parameters for enabling the Basic QoS Mode on the device. To configure QoS general parameters: 1. Click QoS > Basic Mode > General. The Basic Mode General Settings Page opens: Figure 82. Basic Mode General Settings Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 128 Interface — Indicates the Interface on which the Trust Mode is disabled. • Disable Trust Mode — When checked, Trust Mode is disabled. 2. Define the relevant fields. 3. Click updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The QoS General Settings are configure, and the device is...

  • Page 129: Figure 83. Qos Dscp Rewrite Page

    DSCP Out — Reassigns the DSCP value on incoming packets. 2. Define the relevant fields. 3. Click is updated. Figure 83. QoS DSCP Rewrite Page . The QoS DSCP Rewrite Settings are configure, and the device Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 130: Configuring Advanced Qos Settings

    Defining Policy Properties • Defining Policy Profiles Defining Policy Properties This section contains information for configuring advanced policy properties, and includes the following topics: • Mapping DSCP Values • Creating Class Maps • Aggregating Policiers Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 131: Figure 84. Policied Dscp Page

    DSCP Out — Reassigns the DSCP value on incoming packets. 2. Define the relevant values. 3. Click is updated. Figure 84. Policied DSCP Page . The Policed DSCP value is mapped to a queue, and the device Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 132: Figure 85. Class Map Page

    — And — Matches both ACL 1 and ACL 2 to the packet. — Or — Matches either ACL 1 or ACL 2 to the packet. • ACL 2 — Contains a list of the user defined ACLs. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 85. Class Map Page...

  • Page 133: Figure 86. Add Qos Class Map Page

    3. Define the relevant fields. 4. Click . The Add QoS Class Map Page opens: Figure 86. Add QoS Class Map Page . The Class Map is defined, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 134: Figure 87. Aggregated Policier Page

    — Unchecked — Maintains the current Aggregated Policy. • Aggregate Policer Name — Specifies the aggregate policer name. • Ingress CIR — Defines the CIR in kbits per second. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 87. Aggregated Policier Page...

  • Page 135: Figure 88. Add Aggregated Policier Page

    . The Aggregated Policier is defined, and the device is updated. . The Edit QoS Aggregate Policer Page opens: Figure 89. Edit QoS Aggregate Policer Page . The Aggregated Policier is defined, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 136: Defining Policy Profiles

    Define an aggregate policer if the policer is shared with multiple classes. Policiers in one port cannot be shared with other policers in another device. Traffic from two different ports can be aggregated for policing purposes. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 137: Figure 90. Policy Table Page

    Delete — Deletes policies. The possible field values are: — Checked — Deletes the selected policy. — Unchecked — Maintains policies. • Policy Name — Displays the user-defined policy name. Figure 90. Policy Table Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 138: Figure 91. Add Qos Policy Profile Page

    Ingress Committed Information Rate (CIR) — CIR in kilobits per second. This field is only relevant when the Police value is Single. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The Add QoS Class Map Page opens: Figure 91. Add QoS Policy Profile Page...

  • Page 139: Figure 92. Edit Qos Policy Profile Page

    . The policy is defined, and the device is updated. . The Edit QoS Policy Profile Page opens: Figure 92. Edit QoS Policy Profile Page . The policies are defined, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 140: Figure 93. Policy Binding Page

    — Unchecked — Maintains the policies. • Interface — Selects an interface. • Policy Name — Contains a list of user-defined policies that can be attached to the interface. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 93. Policy Binding Page...

  • Page 141: Figure 94. Add Qos Policy Binding Page

    . The Add Qos Policy Binding Page is defined, and the device is . The Qos Policy Binding Settings Page opens: Figure 95. Qos Policy Binding Settings Page . The Qos Policy Binding Settings Page is defined, and the Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 142: Chapter 11: Managing System Logs

    • Enabling System Logs • Viewing the FLASH Logs • Viewing the Device Memory Logs Intel® Gigabit Ethernet Switch AXXSW1GB User Guide System Log Severity Levels Level Highest (0) The system is not functioning. The system needs immediate attention. The system is in a critical state.

  • Page 143: Enabling System Logs

    — Critical — The third highest warning level. A critical log is saved if a critical device malfunction occurs; for example, two device ports are not functioning, while the rest of the device ports remain functional. Figure 96. System Logs Properties Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 144 Log Flash — Defines the minimum severity level from which logs are sent to the log file kept in FLASH memory. 2. Define the relevant fields. 3. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The global log parameters are set, and the device is updated.

  • Page 145: Viewing The Flash Logs

    Log Time — Displays the time at which the log was generated. • Severity — Displays the log severity. • Description — Displays the log message text. Figure 97. System Flash Logs Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 146: Viewing The Device Memory Logs

    Log Time — Displays the time at which the log was generated. • Severity — Displays the log severity. • Description — Displays the log message text. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The message logs are cleared. Figure 98. Device Memory Log Page...

  • Page 147: Clearing Device Memory Logs

    Message logs can be cleared from the Device Memory Log Page. To clear message logs: 1. Click System > Logs > Memory. The Device Memory Log Page opens. 2. Click . The message logs are cleared. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 148: Chapter 12: Managing Device Diagnostics

    Managing Device Diagnostics This section contains the following topics: • Configuring Port Mirroring • Ethernet Ports Diagnostics • Viewing the CPU Utilization Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 149: Configuring Port Mirroring

    — Checked — Deletes the selected port mirroring sessions. — Unchecked — Maintains the port mirroring session. • Source Port — Indicates the port from which the packets are mirrored. Figure 99. Port Mirroring Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 150 Status — Indicates if the port is currently monitored. The possible field values are: — Active — Indicates the port is currently monitored. — Ready — Indicates the port is not currently monitored. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 151: Ethernet Ports Diagnostics

    Cable Length — Indicates the approximate cable length. This test can only be performed when the port is up and operating at 1 Gbps. 2. Click . The ethernet port is tested. Figure 100. Ethernet Ports Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 152: Copper Cable Extended Feature

    Distance to Fault — Indicates the distance from the port where the cable error occurred. • Status — Displays the cable status. • Channel — Displays the cable's channel. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The Cable Extended Feature Page opens.
  • Page 153 Polarity — Automatic polarity detection and correction permits on all RJ-45 ports for automatic adjustment of wiring errors. • Pair Skew — Reaction or transmission time in nanoseconds for the selected cable pair and given cable length. 3. Click . The ethernet port is tested. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 154: Viewing The Cpu Utilization

    — Enabled — Enables viewing CPU utilization information. This is the default value. — Disabled — Disables viewing the CPU utilization information. • Refresh Rate — Amount of time that passes before the statistics are refreshed. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 102. CPU Utilization Page...
  • Page 155 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 156: Chapter 13: Viewing Statistics

    This section contains the following topics: • Viewing Interface Statistics • Managing RMON Statistics Viewing Interface Statistics This section contains the following topics: • Viewing Device Interface Statistics • Viewing Etherlike Statistics • Viewing GVRP Statistics Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 157: Figure 103. Interface Statistics Page

    — 15 Sec—Indicates that the Interface statistics are refreshed every 15 seconds. — 30 Sec—Indicates that the Interface statistics are refreshed every 30 seconds. — 60 Sec—Indicates that the Interface statistics are refreshed every 60 seconds. Figure 103. Interface Statistics Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 158: Resetting Interface Statistics Counters

    2. Select an interface in the Interface field. The interface statistics are displayed. Resetting Interface Statistics Counters To reset the Interface statistics counters: 1. Open the Interface Statistics Page. 2. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The interface statistics counters are cleared.

  • Page 159: Figure 104. Etherlike Statistics Page

    • Single Collision Frames — Displays the number of single collision frames received on the selected interface. > Interfaces Statistics > Etherlike. The Etherlike Figure 104. Etherlike Statistics Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 160: Resetting Etherlike Statistics Counters

    2. Select an interface in the Interface field. The Etherlike statistics are displayed. Resetting Etherlike Statistics Counters To reset the Etherlike statistics counters: 1. Open the Etherlike Statistics Page. 2. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The Etherlike statistics counters are cleared.

  • Page 161: Figure 105. Gvrp Statistics Page

    — 30 Sec — Indicates that the GVRP statistics are refreshed every 30 seconds. — 60 Sec — Indicates that the GVRP statistics are refreshed every 60 seconds. Figure 105. GVRP Statistics Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 162: Resetting Gvrp Statistics Counters

    2. Select an interface in the Interface field. The GVRP statistics are displayed. Resetting GVRP Statistics Counters To reset the GVRP statistics counter: 1. Open the GVRP Statistics Page. 2. Click Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The GVRP statistics counters are cleared.

  • Page 163: Managing Rmon Statistics

    — Port — Defines the specific port for which RMON statistics are displayed. — LAG — Defines the specific LAG for which RMON statistics are displayed. Figure 106. RMON Statistics Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 164 Frames of 65 to 127 Bytes — Number of 65 to 127 byte frames received on the interface since the device was last refreshed. • Frames of 128 to 255 Bytes — Number of 128 to 255 byte frames received on the interface since the device was last refreshed. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 165: Resetting Rmon Statistics Counters

    2. Select an interface in the Interface field. The RMON statistics are displayed. Resetting RMON Statistics Counters To reset the RMON statistics counters: 1. Open the RMON Statistics Page. 2. Click . The RMON statistics counters are cleared. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 166: Configuring Rmon History

    Configuring RMON History This section contains the following topics: • Defining RMON History Control • Viewing the RMON History Table • Configuring RMON Events Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 167: Figure 107. Rmon History Control Page

    Sampling Interval — Indicates in seconds the time that samplings are taken from the ports. The field range is 1-3600. The default is 1800 seconds (equal to 30 minutes). Figure 107. RMON History Control Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 168: Figure 108. Add History Entry Settings Page

    3. Define the relevant fields. 4. Click the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The Add History Entry Settings Page opens: Figure 108. Add History Entry Settings Page . The entry is added to the Add History Entry Settings Page, and...

  • Page 169: Figure 109. Rmon History Control Settings Page

    . The RMON History Control Settings Page opens: Figure 109. RMON History Control Settings Page 2. Modify the relevant fields. 3. Click . The entry is added to the RMON History Control Settings Page, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 170: Figure 110. Rmon History Table Page

    • CRC Align Errors — Displays the number of CRC and Align errors that have occurred on the interface since the device was last refreshed. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 110. RMON History Table Page...
  • Page 171 Collisions — Displays the number of collisions received on the interface since the device was last refreshed. • Utilization — Displays the percentage of the interface utilized. 2. Select an entry in the History Entry No.field. The Statistics are displayed. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 172: Configuring Rmon Events

    — Unchecked — Maintains RMON events. • Event Entry — Displays the event. • Community — Displays the community to which the event belongs. • Description — Displays the user-defined event description. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 111. RMON Events Control Page...
  • Page 173 — Log and Trap — Indicates that the event is both a log entry and a trap. • Time — Displays the time that the event occurred. • Owner — Displays the device or user that defined the event. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 174: Figure 112. Rmon Events Logs Page

    Log No.— Displays the log number. • Log Time — Displays the time when the log entry was entered. • Description — Displays the log entry description. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Figure 112. RMON Events Logs Page...

  • Page 175: Figure 113. Rmon Alarm Page

    Counter Value — Displays the selected MIB variable value. • Sample Type — Defines the sampling method for the selected variable and comparing the value against the thresholds. The possible field values are: Figure 113. RMON Alarm Page Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 176: Figure 114. Add Alarm Entry Page

    3. Define the relevant fields. 4. Click device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide . The Add Alarm Entry Page opens: Figure 114. Add Alarm Entry Page . The entry is added to the Add Alarm Entry Page, and the...

  • Page 177: Figure 115. Rmon Alarms Definition Page

    1. Click . The RMON Alarms Definition Page opens: Figure 115. RMON Alarms Definition Page 2. Define the relevant fields. 3. Click . The RMON alarm is added, and the device is updated. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 178 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 179: A Troubleshooting

    UI” action in the chassis management module GUI does not open web browser of the switch. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Possible Causes Switch was not inserted Pull the switch out and re-insert it into properly or handle was not the chassis slot.
  • Page 180 If the problem persists, consult your technical support representative. The other side is not Ensure both sides have the same configured with the same port configuration settings (speed, attributes as the switch’s duplex, auto-negotiation, etc.) port. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Solutions...

  • Page 181: B Installation/Assembly Safety Instructions

    Installation/Assembly Safety Instructions English Intel® Gigabit Ethernet Switch AXXSW1GB User Guide The power supply in this product contains no user-serviceable parts. Refer servicing only to qualified personnel. Do not attempt to modify or use the supplied AC power cord if it is not the exact type required.
  • Page 182 • Provided with a properly grounded wall outlet. • Provided with sufficient space to access the power supply cord(s), because they serve as the product's main power disconnect. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 183: Deutsch

    Deutsch Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Benutzer können am Netzgerät dieses Produkts keine Reparaturen vornehmen. Das Produkt enthält möglicherweise mehrere Netzgeräte. Wartungsarbeiten müssen von qualifizierten Technikern ausgeführt werden. Versuchen Sie nicht, das mitgelieferte Netzkabel zu ändern oder zu verwenden, wenn es sich nicht genau um den erforderlichen Typ handelt.
  • Page 184 Schutzhandschuhe tragen. Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie darf nur durch denselben oder einen entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt werden. Entsorgen Sie verbrauchte Batterien den Anweisungen des Herstellers entsprechend. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 185 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Das System wurde für den Betrieb in einer normalen Büroumgebung entwickelt. Der Standort sollte: • "sauber und staubfrei sein (Hausstaub ausgenommen); • "gut gelüftet und keinen Heizquellen ausgesetzt sein (einschließlich direkter Sonneneinstrahlung); •...

  • Page 186: Français

    Procédez comme suit: 1. Si un cadenas a été installé sur à l'arrière du système, déverrouillez-le et retirez-le. 2. Retirez toutes les vis des panneaux et mettez-les dans un endroit sûr. 3. Retirez les panneaux. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 187 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Afin de permettre le refroidissement et l'aération du système, réinstallez toujours les panneaux du boîtier avant de mettre le système sous tension. Le fonctionnement du système en l'absence des panneaux risque d'endommager ses pièces. Pour installer les panneaux, procédez comme suit:...

  • Page 188: Español

    Para ello: 1. Desbloquee y extraiga el bloqueo de seguridad de la parte posterior del sistema, si se ha instalado uno. 2. Extraiga y guarde todos los tornillos de las tapas.Extraiga las tapas. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 189 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Para obtener un enfriamiento y un flujo de aire adecuados, reinstale siempre las tapas del chasis antes de poner en marcha el sistema. Si pone en funcionamiento el sistema sin las tapas bien colocadas puede dañar los componentes del sistema.

  • Page 190: Italiano

    1. Aprire e rimuovere il lucchetto dal retro del sistema qualora ve ne fosse uno installato. 2. Togliere e mettere in un posto sicuro tutte le viti delle coperture. 3. Togliere le coperture. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 191 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide Per il giusto flusso dell'aria e raffreddamento del sistema, rimettere sempre le coperture del telaio prima di riaccendere il sistema. Operare il sistema senza le coperture al loro proprio posto potrebbe danneggiare i componenti del sistema. Per rimettere le coperture del telaio: 1.
  • Page 192 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 193: C Safety Information

    The following safety symbols may be used throughout the documentation and may be marked on the product and / or the product packaging. CAUTION WARNING Intel® Gigabit Ethernet Switch AXXSW1GB User Guide ® server boards, Intel ® server product.

  • Page 194: Site Selection

    To remove power from system, you must unplug the AC power cord from the wall outlet. Your system may use more than one AC power cord. Make sure all AC power cords are Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 195 Turn off the system by pressing the power button to off. • Disconnect the AC power by unplugging all AC power cords from the system or wall outlet. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide ® servers use Neutral Pole Fusing. To avoid risk of shock use...
  • Page 196 Always handle boards carefully. They can be extremely sensitive to ESD. Hold boards only by their edges. After removing a board from its protective wrapper or from the server, place the board component side up on a grounded, static free surface. Use a Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 197: Battery Replacement

    Caution: To avoid risk of radiation exposure and/or personal injury: • Do not open the enclosure of any laser peripheral or device • Laser peripherals or devices have are not user serviceable • Return to manufacturer for servicing Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 198 Deutsch Sicherheitshinweise für den Server Das vorliegende Dokument bezieht sich auf Intel® Serverplatinen, Intel® Servergehäuse (Standfuß und Rack) sowie installierte Peripheriegeräte. Es enthält Warnungen und Vorsichtsmaßnahmen zur Vermeidung von Gefahren durch Verletzung, Stromschlag, Feuer und Beschädigungen von Geräten. Lesen Sie diese Dokument daher sorgfältig, bevor Sie Ihr Intel®...
  • Page 199 Verwenden Sie mechanische oder andere geeignete Hilfsmittel zum Transportieren oder Anheben von Geräten. • Entfernen Sie alle Komponenten, die sich leicht abnehmen lassen, um das Gewicht zu reduzieren und die Handhabung zu erleichtern. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 200 Typ entspricht. Jedes Netzteil im System muß über ein eigenes Netzkabel angeschlossen werden. Einige Netzteile von Intel Servern verwenden Nullleitersicherungen. Vorsicht ist geboten im Umgang mit Netzteilen, welche Nullleitersicherungen verwenden, um das Risiko eines elektrischen Schlages zu vermeiden Das Netzteil in diesem Produkt enthält keine Teile, die vom Benutzer gewartet werden...
  • Page 201 Einbauen von Hot-Plug-Komponenten sorgfältig vor, um nicht mit heißen Komponenten in Berührung zu kommen. Vorsicht: Berühren Sie nicht die rotierenden Lüfterflügel, um Verletzungen zu vermeiden. Falls Ihr System mit eine Lüfterabdeckung besitzt, darf es nicht ohne diese Abdeckung betrieben werden. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 202 Ausbau aus dem Server mit der Bauelementseite nach oben auf eine geerdete, statisch entladene Unterlage.Verwenden Sie dazu, sofern verfügbar, eine leitfahige Schaumstoffunterlage, aber niche die Schutzhülle der Platine. Ziehen Sie die Platine nicht über eine Fläche. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 203 • Öffnen Sie keinesfalls das Gehäuse von Laser-Peripheriegeräten oder Laser- Komponenten. • Laser-Peripheriegeräte oder -Komponenten besitzen keine für den Benutzer wartungsbedürftigen Teile. • Schicken Sie das Gerät für Wartungsarbeiten an den Hersteller zurück. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

  • Page 204: Français

    Français Consignes de sécurité sur le serveur Ce document s’applique aux cartes serveur Intel®, au châssis de serveur Intel® (sur pieds et sur rack) et aux périphériques installés. Pour réduire les risques de dommages corporels, d’électrocution, d’incendie et de dommages matériels, lisez ce document et respectez tous les avertissements et précautions mentionnés dans ce guide avant...
  • Page 205 • Utilisez l’assistance mécanique ou toute autre assistance appropriée lorsque vous déplacez et soulevez le matériel. • Pour réduire le poids en vue de faciliter la manipulation, retirez tout composant amovible. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 206 Vous devez les débrancher avant d’ouvrir le châssis, d’ajouter ou de supprimer un composant non connectable à chaud. Les alimentations de certains serveurs Intel sont munies de doubles fusibles pôle/neutre: veuillez observer les précautions d'usage afin d'éviter tout risque d'eléctrocution.
  • Page 207 Attention: Pour éviter de vous blesser, ne touchez pas les pales de ventilateur en mouvement. Si votre système est fourni avec une protection sur le ventilateur, ne mettez pas le système en route sans la protection en place. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 208 Utilisez si possible un tapi de mousse conducteru, mais pas l’emballage de la carte. Veillez à ce que la carte ne glisse sur aucune surface. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 209 Attention: Pour éviter tout risque d’exposition aux rayonnements et/ou de dommage personnel: • N’ouvrez pas l’enceinte d’un périphérique laser. • Les périphériques laser ne sont pas réparables par l’utilisateur. • Retournez-les au fabricant en cas de problème. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 210 Español Información de seguridad del servidor Este documento se aplica a las tarjetas de servidor de Intel ® Intel (montaje en rack y en pedestal) y los dispositivos periféricos. Para reducir el riesgo de daños corporales, descargas eléctricas, fuego y en el equipo, lea este documento y preste atención a todos las advertencias y precauciones de esta guía antes de instalar o...
  • Page 211 Utilice medios mecánicos u otros que sean adecuados al trasladar o levantar el equipo. • Para que el peso sea menor para manipularlo con más facilidad, extraiga los componentes que sean de fácil extracción. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 212 CA estén desenchufado antes de abrir le gabinete, agregar o extraer cualquier componente que no es de conexión en funcionamiento. Algunas fuentes de alimentación de electricidad de los servidores de Intel utilizan el polo neutral del fuselaje. Para evitar riesgos de choques eléctricos use precauciones al trabajar con las fuentes de alimentación que utilizan el polo neutral de fuselaje.
  • Page 213 Precaución: Para evitar posibles daños, no toque las aspas en movimiento de los ventiladores. Si el sistema se le ha suministrado con una protección para el ventilador, asegúrese de que cuando esté funcionando el sistema la protección esté en su sitio. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 214 Utilice una almohadilla de espuma conductora si dispone de ella, pero nunca el envoltorio de la tarjeta. No deslice la tarjeta sobre ninguna superficie. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 215 Precaución: Para evitar el riesgo de la exposición a radiaciones o de daños personales: • No abra la caja de ningún periférico o dispositivo láser • Los periféricos o dispositivos láser no pueden ser reparados por el usuario • Haga que el fabricante los repare. Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 216 表示如果无视此 “ ? ? ? 项 ” ? ? ? ? ? ? ? 轻微人身伤害或财产损失的危险。 警告 表示如果无视此 “ ? ? ” ? ? ? ? ? ? ? 严重人身伤害的危险。 表示如果无视所示信息，即存在潜在的危险。 表示如果不遵守安全指导，存在可导致严重伤害或死亡的电击危险。 表示灼热组件或表面。 表示请勿触摸风机叶片，否则可能致伤。 表示拔下所有交流电线，断开交流电源 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 217 • 远离振动源或物理震动。 • 与电气设备产生的强大电磁场隔离。 • 在易受闪电袭击的地区，我们建议将系统插入电涌抑制器并在闪电期间断开通信 线路与调制解调器之间的连接。 • 提供正确接地的墙壁插座。 • 提供足够的空间，以便拿取电源供应线，因为这是本产品的主要电源断开器。 设备操作规范 减少人身伤害或设备受损的危险： • 移举设备时遵守当地的职业健康与安全要求。 • 借助机械手段或其他合适的手段移举设备。 • 拆除一切易分离组件，以降低重量并方便操作。 电源与电气警告 注意事项 电源按钮（如待机电源标记所示）并不能完全关闭系统的交流电源，只要系统已接 通电源，就存在 5V 待机电源。要从系统切断电源，须从墙壁电源插座中拔下交流电线。您的系统可能 不止使用一根交流电线。请确保所有的交流电线都已拔下。打开机箱或增加或去除 任何热插拔组件之前，确保交流电线已拔下。 若非所需的确切类型，请勿尝试修改或使用交流电线。系统的每个电源供应设备都 需要一根单独的交流电线。 本产品的电源供应设备包含非用户维修部件。请勿打开电源供应设备。电源供应设 备包含非常危险的电压级、电流级和能量级。请与生产商联系维修事宜。 替换热插拔电源供应设备时，请先拔下需替换的电源供应设备上的电源线，再将其 从服务器上移除。 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 218 ⎯ 电源线须拥有适合插座的安全接地插头或触点。 • 电源线为交流电源的主要断开设备。插座须靠近设备并可随时断开。 • 电源线须插入所提供的拥有合适接地的插座。 系统使用警告 注意事项 为避免人身伤害或财产损失，无论何时检查产品内部，以下安全指导都适用： • 关闭所有与本产品相连的外设。 • 按下电源按钮至关闭状态，关闭系统。 • 从系统或墙壁插座上拔下所有交流电线，断开交流电源。 • 断开与系统相连的所有线缆和通信线路。 • 卸除舱口盖时，保留所有螺钉及其他紧固件。完成产品内部检查之后，请 用螺钉或紧固件重新固定舱口盖。 • 请勿打开电源供应设备。电源供应设备内没有可维修部件。请与生产商联系 维修事宜. • 增加或替换任何非热插拔组件之前，请关闭服务器电源并断开所有电源线 。 • 替换热插拔电源供应设备时，请先拔下需替换的电源供应设备上的电源线 ，然后再从服务器上移除电源供应设备。 注意事项 如果服务器一直在运行，任何已安装的处理器和吸热设备都可能很热。除非要增加 或移除热插拔组件，否则请待系统冷却后再开盖。为避免在热插拔组件安装过程中 接触灼热组件，移除或安装热插拔组件时务须小心。 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 219 注意事项 为避免受伤，请勿触摸运转的风机叶片。如果系统的风机上配有防护装置，请勿卸 下风机防护装置运行系统。 机架固定件警告 设备的机架须固定在稳固的支座上，以防从中安装服务器或设备时倒塌。须按照机 架生产商提供的安装说明进行安装。 从下往上将设备安装在机架上，最重的设备安装在机架的最底层。 一次只从机架上安装一件设备。 您须负责安装整个机架装置的主要电源断开设备。此主要断开设备须随时可用，且 须标明为控制整个装置（而不仅限于服务器）的电源。 为避免潜在的电击危险，须对机架及其上所安装的每一件设备实行正确的安全接地 。 静电放电 (ESD) 注意事项 ESD 会损坏磁盘驱动器、主板及其他部件。我们建议您执行 ESD 工作站的所有步骤。如果没有 ESD 工作站，则采取一些静电放电保护措施，操作部件时，戴上与服务器上的机箱接地 或任何未喷漆金属表面连接的防静电腕带。 操作主板时始终保持小心。它们可能对 ESD 非常敏感。拿持主板时只接触边缘。从保护包装中或从服务器上取出主板后，请将 主板组件侧面朝上放置在无静电的接地表面上。请使用导电泡沫垫（若有），不要 使用主板包装。请勿将主板在任何表面上滑动。 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...
  • Page 220 其他危险 替换电池 注意事项 不正确替换电池可能导致爆炸危险。替换电池时，请只使用设备生产商推荐使用的 电池。 请按当地法规处置电池。 请勿对电池充电。 请勿拆卸、刺穿或以其他方式损坏电池。 冷却和气流 注意事项 按照说明小心布置线缆，尽量减少气流阻塞和冷却问题。 为保证适当的冷却和气流，运行系统时请确保机箱盖已安装。未安装机箱盖即运行 系统可能导致系统部件受损。安装机箱盖的步骤如下： 首先检查并确保系统内没有遗留的未固定工具或部件。 • 检查线缆、内插板和其他组件已正确安装。 • 按产品说明安装机箱盖。 • 激光外设或激光设备 注意事项 为避免幅射暴露和 / 或人身伤害： 请勿打开任何激光外设或激光设备的外壳 • 激光外设或激光设备为非用户维修设备 • 请与生产商联系维修事宜 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide...

Table of Contents
